Headlight (Hatchback)

Headlight Assembly (for Hatchback):

HEADLIGHT ASSEMBLY (for Hatchback)

REMOVAL

HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

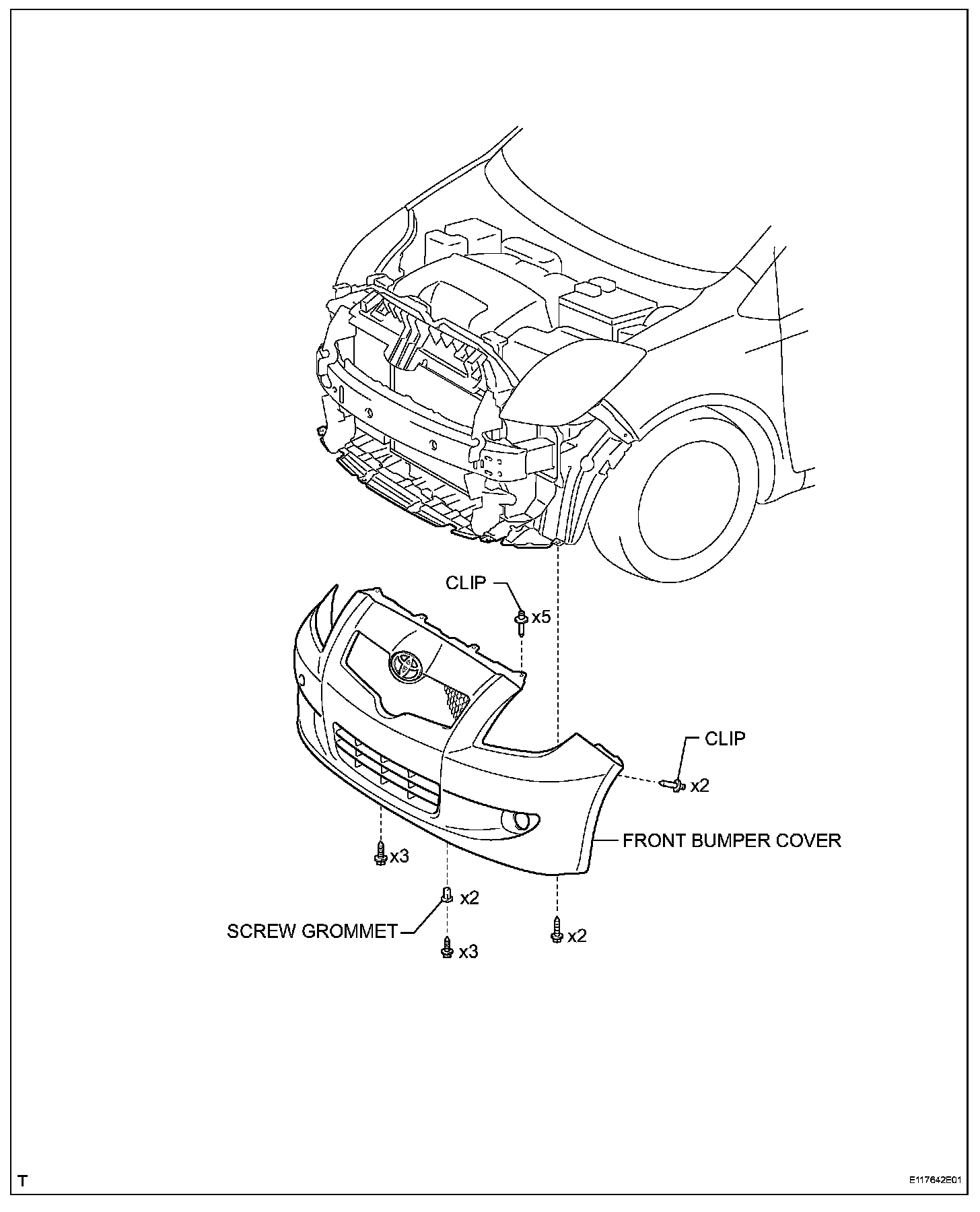

2. REMOVE FRONT BUMPER COVER

3. REMOVE HEADLIGHT ASSEMBLY

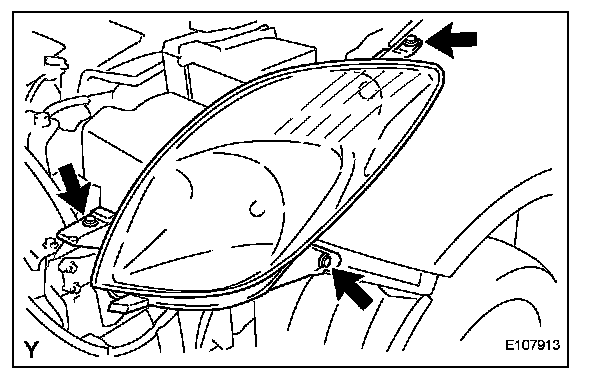

a. Remove the 3 screws.
b. Disconnect the 3 connectors, then remove the headlight.

INSTALLATION

1. INSTALL HEADLIGHT ASSEMBLY
a. Connect the 3 connectors.

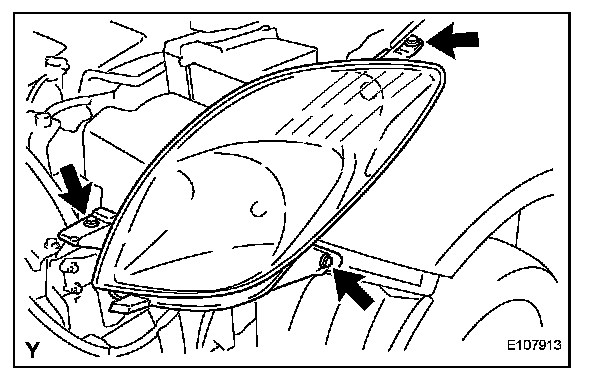

b. Install the headlight with the 3 screws.

2. INSTALL FRONT BUMPER COVER

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

4. PREPARE VEHICLE FOR HEADLIGHT AIMING ADJUSTMENT

5. PREPARE FOR HEADLIGHT AIMING (for Using a Tester)

6. PREPARE FOR HEADLIGHT AIMING (for Using a Screen)

7. INSPECT HEADLIGHT AIMING

8. ADJUST HEADLIGHT AIMING
