Headlight Assembly (For Sedan)

DISASSEMBLY




1. REMOVE HEADLIGHT NO. 1 BULB
a. Remove the socket cover.

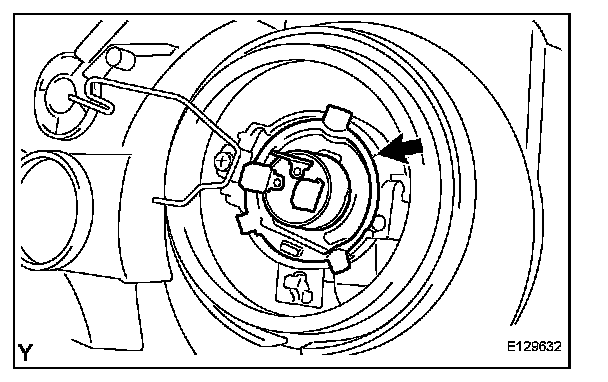

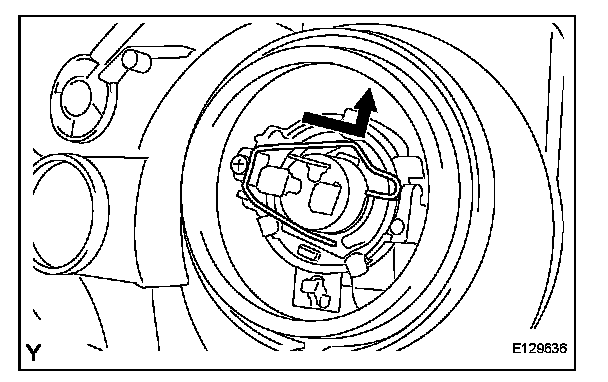

b. Push the set spring, and pull it in the directions indicated by the arrow in the illustration, to disengage it.




c. Remove the headlight No. 1 bulb.

NOTE: Do not touch the bulb glass with your fingers.




2. REMOVE FRONT TURN SIGNAL AND PARKING LIGHT BULB

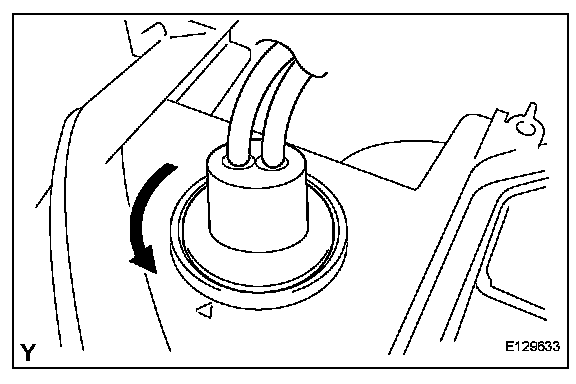

a. Turn the front turn signal and parking light socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.
b. Remove the front turn signal and parking light bulb from the light socket.




3. REMOVE SIDE MARKER LIGHT BULB

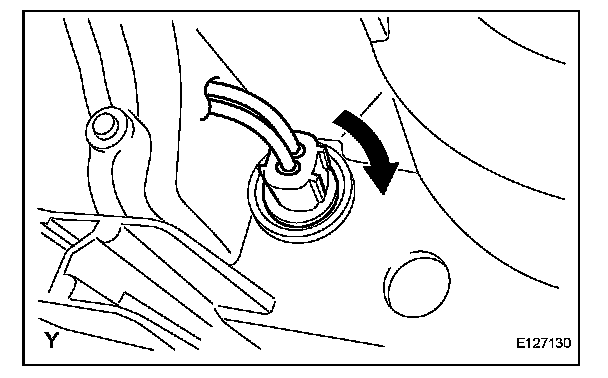

a. Turn the side marker light socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.
b. Remove the side marker light bulb from the light socket.

REASSEMBLY




1. INSTALL SIDE MARKER LIGHT BULB
a. Install the side marker light bulb into the light socket.

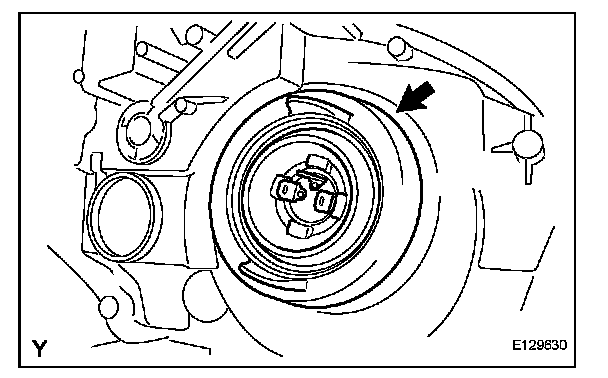

b. Turn the side marker light bulb socket and bulb, in the direction indicated by the arrow in the illustration, to install them.




2. INSTALL FRONT TURN SIGNAL AND PARKING LIGHT BULB
a. Install the front turn signal and parking light bulb into the light socket.

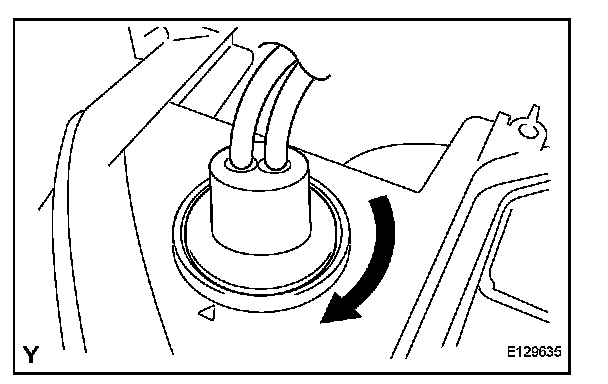

b. Turn the front turn signal and parking light bulb socket and bulb, in the direction indicated by the arrow in the illustration, to install them.




3. INSTALL HEADLIGHT NO. 1 BULB
a. Install the headlight No. 1 bulb.

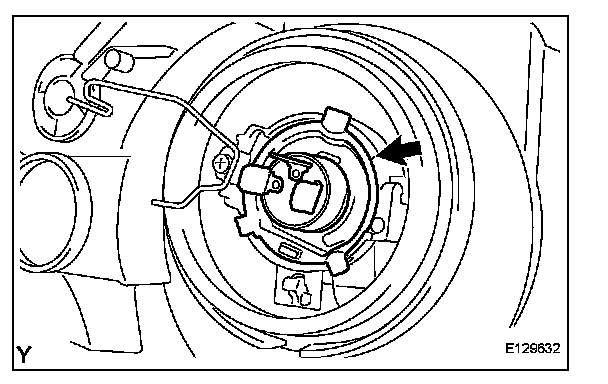

b. Lock the set spring by moving it in the directions indicated by the arrow in the illustration.




c. Install the socket cover.
