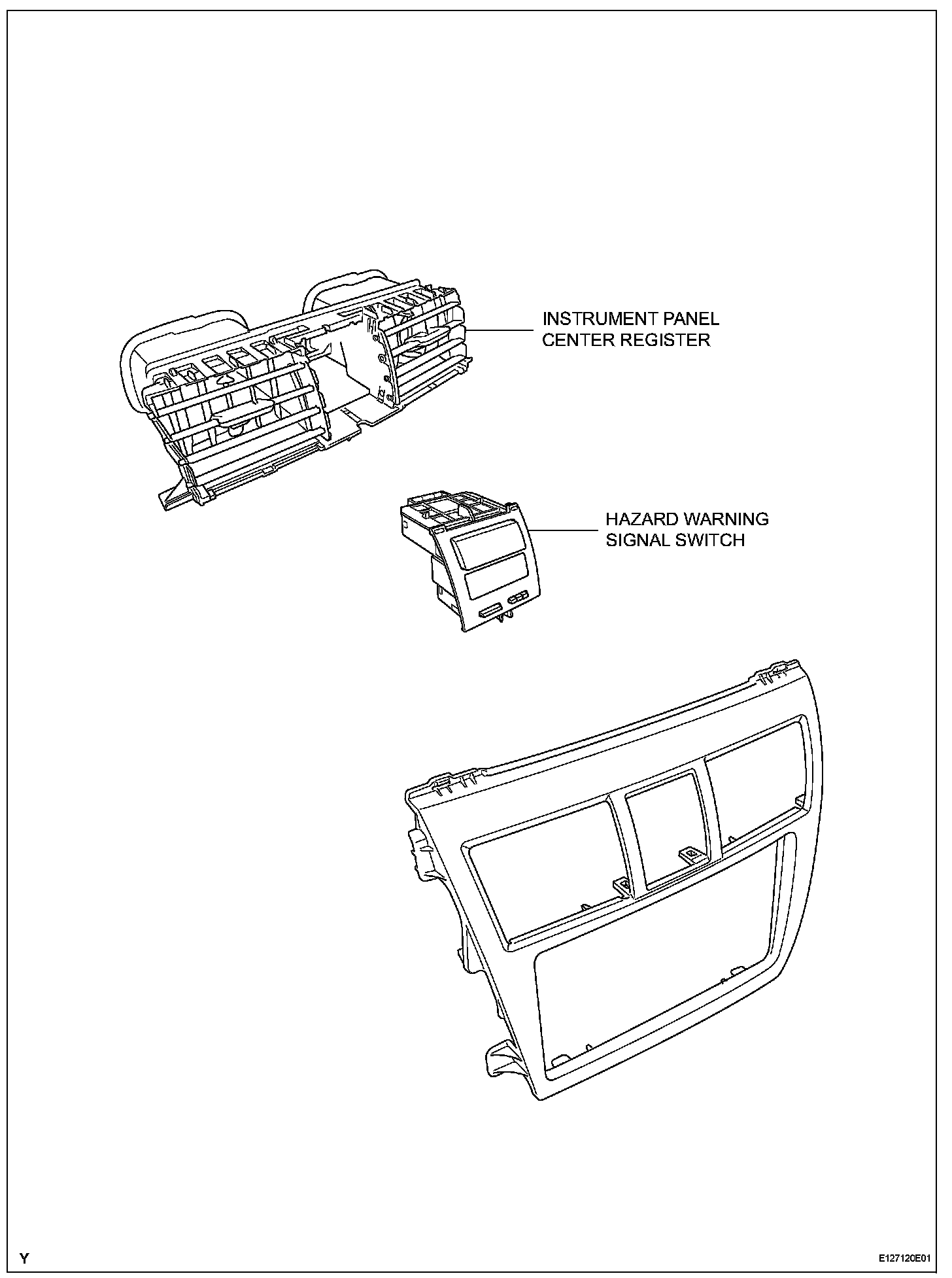

HAZARD WARNING SWITCH (for Sedan)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE INSTRUMENT CLUSTER FINISH PANEL

3. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER

4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

6. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER SUB-ASSEMBLY (w/o Radio Receiver)

7. REMOVE RADIO RECEIVER ASSEMBLY (w/ Radio Receiver)




8. REMOVE INSTRUMENT PANEL CENTER REGISTER

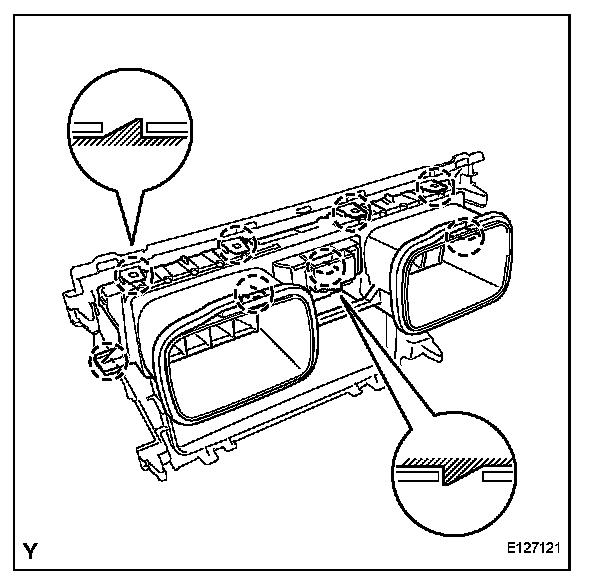

a. Disengage the 8 claws and remove the instrument panel center register.




9. REMOVE HAZARD WARNING SIGNAL SWITCH

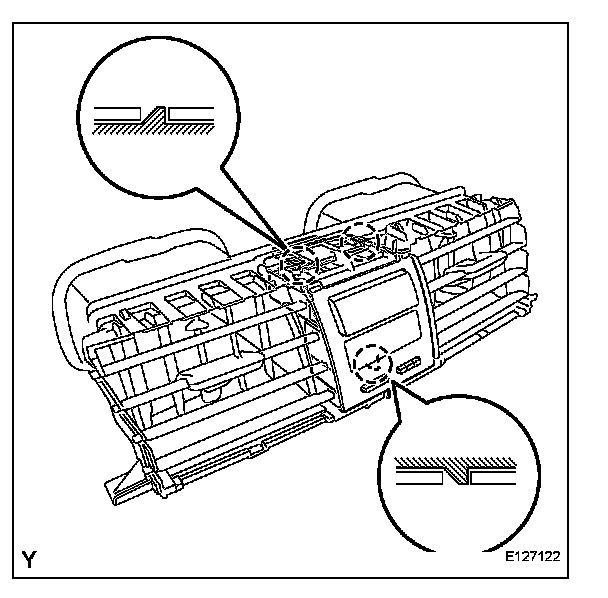

a. Disengage the 3 claws and remove the hazard warning signal switch.

INSTALLATION




1. INSTALL HAZARD WARNING SIGNAL SWITCH
a. Engage the 3 claws and remove the hazard warning signal switch.




2. INSTALL INSTRUMENT PANEL CENTER REGISTER
a. Engage the 8 claws and the instrument panel center register.

3. INSTALL INSTRUMENT CLUSTER FINISH PANEL CENTER SUB-ASSEMBLY (w/o Radio Receiver)

4. REMOVE RADIO RECEIVER ASSEMBLY (w/ Radio Receiver)

5. INSTALL INSTRUMENT CLUSTER FINISH PANEL

6. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

7. INSTALL INSTRUMENT PANEL FINISH PANEL END RH

8. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER

9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
