Hazard Warning Switch (For Hatchback)

Hazard Warning Switch (for Hatchback):

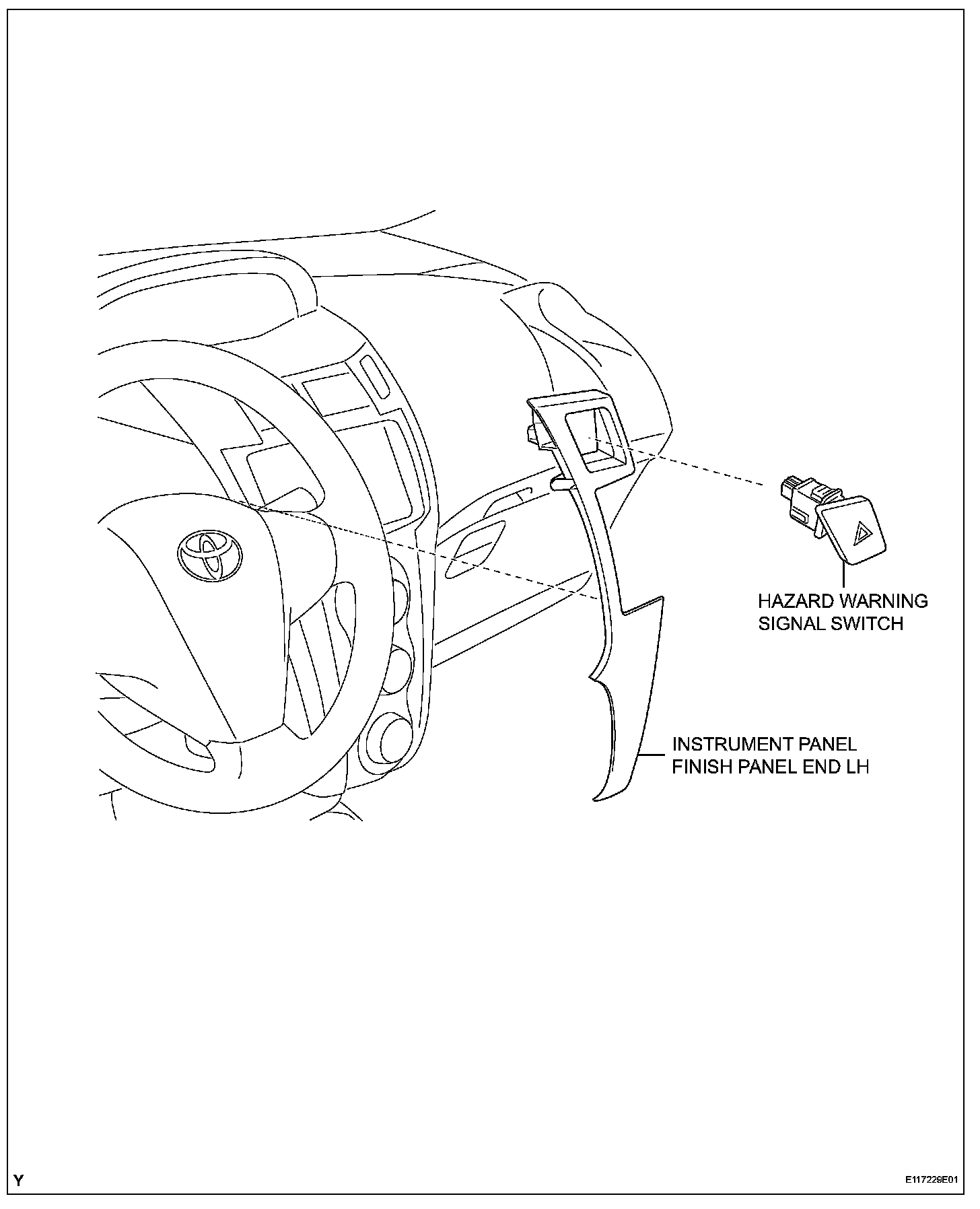

HAZARD WARNING SWITCH (for Hatchback)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH




3. REMOVE HAZARD WARNING SIGNAL SWITCH

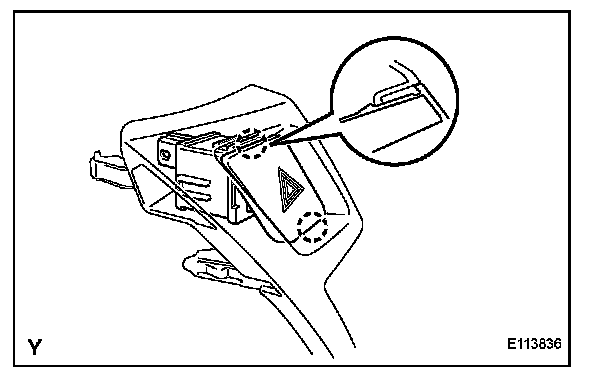

a. Disengage the 2 claws and remove the hazard warning signal switch.

INSTALLATION




1. INSTALL HAZARD WARNING SIGNAL SWITCH
a. Engage the 2 claws and install the hazard warning signal switch.

2. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
