Fog Light Assembly (For Hatchback)

Fog Light Assembly (for Hatchback):

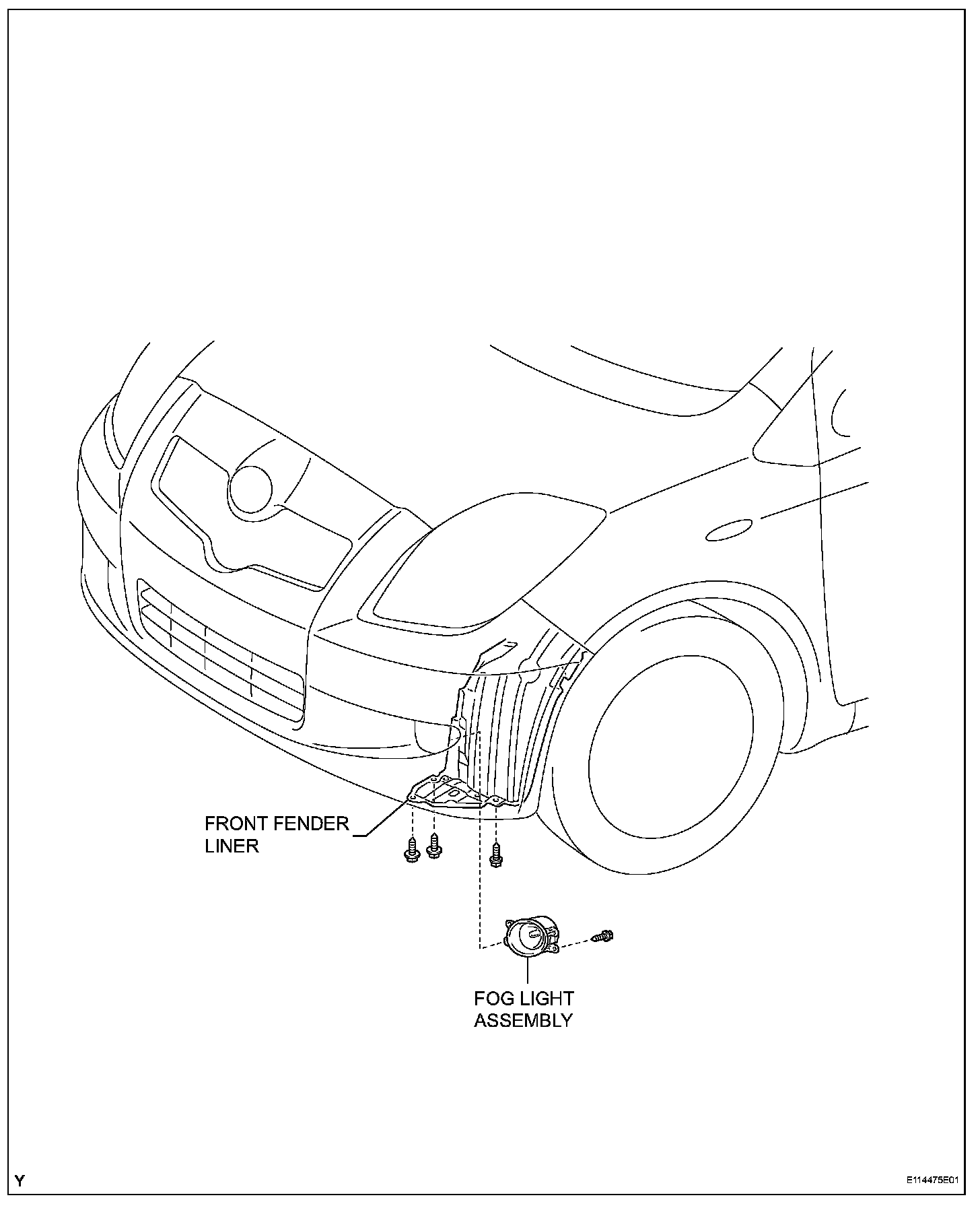

FOG LIGHT ASSEMBLY (for Hatchback)

REMOVAL

HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE FRONT FENDER LINER

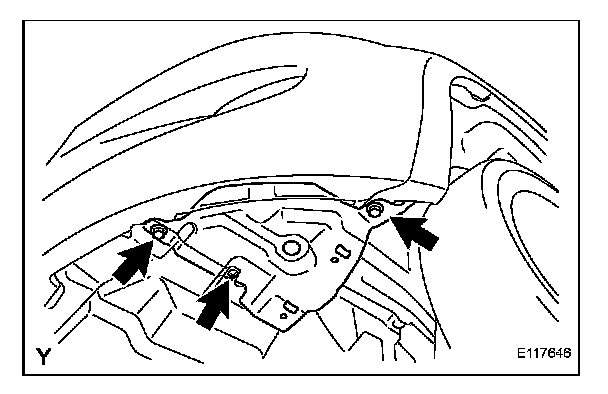

a. Remove the 3 screws and remove the front side of the front fender liner.

3. REMOVE FOG LIGHT ASSEMBLY
a. Disconnect the connector.

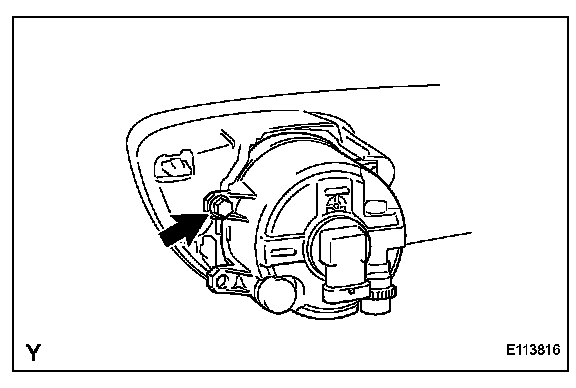

b. Remove the screw, then remove the fog light.

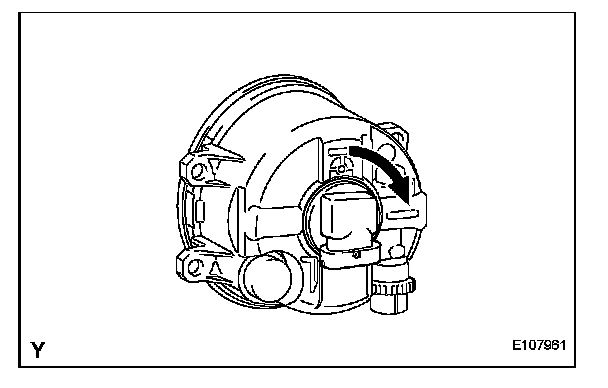

c. Turn the fog light bulb, in the direction indicated by the arrow in the illustration, to remove it.

INSTALLATION

1. INSTALL FOG LIGHT ASSEMBLY




a. Turn the fog light bulb, in the direction indicated by the arrow in the illustration, to install it.




b. Install the fog light with the screw.
c. Connect the connector.

2. INSTALL FRONT FENDER LINER

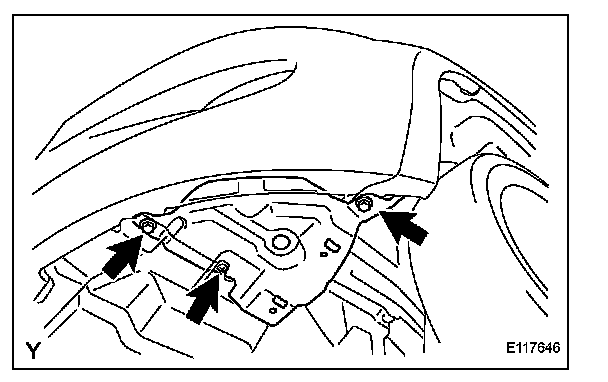

a. Install the 3 screws.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

4. PREPARE VEHICLE FOR FOG LIGHT AIMING ADJUSTMENT

5. PREPARE FOR FOG LIGHT AIMING

6. INSPECT FOG LIGHT AIMING

7. ADJUST FOG LIGHT AIMING
