Dome Lamp: Service and Repair

Room Light Assembly:

ROOM LIGHT ASSEMBLY

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL




2. REMOVE ROOM LIGHT ASSEMBLY

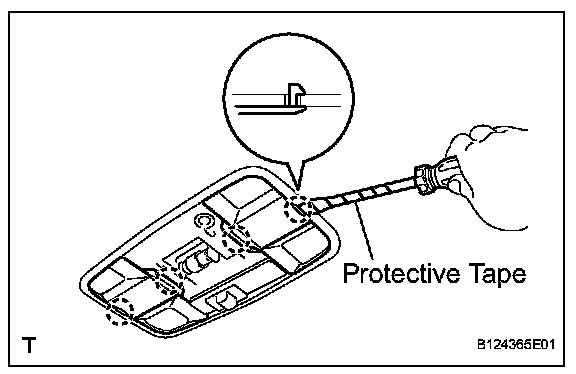

a. Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws and remove the room light lens.




b. Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws and remove the 2 covers.




c. Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws.

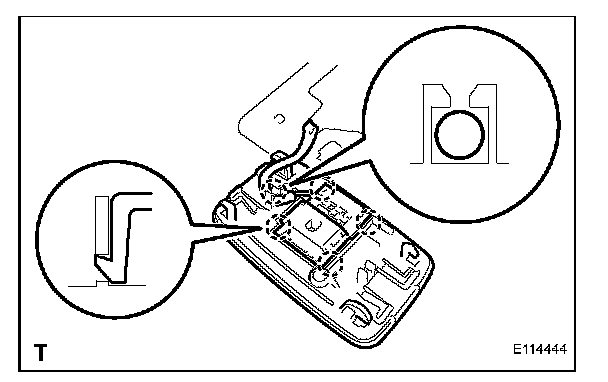

d. Disengage the roof wire from the claw of the room light.
e. Using a screwdriver with its tip wrapped in protective tape, disengage the 4 claws and remove the room light switch base.
f. Remove room light bulb No. 1.

INSTALLATION

1. INSTALL ROOM LIGHT ASSEMBLY
a. Install room light bulb No. 1.




b. Engage the 4 claws and install the room light switch base.
c. Install the roof wire into the claw of the room light.




d. Engage the 4 claws and install the room light.




e. Engage the 4 claws and install the 2 covers.




f. Engage the 4 claws and install the room light lens.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
