High Mounted Stop Light Assembly (For Sedan Without Rear Spoiler)

High Mounted Stop Light Assembly (for Sedan Without Rear Spoiler):

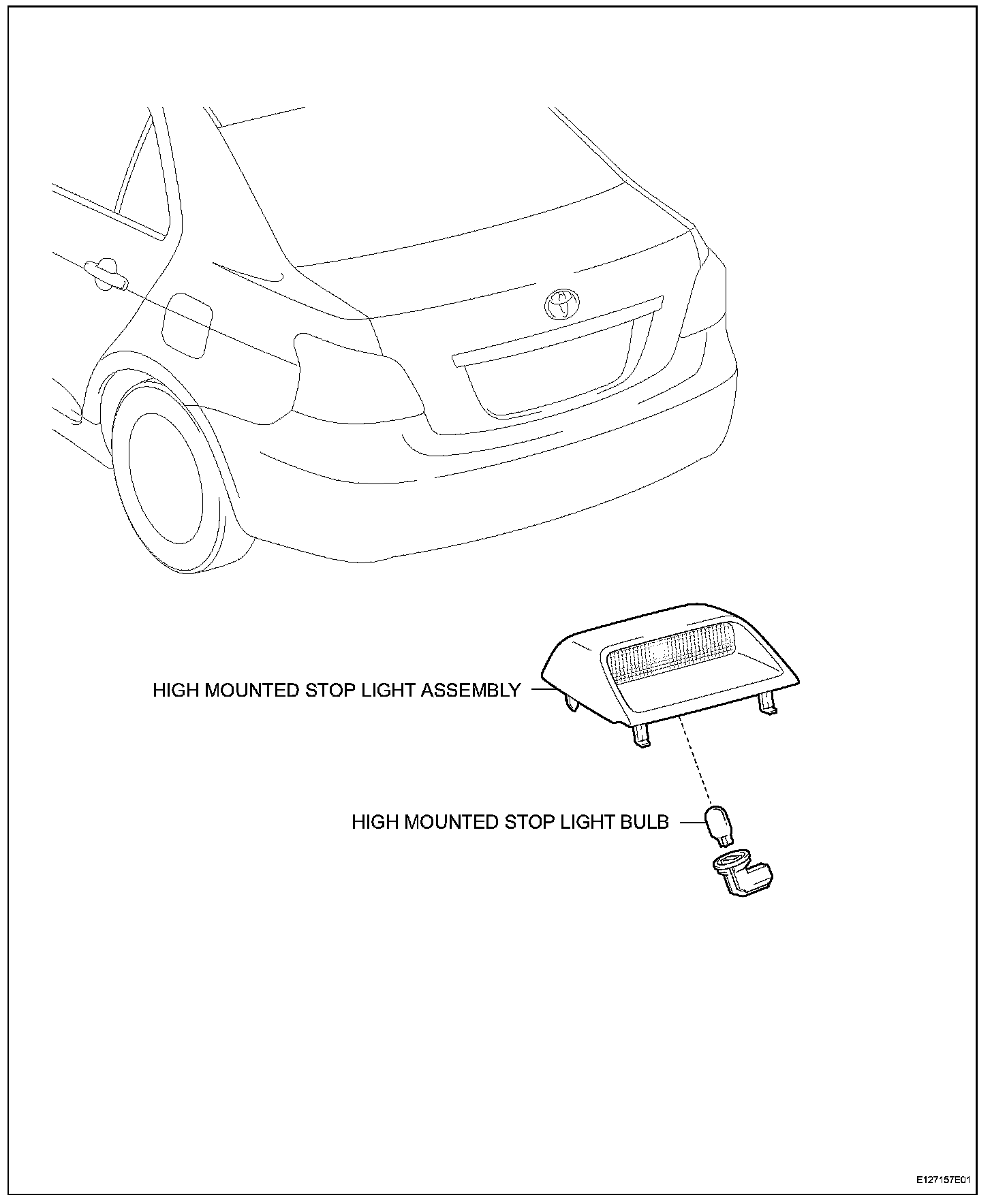

HIGH MOUNTED STOP LIGHT ASSEMBLY (for Sedan without Rear Spoiler)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL




2. REMOVE HIGH MOUNTED STOP LIGHT ASSEMBLY

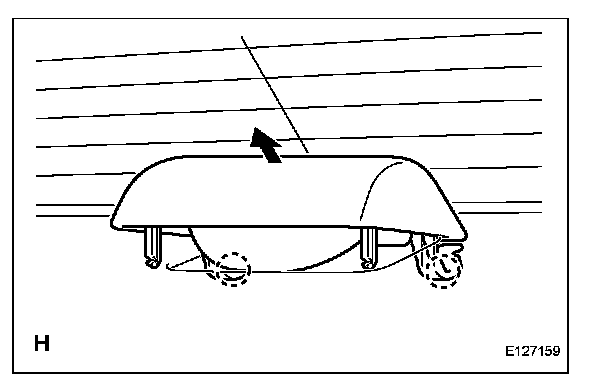

a. Disengage the 2 claws.




b. Disengage the 2 claws.
c. Disconnect the connector and remove the high mounted stop light assembly.

3. REMOVE HIGH MOUNTED STOP LIGHT BULB

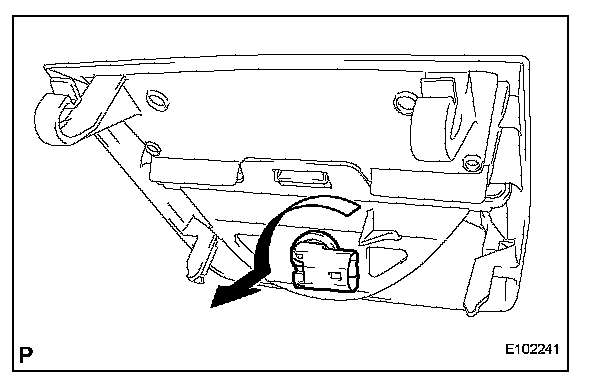

a. Turn the high mounted stop light socket and bulb, in the direction indicated by the arrow in the illustration, to remove them.
b. Remove the high mounted stop light bulb from the light socket.

INSTALLATION

1. INSTALL HIGH MOUNTED STOP LIGHT BULB
a. Install the high mounted stop light bulb into the light socket.

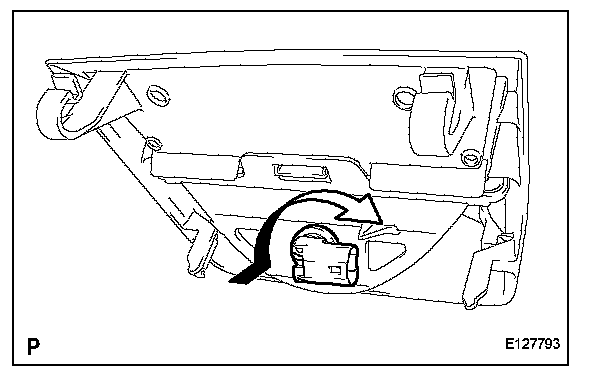

b. Turn the high mounted stop light bulb socket and bulb, in the direction indicated by the arrow in the illustration, to install them.




2. INSTALL HIGH MOUNTED STOP LIGHT ASSEMBLY
a. Connect the connector.

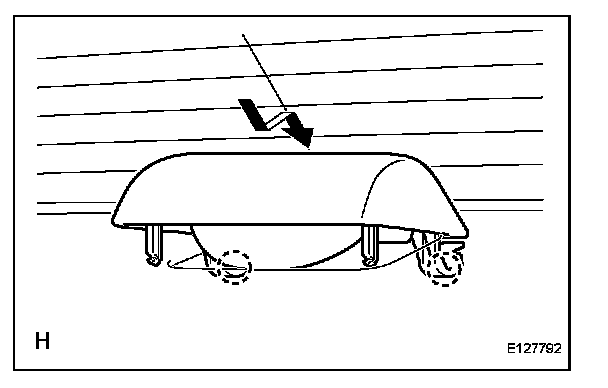

b. Engage the 4 claws and install the high mounted stop light assembly.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
