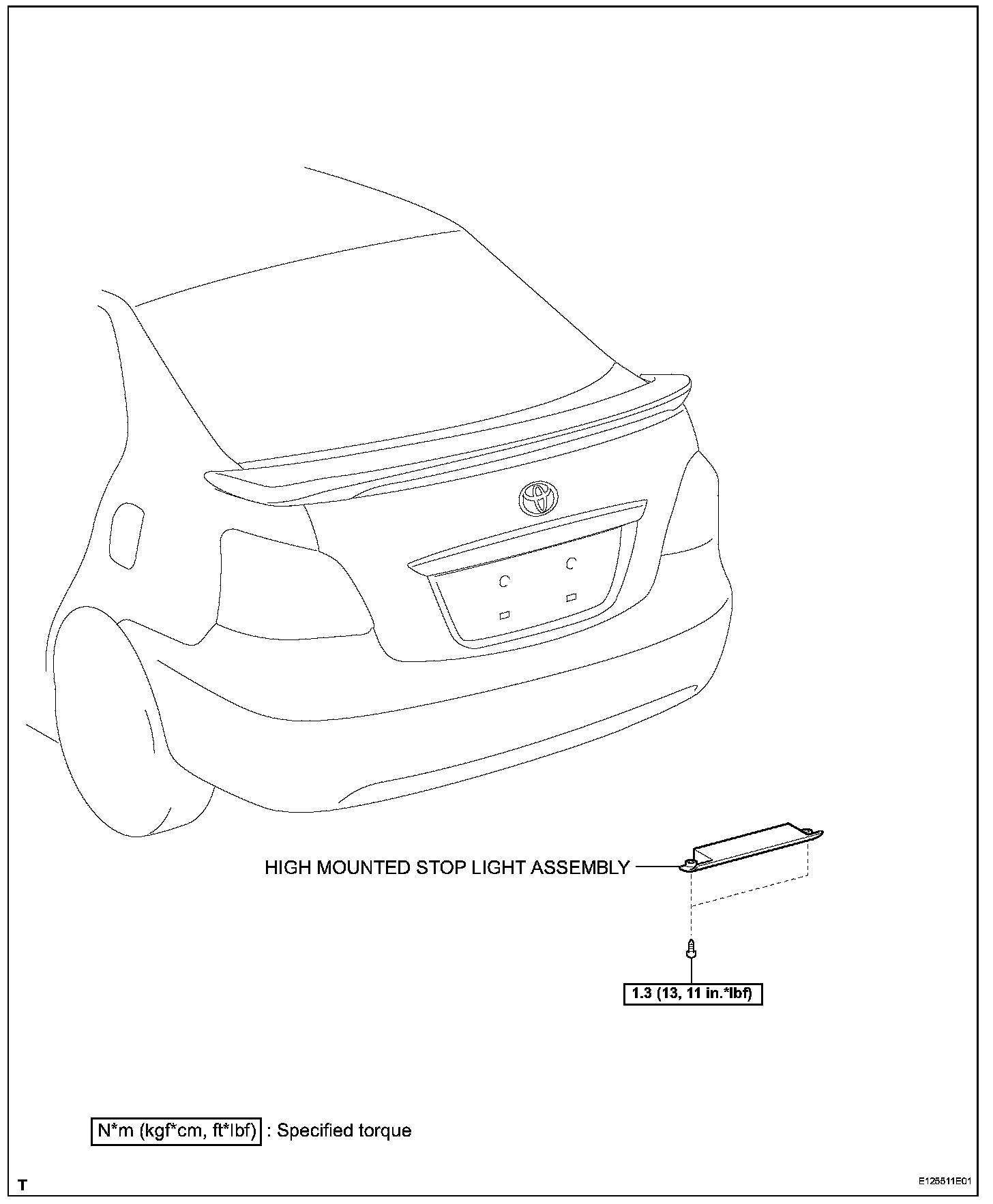

High Mounted Stop Light Assembly (For Sedan With Rear Spoiler)

High Mounted Stop Light Assembly (for Sedan With Rear Spoiler):

HIGH MOUNTED STOP LIGHT ASSEMBLY (for Sedan with Rear Spoiler)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL




2. REMOVE HIGH MOUNTED STOP LIGHT ASSEMBLY

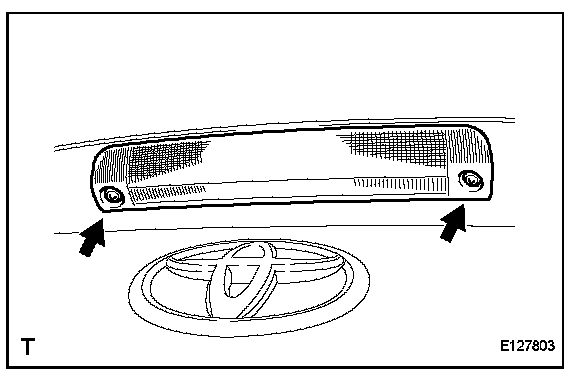

a. Remove the 2 bolts and the high mounted stop light.
b. Disconnect the connector.

INSTALLATION




1. INSTALL HIGH MOUNTED STOP LIGHT ASSEMBLY
a. Connect the connector.
b. Install the high mounted stop light with the 2 bolts.

Torque: 1.3 N.m (13 kgf.cm, 11 in.lbf)

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
