Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

HINT: Use the table as given to help determine the causes of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected area in the order they are listed. Replace parts as necessary.

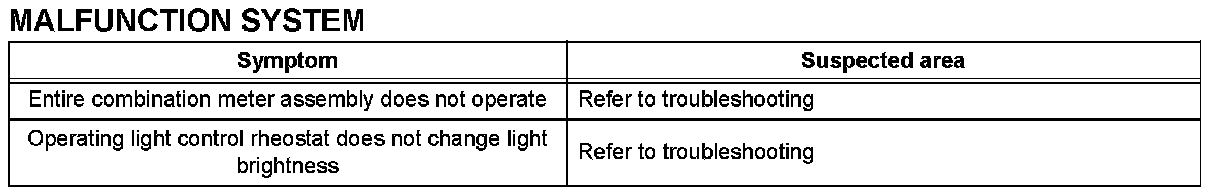

Problem Symptoms Table - Malfunction System:

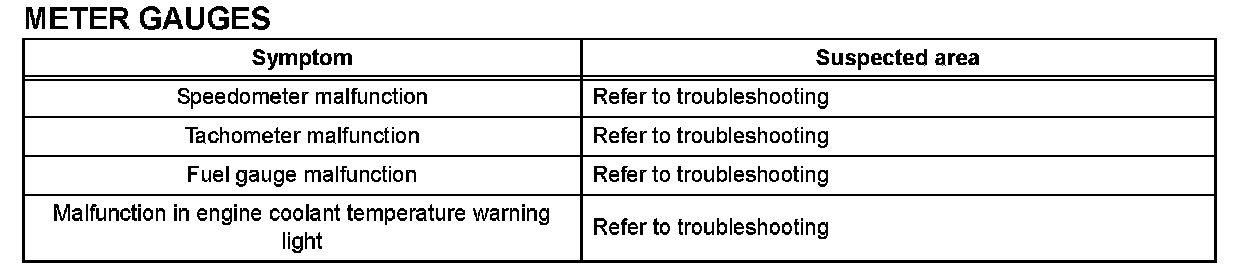

Problem Symptoms Table - Meter Gauges:

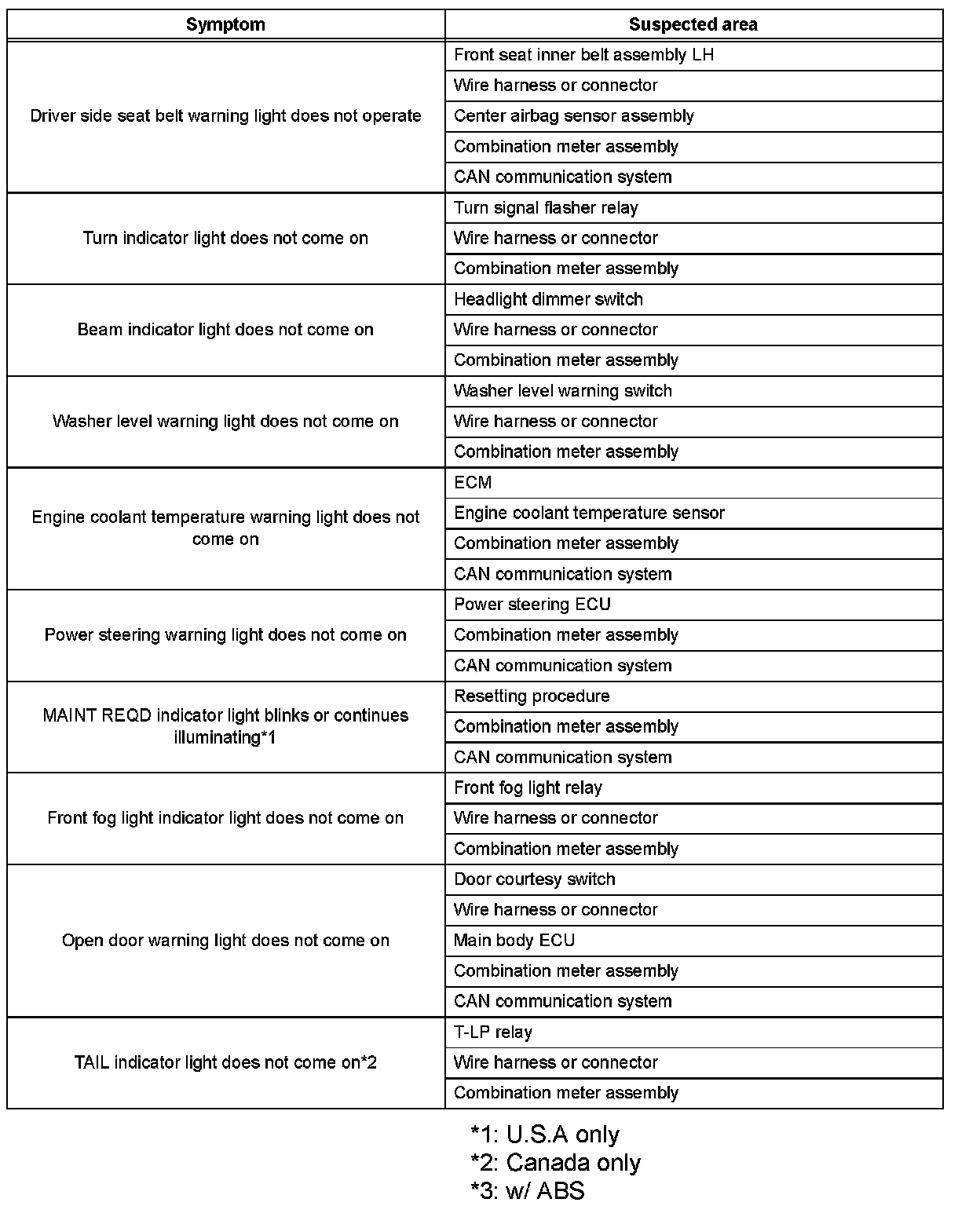

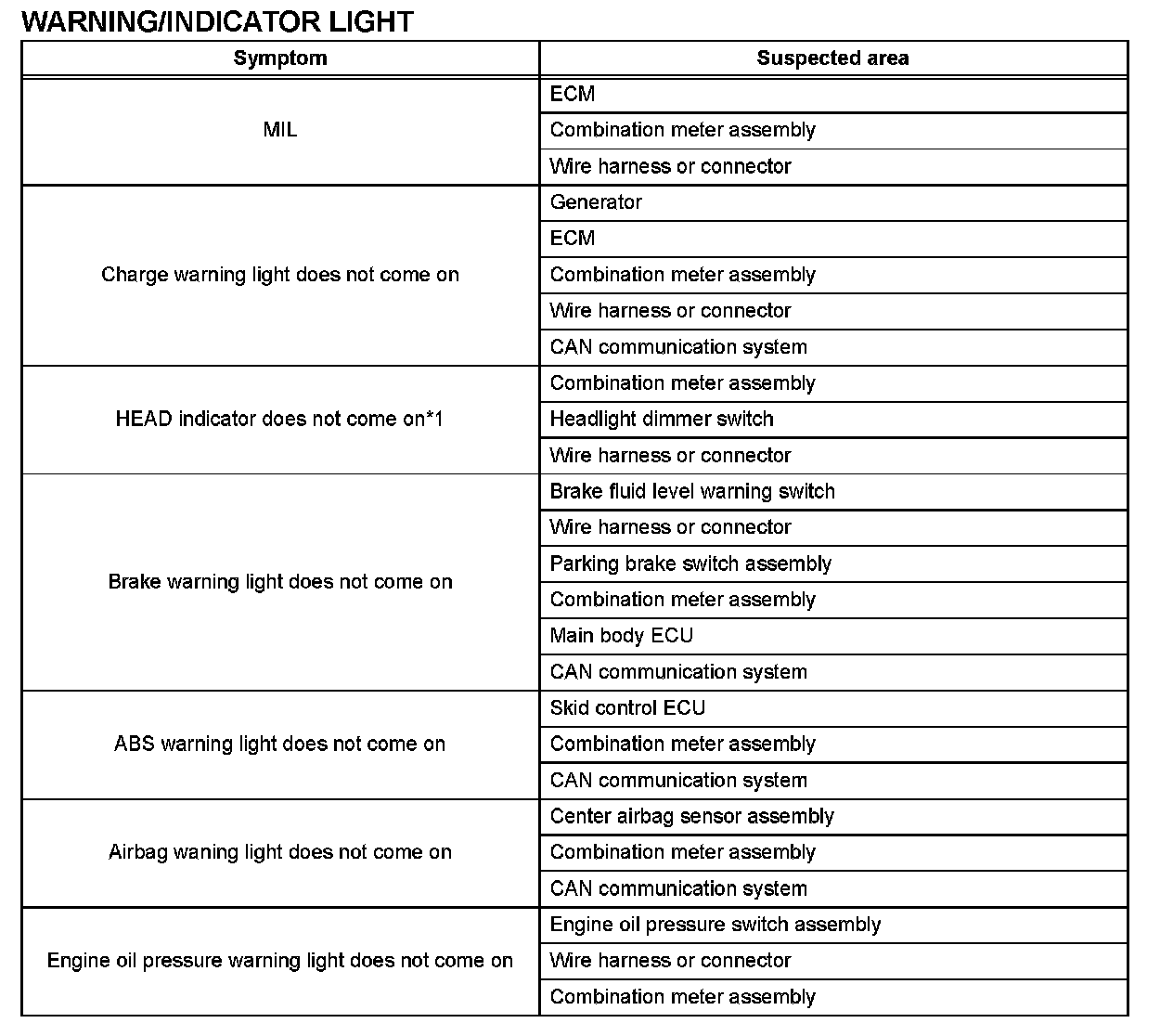

Problem Symptoms Table - Warning/Indicator Light:

Problem Symptoms Table - Warning/Indicator Light:

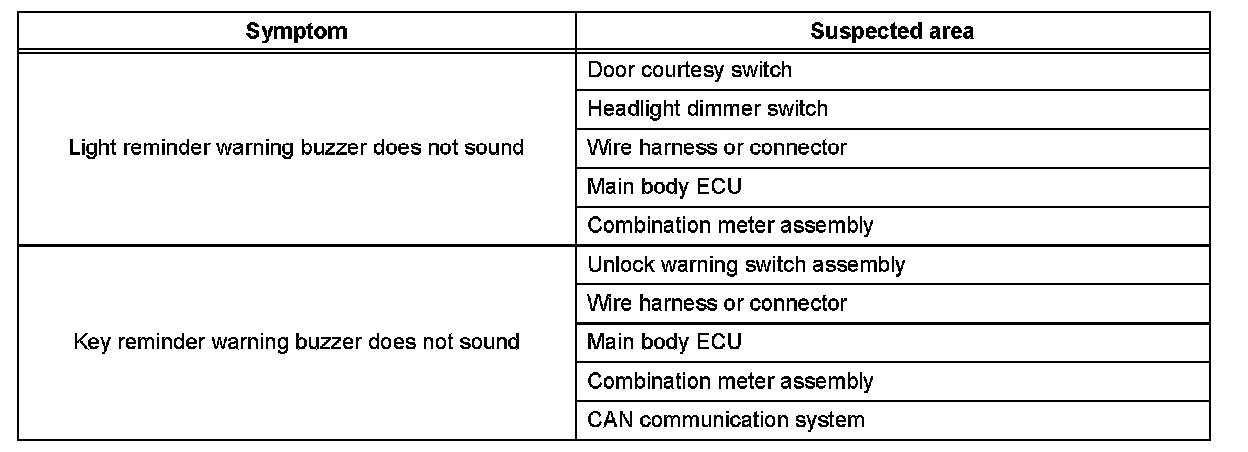

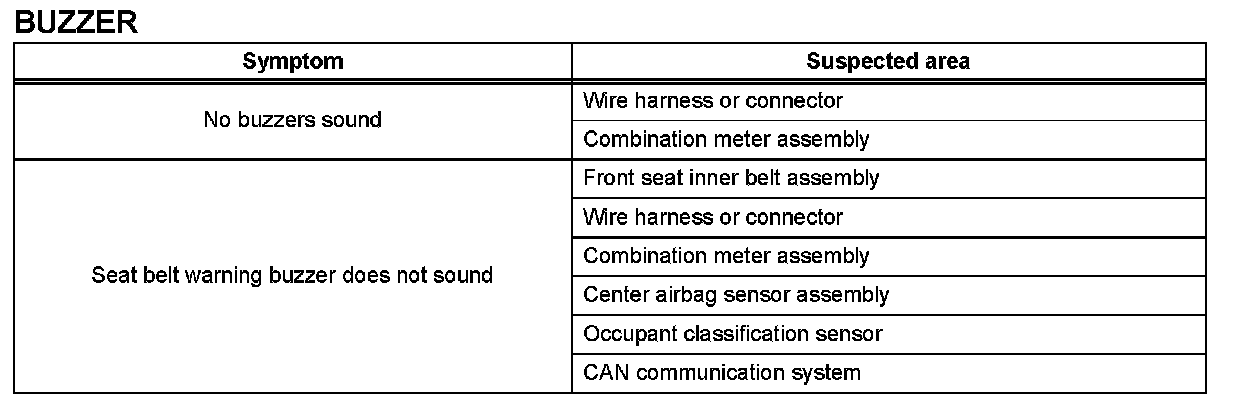

Problem Symptoms Table - Buzzer:

Problem Symptoms Table - Buzzer:
