Combination Meter (For Hatchback)

DISASSEMBLY




1. REMOVE CLOCK ASSEMBLY (w/ Tachometer)

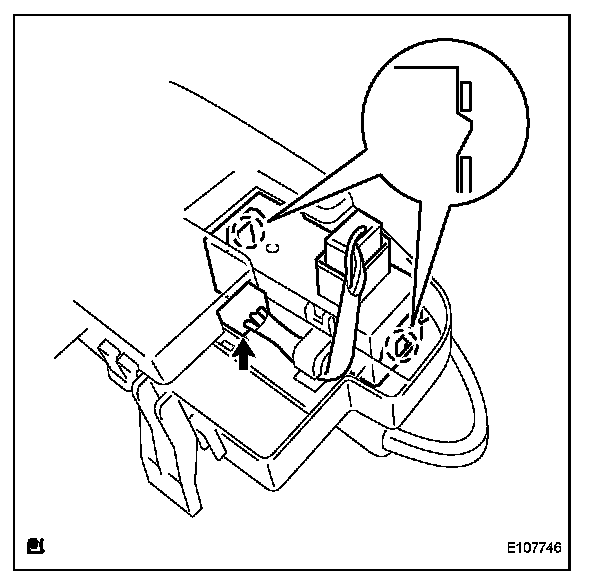

a. Remove the connector.
b. Disengage the 2 claws and remove the clock assembly.




2. REMOVE COMBINATION METER GLASS

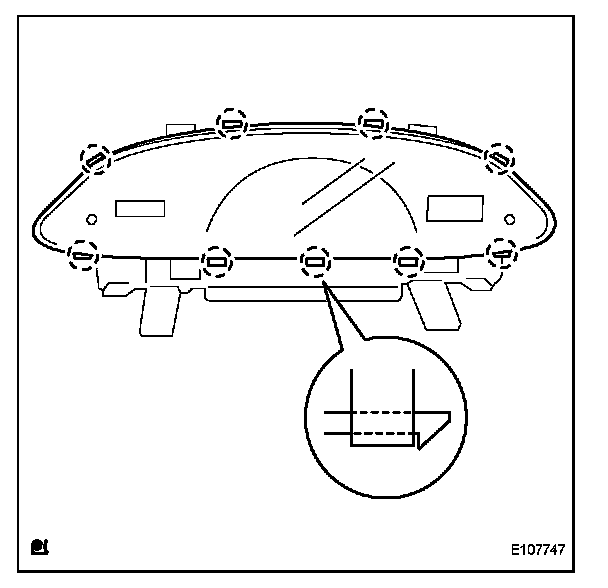

a. Disengage the 9 claws and remove the combination meter glass.

REASSEMBLY




1. INSTALL COMBINATION METER GLASS
a. Engage the 9 claws and install the combination meter glass.




2. INSTALL CLOCK ASSEMBLY (w/ Tachometer)

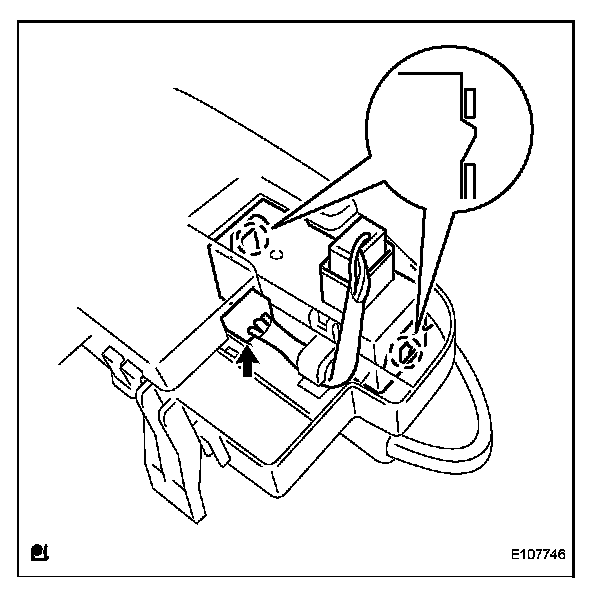

a. Engage the 2 claws and install the clock assembly.
b. Connect the connector.
