Front Door Courtesy Switch (For Hatchback)

INSPECTION




1. INSPECT FRONT DOOR COURTESY SWITCH
a. Check the resistance.

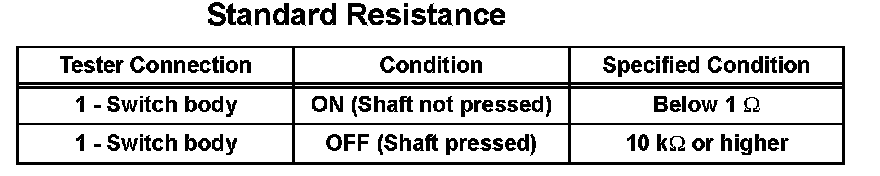

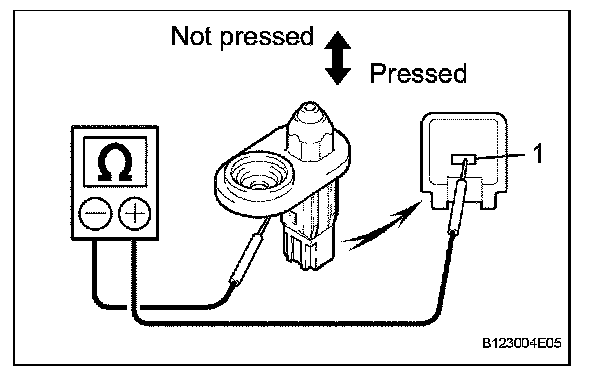

1. Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table given.

If the result is not as specified, replace the front door courtesy switch.
