Front Door Courtesy Switch (For Hatchback)

Front Door Courtesy Switch (for Hatchback):

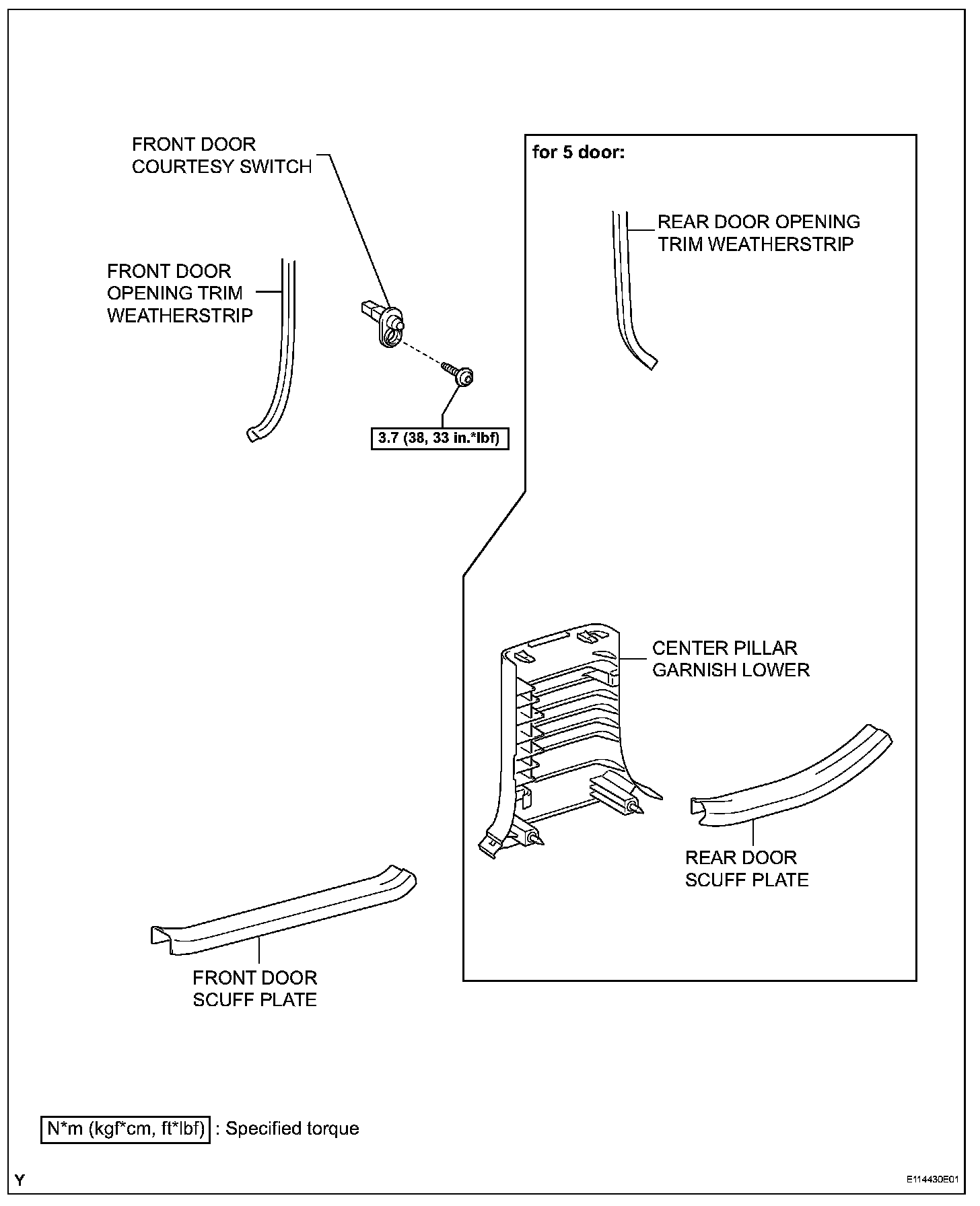

FRONT DOOR COURTESY SWITCH (for Hatchback)

REMOVAL

HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE FRONT DOOR SCUFF PLATE (for 5 Door)

3. REMOVE FRONT DOOR SCUFF PLATE (for 3 Door)

4. REMOVE REAR DOOR SCUFF PLATE (for 5 Door)

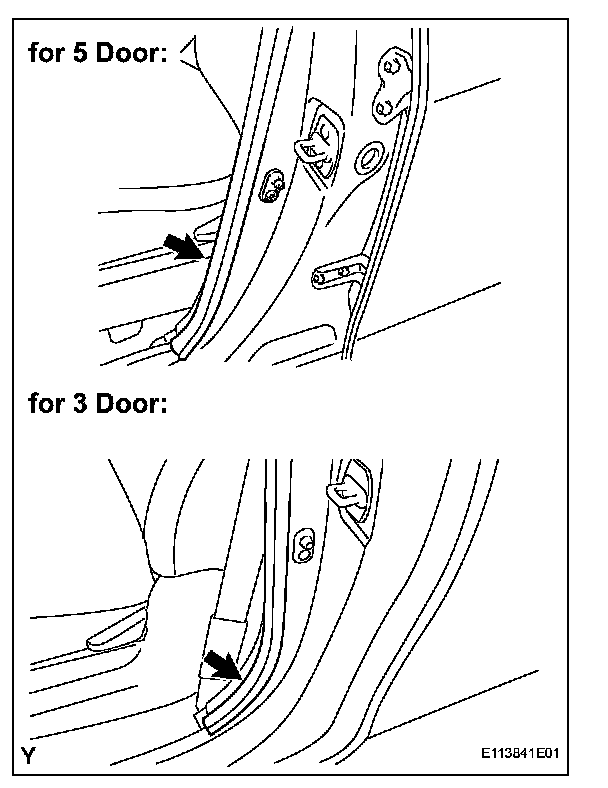

5. REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP
a. Remove the front door opening trim weatherstrip.

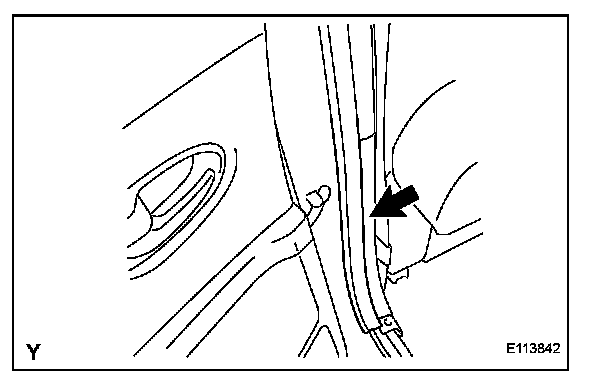

6. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP (for 5 Door)
a. Remove the rear door opening trim weatherstrip.

7. REMOVE CENTER PILLAR GARNISH LOWER (for 5 Door)

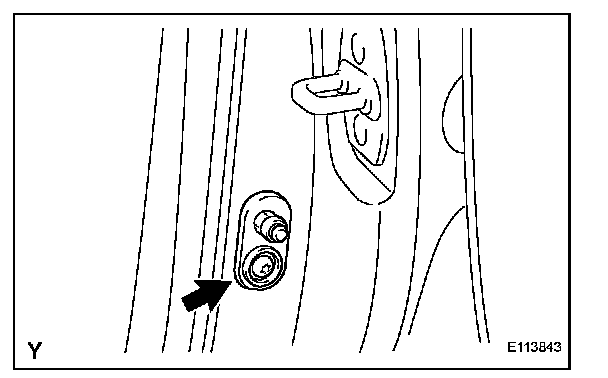

8. REMOVE FRONT DOOR COURTESY SWITCH
a. Using "Torx" socket wrench T30, remove the screw.
b. Disconnect the connector and remove the front door courtesy switch.

INSTALLATION




1. INSTALL FRONT DOOR COURTESY SWITCH
a. Connect the connector.
b. Using "Torx" socket wrench T30, install the front door courtesy switch with the screw.

Torque: 3.7 N.m (38 kgf.cm, 33 in.lbf)

2. INSTALL CENTER PILLAR GARNISH LOWER (for 5 Door)

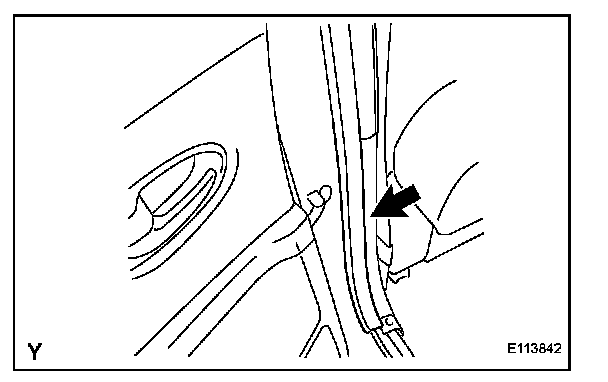

3. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP (for 5 Door)
a. Install the rear door opening trim weatherstrip.

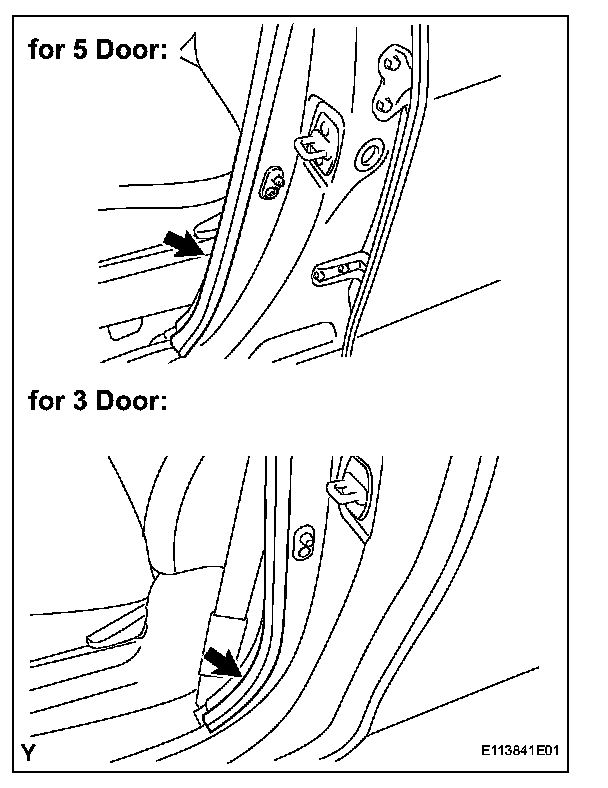

4. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP
a. Install the front door opening trim weatherstrip.

5. INSTALL REAR DOOR SCUFF PLATE (for 5 Door)

6. INSTALL FRONT DOOR SCUFF PLATE (for 5 Door)

7. INSTALL FRONT DOOR SCUFF PLATE (for 3 Door)

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
