IG Power Source Circuit

IG Power Source Circuit

DESCRIPTION
This is the main power source supplied to the air conditioning amplifier when the ignition switch is turned on. This power source is used for operating components such as the air conditioning amplifier.

Wiring Diagram:

Step 1:

Step 2:

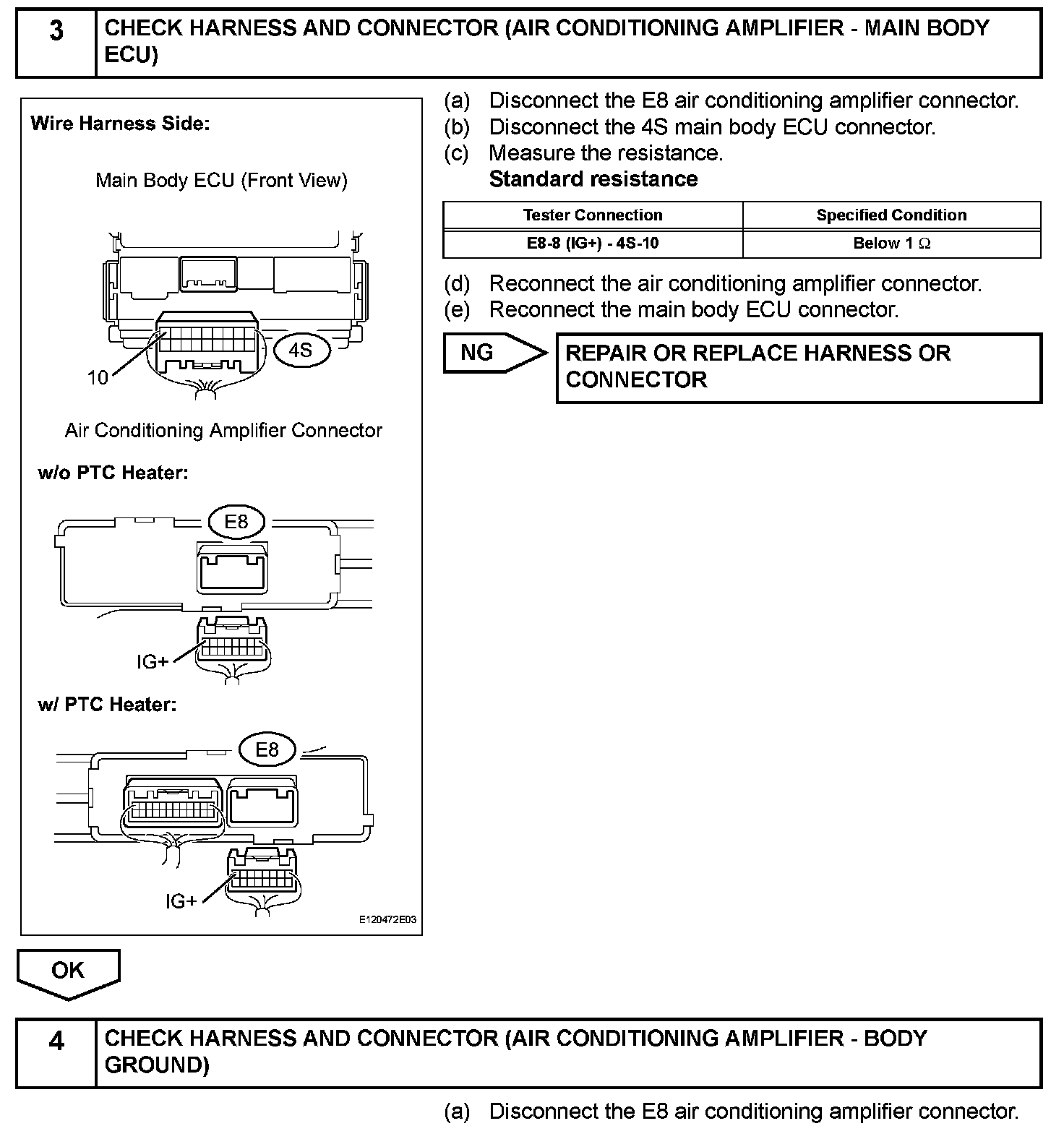

Step 3-4:

Step 4(Continued):

INSPECTION PROCEDURE

HINT: Start the engine before the inspection. Check the IG1 relay or battery if the engine does not start.
