Blower Motor Circuit

Blower Motor Circuit

DESCRIPTION
When the heater control (blower switch) is set to position 1 or higher the contact of the HTR relay is closed current flows to the blower motor and the blower motor operates. The blower motor speed can be changed by exchanging the ground and the blower resistor circuit with the heater control (blower switch).

Wiring Diagram:

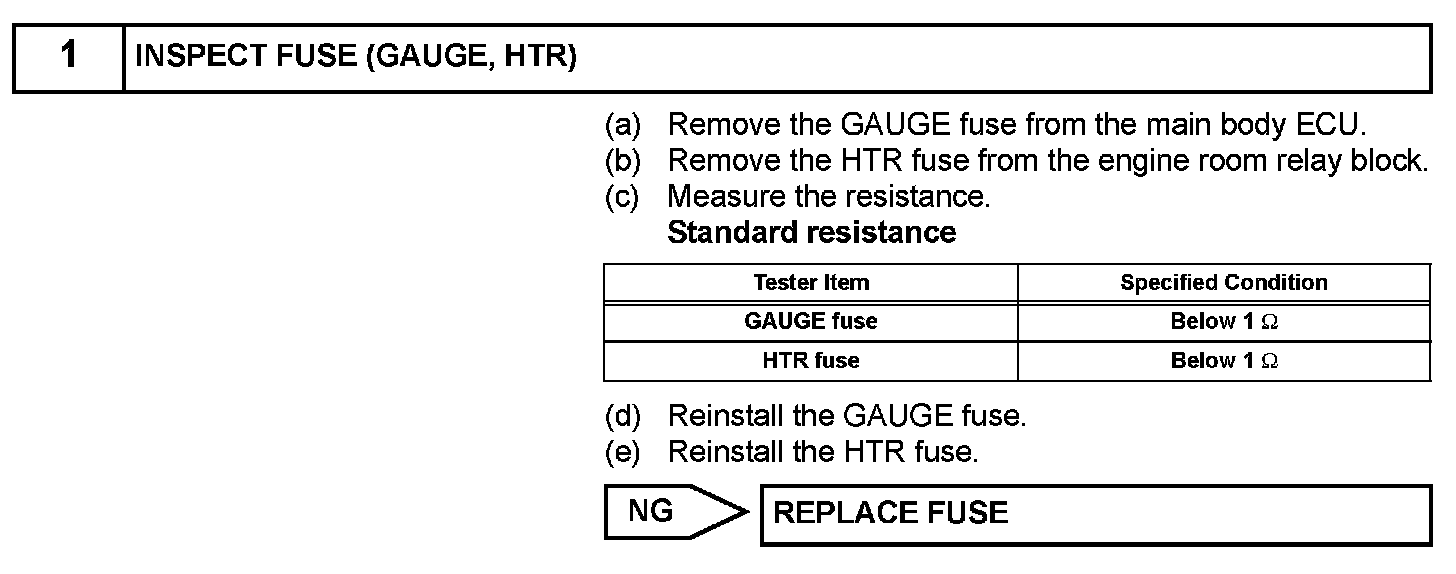

Step 1:

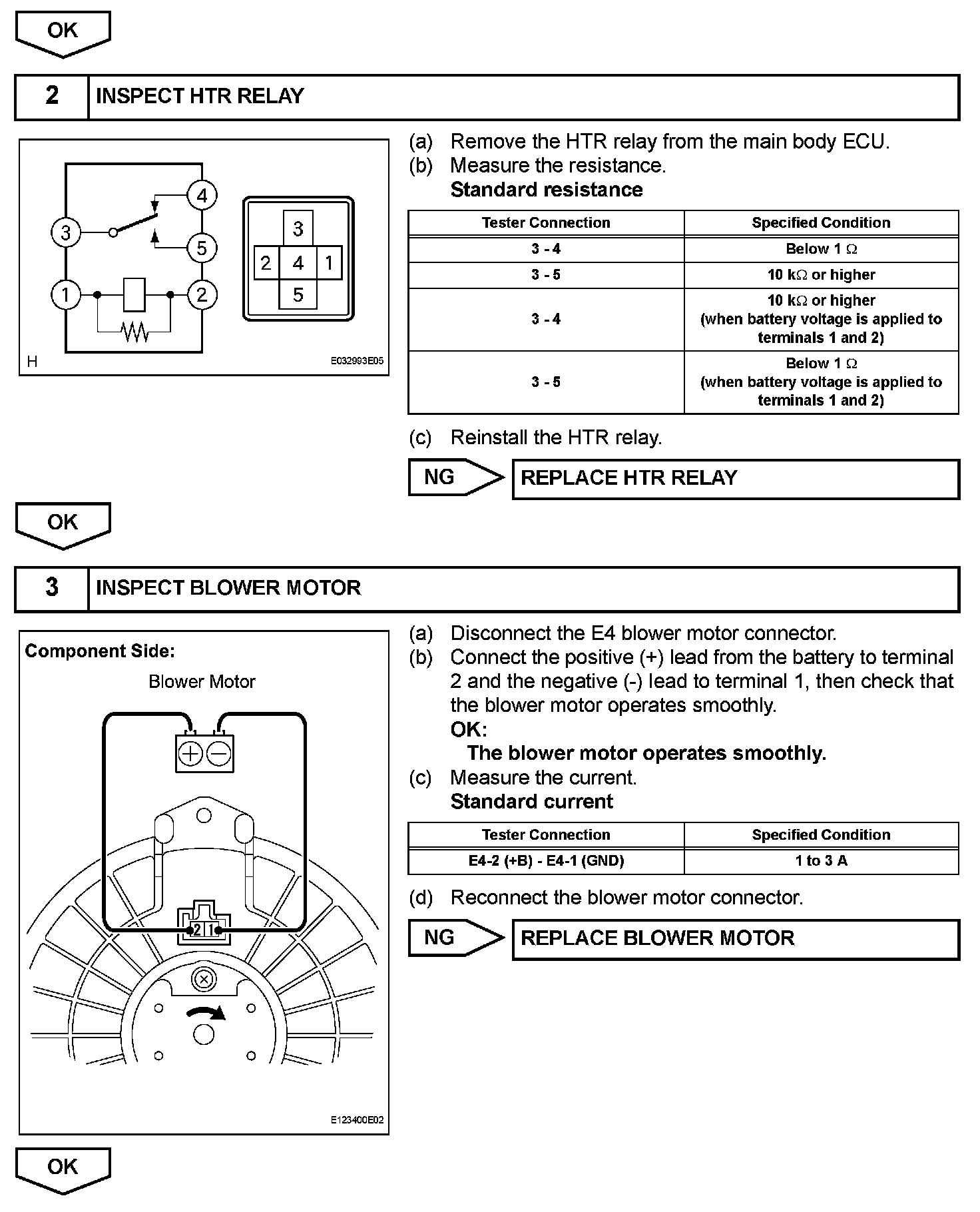

Step 1(Continued)-3:

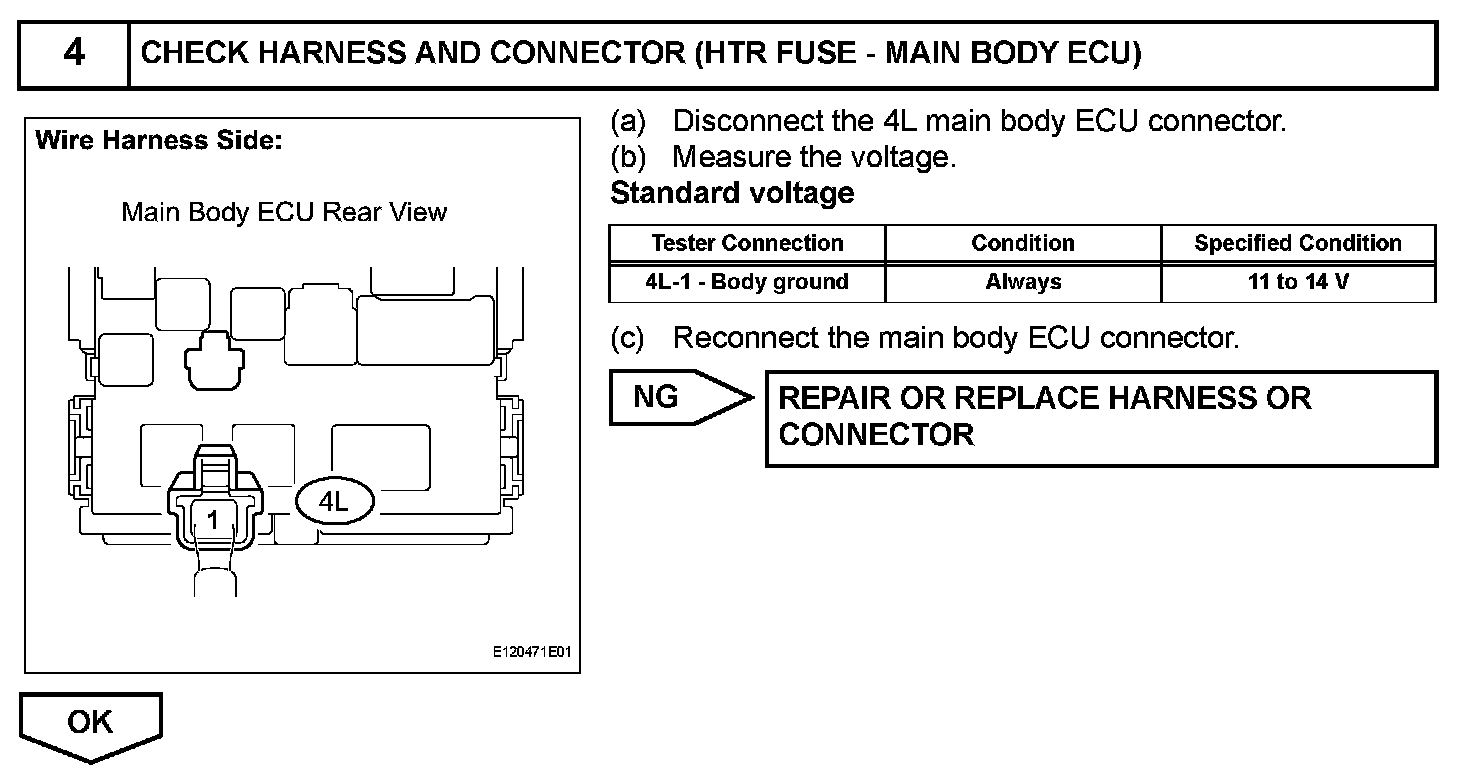

Step 4:

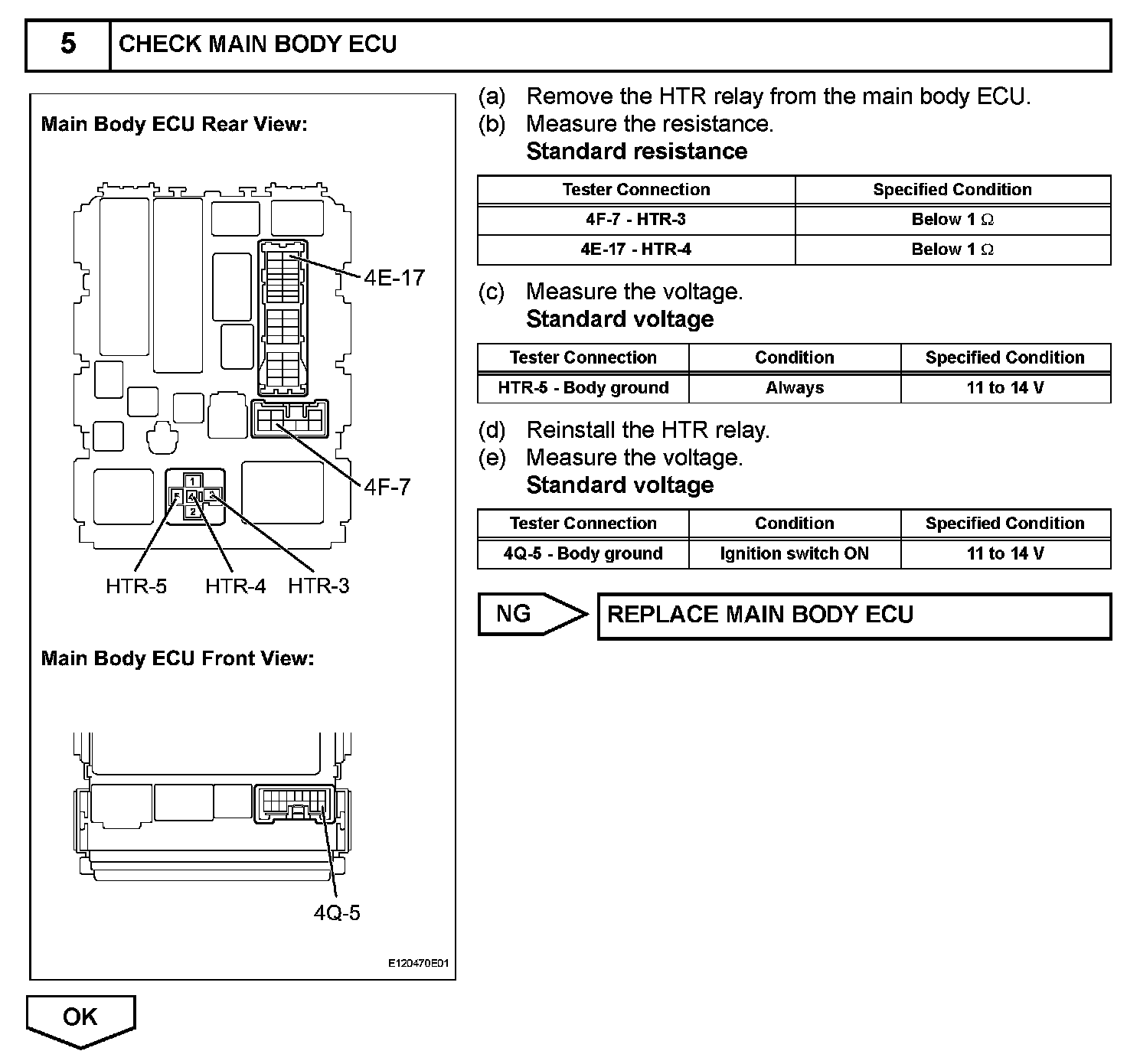

Step 5:

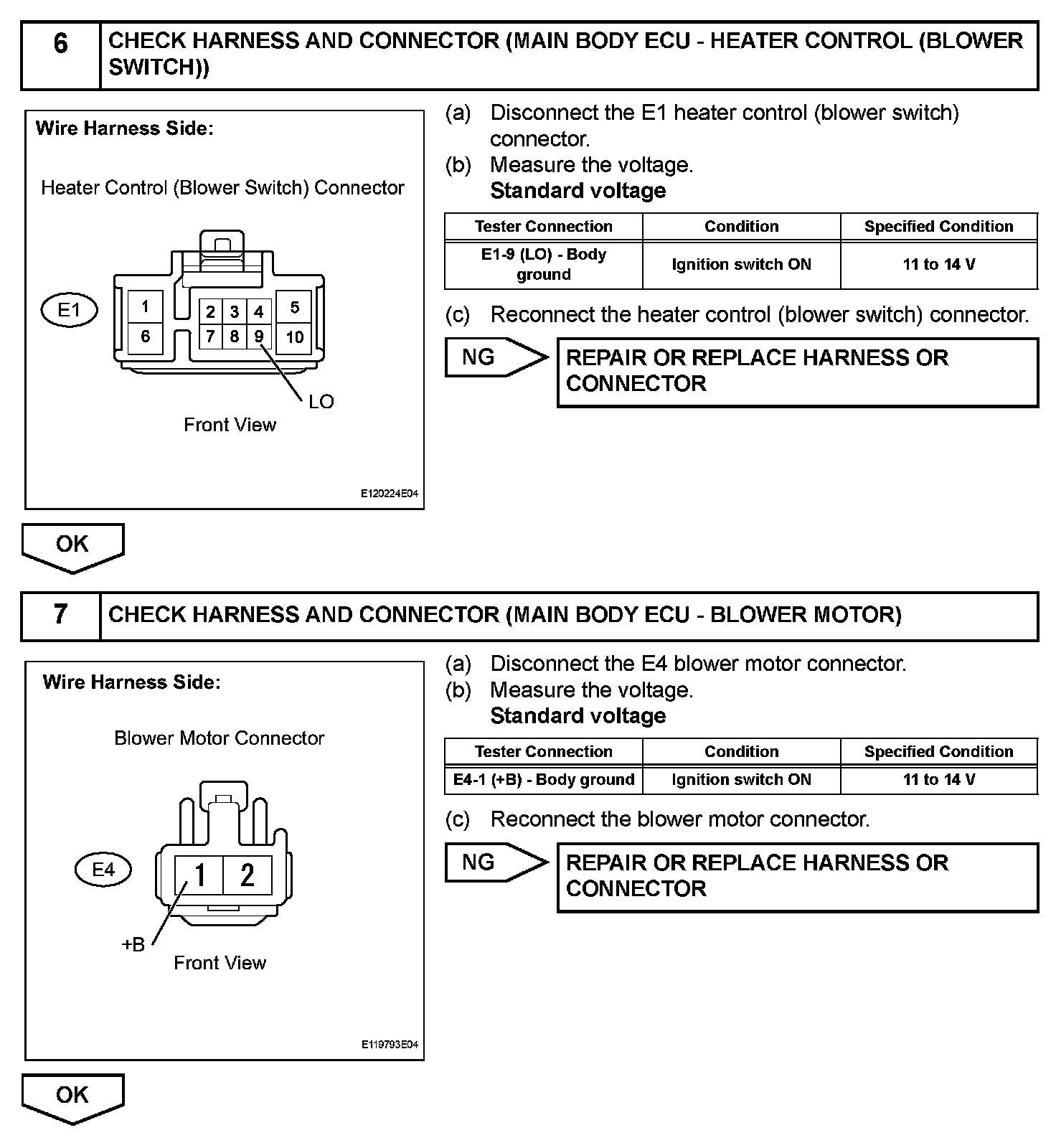

Step 6-7:

Step 8-9:

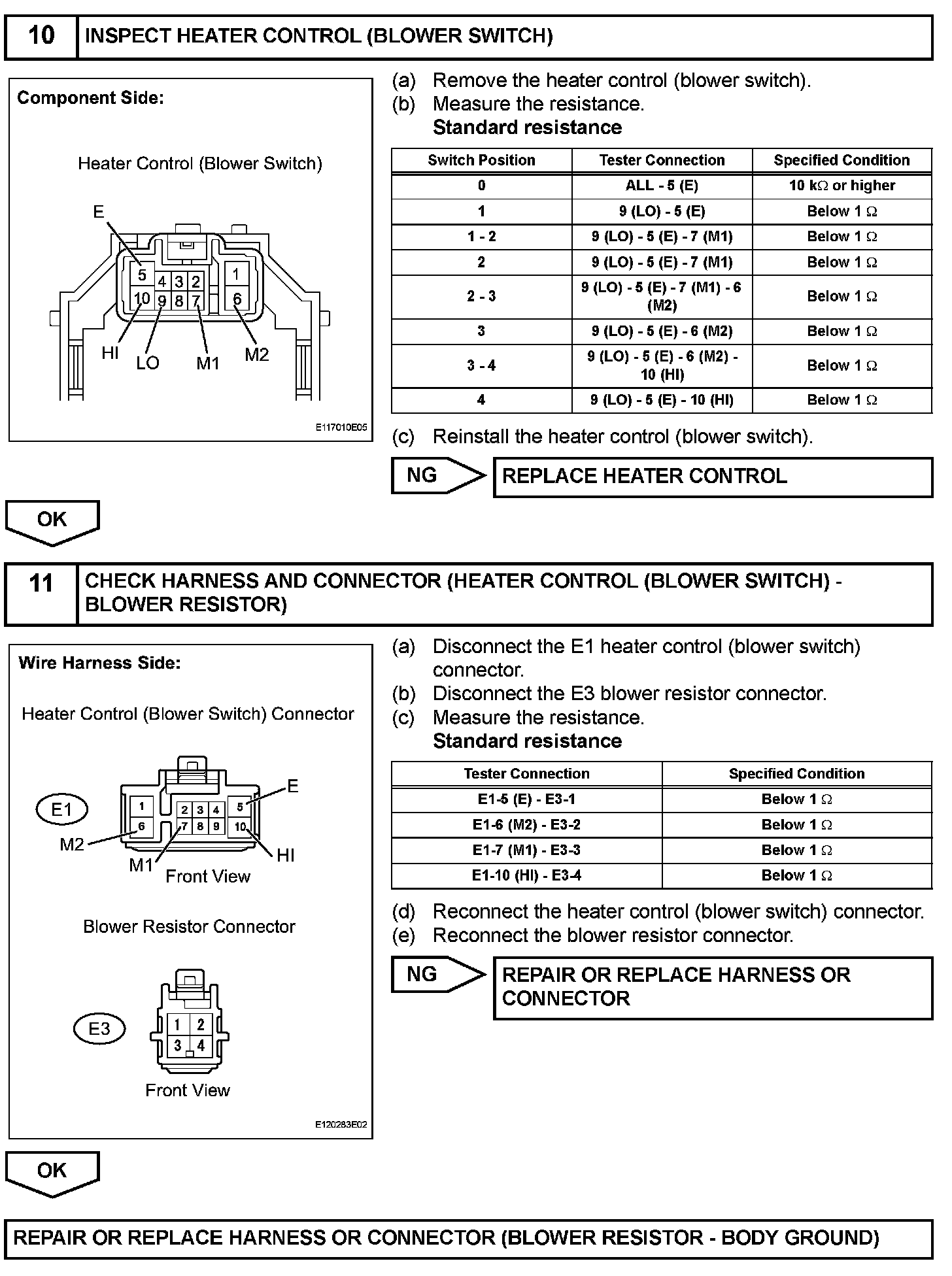

Step 10-11:

INSPECTION PROCEDURE
