Blower Motor Relay: Testing and Inspection
INSPECTION
1. INSPECT HEATER BLOWER MOTOR RELAY
a. Check the resistance.

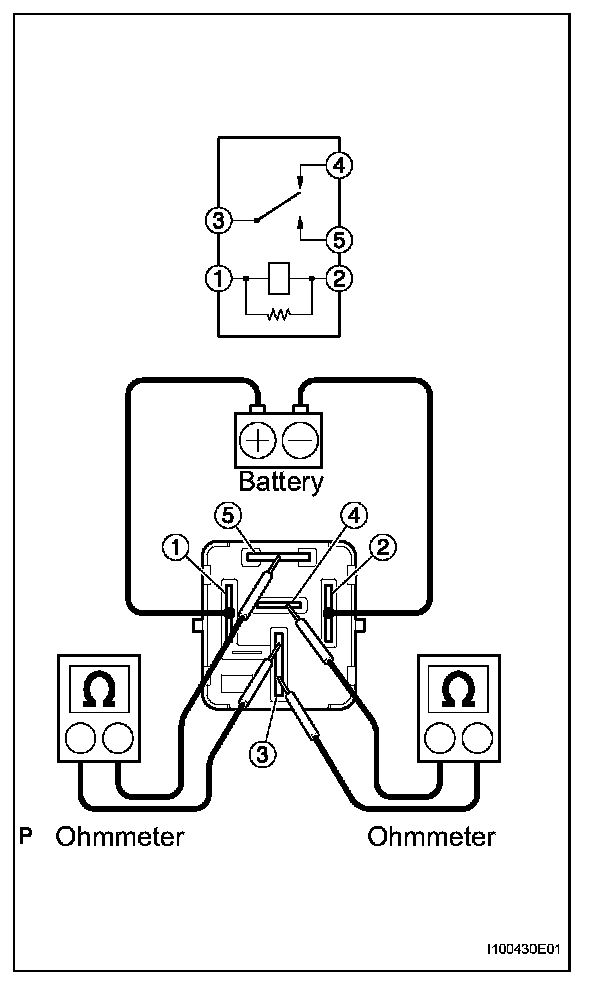

1. Using an ohmmeter, measure the resistance between each terminal.

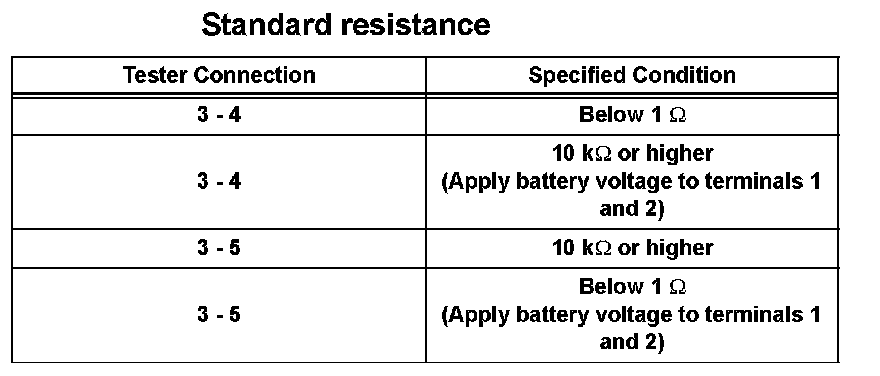

If the result is not as specified, replace the relay.
1. INSPECT HEATER BLOWER MOTOR RELAY
a. Check the resistance.
1. Using an ohmmeter, measure the resistance between each terminal.
If the result is not as specified, replace the relay.
