Home
>>
Toyota
>>
2007
>>
Yaris L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Refrigerant Pressure Sensor / Switch
>>
Locations

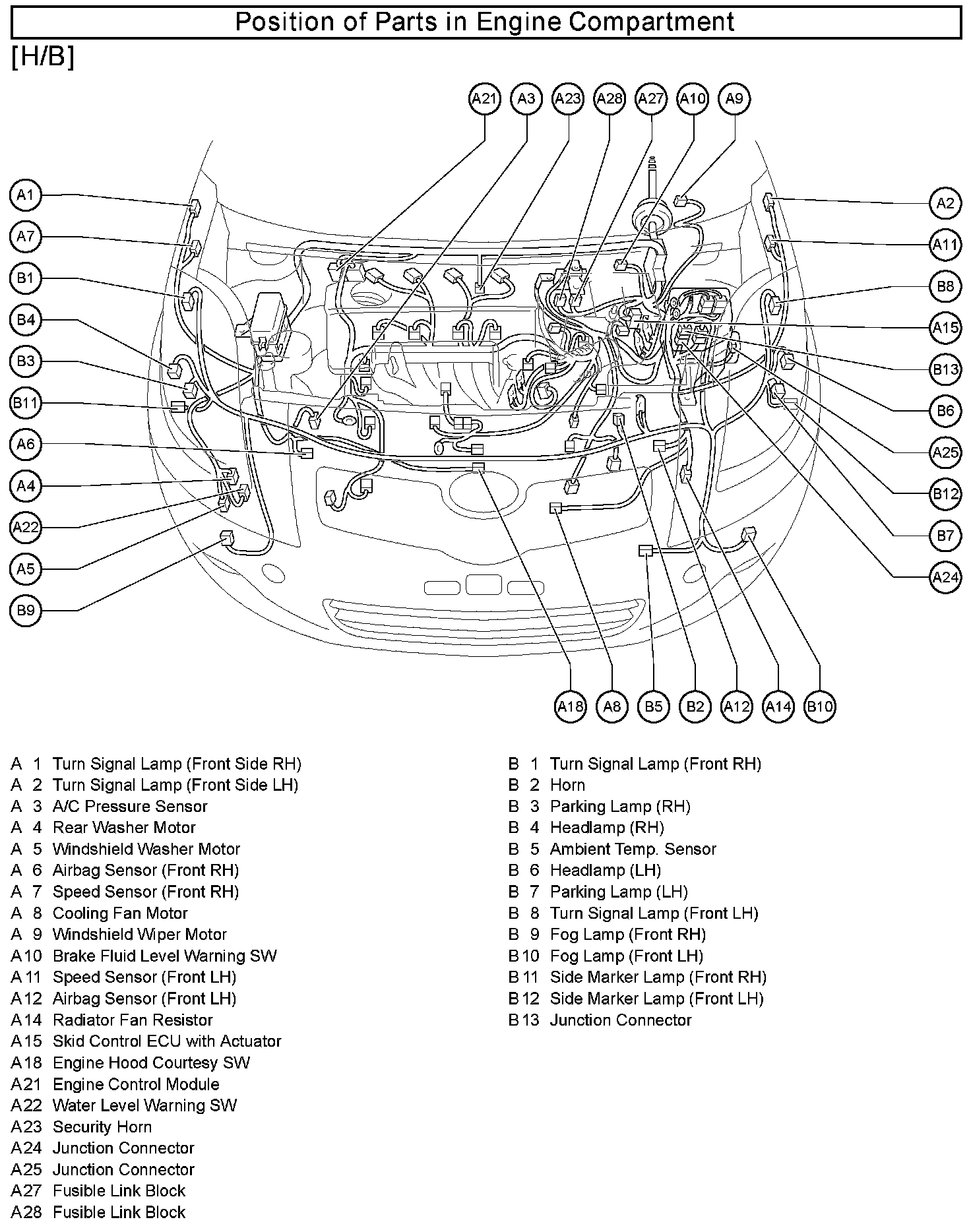

Refrigerant Pressure Sensor / Switch: Locations
A/C - Wi:
A/C - Wi:

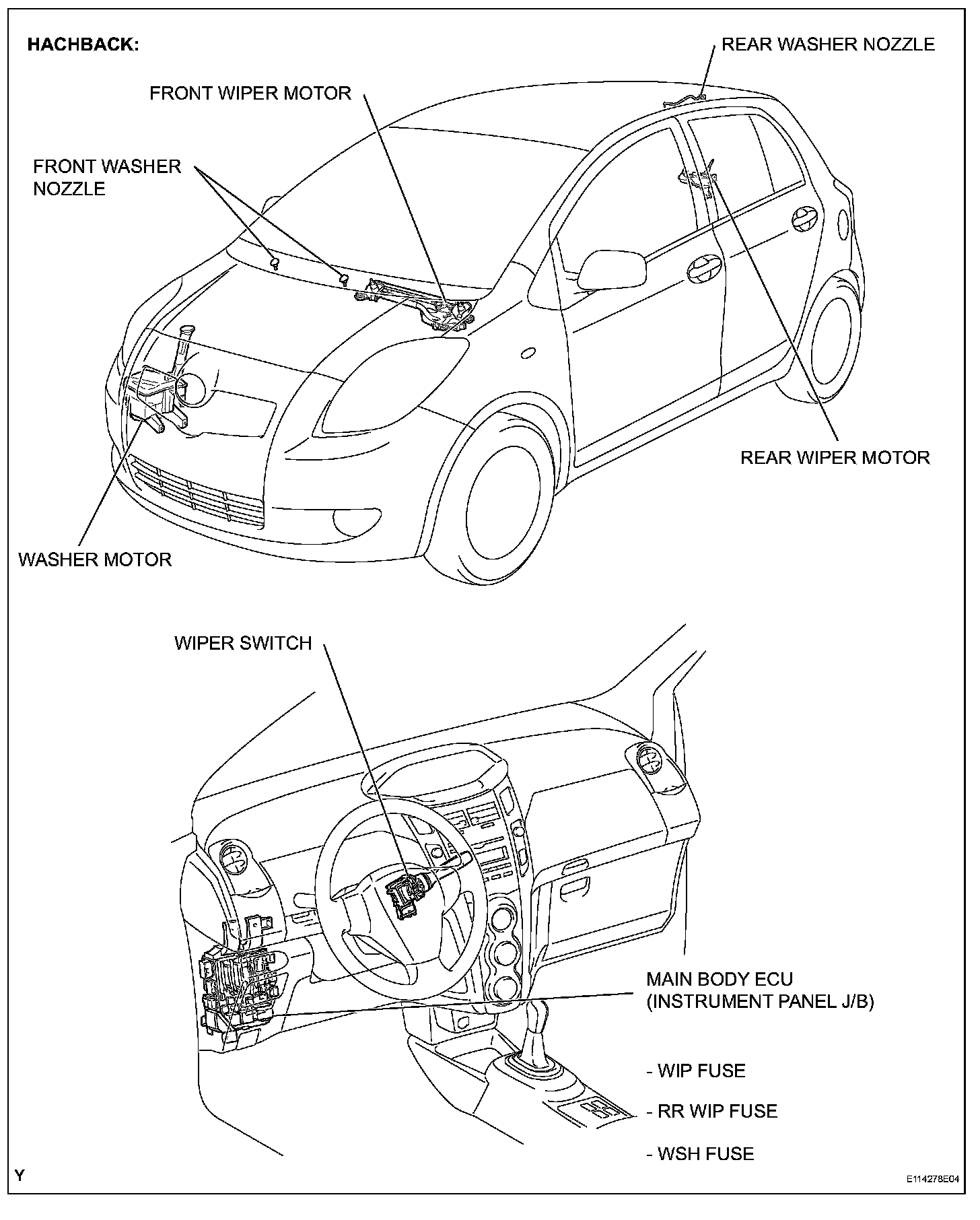

Wiper And Washer System (Hatchback):
Wiper And Washer System (Sedan):
