Heating and Air Conditioning: Description and Operation

System Diagram (Part 1):

System Diagram (Part 2):

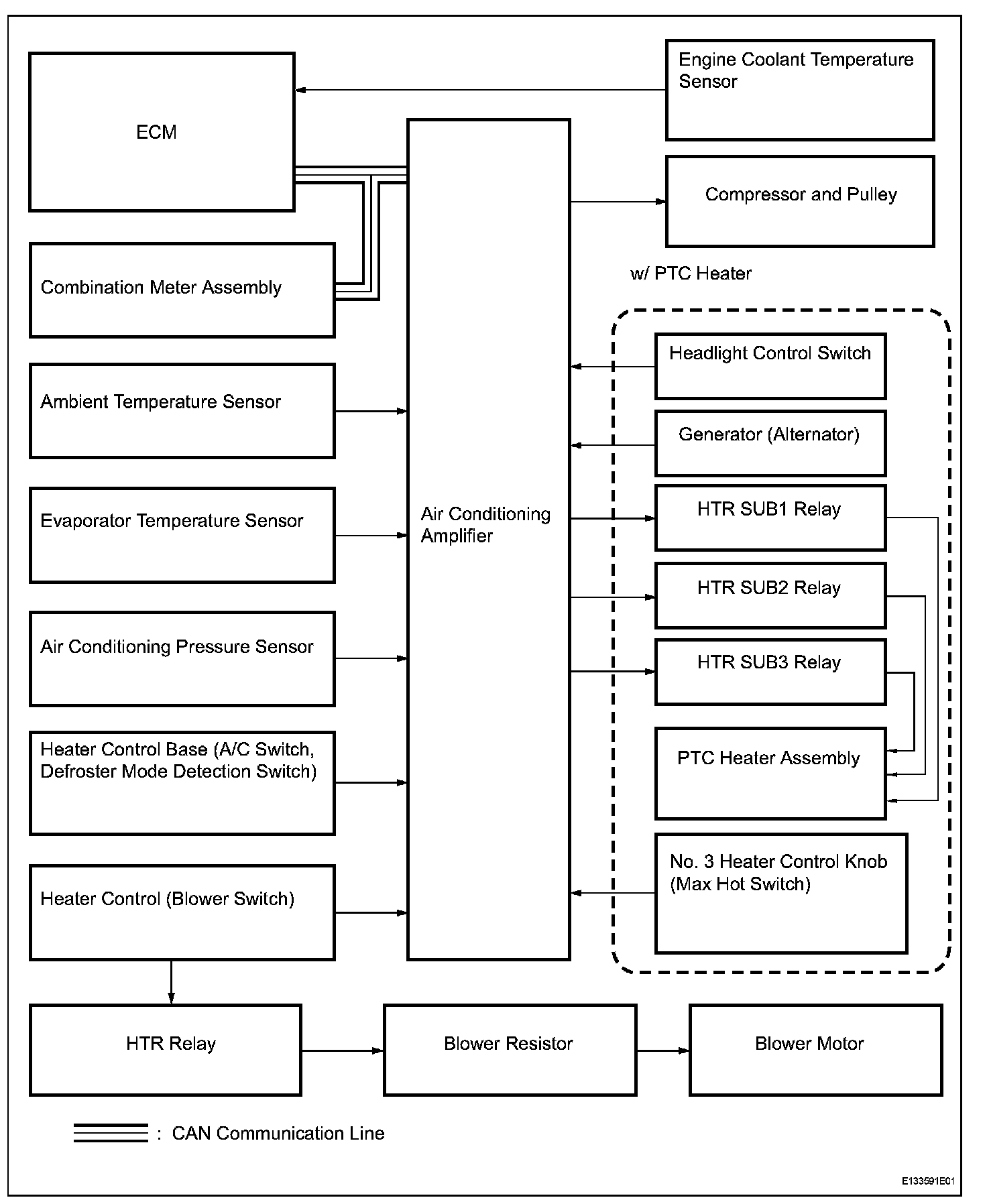

SYSTEM DIAGRAM

SYSTEM DESCRIPTION

1. GENERAL
a. The air conditioning system has the following features:
The air conditioning amplifier controls the operation of parts such as the air conditioning compressor automatically in accordance with the operating conditions of the air conditioning system.

Part 1:

Part 2:

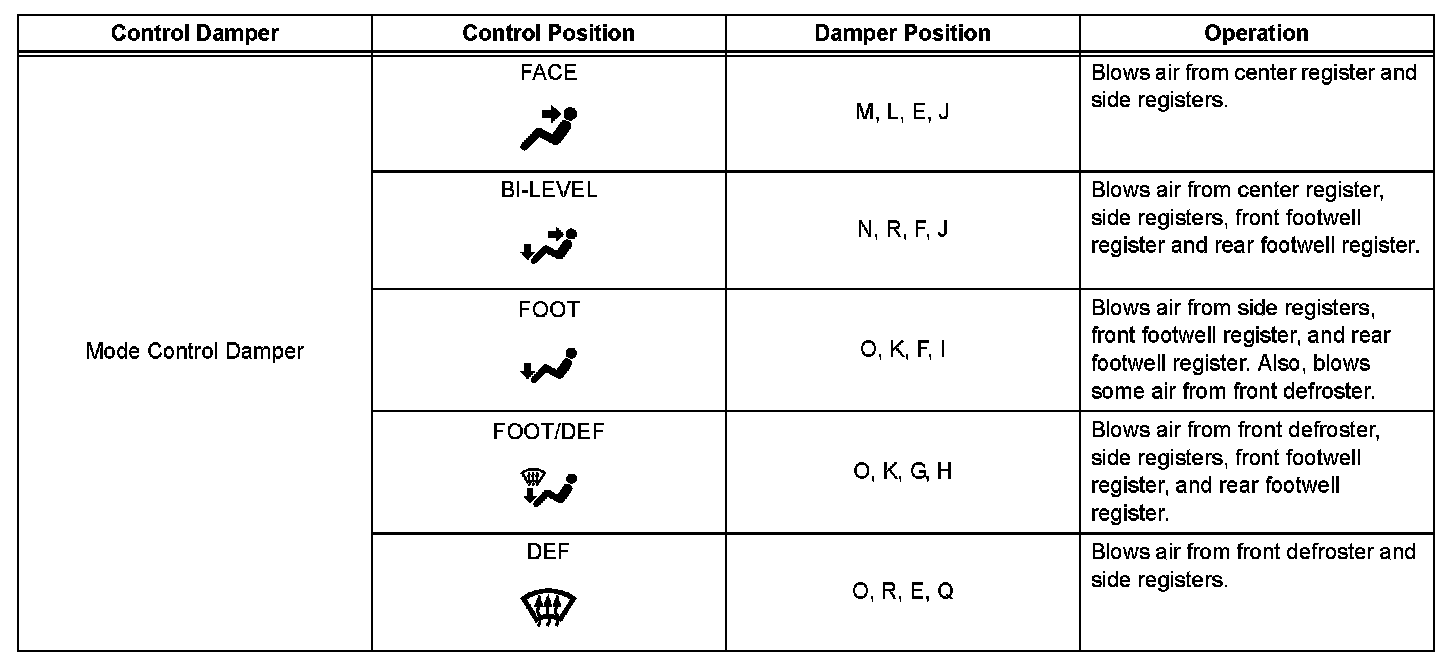

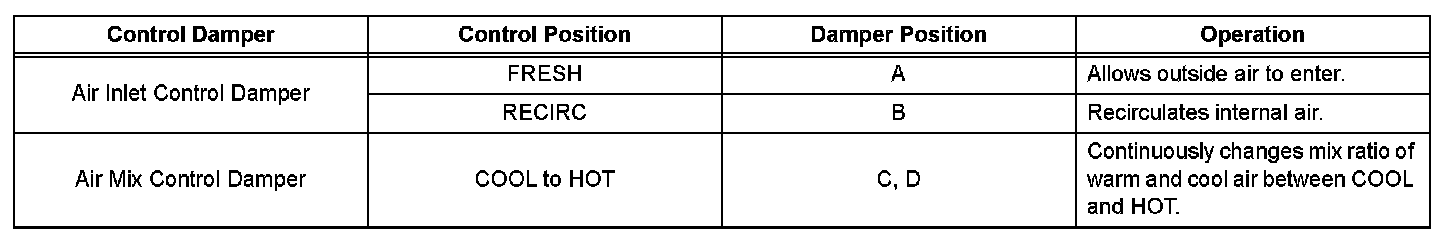

2. MODE POSITION AND DAMPER OPERATION

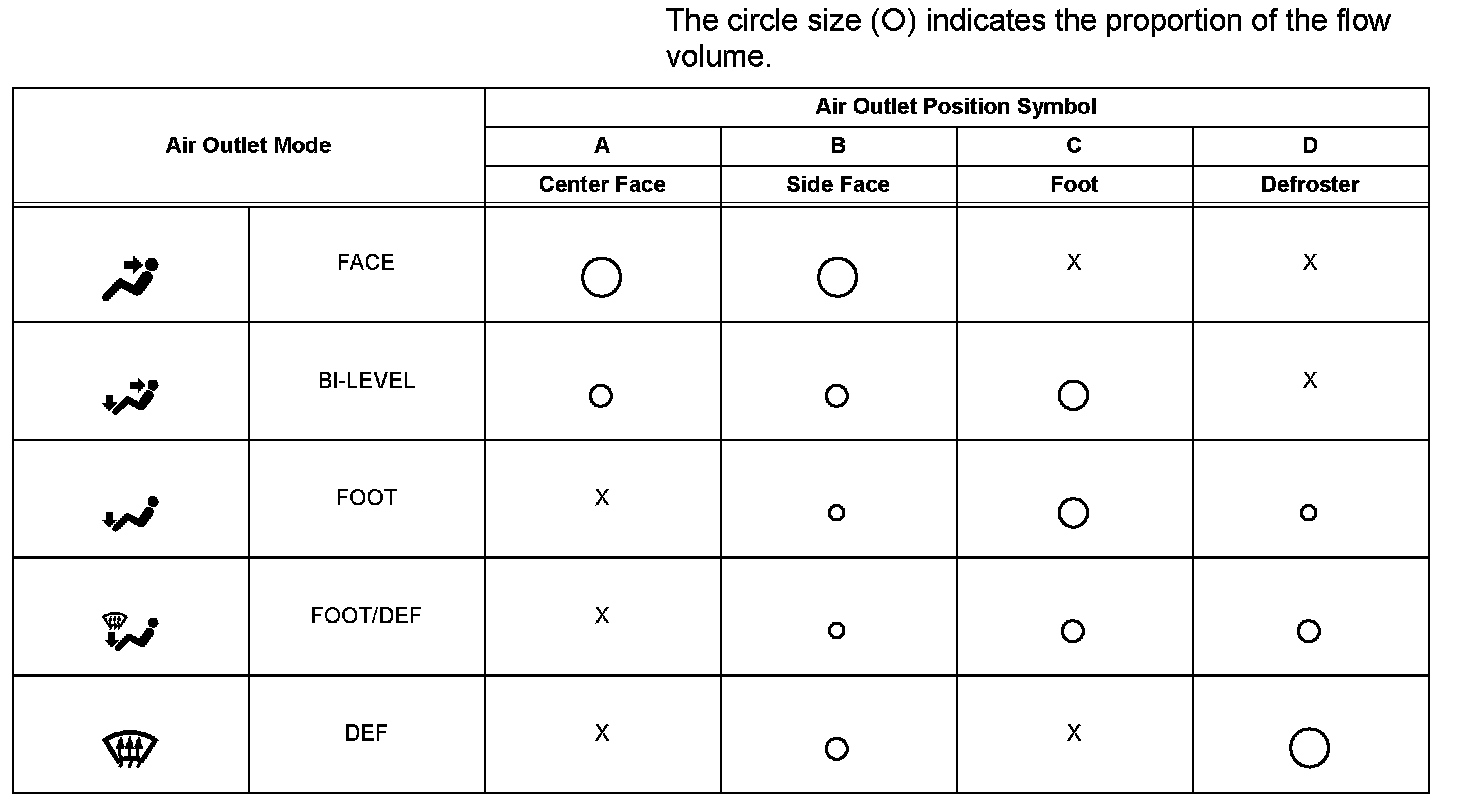

3. AIR OUTLET AND AIR FLOW VOLUME
