A/C - Odors From The Vents
T-SB-0103-09April 7, 2009
HVAC Odor
Service Category
Vehicle Interior
Section
Heating/Air Conditioning
Market
USA
Applicability
TSB SUPERSESSION NOTICE
The information contained in this TSB supersedes TSB No. AC001-07.
^ Applicability has been updated to include 2008 model year vehicles.
^ The repair procedure has been updated.
TSB No. AC001-07 is Obsolete and any printed versions should be discarded. Be sure to review the entire content of this service bulletin before proceeding.
Introduction
Some customers may experience an intermittent climate control system odor. An A/C amplifier logic change and evaporator sub-assembly have been made available to decrease odor in the vehicle.

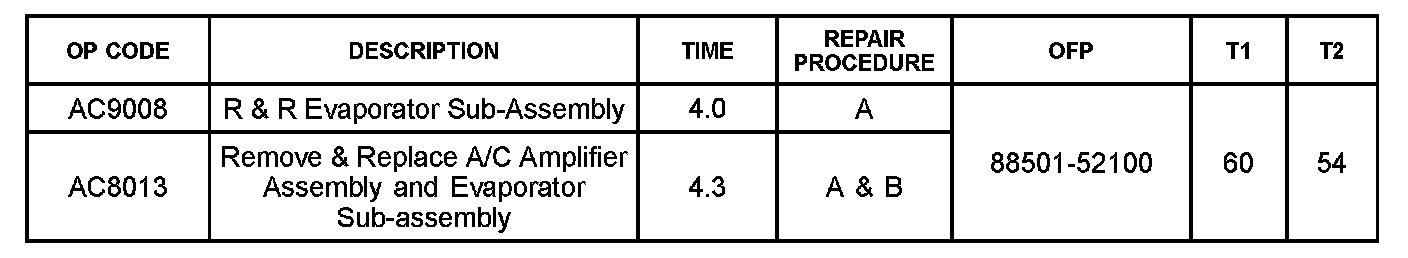

Warranty Information
^ This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.
^ Warranty application is limited to correction of a problem based upon a customer's specific complaint.

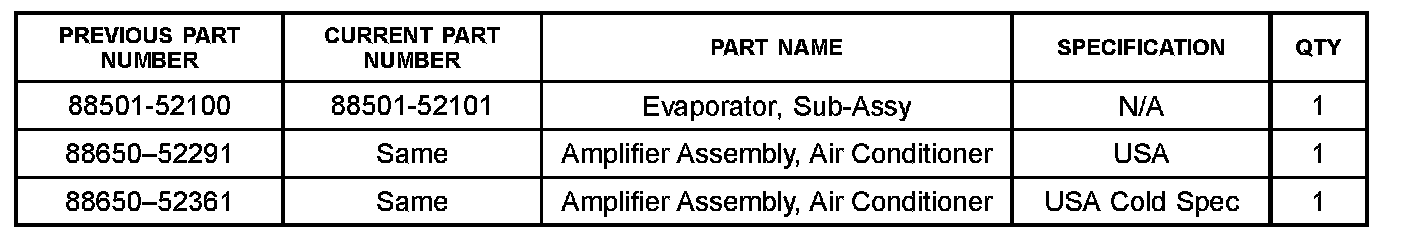

Parts Information

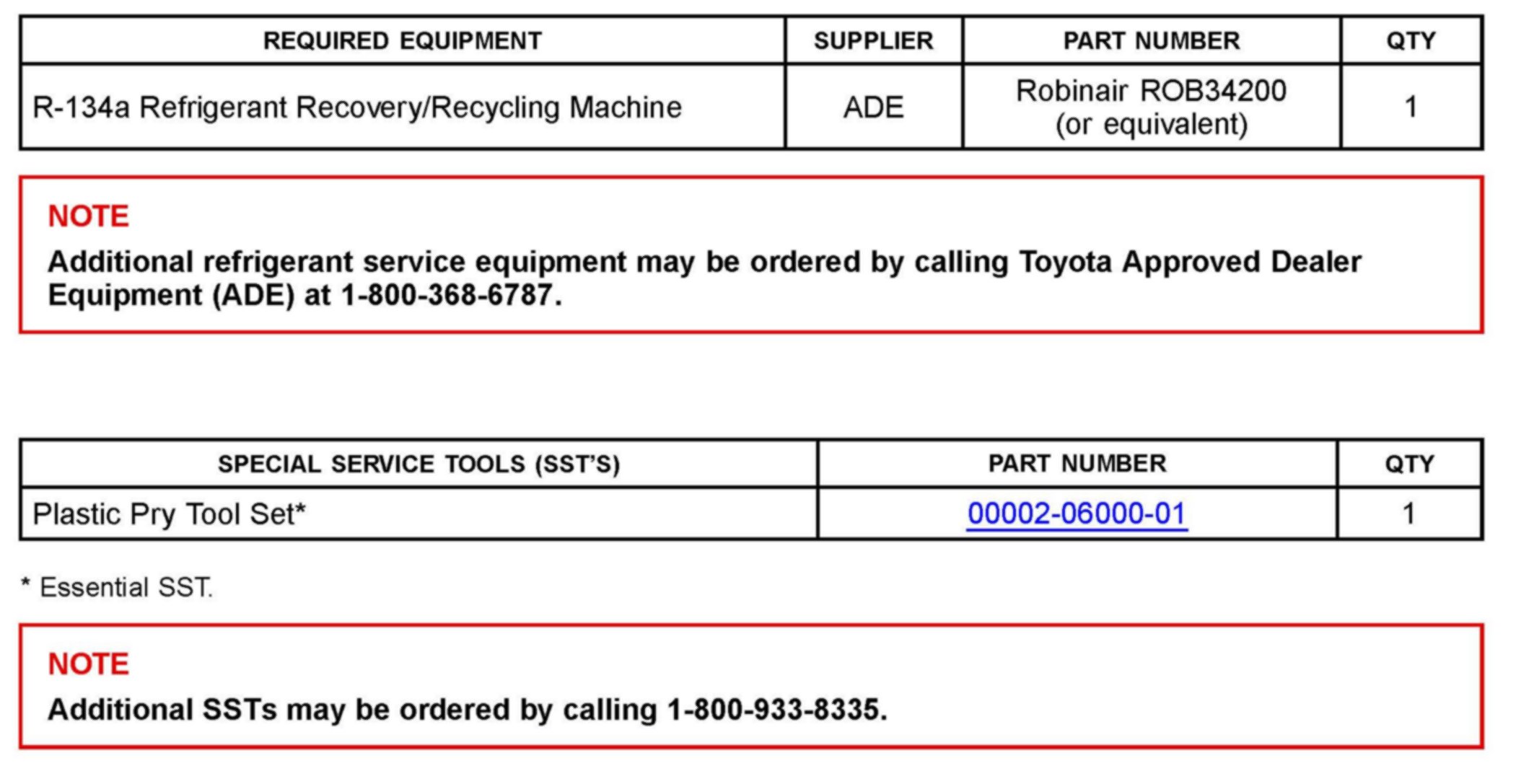

Required Tools & Equipment

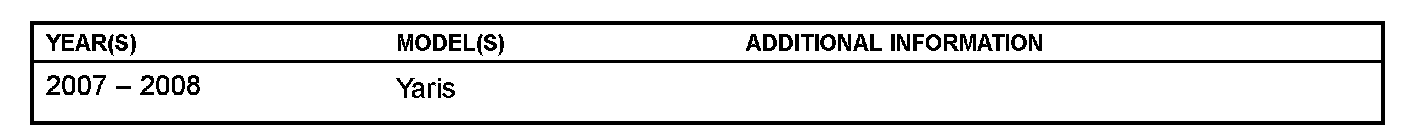

Applicability
Repair Procedure A
Remove and replace the Evaporator Sub-Assembly.
Removal Procedure:
Refer to the Technical Information System (TIS):
^ 2007 / 2008 model year Yaris Hatchback Repair Manual Vehicle Interior- Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Removal"
^ 2007 / 2008 model year Yaris Sedan Repair Manual Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Removal"
Disassembly Procedure:
Refer to TIS:
^ 2007 / 2008 model year Yaris Hatchback Repair Manual Vehicle Interior- Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Disassembly"
^ 2007 / 2008 model year Yaris Sedan Repair Manual Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Disassembly"
Reassembly Procedure:
Refer to TIS:
^ 2007 / 2008 model year Yaris Hatchback Repair Manual Vehicle Interior- Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Reassembly"
^ 2007 / 2008 model year Yaris Sedan Repair Manual Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Reassembly"
Installation Procedure:
Refer to TIS:
^ 2007 / 2008 model year Yaris Hatchback Repair Manual Vehicle Interior - Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Installation"
^ 2007 / 2008 model year Yaris Sedan Repair Manual Vehicle Interior- Heating/Air Conditioning - "Air Conditioning: Air Conditioning Unit: Installation"
