Air Conditioning Panel Assembly (For Sedan)

Air Conditioning Panel Assembly (for Sedan):




Air Conditioning Panel Assembly (for Sedan):




AIR CONDITIONING PANEL ASSEMBLY (for Sedan)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER

3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

5. REMOVE INSTRUMENT CLUSTER FINISH PANEL

6. REMOVE RADIO RECEIVER ASSEMBLY




7. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER SUB-ASSEMBLY
a. Disengage the 2 claws and 4 clips and remove the instrument cluster finish panel center.




8. REMOVE AIR CONDITIONING PANEL ASSEMBLY

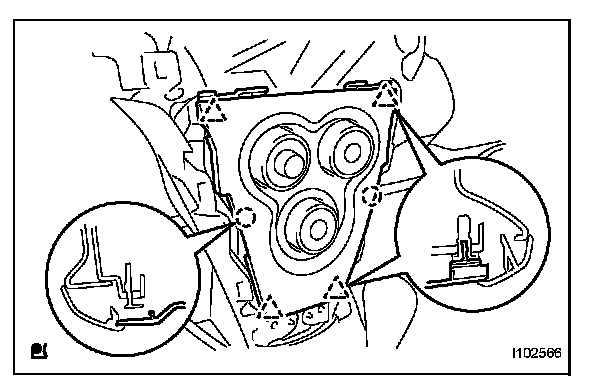

a. Disengage the 4 clips and 2 claws and remove the air conditioning panel.

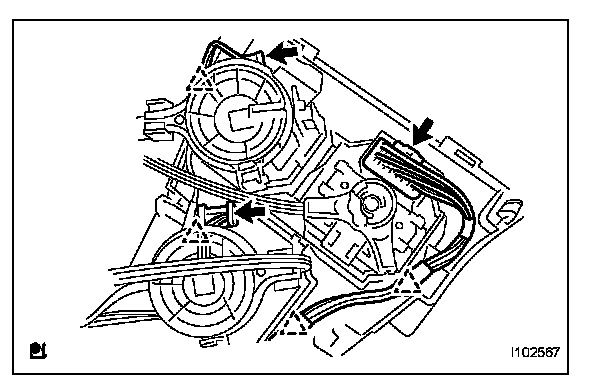

b. Disconnect the 3 connectors and 4 clamps.




9. DISCONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY
a. Disconnect the air mix damper control cable from the clamp.

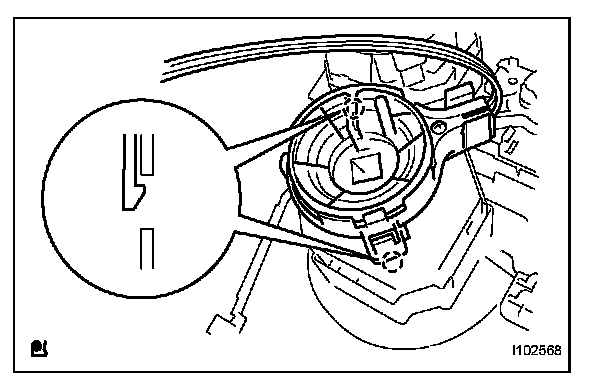

b. Disengage the 2 claws and disconnect the air mix damper control cable.




10. DISCONNECT DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY

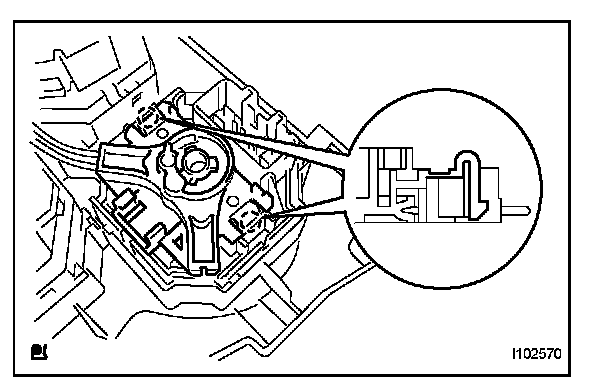

a. Disengage the 2 claws and disconnect the defroster damper control cable.




11. DISCONNECT AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY
a. Disengage the 2 claws and disconnect the air inlet damper control cable.

INSTALLATION




1. CONNECT AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY
a. Engage the 2 claws and connect the air inlet damper control cable.




2. CONNECT DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY

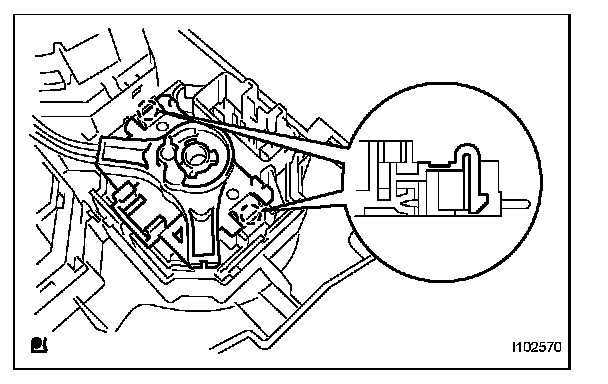

a. Engage the 2 claws and connect the defroster damper control cable.




3. CONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY
a. Engage the 2 claws and connect the air mix control cable clamp.
b. Connect the air mix damper control cable to the clamp.




4. INSTALL AIR CONDITIONING PANEL ASSEMBLY

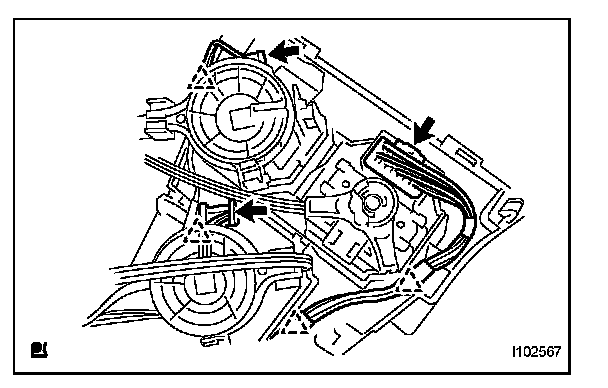

a. Connect the 3 connectors and the 4 clamps.




b. Engage the 4 clips and 2 claws and install the air conditioning panel.




5. INSTALL INSTRUMENT CLUSTER FINISH PANEL CENTER SUB-ASSEMBLY
a. Engage the 4 clips and 2 claws and install the instrument cluster finish panel.

6. INSTALL RADIO RECEIVER ASSEMBLY

7. INSTALL INSTRUMENT CLUSTER FINISH PANEL

8. INSTALL INSTRUMENT PANEL FINISH PANEL END RH

9. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

10. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER

11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
