Air Conditioning Panel Assembly (For Hatchback)

Air Conditioning Panel Assembly (for Hatchback):




Air Conditioning Panel Assembly (for Hatchback):




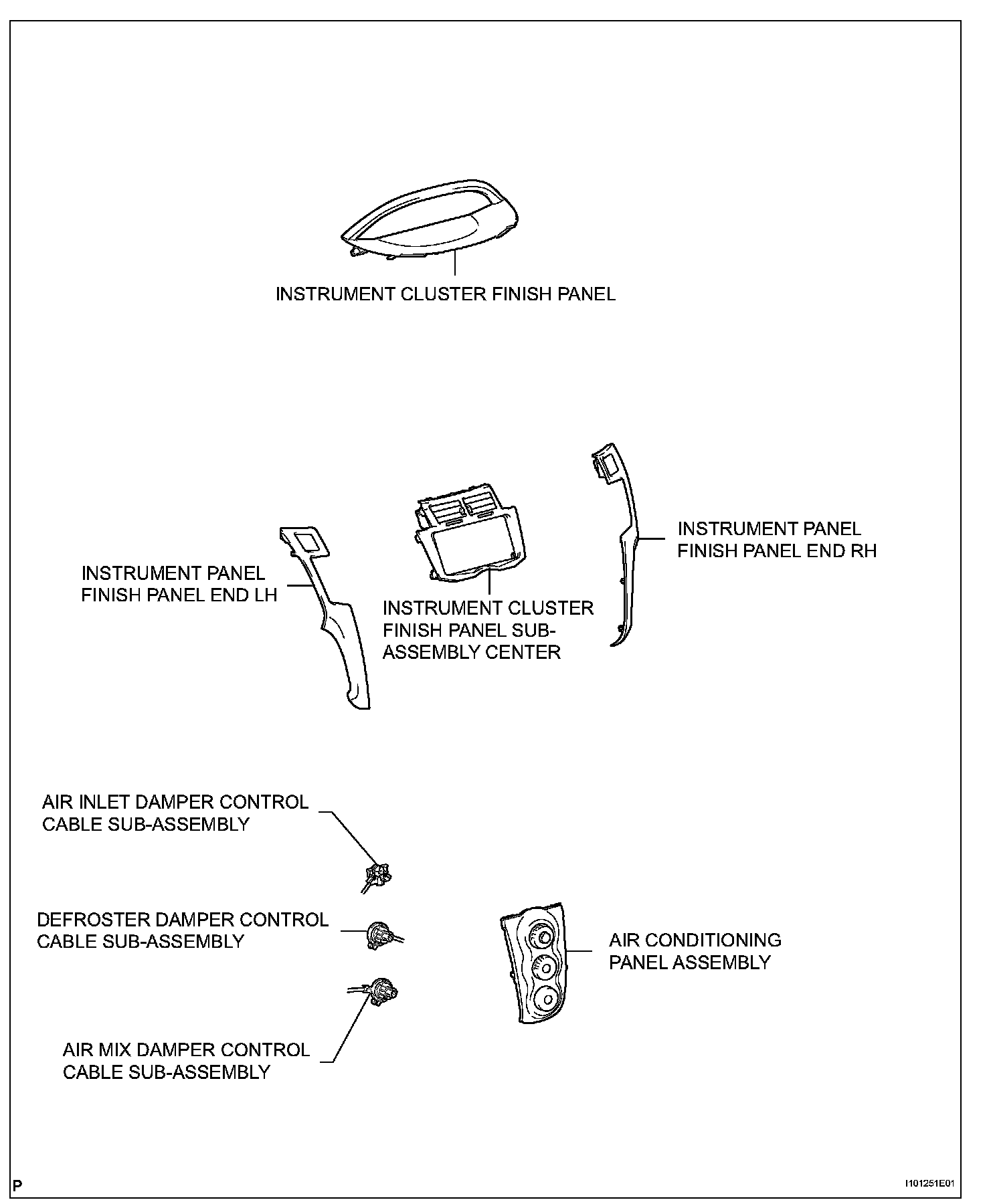

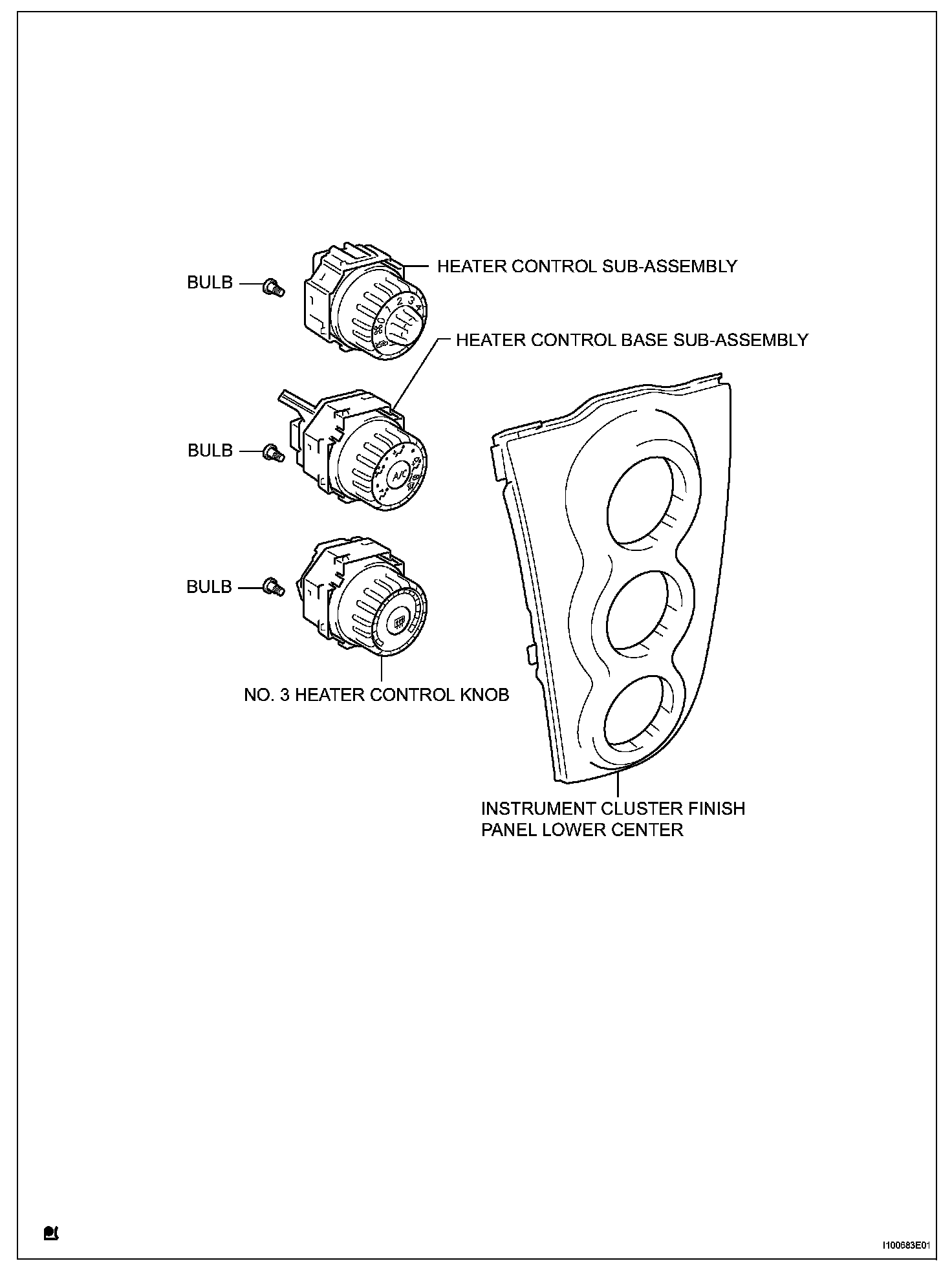

AIR CONDITIONING PANEL ASSEMBLY (for Hatchback)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH

3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH

4. REMOVE INSTRUMENT CLUSTER FINISH PANEL




5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER

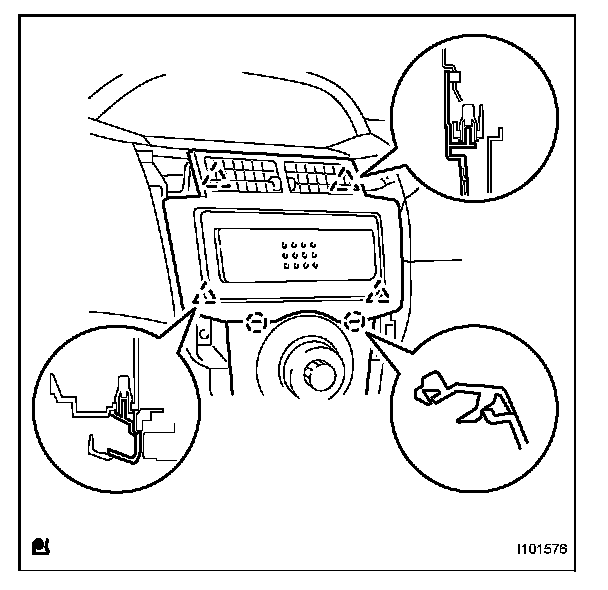

a. Disengage the 2 claws and 4 clips and remove the instrument cluster finish panel center.

NOTE:
- Grip the rib portion of the instrument cluster finish panel center by hand to remove it.
- To avoid breakage of the instrument cluster finish panel center when removing it, do not apply excessive force to the register or pull out the rink or panel portions.




6. REMOVE AIR CONDITIONING PANEL ASSEMBLY

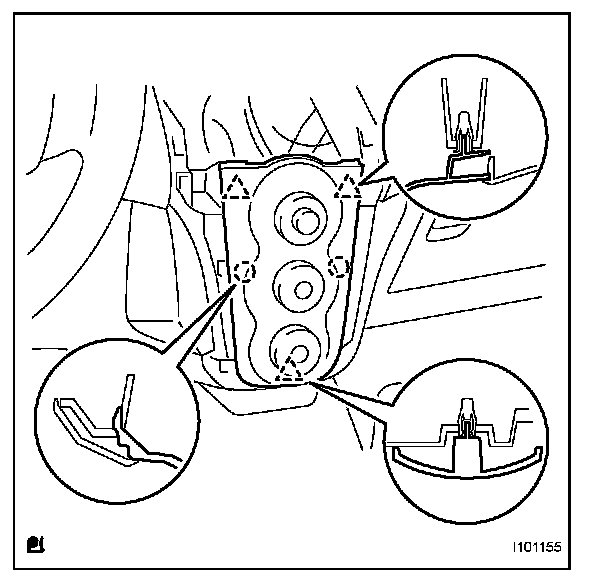

a. Disengage the 3 clips and 2 claws and remove the air conditioning panel.




b. Disconnect the 3 connectors and the clamp.




7. DISCONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY

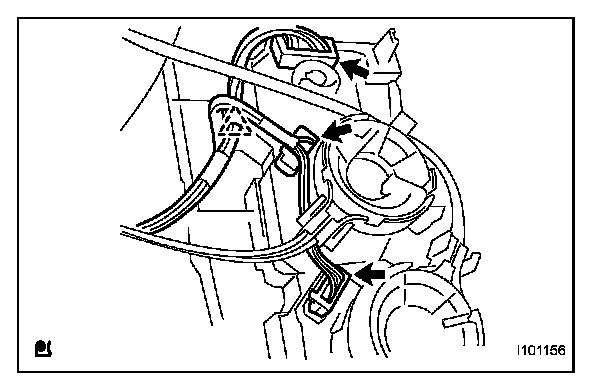

a. Disconnect the air mix control cable from the clamp.
b. Disengage the 2 claws and disconnect the air mix damper control cable.




8. DISCONNECT DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY

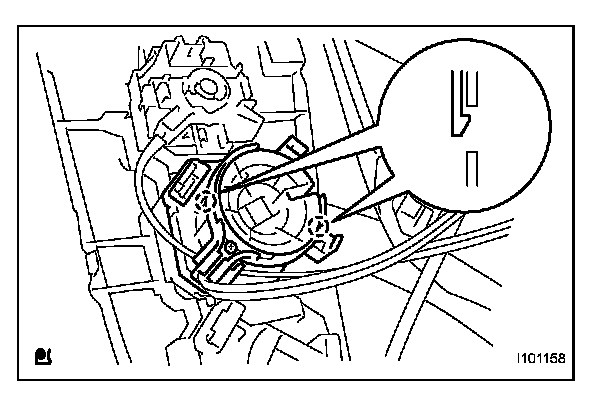

a. Disengage the 2 claws and disconnect the defroster damper control cable.




9. DISCONNECT AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY

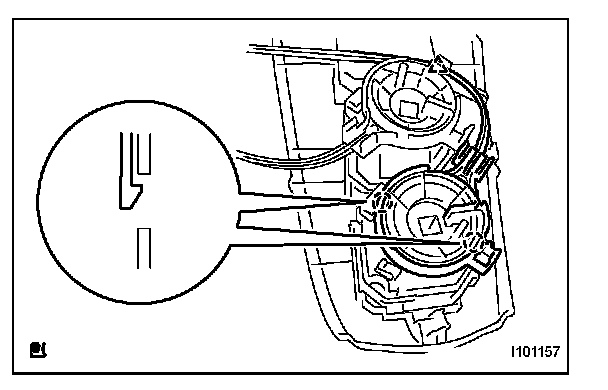

a. Disengage the 2 claws and disconnect the air inlet damper control cable.

INSTALLATION




1. CONNECT AIR INLET DAMPER CONTROL CABLE SUB-ASSEMBLY
a. Engage the 2 claws and connect the air inlet damper control cable.




2. CONNECT DEFROSTER DAMPER CONTROL CABLE SUB-ASSEMBLY

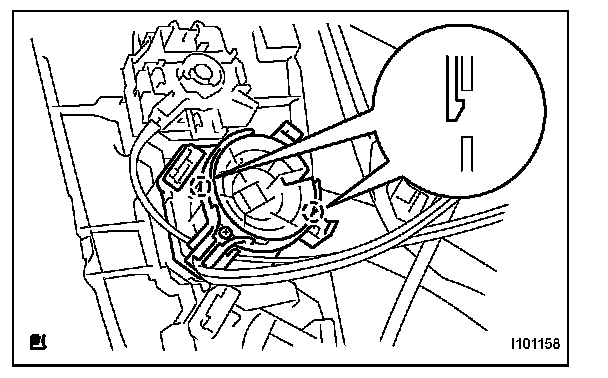

a. Engage the 2 claws and connect the defroster damper control cable.




3. CONNECT AIR MIX DAMPER CONTROL CABLE SUB-ASSEMBLY

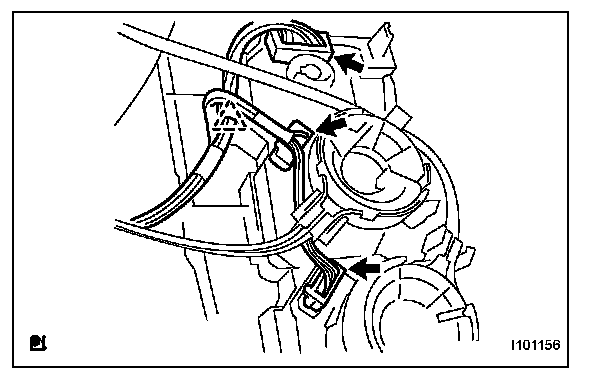

a. Engage the 2 claws and connect the air mix control cable clamp.
b. Connect the defroster damper control cable to the clamp.




4. INSTALL AIR CONDITIONING PANEL ASSEMBLY
a. Connect the 3 connectors and the clamp.




b. Engage the 3 clips and 2 claws and install the air conditioning panel.




5. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
a. Engage the 4 clips and 2 claws and install the air conditioning panel.

6. INSTALL INSTRUMENT CLUSTER FINISH PANEL

7. INSTALL INSTRUMENT PANEL FINISH PANEL END RH

8. INSTALL INSTRUMENT PANEL FINISH PANEL END LH

9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
