Blower Motor: Testing and Inspection

INSPECTION




1. INSPECT BLOWER MOTOR

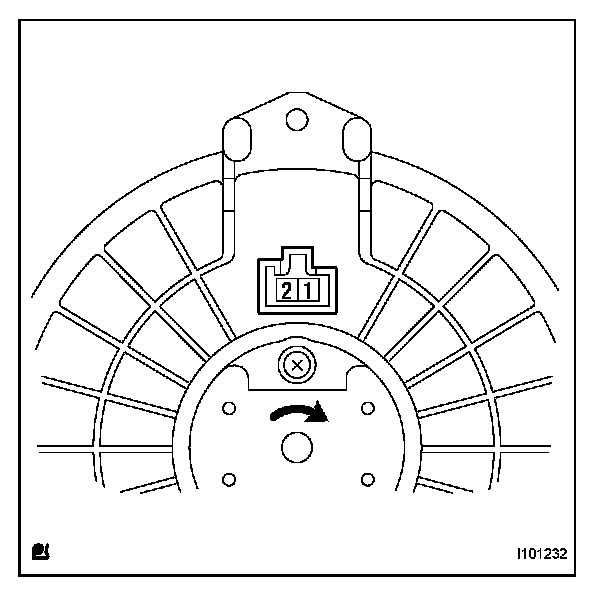

a. Connect the positive (+) lead from the battery to terminal 2 and the negative (-) lead to terminal 1, then check that the motor operates smoothly.

OK: The motor operates smoothly.

If the operation is not as specified, replace the blower motor.




b. Measure the current.

If the current value is not as specified, replace the blower motor.
