Blower Motor Relay: Service and Repair

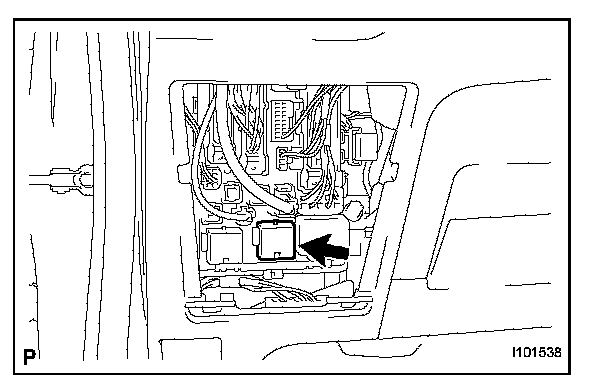

Heater Blower Motor Relay:

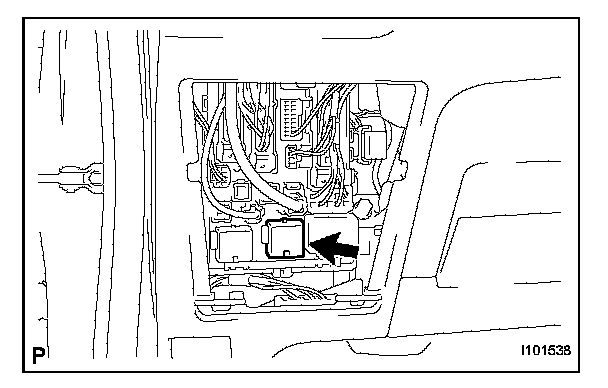

Heater Blower Motor Relay:

HEATER BLOWER MOTOR RELAY

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

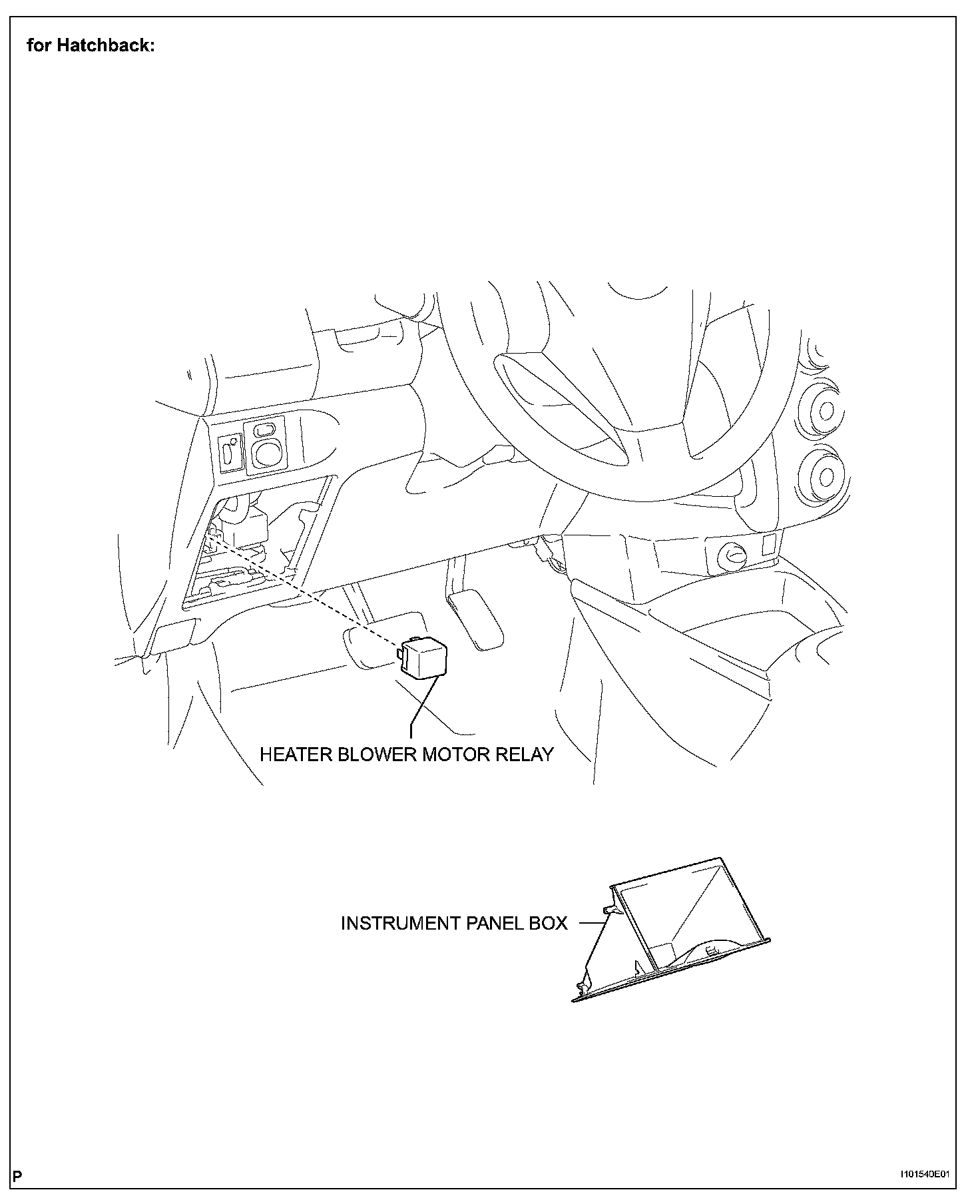

2. REMOVE INSTRUMENT PANEL BOX (for Hatchback)

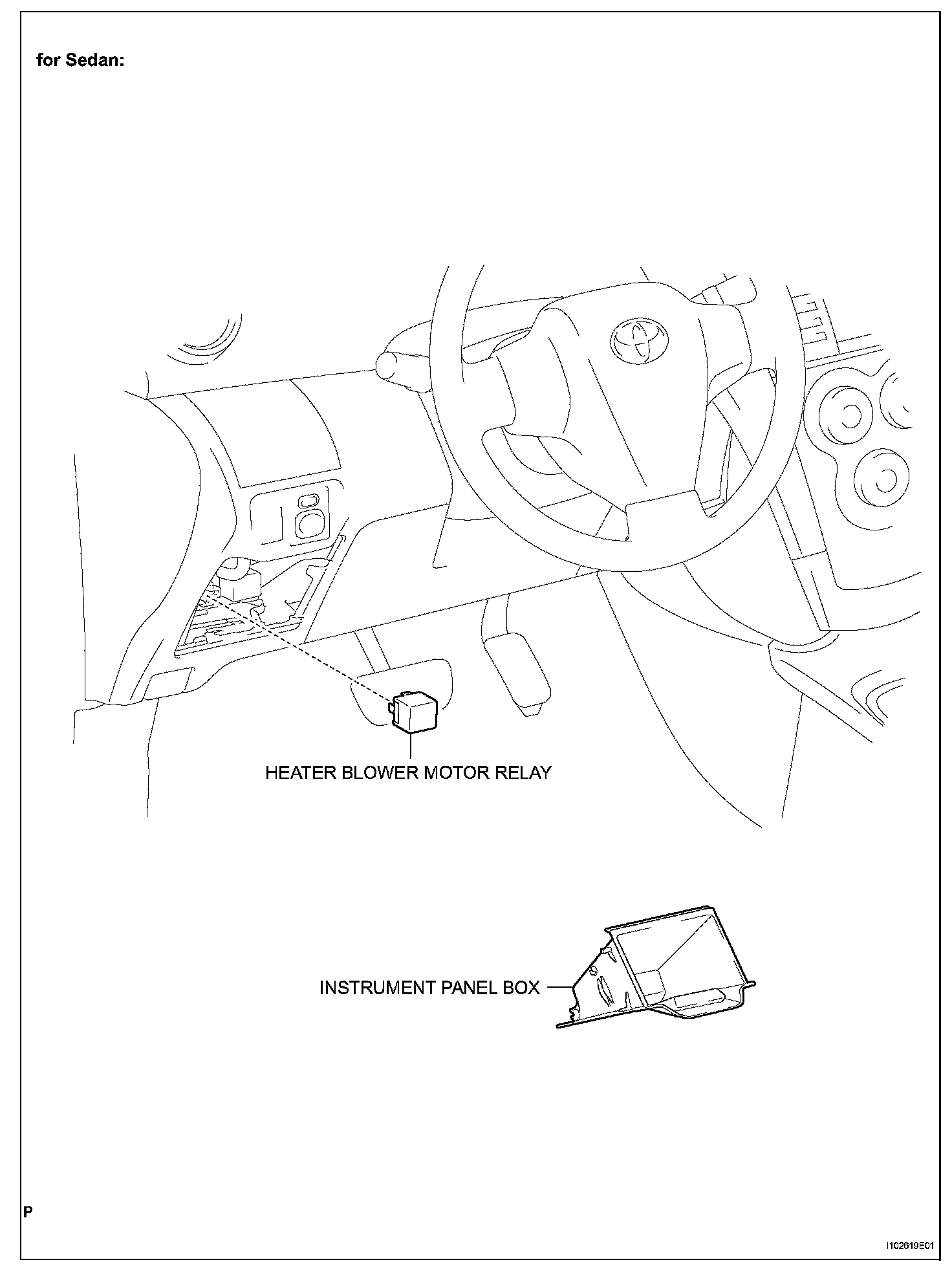

3. REMOVE INSTRUMENT PANEL BOX (for Sedan)




4. REMOVE HEATER BLOWER MOTOR RELAY
a. Remove the heater blower motor relay.

INSTALLATION




1. INSTALL HEATER BLOWER MOTOR RELAY
a. Install the heater blower motor relay.

2. INSTALL INSTRUMENT PANEL BOX (for Hatchback)

3. INSTALL INSTRUMENT PANEL BOX (for Sedan)

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
