CYLINDER HEAD

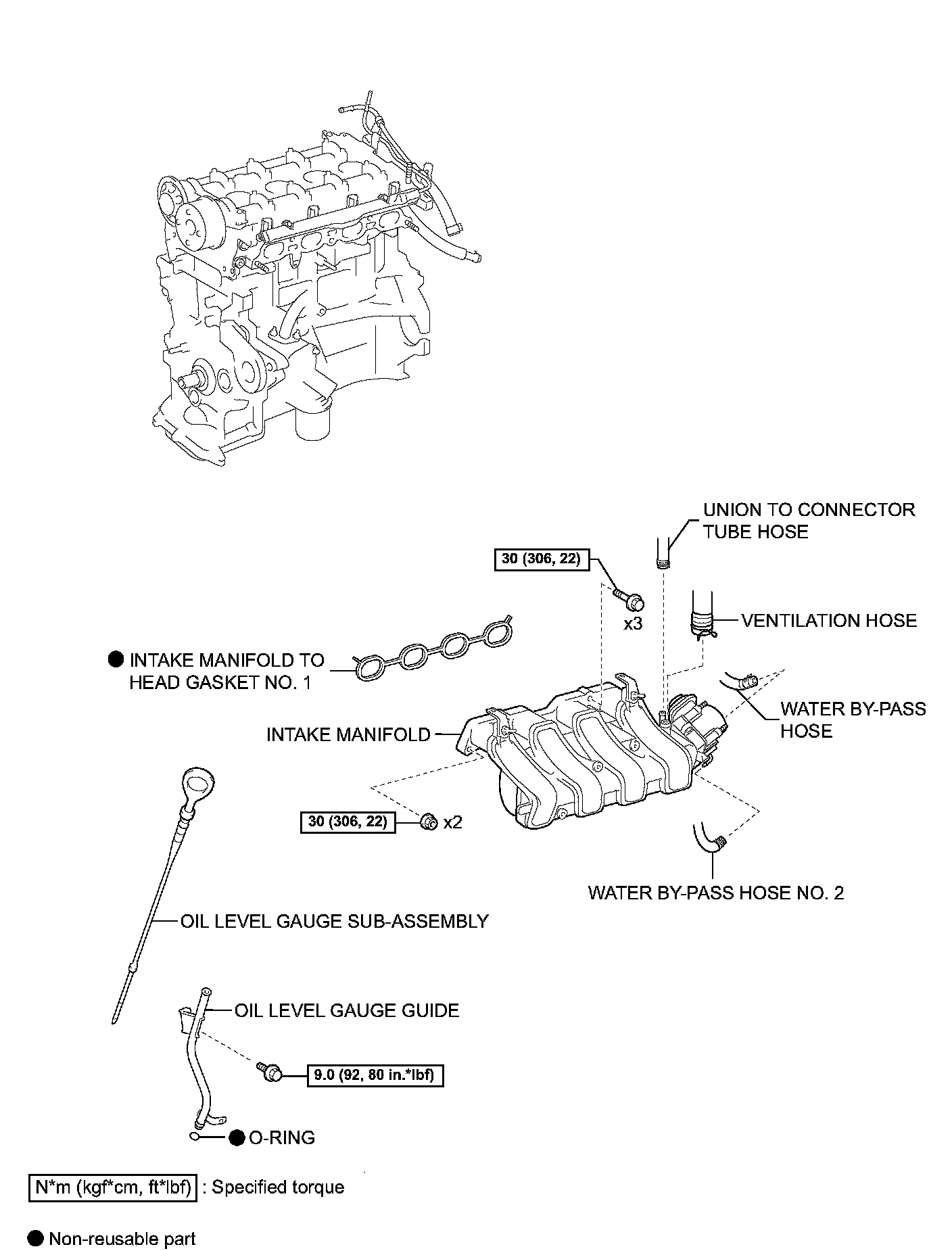

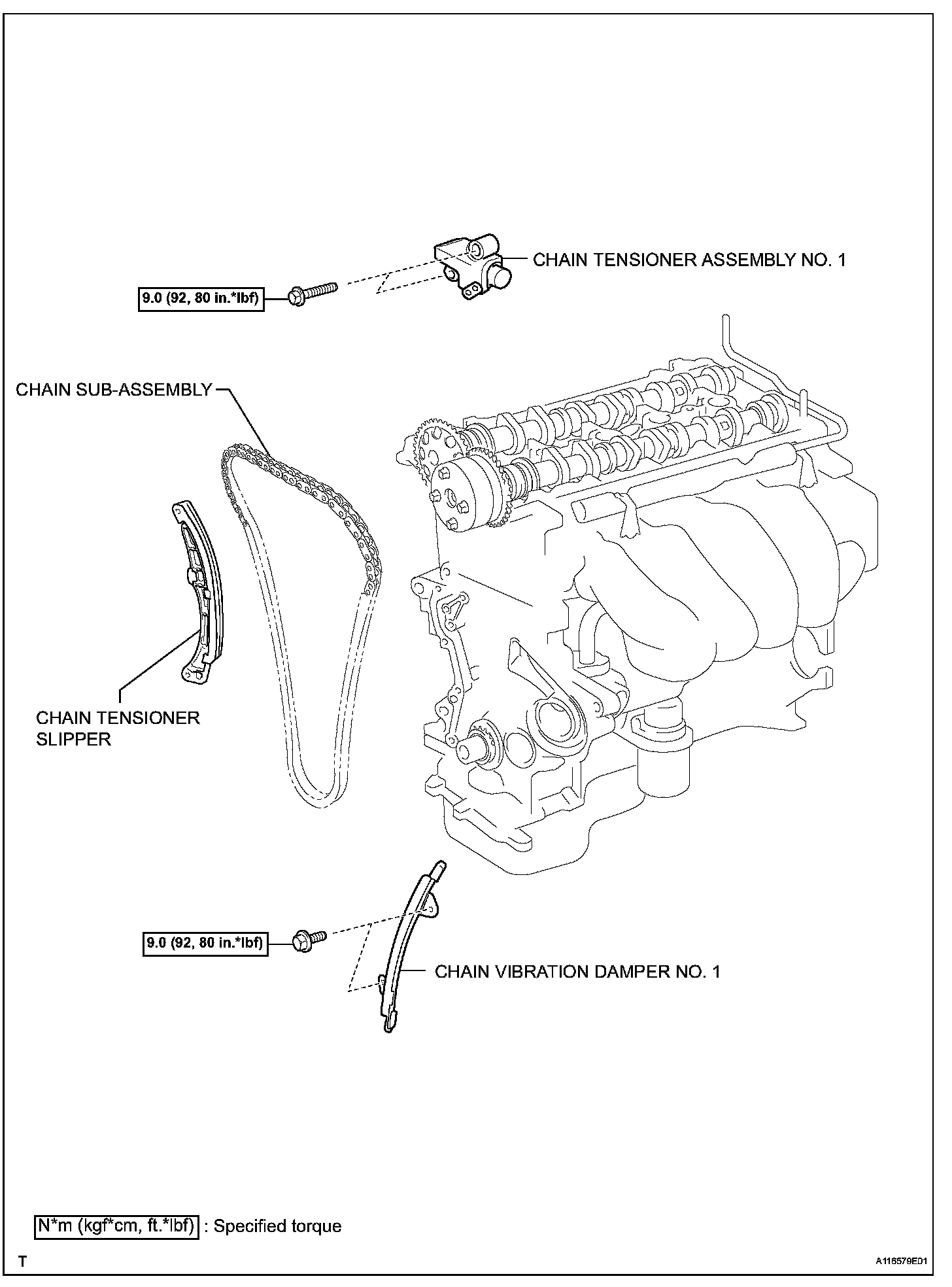

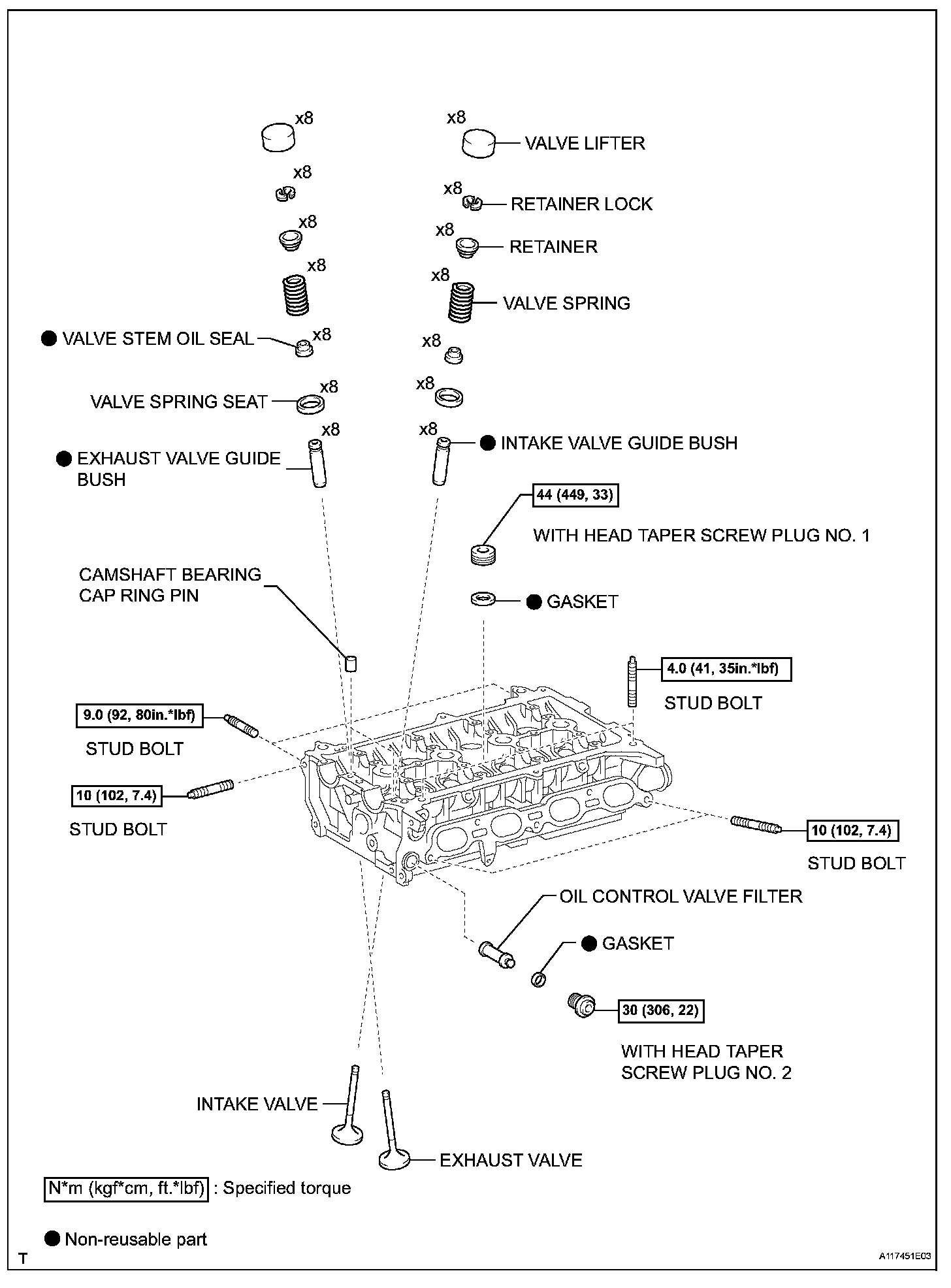

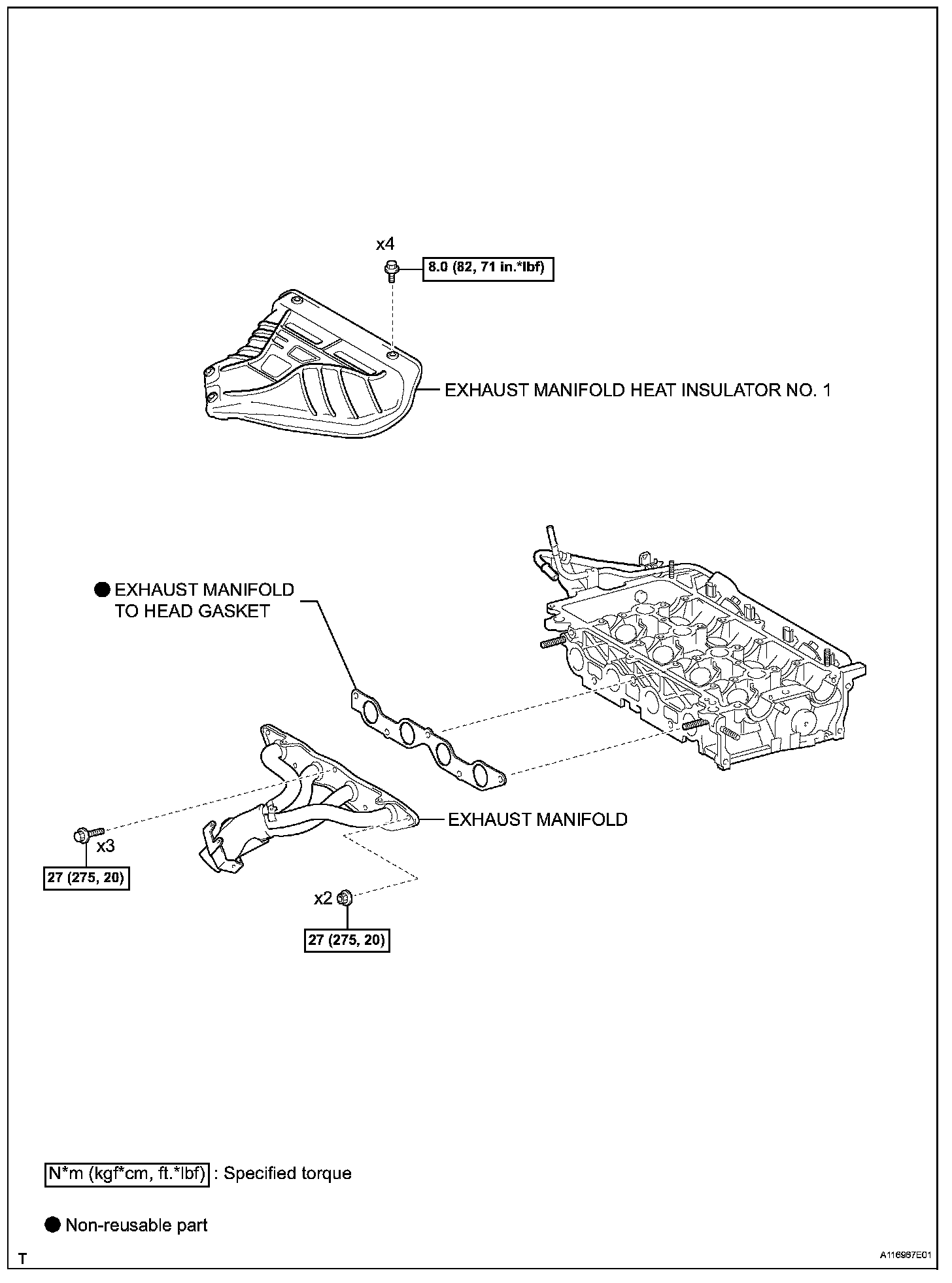

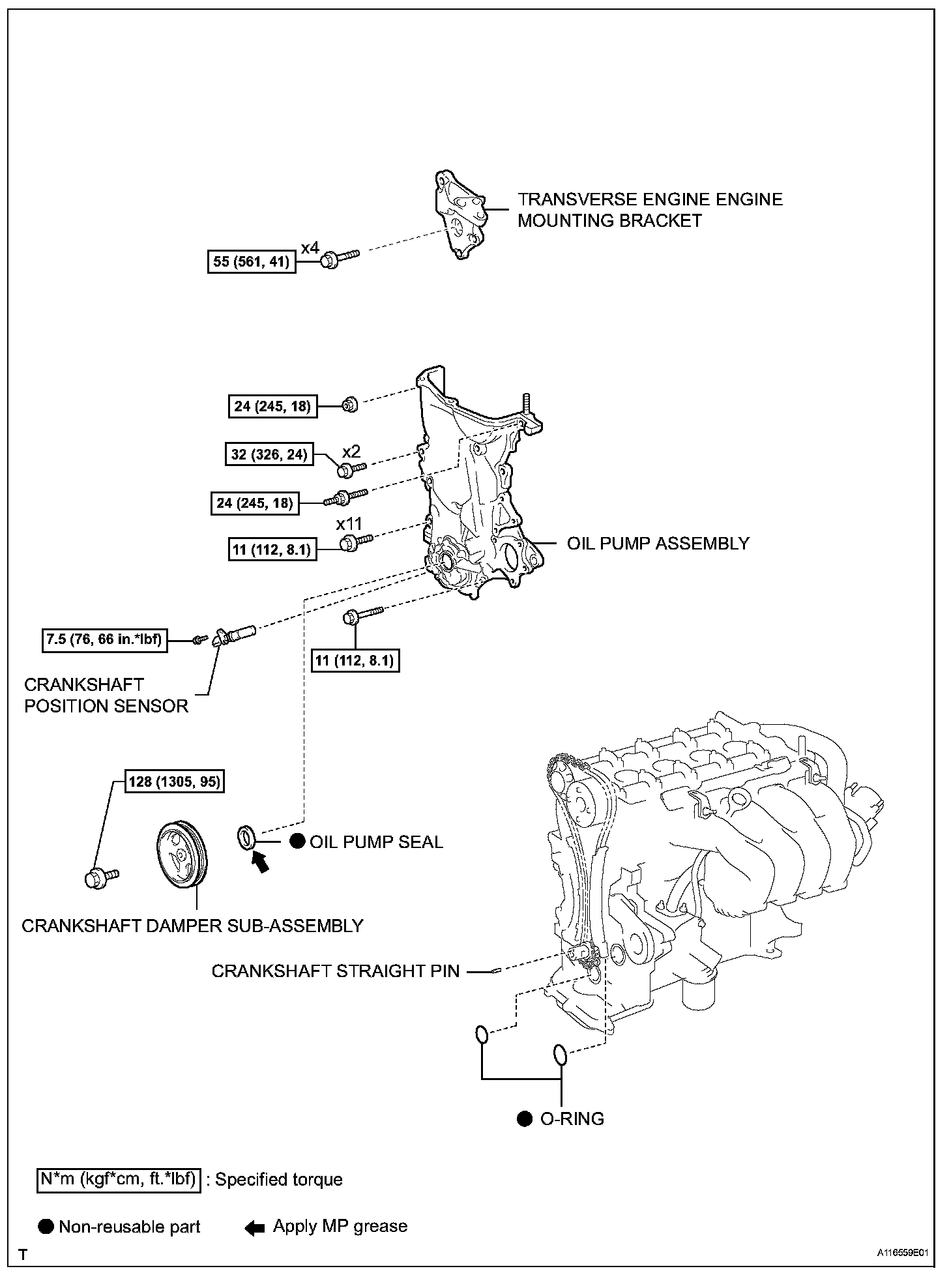

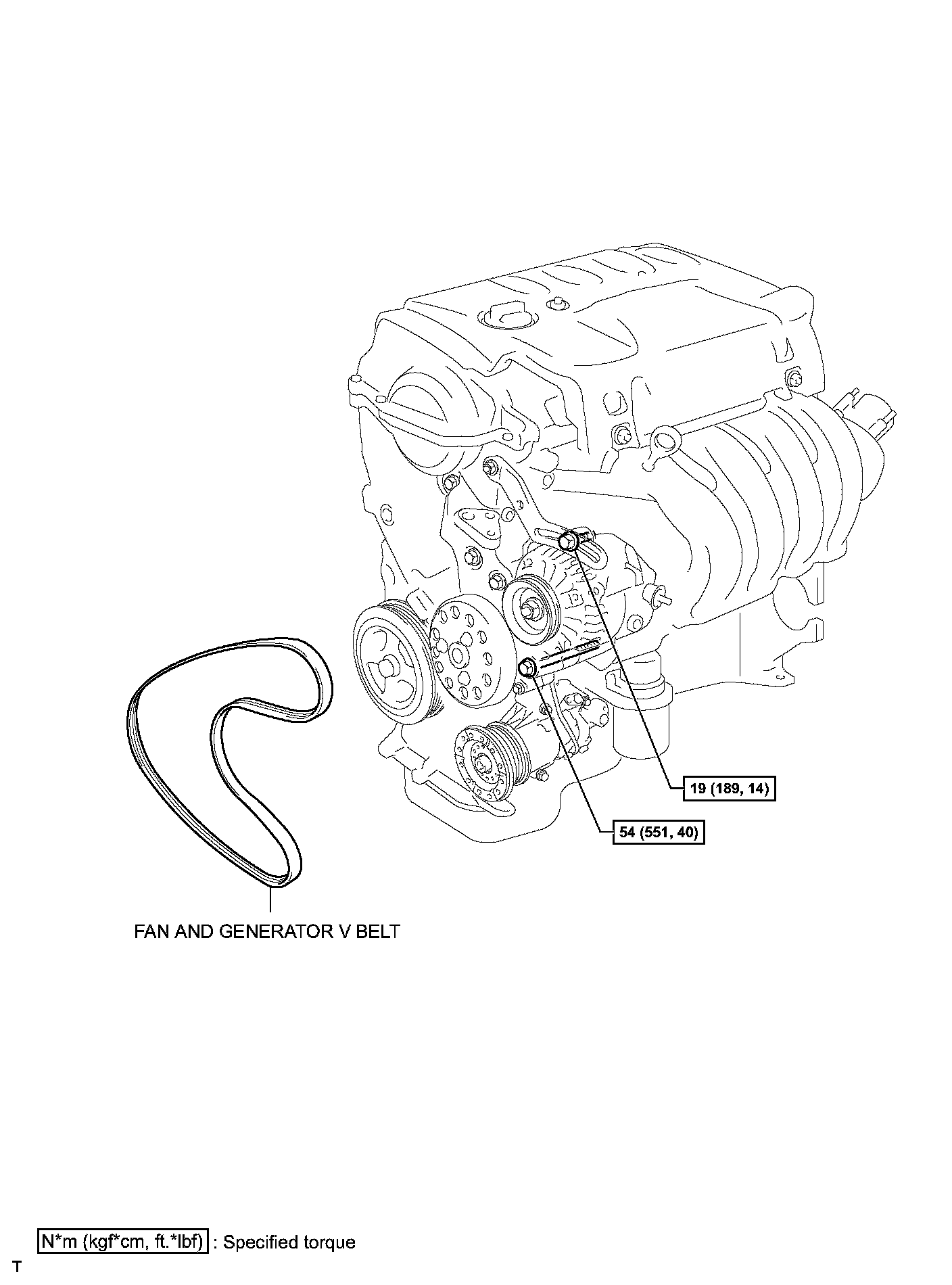

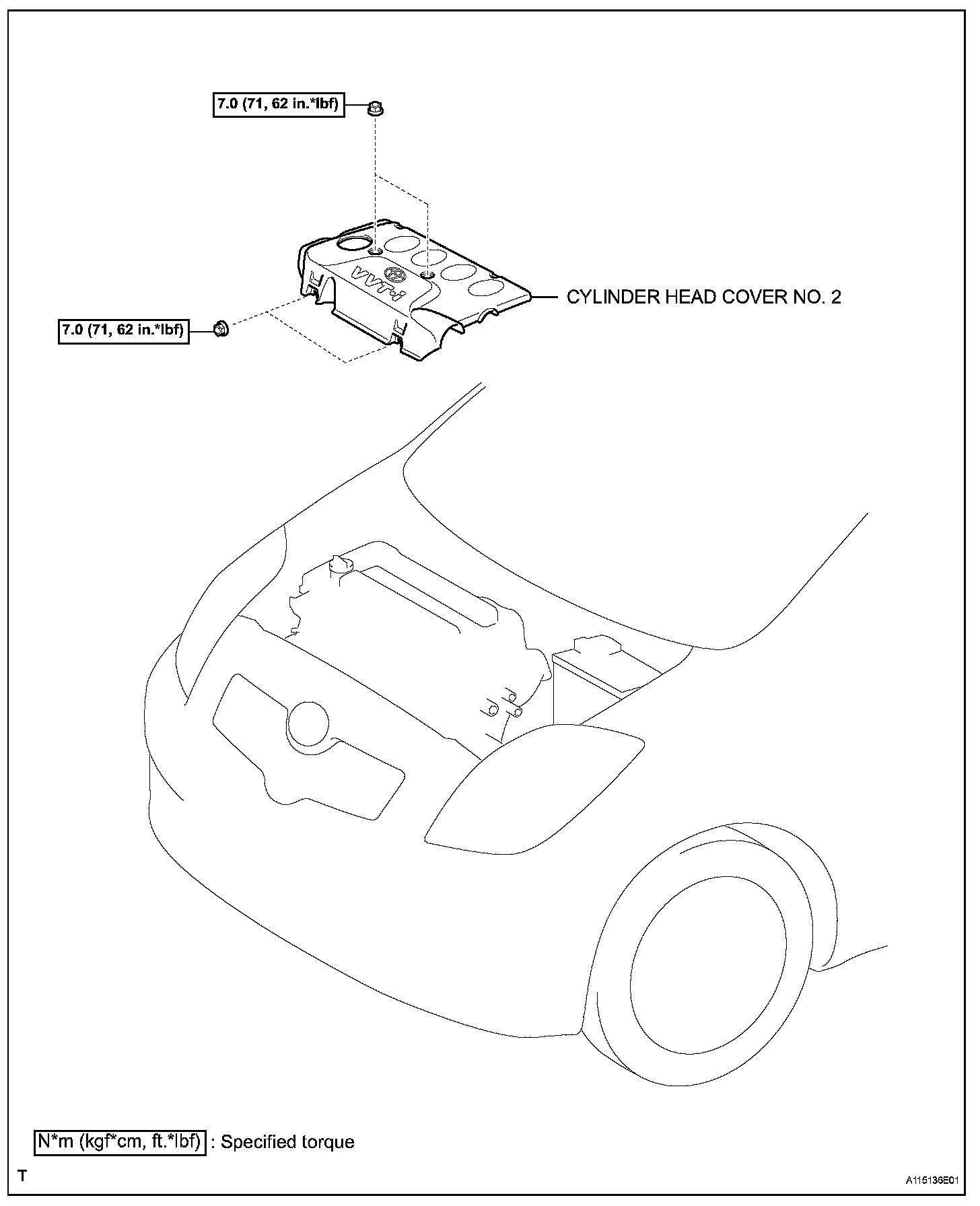

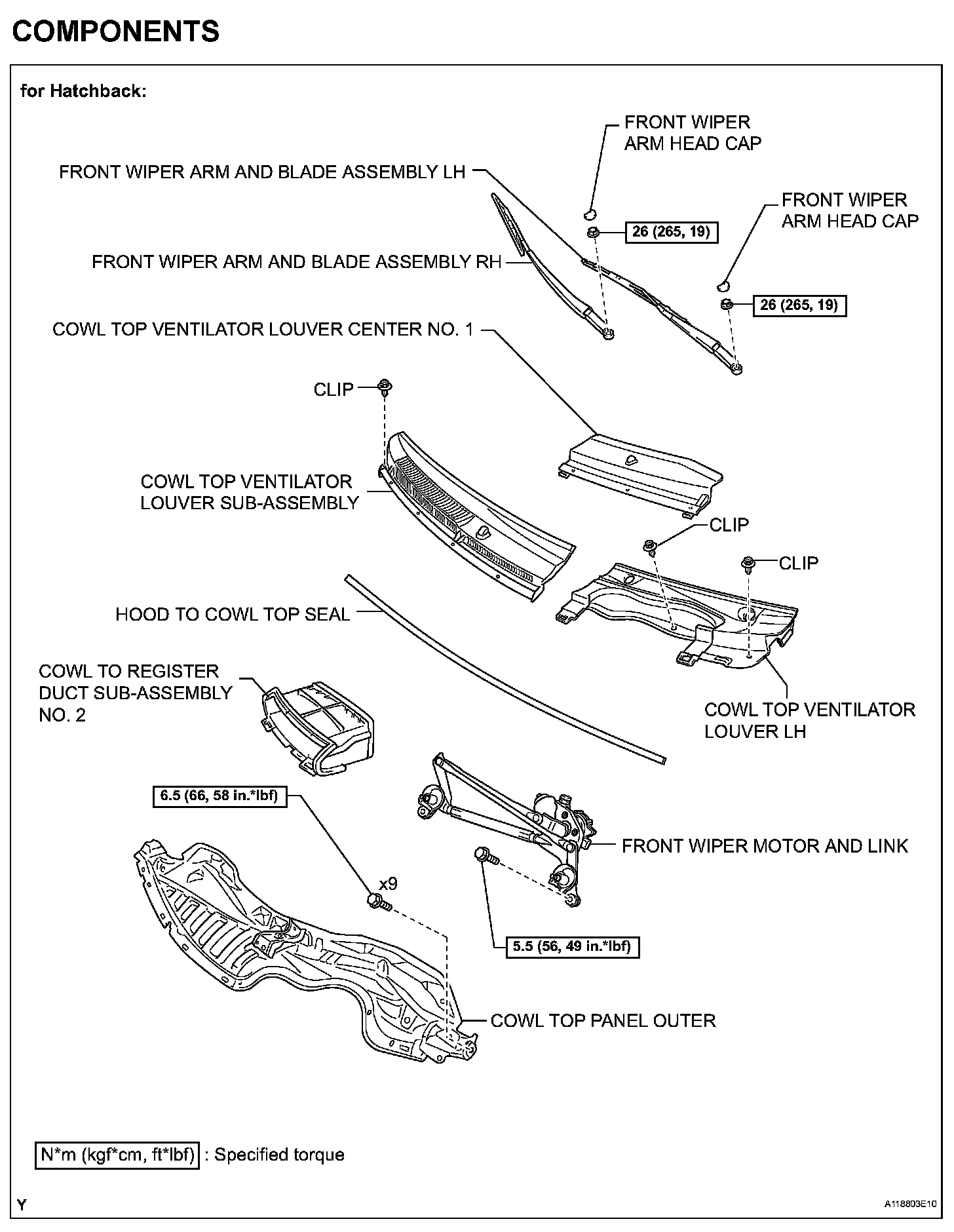

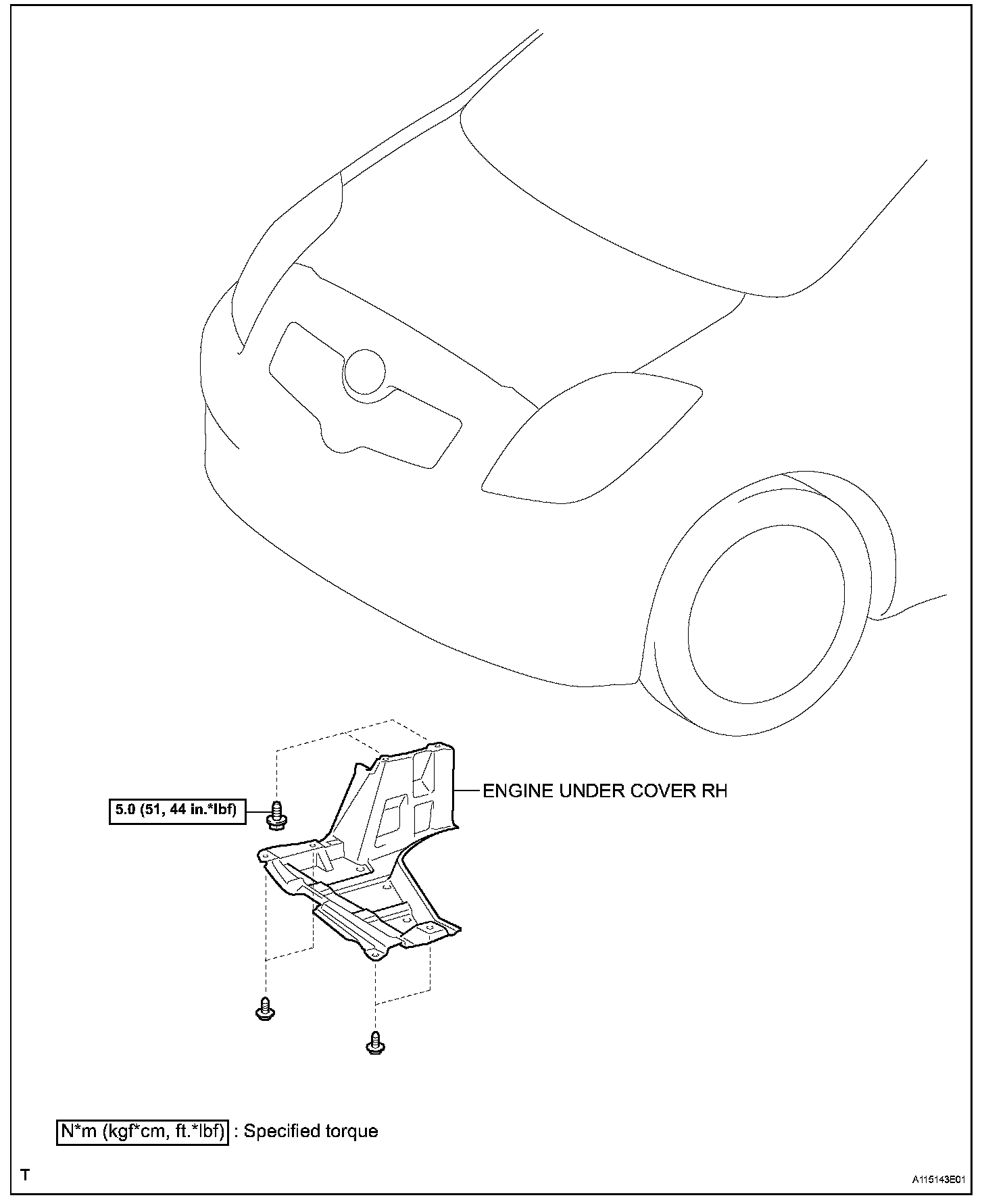

COMPONENTS (Part 1) (for Hatchback):

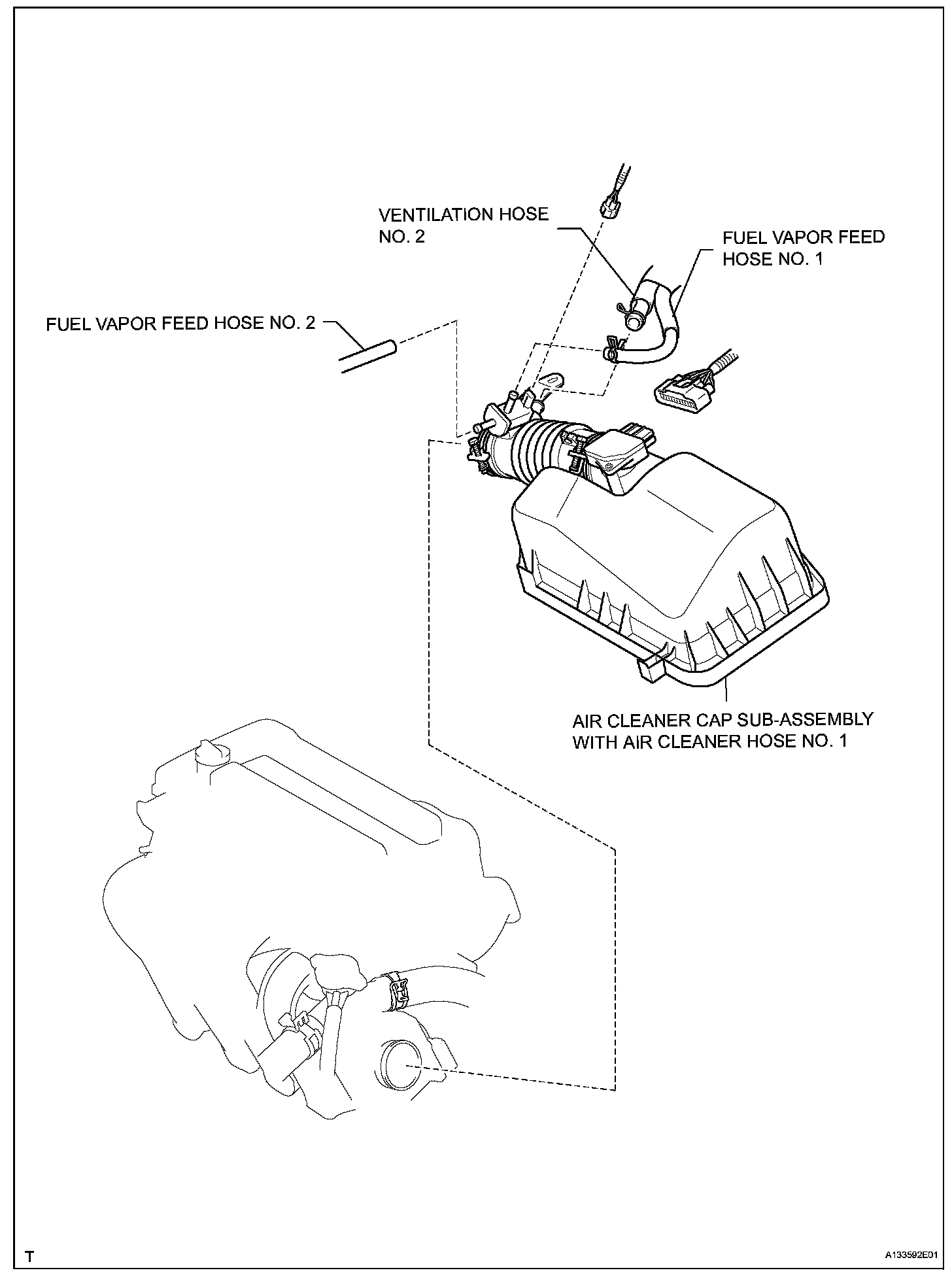

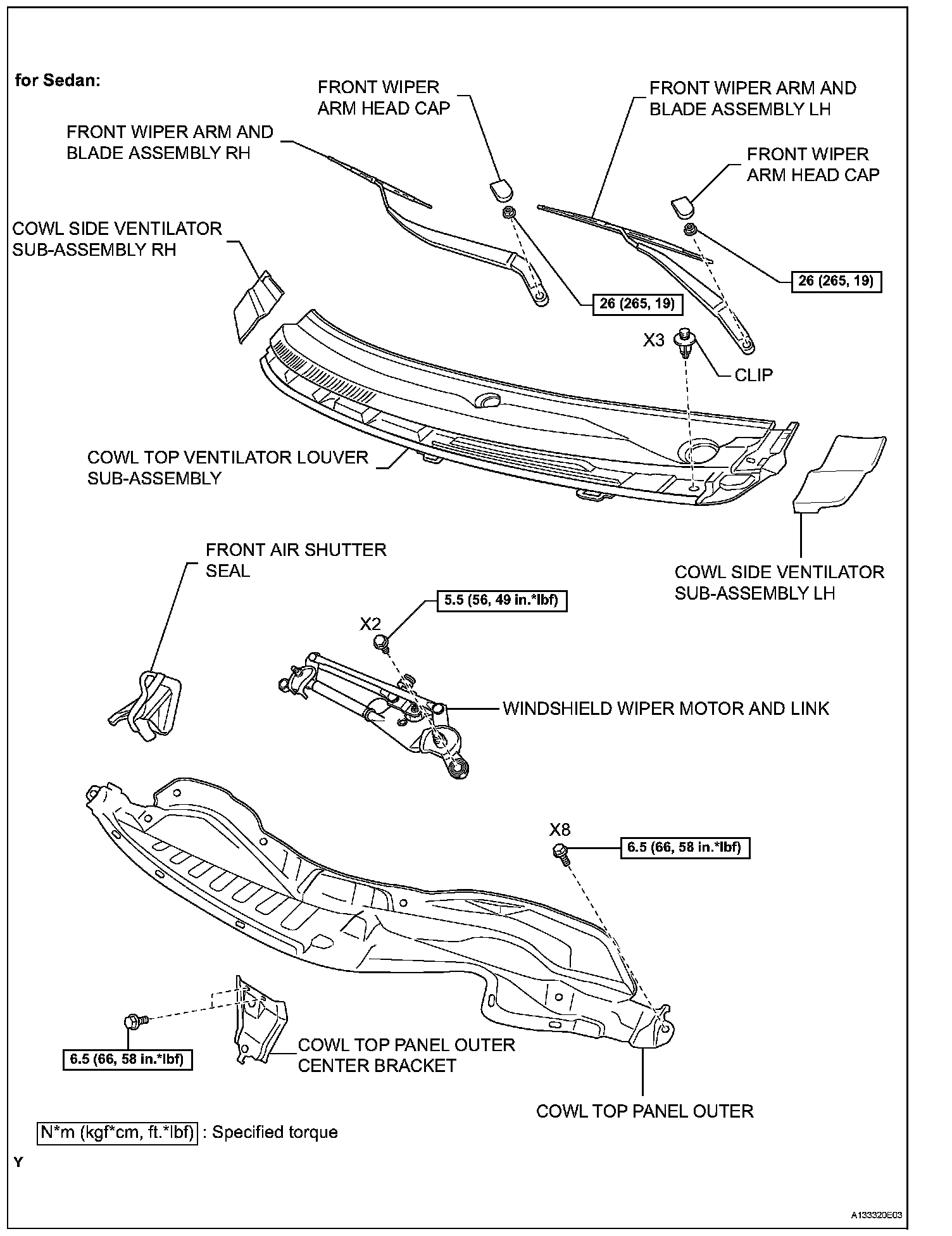

COMPONENTS (Part 2) (for Sedan):

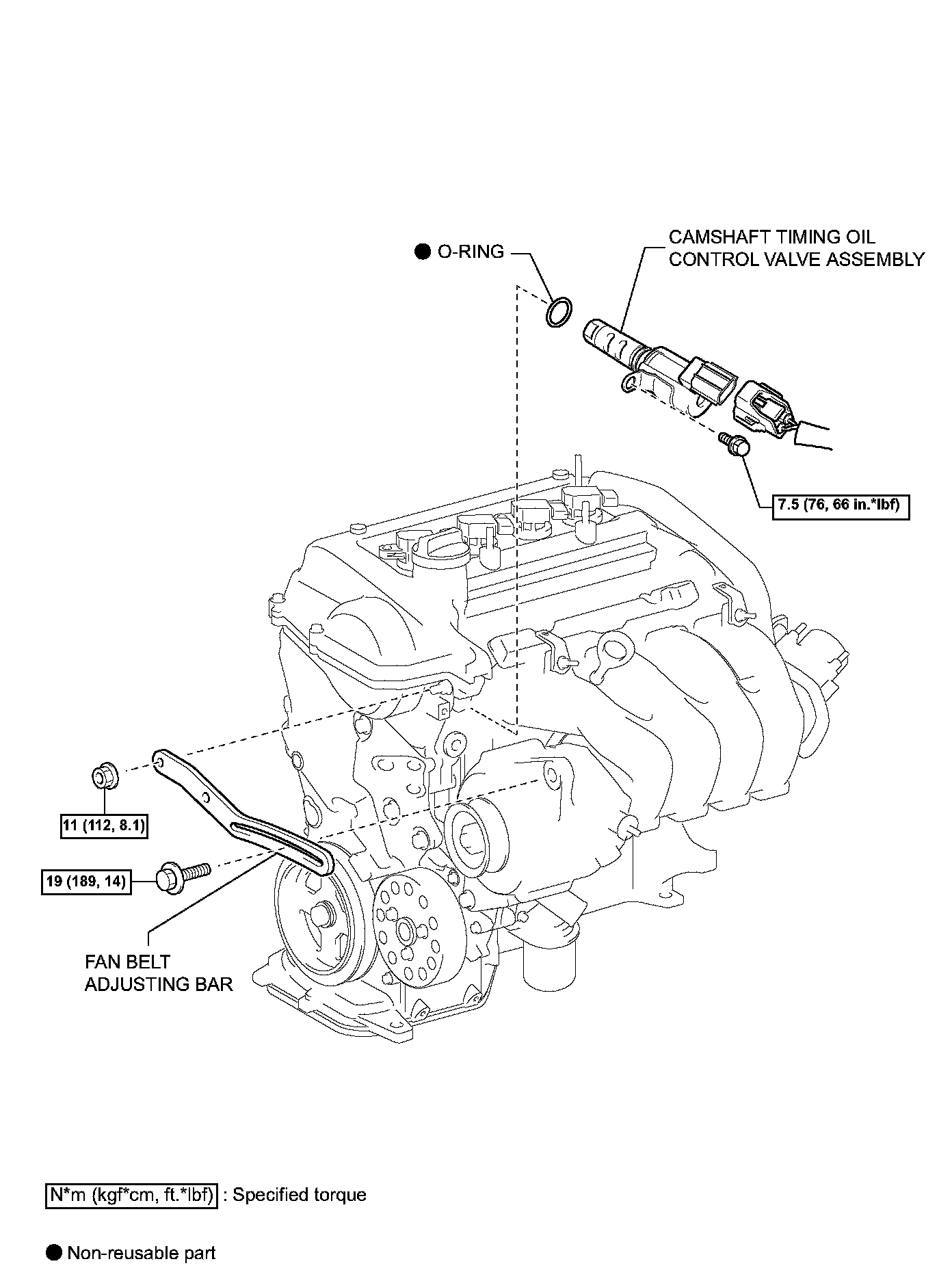

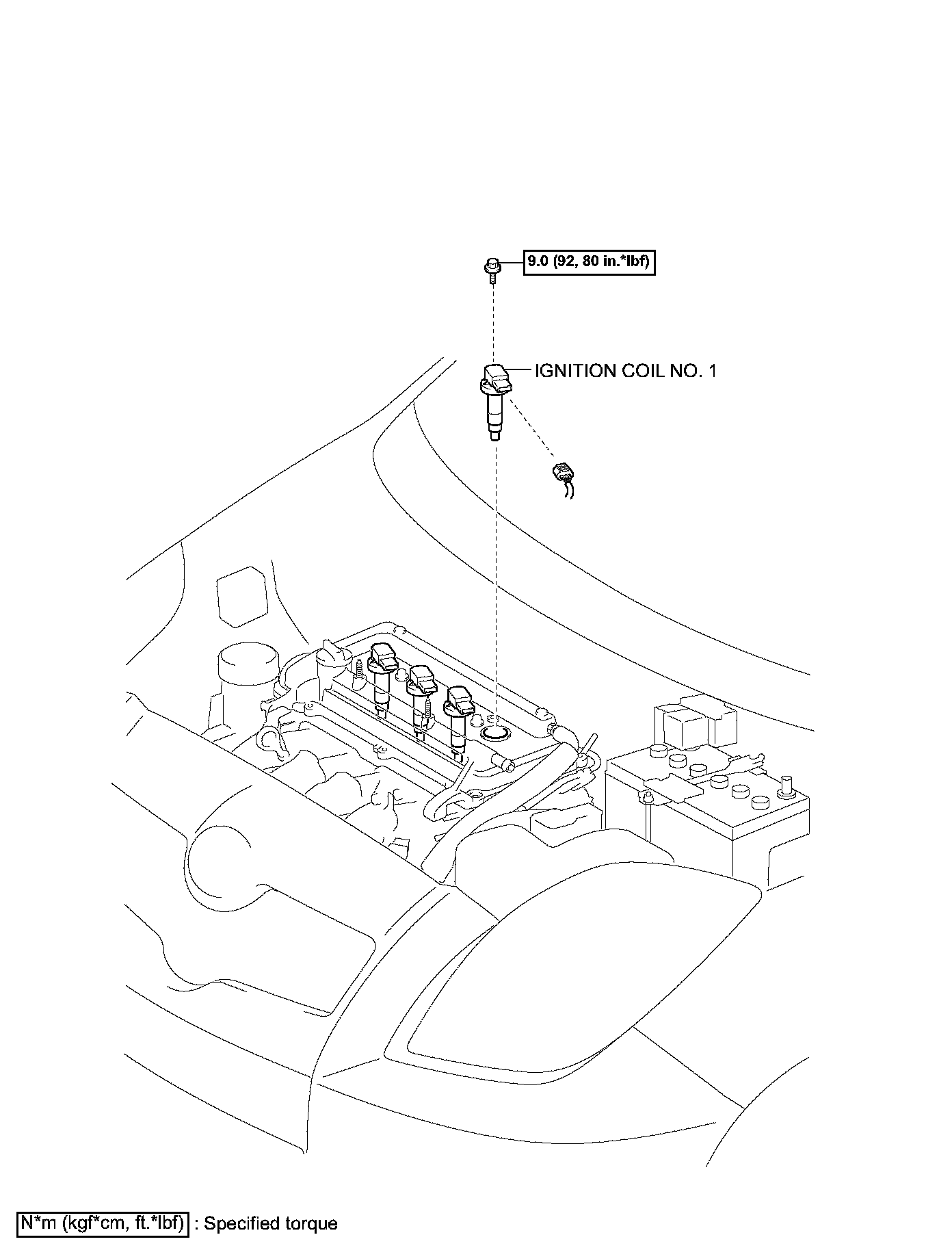

COMPONENTS (Part 3):

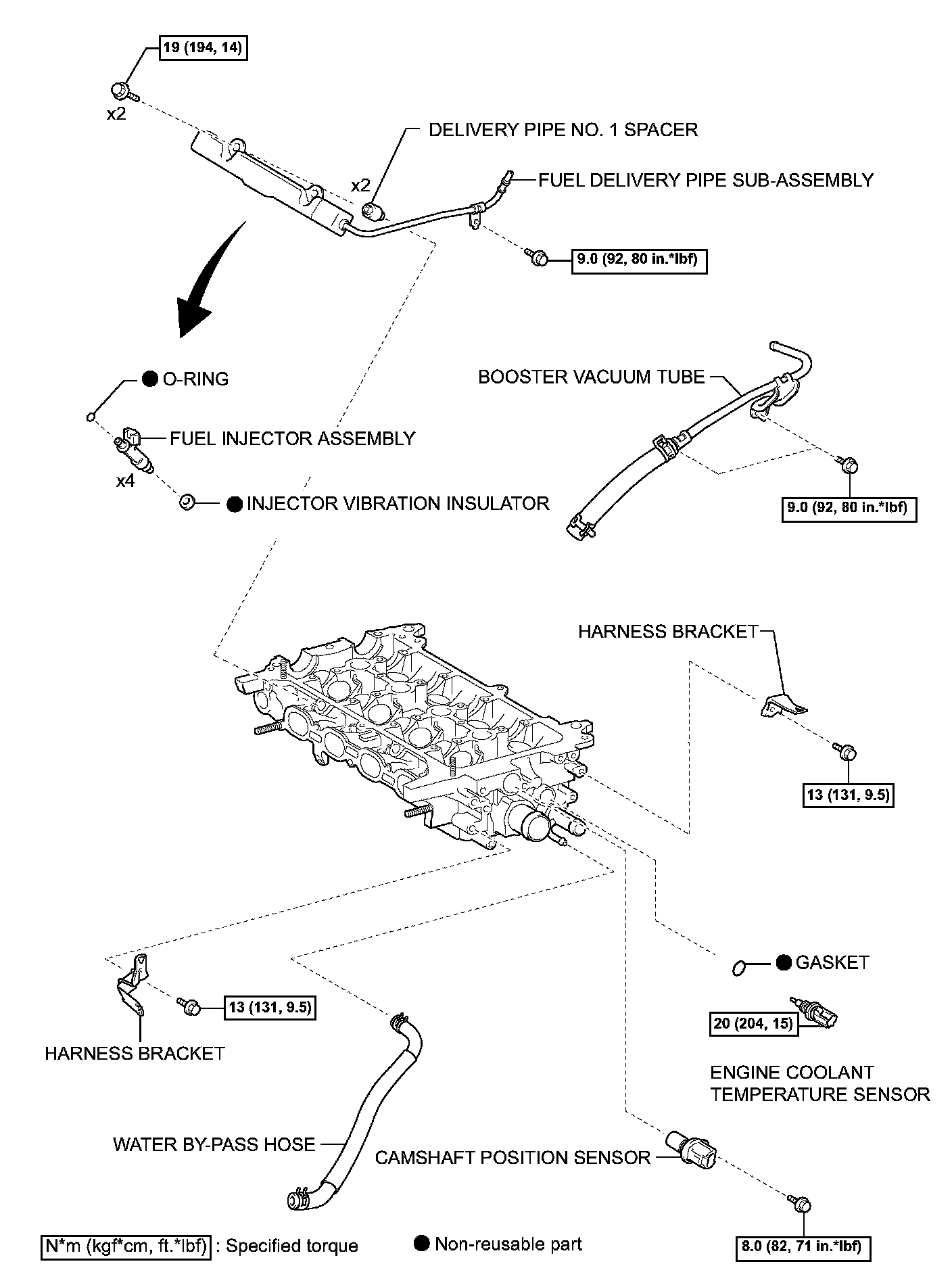

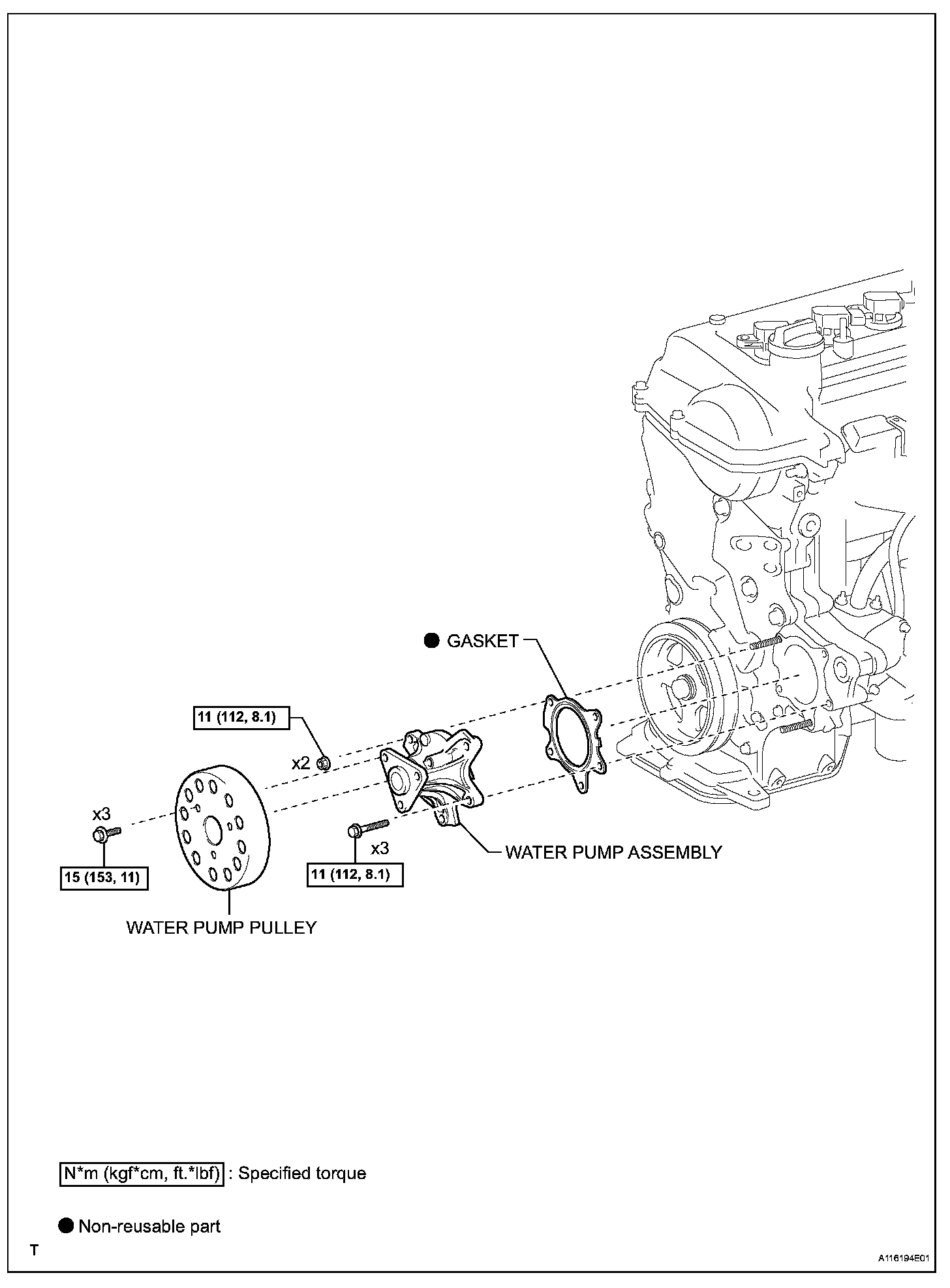

COMPONENTS (Part 4):

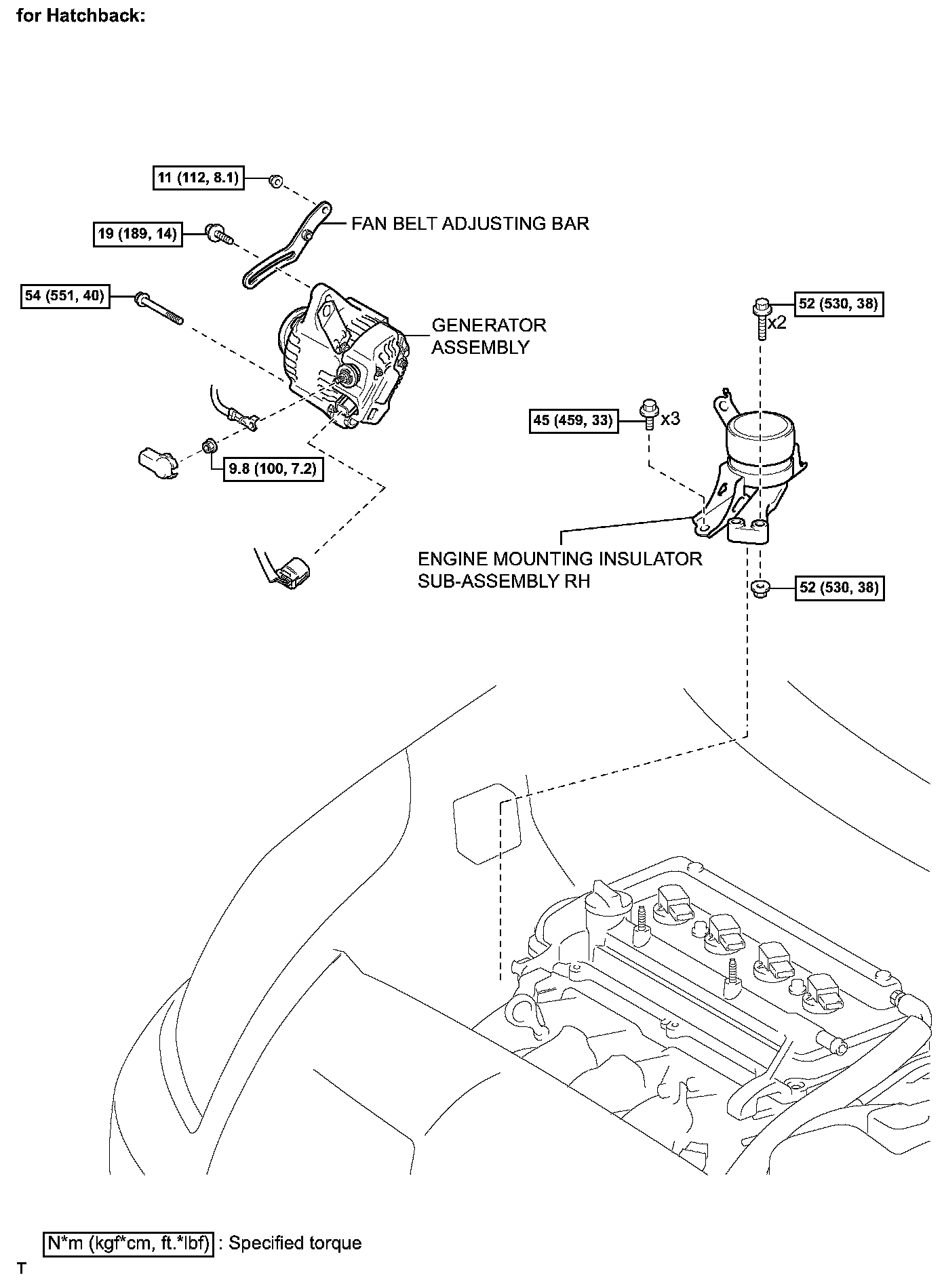

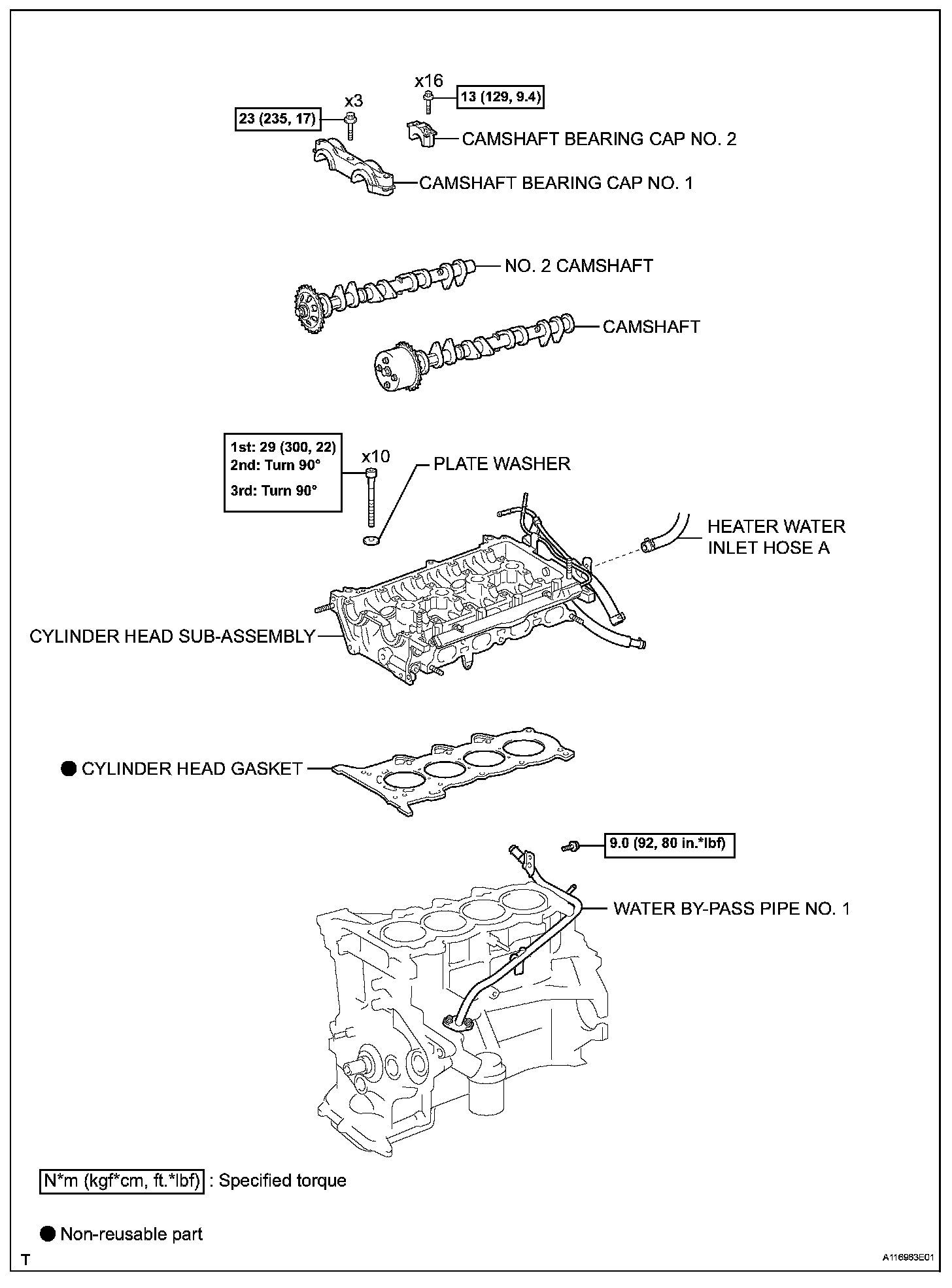

COMPONENTS (Part 5):

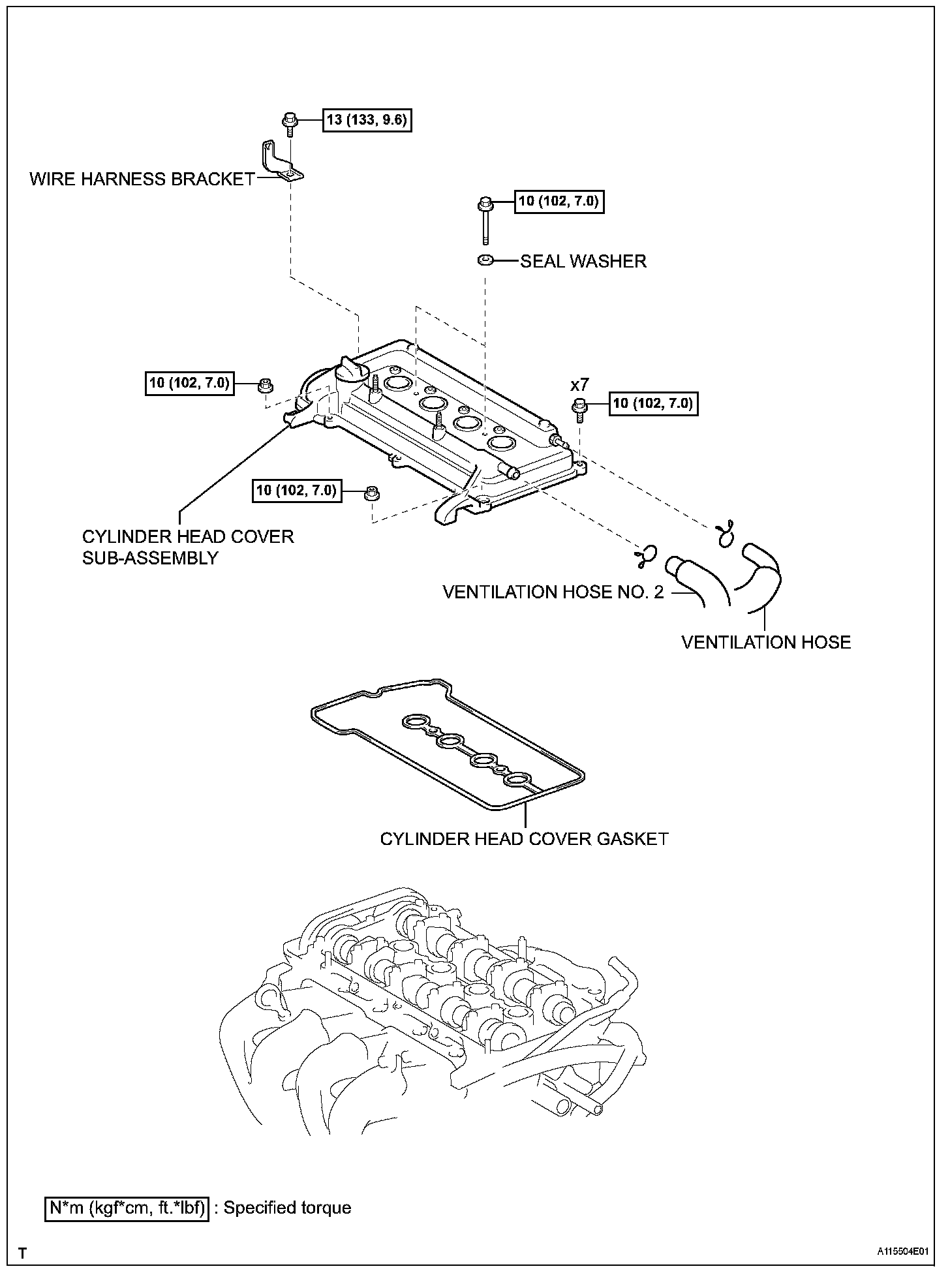

COMPONENTS (Part 6):

COMPONENTS (Part 7):

COMPONENTS (Part 8) (for Sedan):

COMPONENTS (Part 9) (for Sedan):

COMPONENTS (Part 10):

COMPONENTS (Part 11):

COMPONENTS (Part 12):

COMPONENTS (Part 13):

COMPONENTS (Part 14):

COMPONENTS (Part 15):

COMPONENTS (Part 16):

COMPONENTS (Part 17):

COMPONENTS (Part 18):

COMPONENTS (Part 19):

COMPONENTS (Part 20):

REPAIR





1. REPAIR INTAKE VALVE
(a) Repair the intake valve seat.

NOTICE: Releasing the seat-cutter pressure gradually helps to make the valve seat face smoother.

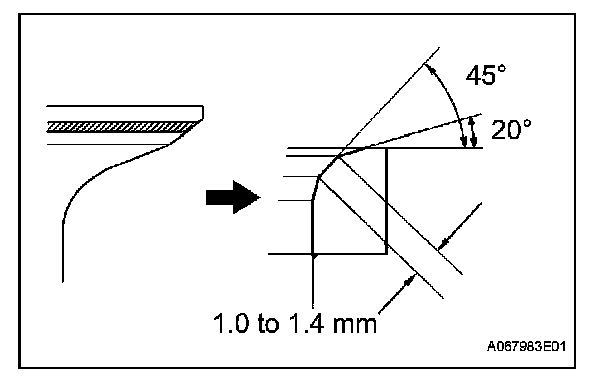

(b) If the seating is too high on the valve face, use 20° and 45° cutters to correct the seat.

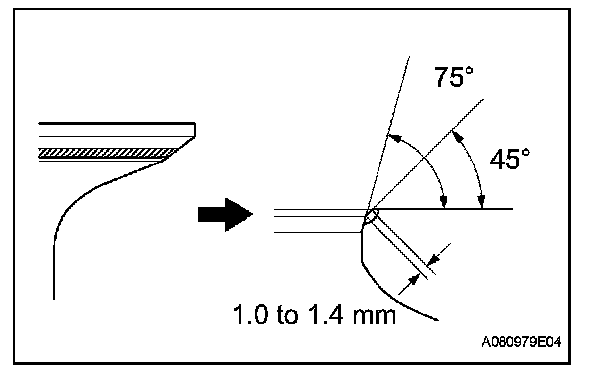

(c) If the seating is too low on the valve face, use 75° and 45° cutters to correct the seat.
(d) Hand-lap the valve and valve seat with an abrasive compound.
(e) Recheck the valve seating position.

2. REPAIR EXHAUST VALVE

NOTICE: Releasing the seat-cutter pressure gradually helps to make the valve seat face smoother.

(a) If the seating is too high on the valve face, use 20° and 45° cutters to correct the seat.
(b) If the seating is too low on the valve face, use 75° and 45° cutters to correct the seat.
(c) Hand-lap the valve and valve seat with an abrasive compound.
(d) Recheck the valve seating position.
