REMOVAL
1. DISCHARGE FUEL SYSTEM PRESSURE
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3. REMOVE FRONT WIPER ARM HEAD CAP (for Hatchback)
4. REMOVE FRONT WIPER ARM HEAD CAP (for Sedan)
5. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH (for Hatchback)
6. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH (for Sedan)
7. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH (for Hatchback)
8. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH (for Sedan)
9. REMOVE HOOD TO COWL TOP SEAL (for Hatchback)
10. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY (for Hatchback)
11. REMOVE COWL TOP VENTILATOR LOUVER LH (for Hatchback)
12. REMOVE COWL SIDE VENTILATOR SUB-ASSEMBLY LH (for Sedan)
13. REMOVE COWL SIDE VENTILATOR SUB-ASSEMBLY RH (for Sedan)
14. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY (for Sedan)
15. REMOVE FRONT WIPER MOTOR AND LINK (for Hatchback)
16. REMOVE FRONT WIPER MOTOR AND LINK (for Sedan)
17. REMOVE COWL TO REGISTER DUCT SUB-ASSEMBLY NO. 2 (for Hatchback)
18. REMOVE FRONT AIR SHUTTER SEAL RH (for Sedan)
19. REMOVE COWL TOP PANEL OUTER (for Hatchback)
20. REMOVE COWL TOP PANEL OUTER (for Sedan)
21. REMOVE BATTERY
22. REMOVE BATTERY TRAY
23. REMOVE FRONT WHEEL RH
24. REMOVE ENGINE UNDER COVER RH
25. DRAIN ENGINE OIL
26. DRAIN ENGINE COOLANT
27. REMOVE CYLINDER HEAD COVER NO. 2
28. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH AIR CLEANER HOSE NO. 1

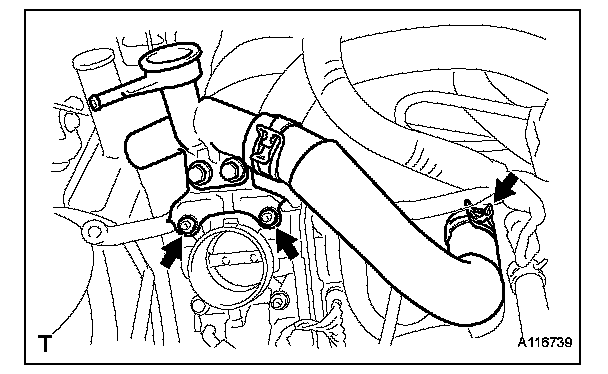

29. DISCONNECT RADIATOR HOSE NO. 3

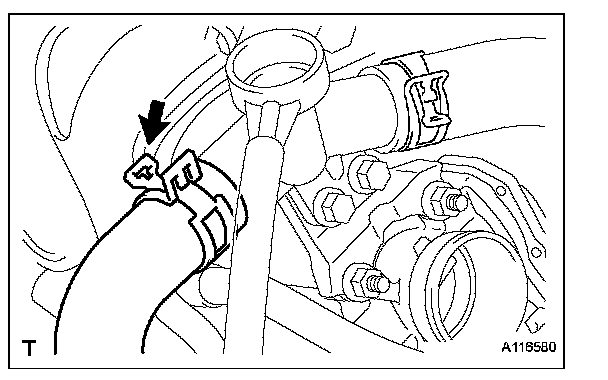

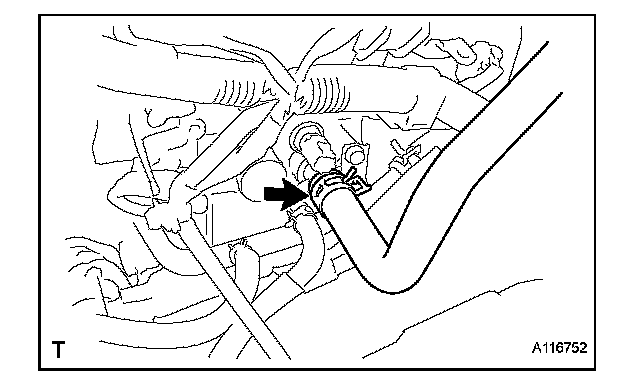

(a) Disconnect radiator hose No. 3.
30. DISCONNECT RESERVE TANK HOSE

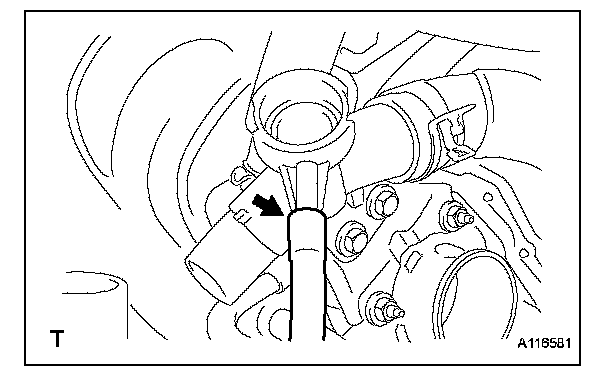

(a) Disconnect the reserve tank hose.
31. REMOVE WATER FILLER SUB-ASSEMBLY
(a) Separate radiator hose No. 1 from the cylinder head.
(b) Remove the 2 nuts and remove the water filler subassembly.
32. DISCONNECT WATER BY-PASS HOSE NO. 2

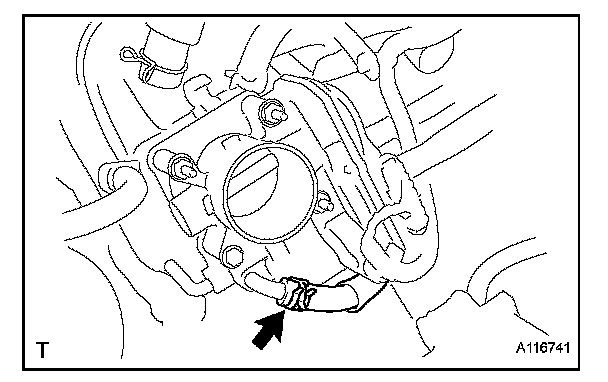

(a) Disconnect water by-pass hose No. 2.

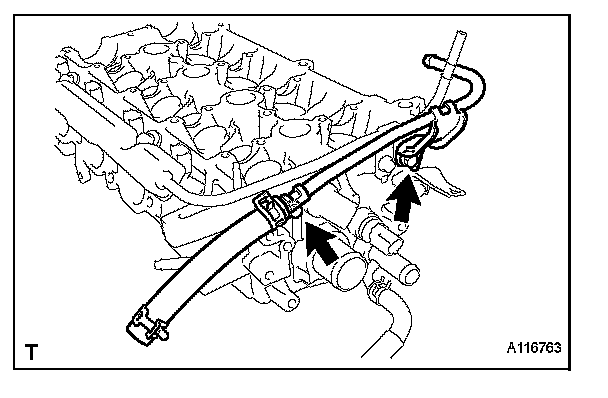

33. DISCONNECT WATER BY-PASS HOSE

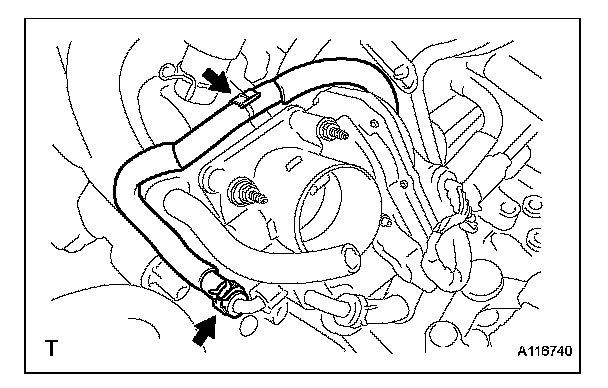

(a) Disconnect the water by-pass hose.

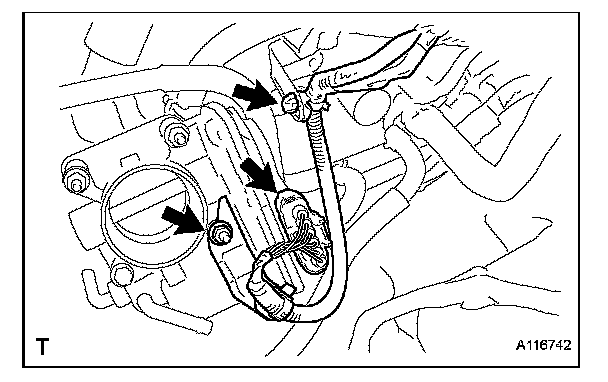

34. DISCONNECT THROTTLE WITH MOTOR BODY CONNECTOR
(a) Separate the wire harness clamp.
(b) Remove the nut and separate the throttle with motor body connector.

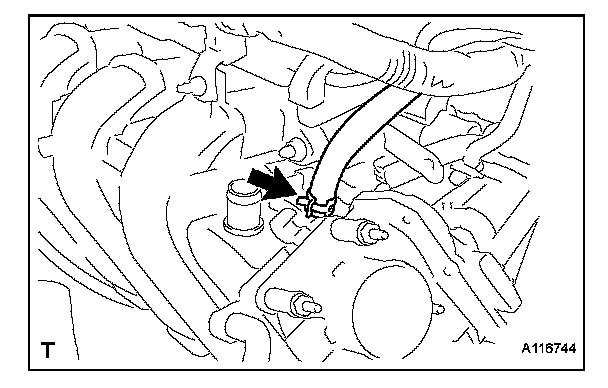

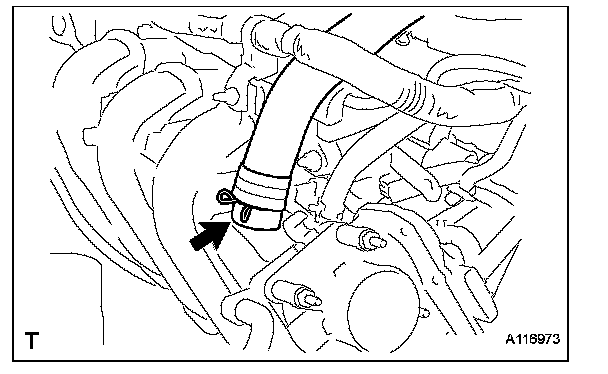

35. DISCONNECT VENTILATION HOSE
(a) Disconnect the ventilation hose.
36. DISCONNECT UNION TO CONNECTOR TUBE HOSE
(a) Disconnect the union to connector tube hose.
37. REMOVE OIL LEVEL GAUGE SUB-ASSEMBLY
38. REMOVE INTAKE MANIFOLD

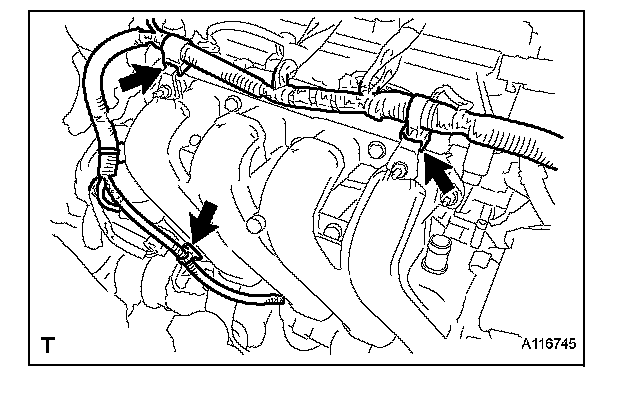

(a) Separate the 3 wire harness clamps shown in the illustration.
(b) Remove the 3 bolts and 2 nuts and remove the intake manifold.
39. REMOVE OIL LEVEL GAUGE GUIDE

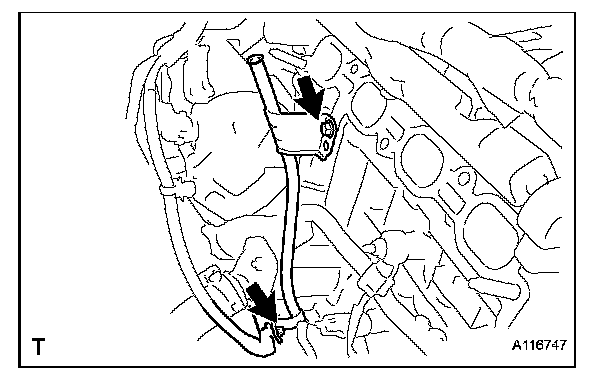

(a) Remove the wire harness clamp and the bolt and remove the oil level gauge guide.
40. DISCONNECT FUEL TUBE SUB-ASSEMBLY

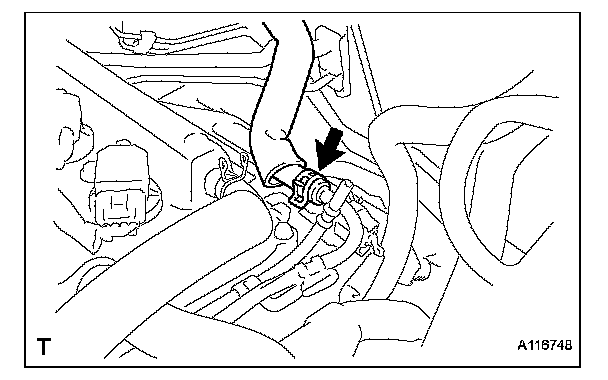

41. DISCONNECT BOOSTER VACUUM TUBE
(a) Disconnect the booster vacuum tube.

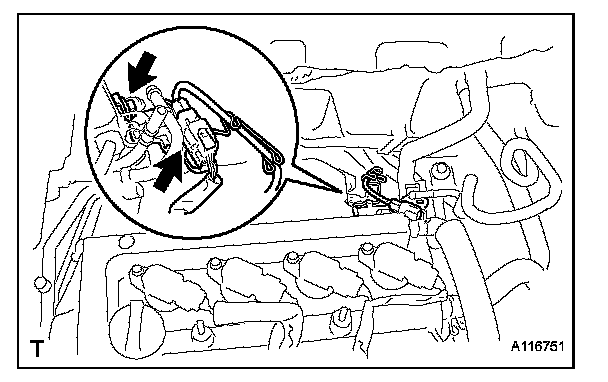

42. DISCONNECT CAMSHAFT POSITION SENSOR CONNECTOR
(a) Disconnect the camshaft position sensor connector.

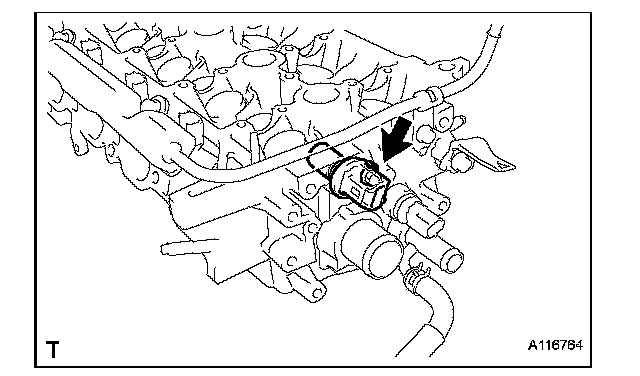

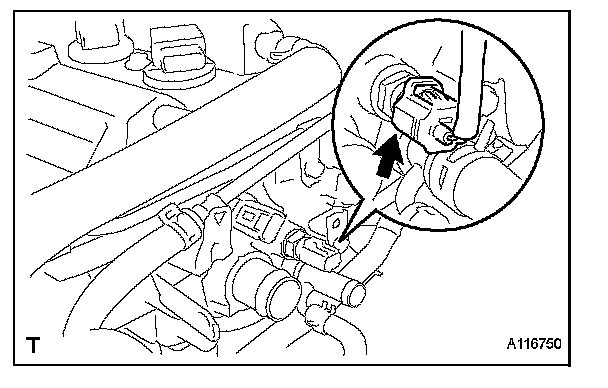

43. DISCONNECT ENGINE COOLANT TEMPERATURE SENSOR CONNECTOR

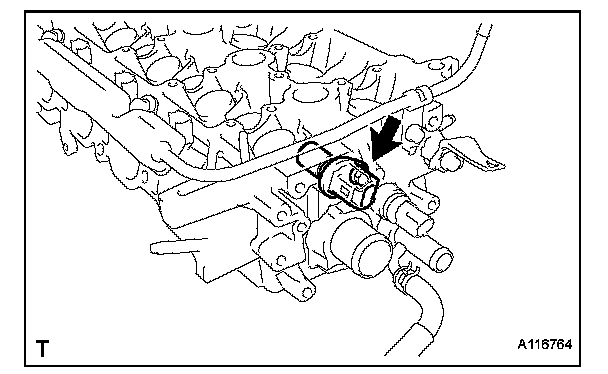

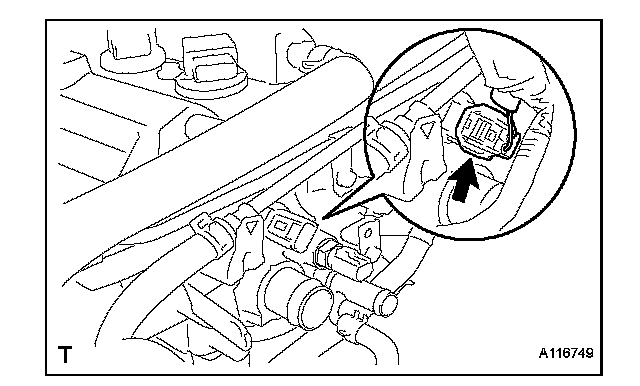

(a) Disconnect the engine coolant temperature sensor connector.
44. DISCONNECT HEATED OXYGEN SENSOR CONNECTOR
(a) Remove the bolts and separate the sensor bracket.
(b) Disconnect the heated oxygen sensor connector.
45. DISCONNECT HEATER WATER INLET HOSE A

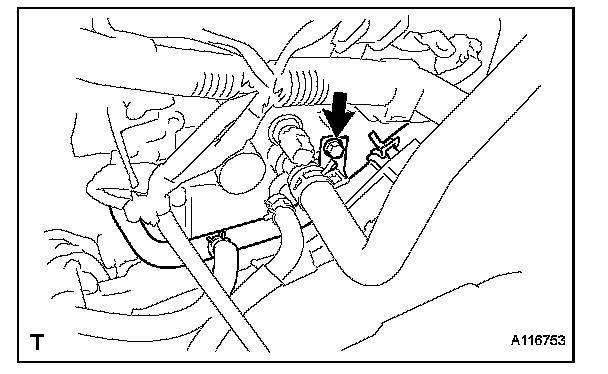

(a) Disconnect heater water inlet hose A.

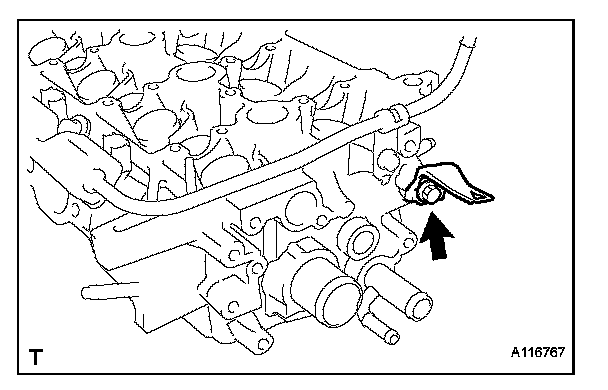

46. SEPARATE WATER BY-PASS PIPE NO. 1
(a) Remove the bolt and separate water by-pass pipe No. 1.
47. DISCONNECT WIRE HARNESS

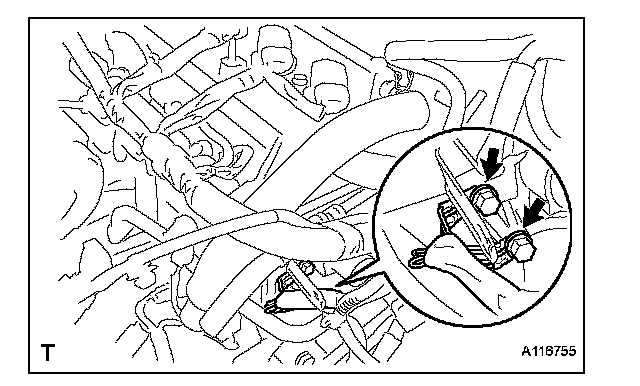

(a) Remove the 2 bolts and disconnect the wire harness.
48. SEPARATE EXHAUST PIPE ASSEMBLY FRONT

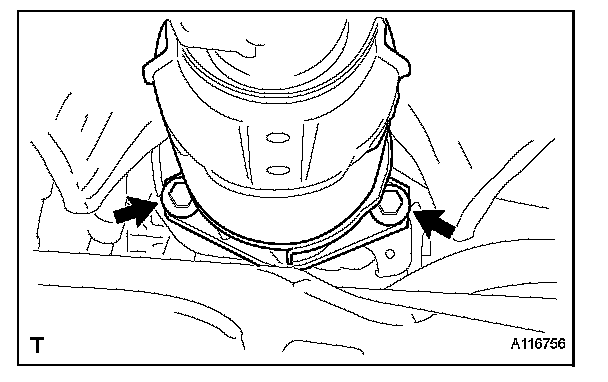

(a) Remove the 2 bolts and 2 compression springs and separate the exhaust pipe assembly front.
49. REMOVE MANIFOLD SUPPORT BRACKET

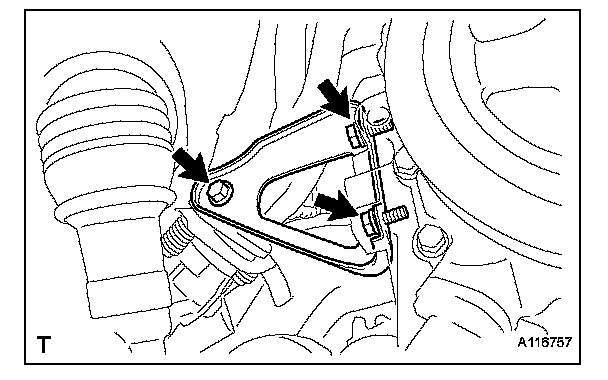

(a) Remove the 3 bolts and remove the manifold support bracket.
50. REMOVE FAN AND GENERATOR V BELT
51. REMOVE GENERATOR ASSEMBLY
52. REMOVE IGNITION COIL NO. 1
53. REMOVE VENTILATION HOSE
54. REMOVE VENTILATION HOSE NO. 2
55. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY
56. REMOVE ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH
57. REMOVE CRANKSHAFT DAMPER SUB-ASSEMBLY
58. REMOVE CRANKSHAFT POSITION SENSOR
59. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
60. REMOVE WATER PUMP PULLEY
61. REMOVE WATER PUMP ASSEMBLY
62. REMOVE TRANSVERSE ENGINE ENGINE MOUNTING BRACKET
63. REMOVE OIL PUMP ASSEMBLY
64. REMOVE OIL PUMP SEAL
65. REMOVE CHAIN TENSIONER ASSEMBLY NO. 1
66. REMOVE CHAIN TENSIONER SLIPPER
67. REMOVE CHAIN VIBRATION DAMPER NO. 1
68. REMOVE CHAIN SUB-ASSEMBLY
69. REMOVE CAMSHAFT
NOTICE: When rotating the camshaft with the timing chain removed, rotate the crankshaft counterclockwise 40° from the TDC first.

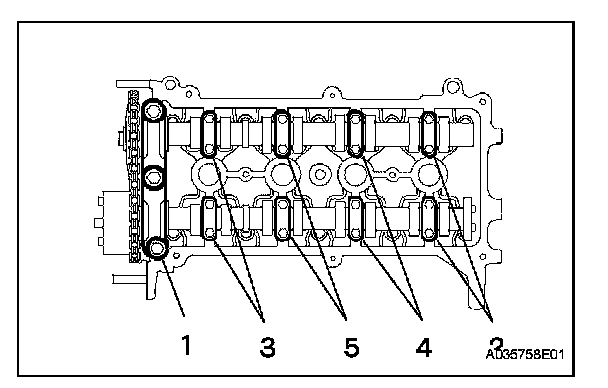

(a) Using several steps, uniformly loosen and remove the 19 bearing cap bolts in the sequence shown in the illustration, and then remove camshaft bearing cap No. 1 and camshaft bearing cap No. 2.
NOTICE: Loosen each bolt uniformly while keeping the camshaft level.
(b) Remove the camshaft and camshaft No. 2.
70. REMOVE CYLINDER HEAD SUB-ASSEMBLY

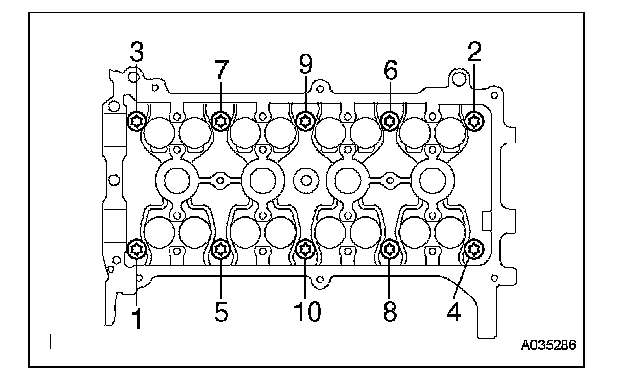

(a) Using several steps, uniformly loosen and remove the 10 cylinder head bolts with an 8 mm bi-hexagon wrench in the sequence shown in the illustration. Remove the 10 plate washers.
NOTICE:
^ Do not drop the washers into the cylinder head.
^ Head warpage or cracking could result from removing the bolts in the wrong order.
71. REMOVE CYLINDER HEAD GASKET
(a) Remove the cylinder head gasket.

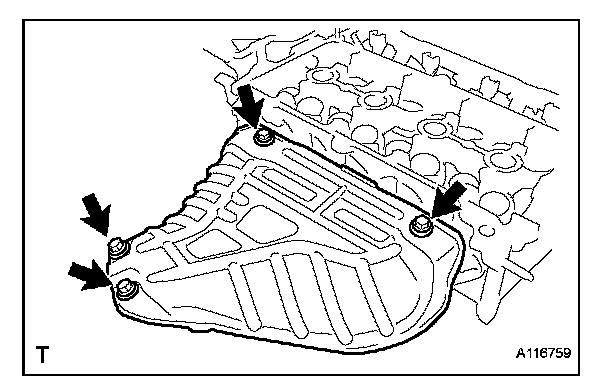

72. REMOVE EXHAUST MANIFOLD HEAT INSULATOR NO. 1

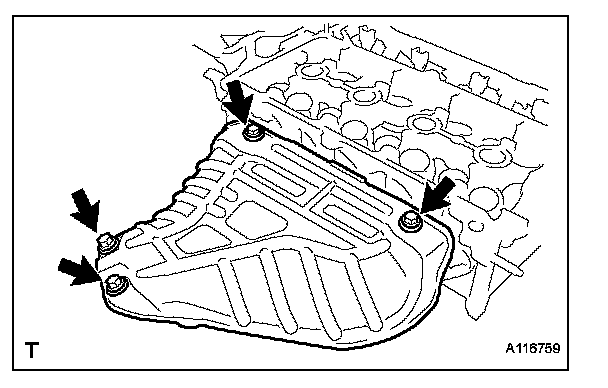

(a) Remove the 4 bolts and remove exhaust manifold heat insulator No. 1.

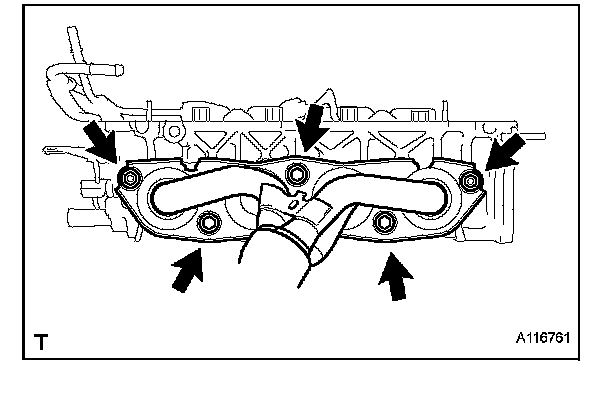

73. REMOVE EXHAUST MANIFOLD

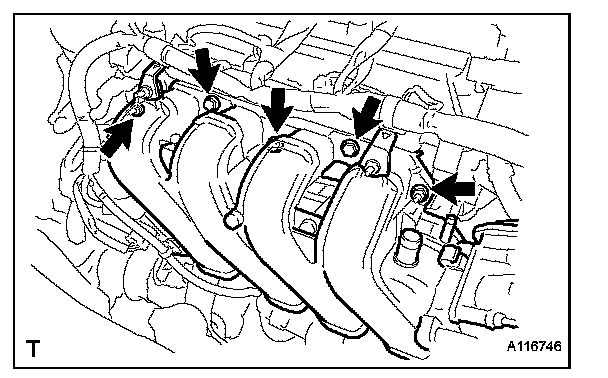

(a) Remove the 3 bolts and 2 nuts and remove the exhaust manifold.
74. REMOVE HARNESS BRACKET

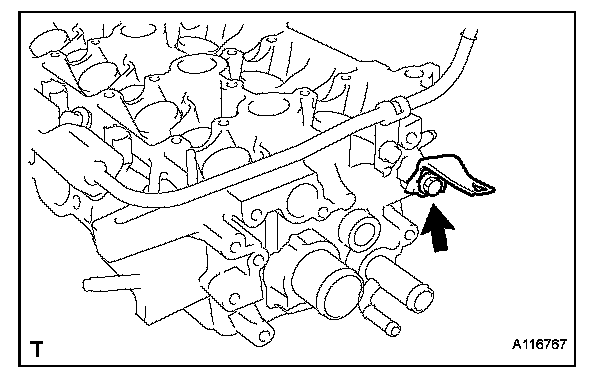

(a) Remove the bolt and remove the harness bracket.
75. REMOVE BOOSTER VACUUM TUBE
(a) Remove the 2 bolts and remove the booster vacuum tube.
76. REMOVE CAMSHAFT POSITION SENSOR
(a) Remove the bolt and remove the camshaft position sensor.
77. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
(a) Using SST, remove the engine coolant temperature sensor connector.
SST 09817-33190
78. REMOVE WATER BY-PASS HOSE

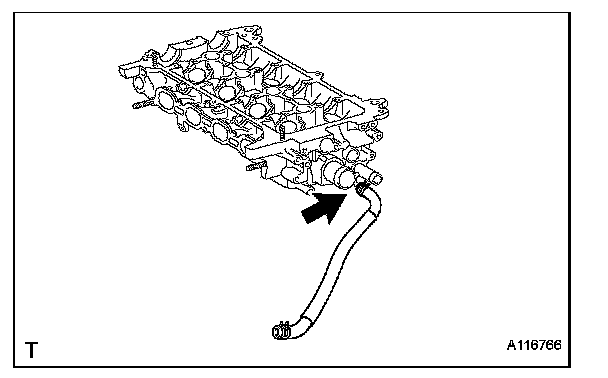

(a) Remove the water by-pass hose.
79. REMOVE HARNESS BRACKET

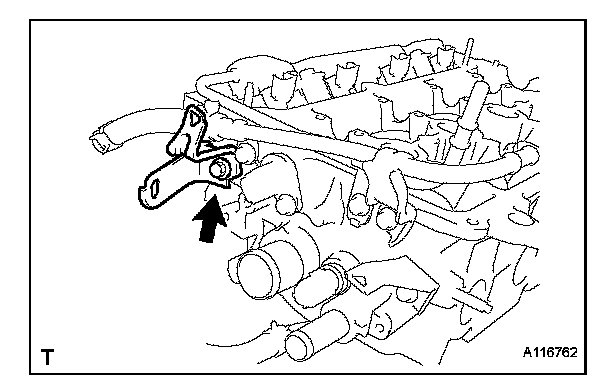

(a) Remove the bolt and remove the harness bracket.
80. REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY

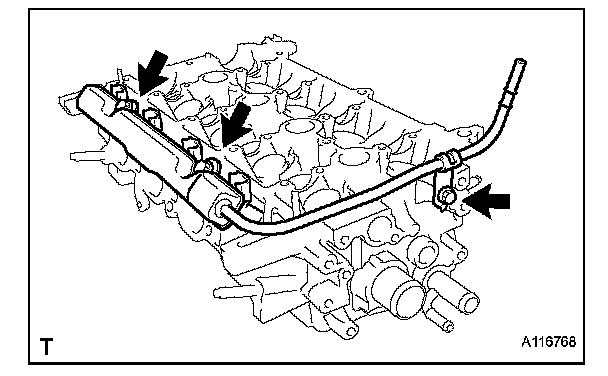

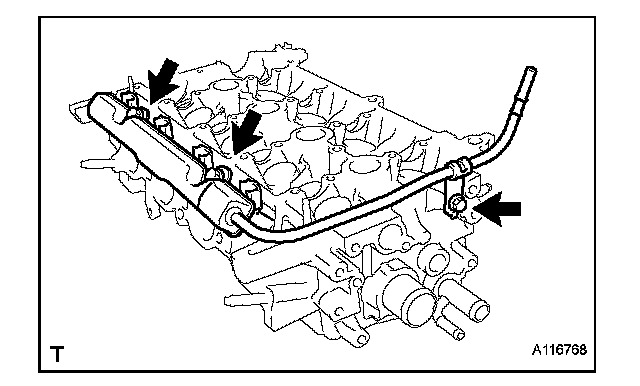

(a) Remove the 3 bolts and remove the fuel delivery pipe sub-assembly with 4 fuel injectors.
NOTICE: Do not drop the fuel injectors when removing the fuel delivery pipe sub-assembly.
81. REMOVE FUEL INJECTOR ASSEMBLY

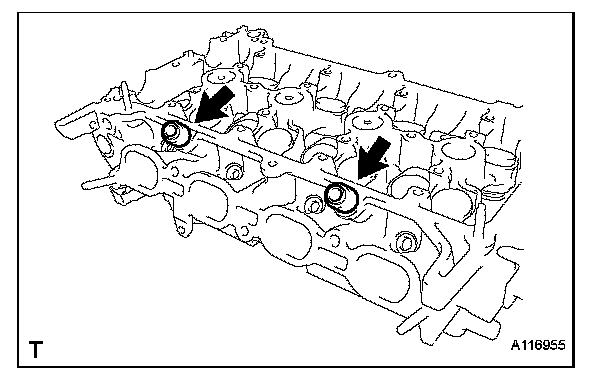

82. REMOVE DELIVERY PIPE NO. 1 SPACER
(a) Remove the 2 delivery pipe No. 1 spacers.

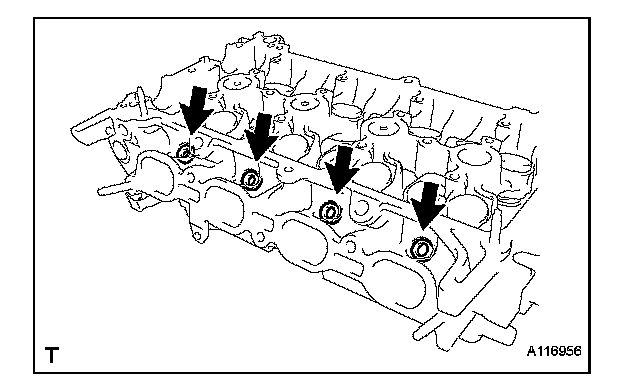

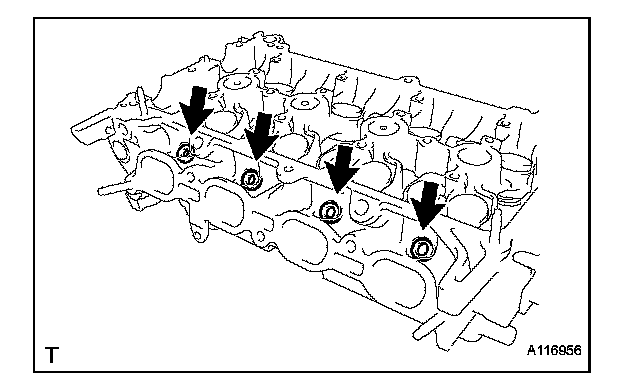

83. REMOVE INJECTOR VIBRATION INSULATOR
(a) Remove the 4 injector vibration insulators.
INSTALLATION
1. INSTALL INJECTOR VIBRATION INSULATOR
(a) Install 4 new injector vibration insulators onto the cylinder head.

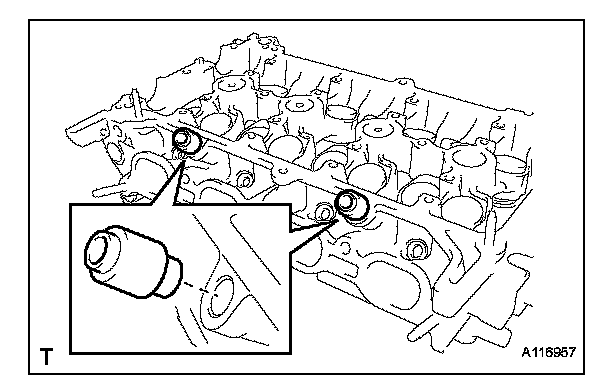

2. INSTALL DELIVERY PIPE NO. 1 SPACER
(a) Install the 2 delivery pipe No. 1 spacers onto the cylinder head.
NOTICE: Install the delivery pipe No. 1 spacer in the correct direction.
3. INSTALL FUEL INJECTOR ASSEMBLY
4. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY
(a) Provisionally install the fuel delivery pipe subassembly with the 4 fuel injectors using the 3 bolts.
NOTICE:
^ Do not drop the fuel injectors when installing the fuel delivery pipe sub-assembly.
^ Check that the fuel injectors rotate smoothly after installing the fuel delivery pipe subassembly.
(b) Tighten the 3 bolts to the specified torque.

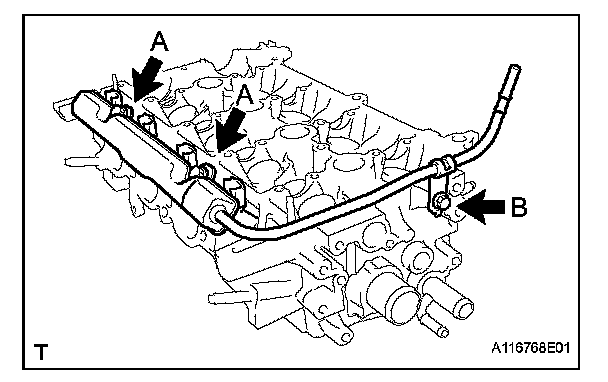

Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf) for bolt A
9.0 N*m (92 kgf*cm, 80 in.*lbf) for bolt B
5. INSTALL HARNESS BRACKET
(a) Install the harness bracket with the bolt.
Torque: 13 N*m (131 kgf*cm, 9.5 ft.*lbf)
6. INSTALL WATER BY-PASS HOSE

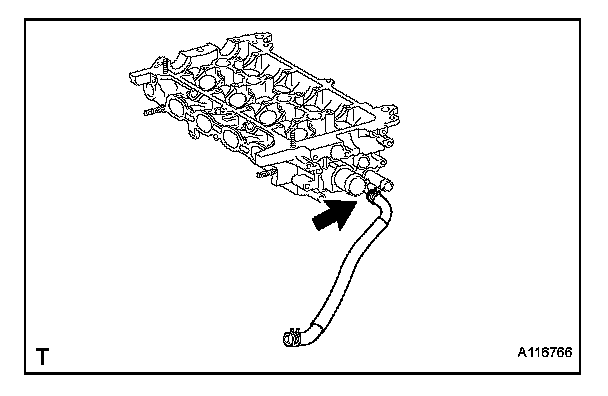

(a) Install the water by-pass hose.
7. INSTALL ENGINE COOLANT TEMPERATURE SENSOR
(a) Provisionally install the engine coolant temperature sensor through a new gasket.

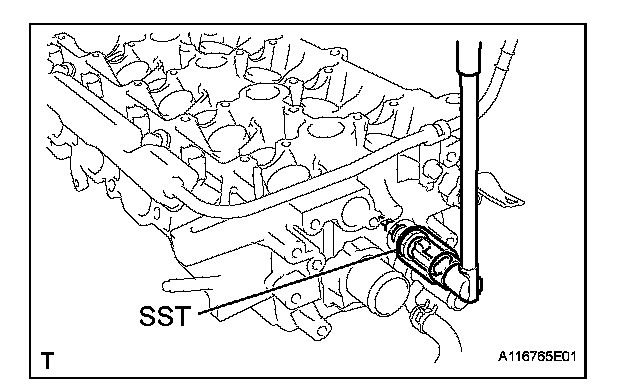

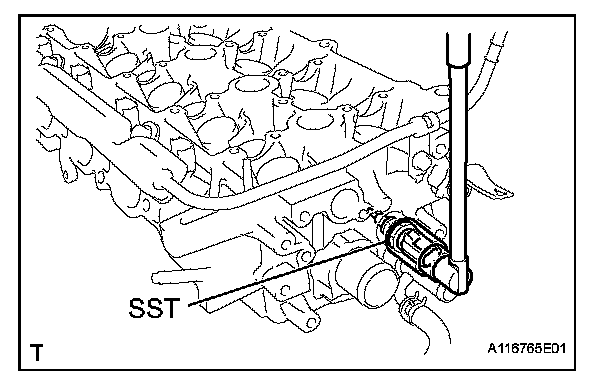

(b) Using SST, tighten the engine coolant temperature sensor.
SST 09817-33190
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
8. INSTALL CAMSHAFT POSITION SENSOR
(a) Apply a light coat of engine oil to the O-ring on the camshaft position sensor.
(b) Install the camshaft position sensor with the bolt.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
NOTICE: Do not twist the O-ring.
9. INSTALL BOOSTER VACUUM TUBE
(a) Install the booster vacuum tube with the 2 bolts.
Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)
10. INSTALL HARNESS BRACKET
(a) Install the harness bracket with the bolt.
Torque: 13 N*m (131 kgf*cm, 9.5 ft.*lbf)
11. INSTALL EXHAUST MANIFOLD

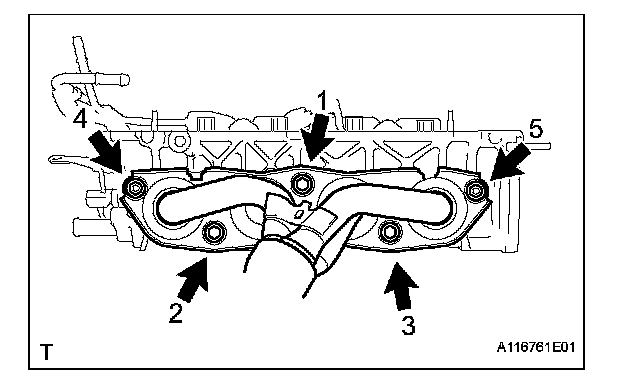

(a) Using several steps, install a new exhaust manifold gasket and the exhaust manifold with the 3 bolts and 2 nuts in the sequence shown in the illustration.
Torque: 27 N*m (275 kgf*cm, 20 ft.*lbf)
12. INSTALL EXHAUST MANIFOLD HEAT INSULATOR NO. 1
(a) Install exhaust manifold heat insulator No. 1 with the 4 bolts.
Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
13. INSTALL CYLINDER HEAD GASKET

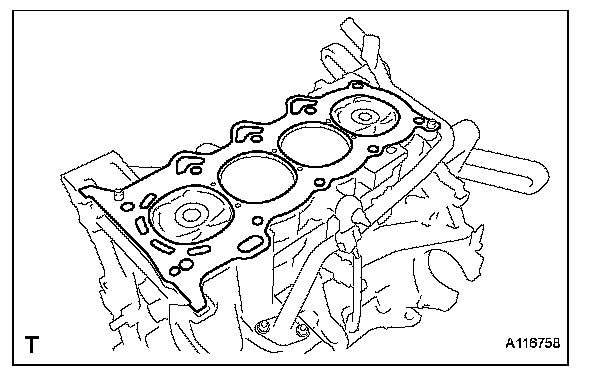

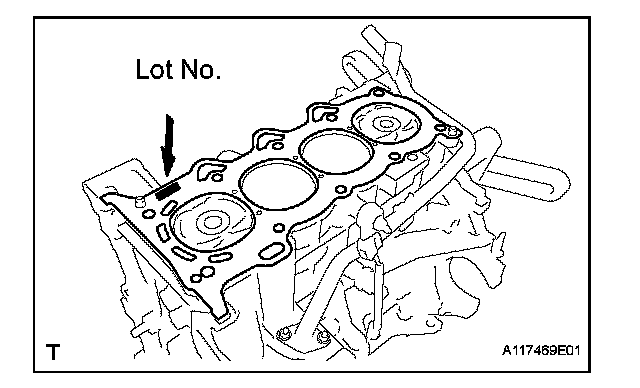

(a) Place a new cylinder head gasket on the cylinder block with the Lot No. stamp facing upward.
NOTICE:
^ Remove any oil from the contact surfaces.
^ Check the mounting orientation of the cylinder head gasket.
^ Place the cylinder head on the cylinder head gently in order not to damage the gasket.
