Manual Transmission/Transaxle
Manual Transmission/Transaxle
MANUAL TRANSAXLE ASSEMBLY

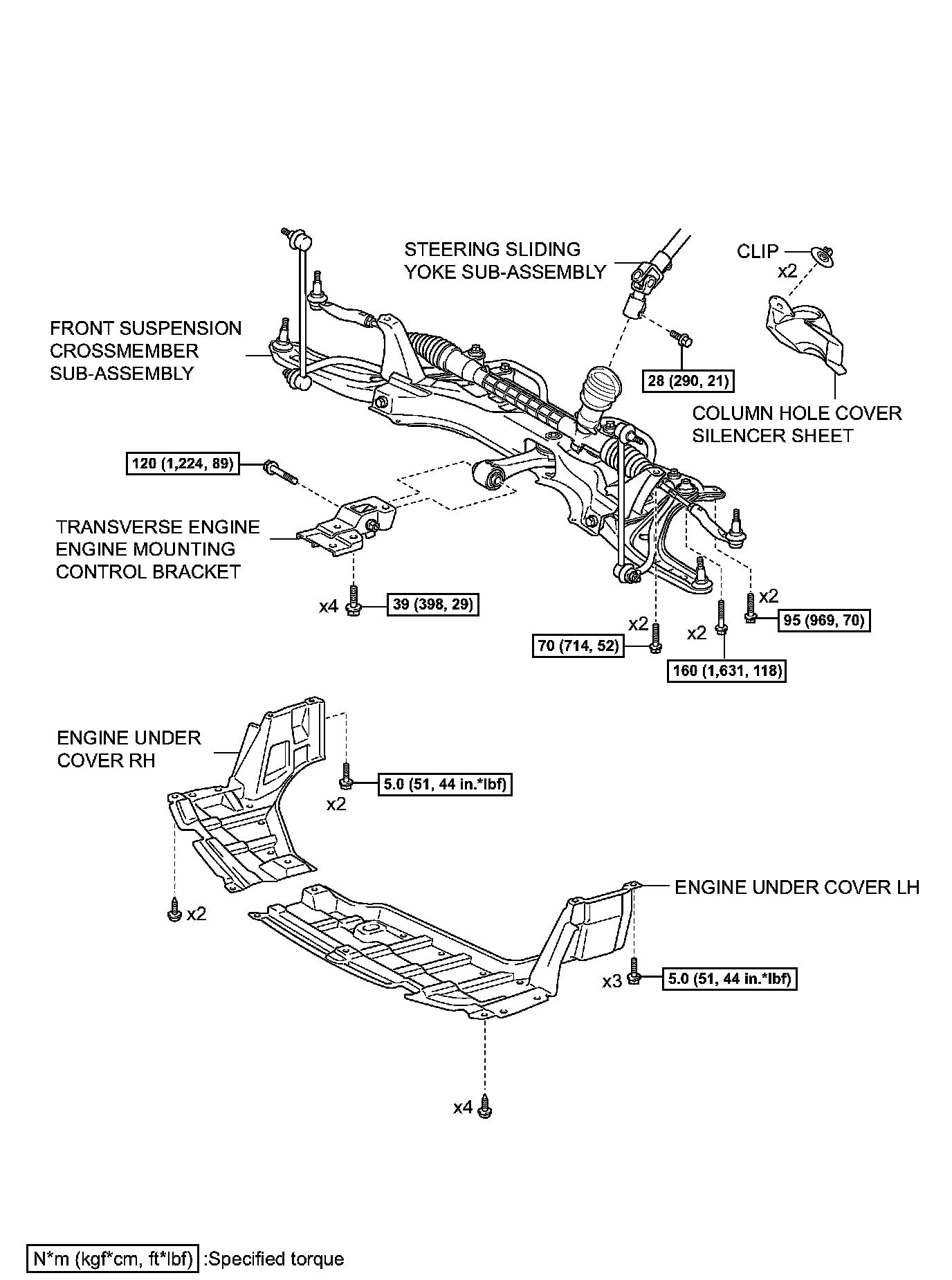

COMPONENTS (Part 1):

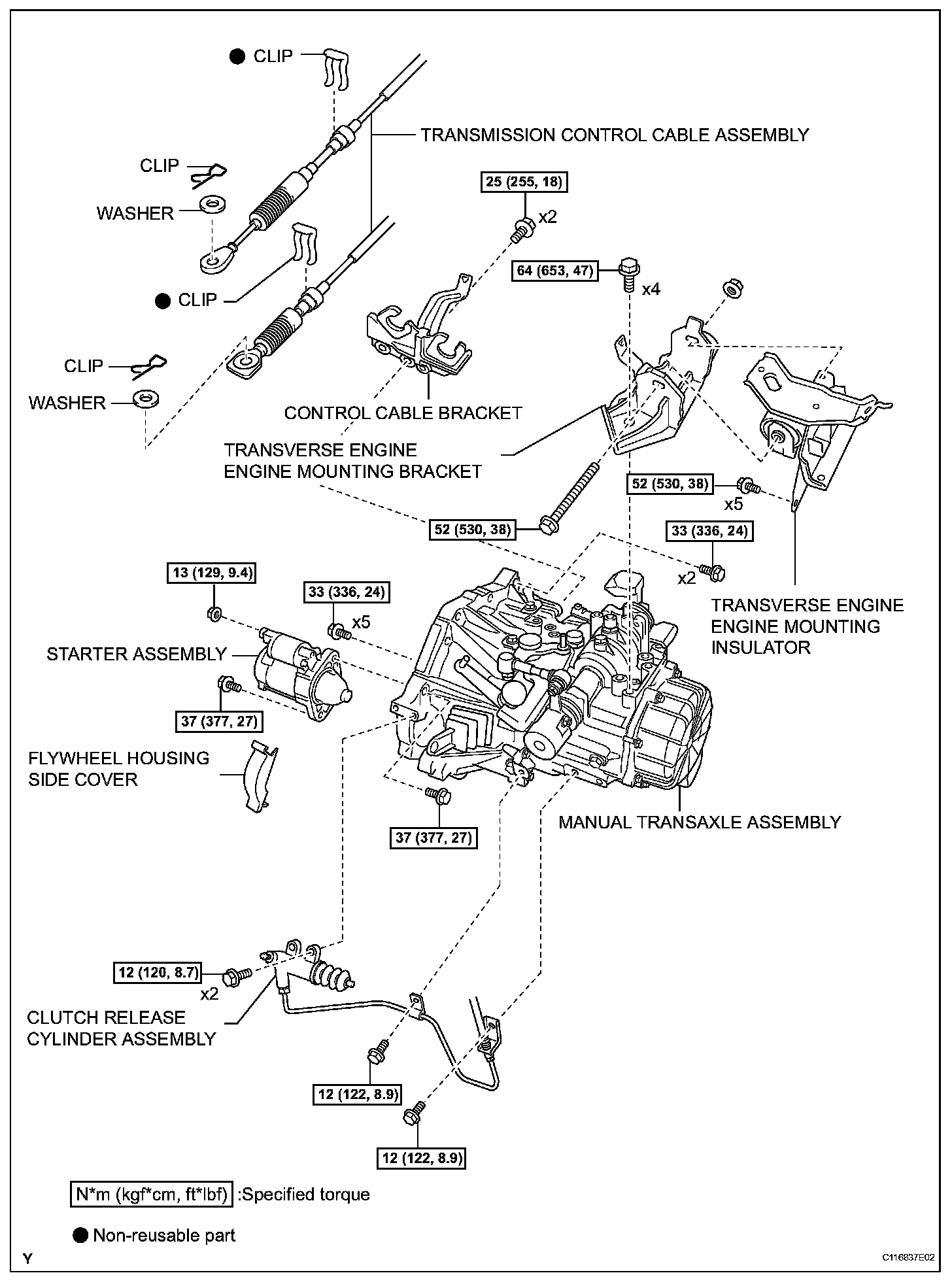

COMPONENTS (Part 2):

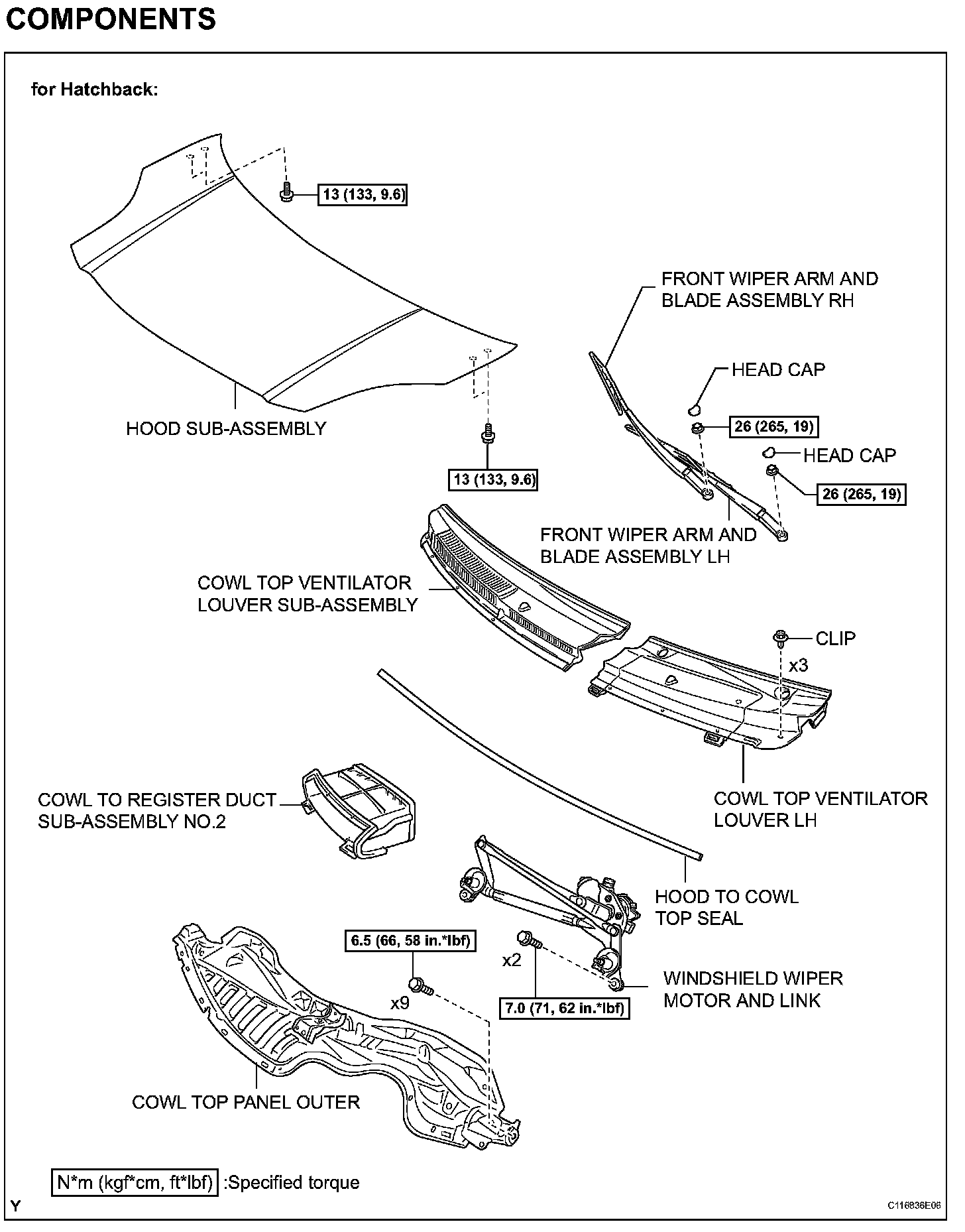

COMPONENTS (Part 3):

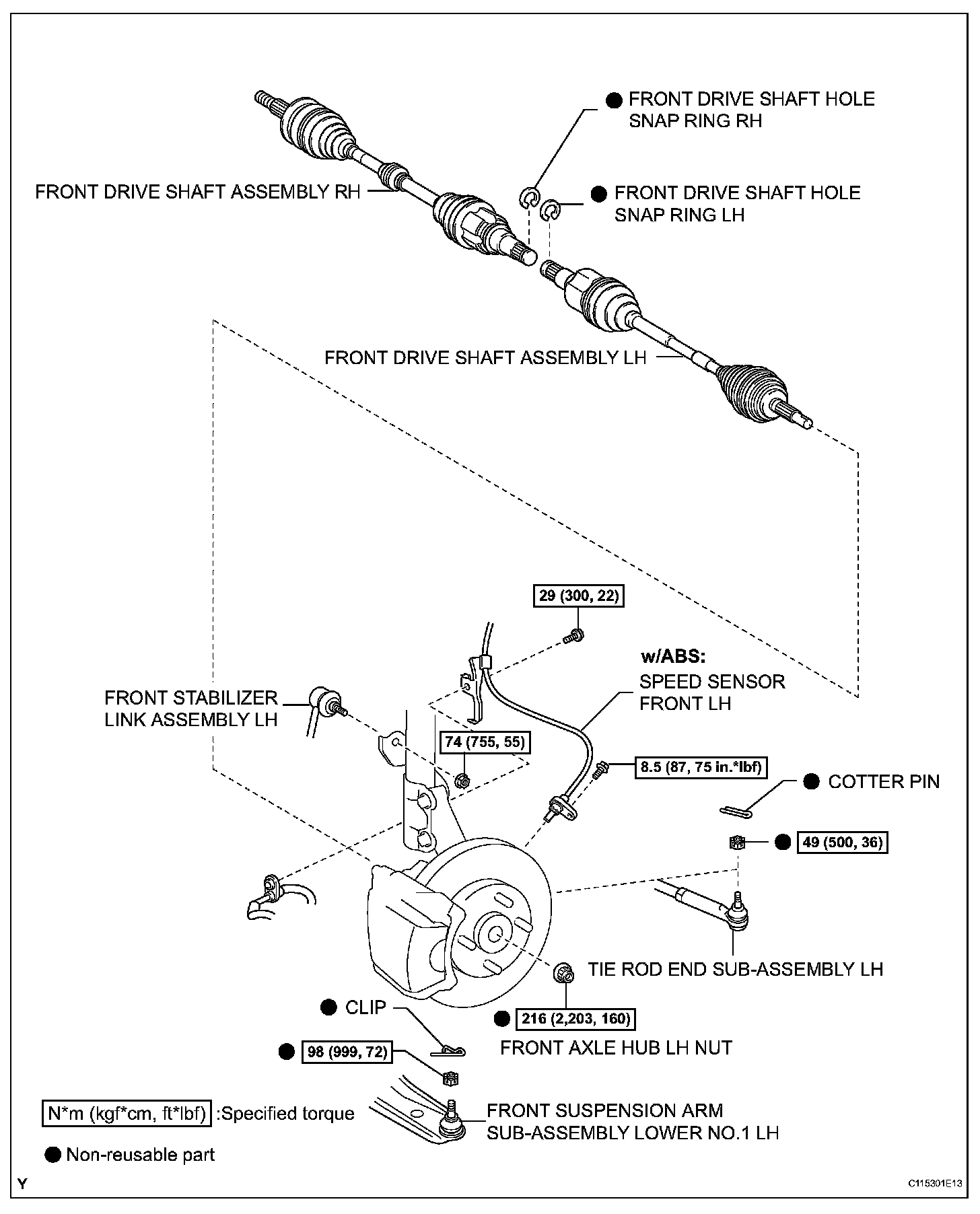

COMPONENTS (Part 4):
COMPONENTS (Part 5):
COMPONENTS (Part 6):
