Rear

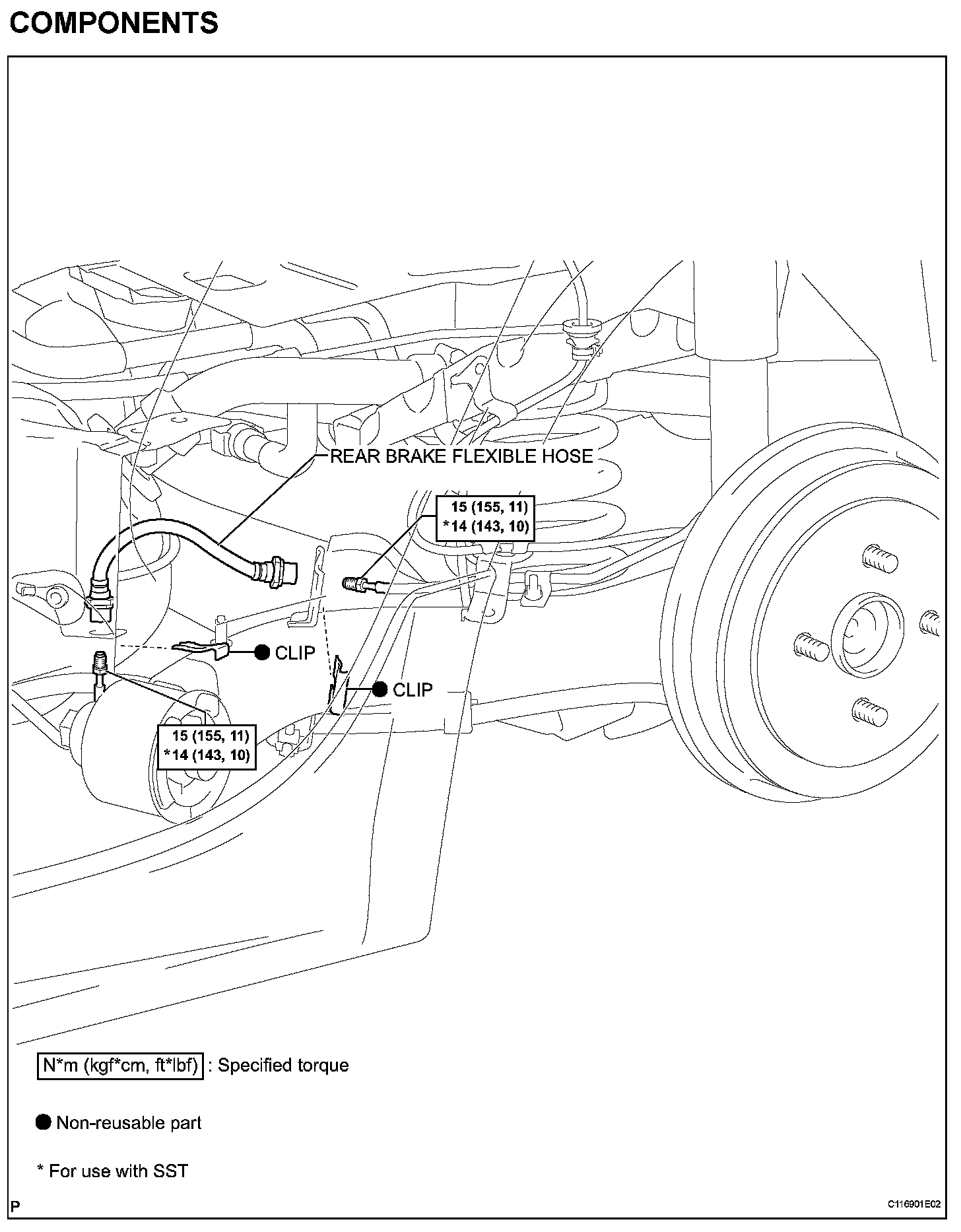

REAR BRAKE FLEXIBLE HOSECOMPONENTS:
REMOVAL
1. REMOVE REAR WHEEL
2. DRAIN BRAKE FLUID
NOTICE: Immediately wash off any brake fluid that comes into contact with any painted surfaces.
3. REMOVE REAR BRAKE FLEXIBLE HOSE

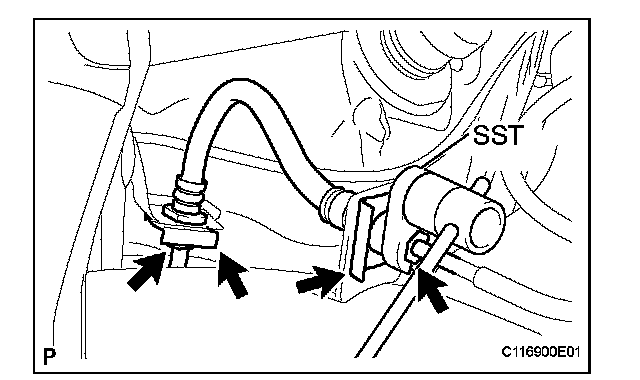

(a) Using SST, separate the brake tubes.
SST 09023-00100
(b) Remove the 2 clips and flexible hose from the axle beam.
INSTALLATION
1. INSTALL REAR BRAKE FLEXIBLE HOSE
(a) Install the flexible hose with the 2 new clips onto the axle beam.

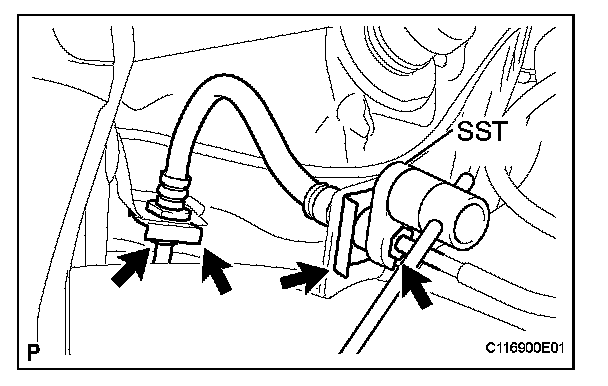

(b) Using SST, install the 2 brake tubes onto the flexible hose.
SST 09023-00100
Torque: for use without SST
15 N*m (155 kgf*cm, 11 ft.*lbf)
for use with SST
14 N*m (143 kgf*cm, 10 ft.*lbf)
HINT:
^ Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
^ This torque value is effective when SST is parallel to a torque wrench.
2. FILL RESERVOIR WITH BRAKE FLUID
3. BLEED MASTER CYLINDER
4. BLEED BRAKE LINE
5. CHECK FLUID LEVEL IN RESERVOIR
6. CHECK FOR BRAKE FLUID LEAKAGE
7. INSTALL REAR WHEEL
Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
