Overhaul

REAR DRUM BRAKE

COMPONENTS:

DISASSEMBLY

1. REMOVE REAR BRAKE SHOE KIT

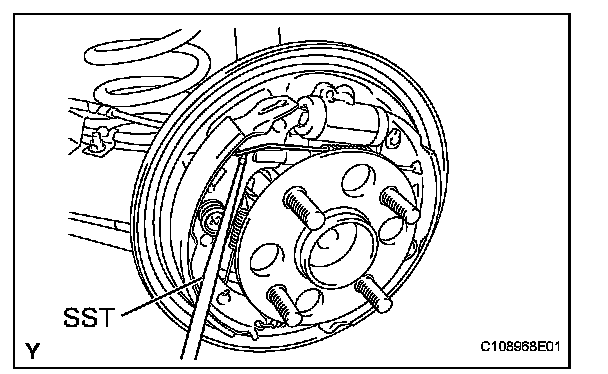

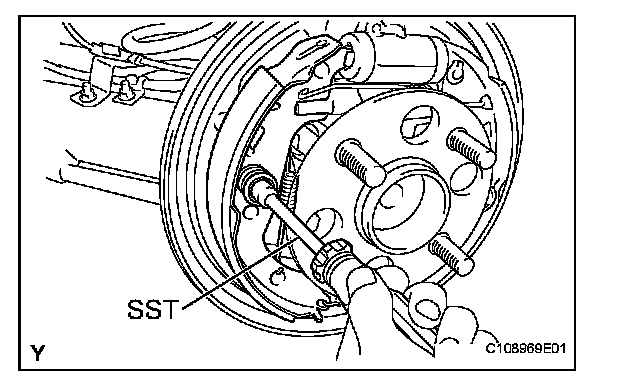

(a) Using SST, separate the shoe return spring from the front brake shoe.
SST 09703-30010

NOTICE: Do not damage the wheel cylinder boot.

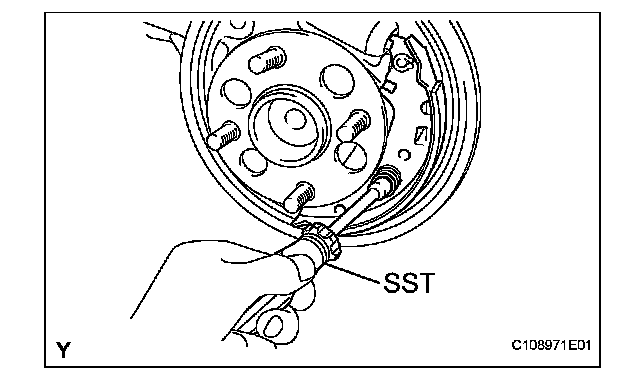

(b) Using SST, remove the shoe hold down spring cup, shoe hold down spring, pin and front brake shoe.
SST 09718-00010
(c) Remove the tension spring.

(d) Remove the shoe return spring from the rear brake shoe and remove the parking brake shoe strut set.

(e) Using SST, remove the shoe hold down spring cup, shoe hold down spring, pin and rear brake shoe.
SST 09718-00010

(f) Using needle-nose pliers, separate the parking brake cable.

2. REMOVE REAR BRAKE AUTOMATIC ADJUST LEVER
(a) Remove the automatic adjust lever tension spring and remove the automatic adjust lever.

3. REMOVE REAR BRAKE PARKING BRAKE SHOE LEVER SUB-ASSEMBLY

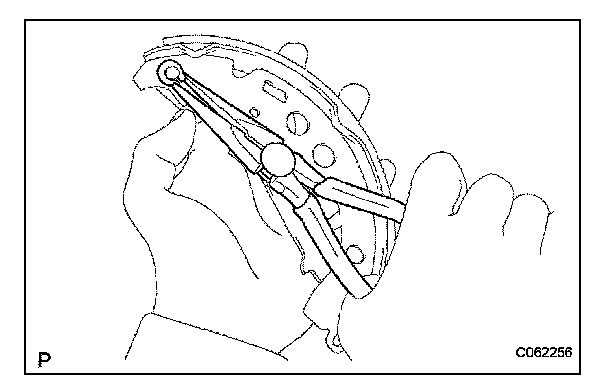

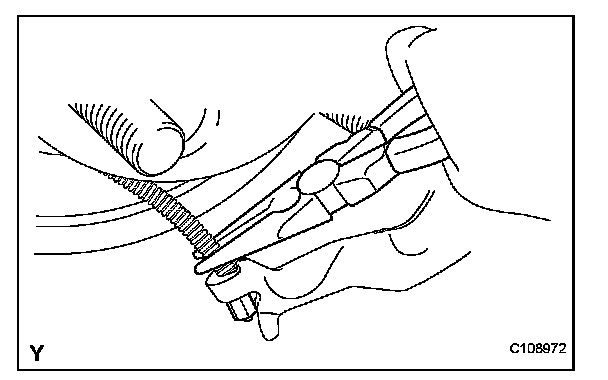

(a) Using a screwdriver, remove the C-washer and remove the parking brake shoe lever.

4. REMOVE REAR WHEEL BRAKE CYLINDER ASSEMBLY

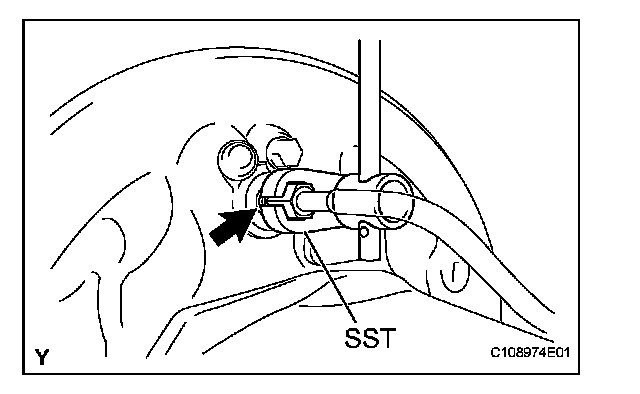

(a) Using SST, separate the brake tube from the rear wheel brake cylinder.
SST 09023-00100

HINT: Use a container to catch the brake fluid.

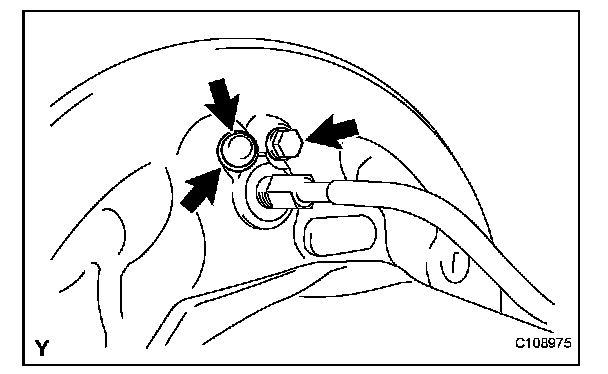

(b) Remove the bleeder plug cap.
(c) Remove the bleeder plug.
(d) Remove the bolt and remove the rear wheel brake cylinder.

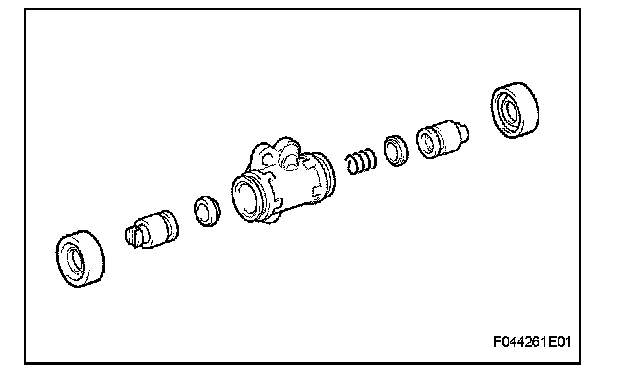

5. REMOVE REAR WHEEL CYLINDER KIT
(a) Remove the 2 wheel cylinder boots from the wheel brake cylinder.
(b) Remove the 2 pistons.
(c) Remove the compression spring.
(d) Remove the wheel cylinder cup from each piston.

REASSEMBLY

1. INSTALL REAR WHEEL CYLINDER KIT

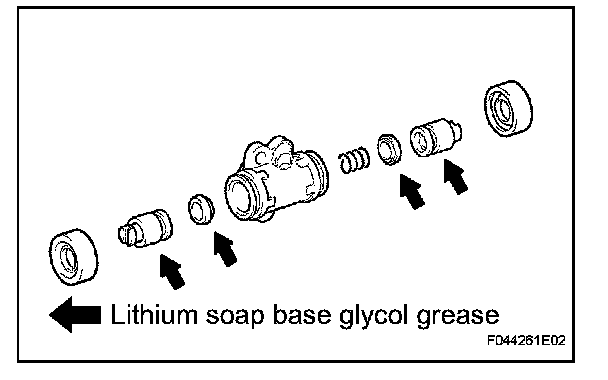

(a) Apply lithium soap base glycol grease to 2 new wheel cylinder cups and the 2 pistons.
(b) Install the wheel cylinder cup onto each piston.
(c) Install the compression spring and 2 pistons onto the wheel brake cylinder.
(d) Install 2 new wheel cylinder boots onto the wheel brake cylinder.

2. INSTALL REAR WHEEL BRAKE CYLINDER ASSEMBLY

(a) Install the wheel brake cylinder with the bolt.
Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)

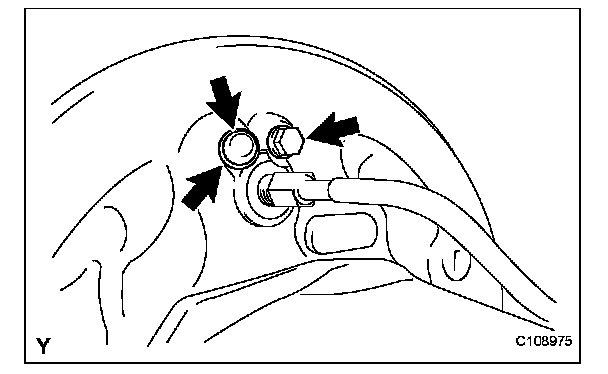

(b) Provisionally install the bleeder plug.
(c) Install the bleeder plug cap.

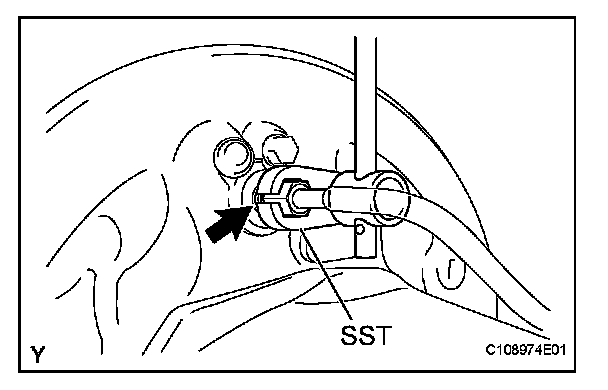

(d) Using SST, install the brake tube.
SST 09023-00100
Torque: for use without SST
15 N*m (155 kgf*cm, 11 ft.*lbf) for use with SST
14 N*m (143 kgf*cm, 10 ft.*lbf)

HINT:
^ Use a torque wrench with a fulcrum length of 300 mm (11.81 in.).
^ This torque value is effective when SST is parallel to a torque wrench.

3. INSTALL REAR BRAKE PARKING BRAKE SHOE LEVER SUB-ASSEMBLY

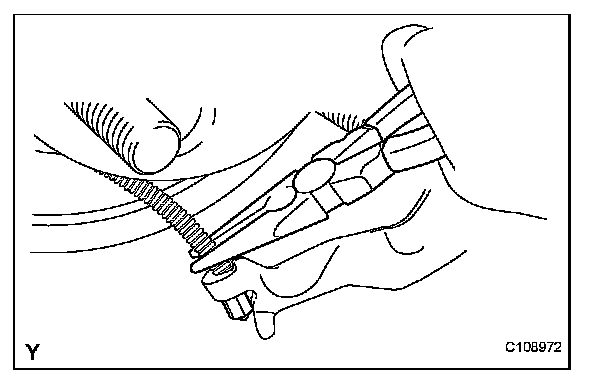

(a) Using needle-nose pliers, install the parking brake shoe lever with a new C-washer.

4. INSTALL REAR BRAKE AUTOMATIC ADJUST LEVER

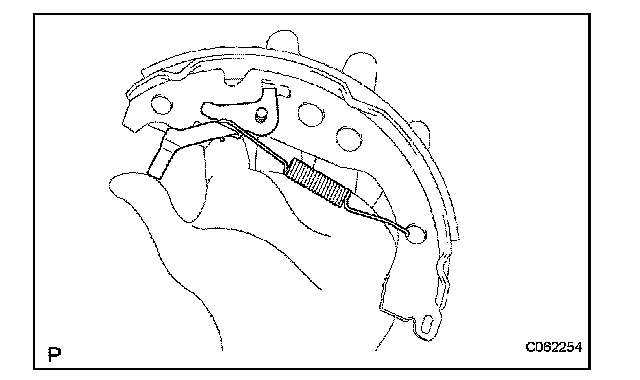

(a) Install the automatic adjust lever and automatic adjust lever tension spring onto the front brake shoe.

5. INSTALL REAR BRAKE SHOE KIT
(a) Apply high temperature grease to the surface of the backing plate which is in contact with the shoe.

(b) Using needle-nose pliers, install the parking brake cable onto the parking brake shoe lever.

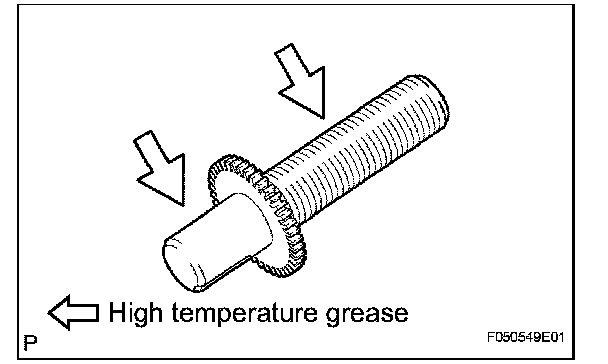

(d) Apply high temperature grease to the adjusting bolt.

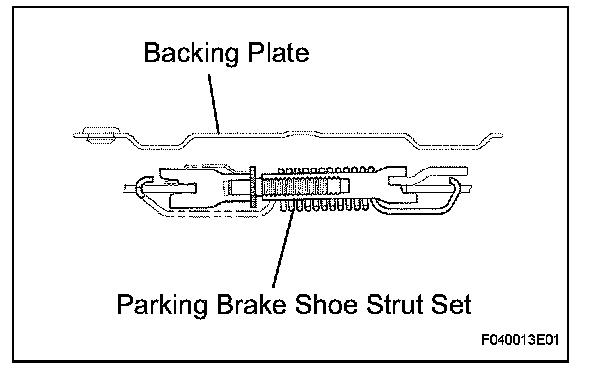

(e) Install the parking brake shoe strut set as shown in the illustration.

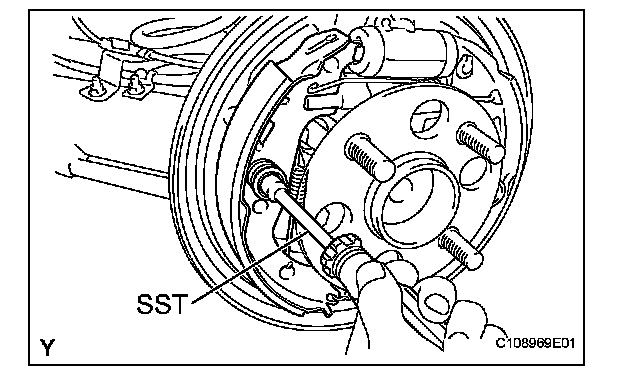

(f) Using SST, install the front brake shoe, pin, shoe hold down spring and shoe hold down spring cup.
SST 09718-00010

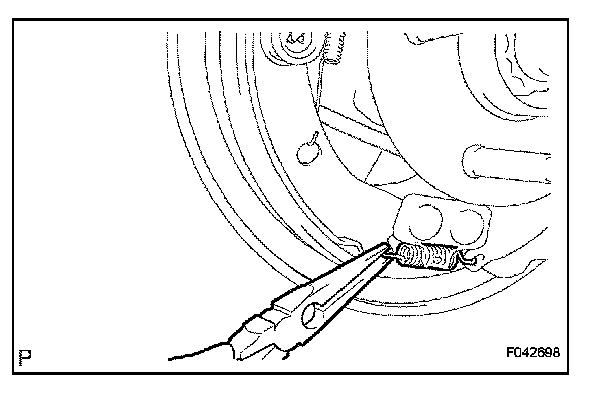

(g) Using needle-nose pliers, install the tension spring onto the front brake shoe and rear brake shoe.

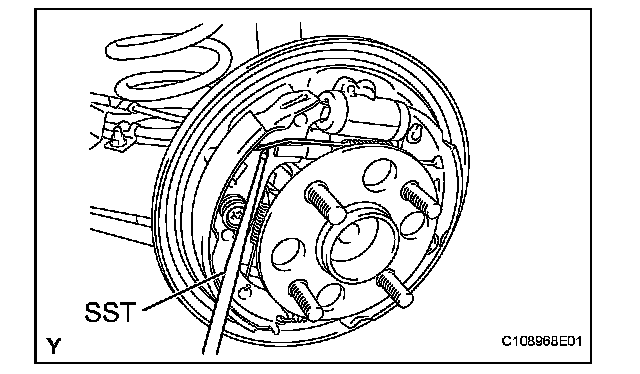

(h) Using SST, install the shoe return spring onto the front brake shoe.
SST 09703-30010

NOTICE: Do not damage the wheel cylinder boot.

6. CHECK REAR DRUM BRAKE INSTALLATION

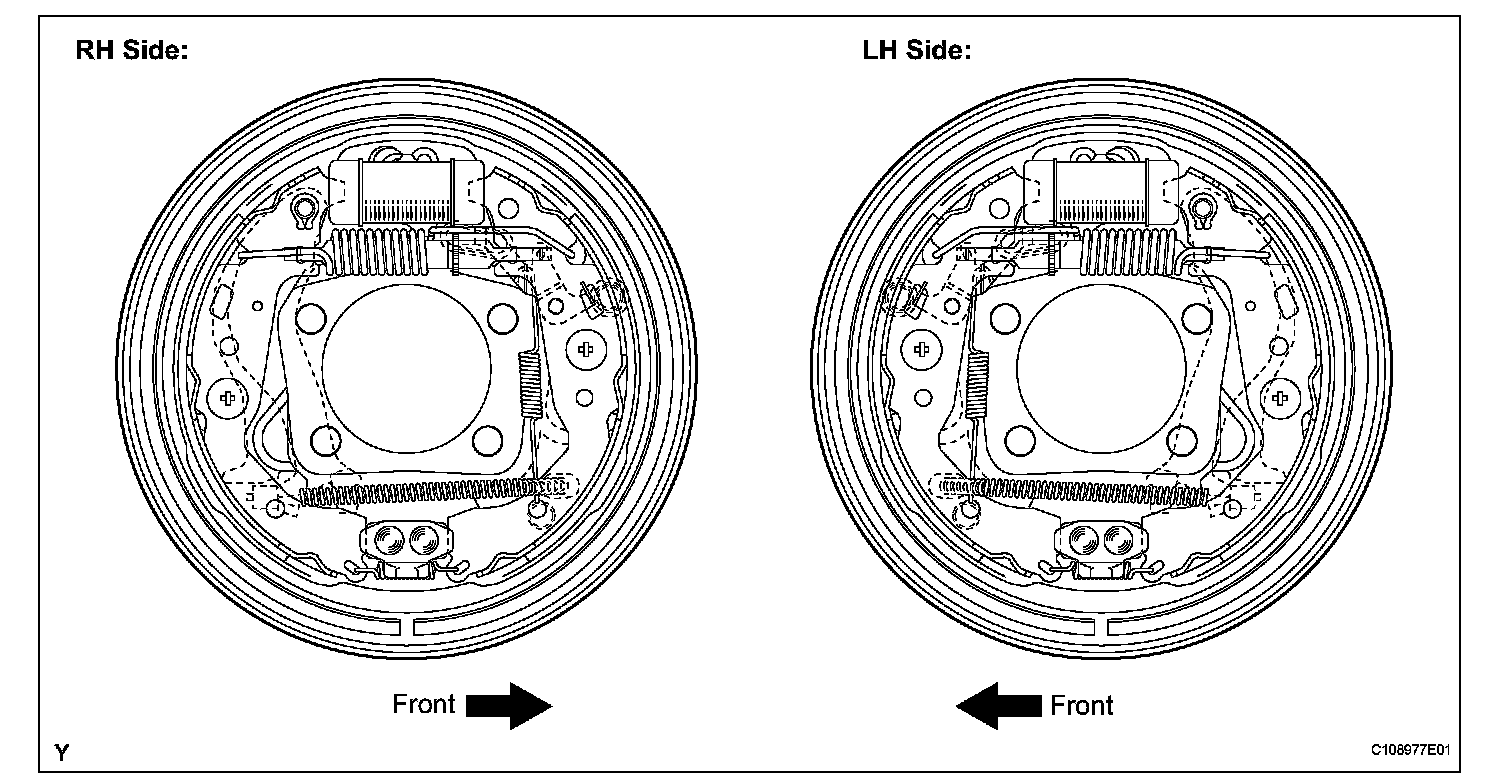

(a) Check that each part is installed properly.

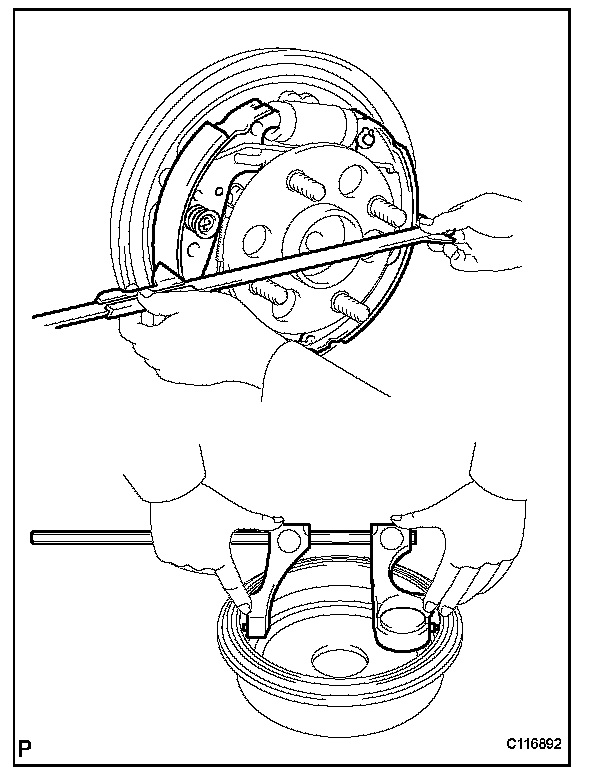

(b) Measure the brake drum inner diameter and the diameter of the brake shoes. Check that the difference between the diameters is equal to the specified shoe clearance.
Shoe clearance: 0.6 mm (0.024 in.)

NOTICE: There should be no oil or grease adhering to the friction surfaces of the shoe lining or the drum.
