Skid Control Sensor
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE REAR WHEEL
3. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY
4. DISCONNECT SKID CONTROL SENSOR WIRE
5. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY
6. REMOVE SKID CONTROL SENSOR
a. Install the 4 hub nuts and the 4 hub bolts onto the rear axle hub, and then fix the rear axle hub in a vice between aluminum plates.
NOTE: If the skid control sensor is dropped or heavily damaged, replace the rear axle hub and bearing.
b. Using a 3 mm pin punch and hammer, remove the 2 pins from
SST (09520-00031) and remove the attachment (09521-00010).

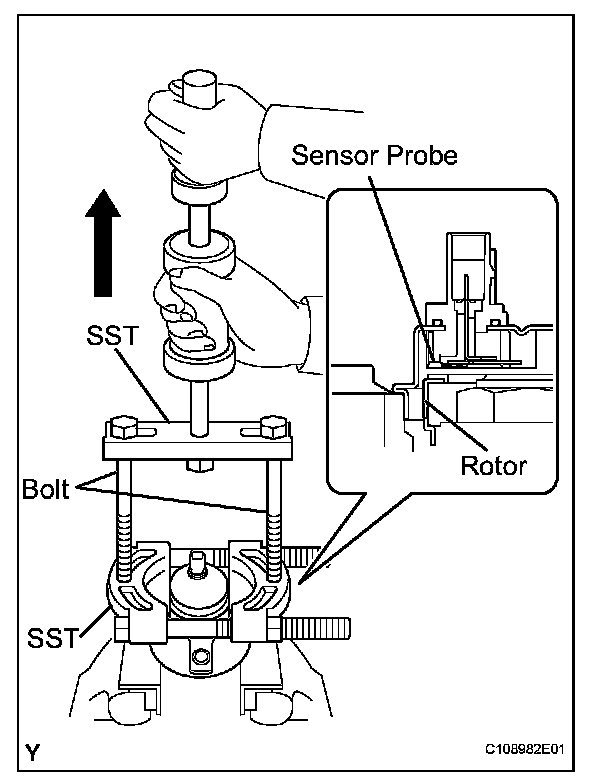

c. Using SST and the 2 bolts (90101-12007), remove the skid control sensor from the rear axle hub.
SST 09520-00031 (09520-00040), 09521-00020, 09950-00020
NOTE:
- Pull the skid control sensor off straight, being careful not to make contact with the skid control sensor rotor.
- If the skid control sensor rotor is damaged or deformed, replace the rear axle hub and bearing.
- Do not damage the skid control sensor or rear axle hub contact surfaces.
- Keep the sensor rotor free of foreign matter.
INSTALLATION
1. INSTALL SKID CONTROL SENSOR
a. Wipe the sealant off the skid control sensor installation surface using white gasoline.
NOTE: Keep the sensor rotor free of foreign matter.
b. Install the skid control sensor onto the rear axle hub in the highest possible installation position.
HINT: The distance between the installation holes should be larger on the upper side than the lower side.

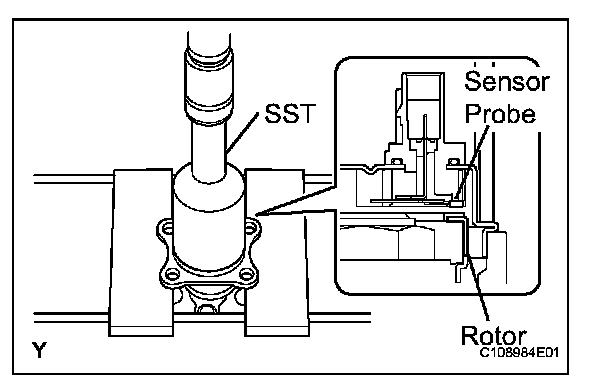

c. Using SST and a press, install a new skid control sensor into the rear axle hub until it is flush with the end.
SST 09214-76011
NOTE:
- Do not use a hammer when installing.
- Check for any foreign matter on the sensor probe.
- Press the skid control sensor in slowly without turning it.
2. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY
3. INSPECT REAR AXLE HUB BEARING
4. CONNECT SKID CONTROL SENSOR WIRE
5. INSTALL REAR BRAKE DRUM SUB-ASSEMBLY
6. ADJUST REAR DRUM BRAKE SHOE CLEARANCE
7. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf.cm, 76 ft. lbs.)
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf.cm, 48 in. lbs.)
9. CHECK ABS SENSOR SIGNAL
