Front Speed Sensor
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT WHEEL
3. REMOVE FRONT FENDER LINER
a. Remove the 3 screws, 6 clips and 4 grommets and remove the front fender liner.

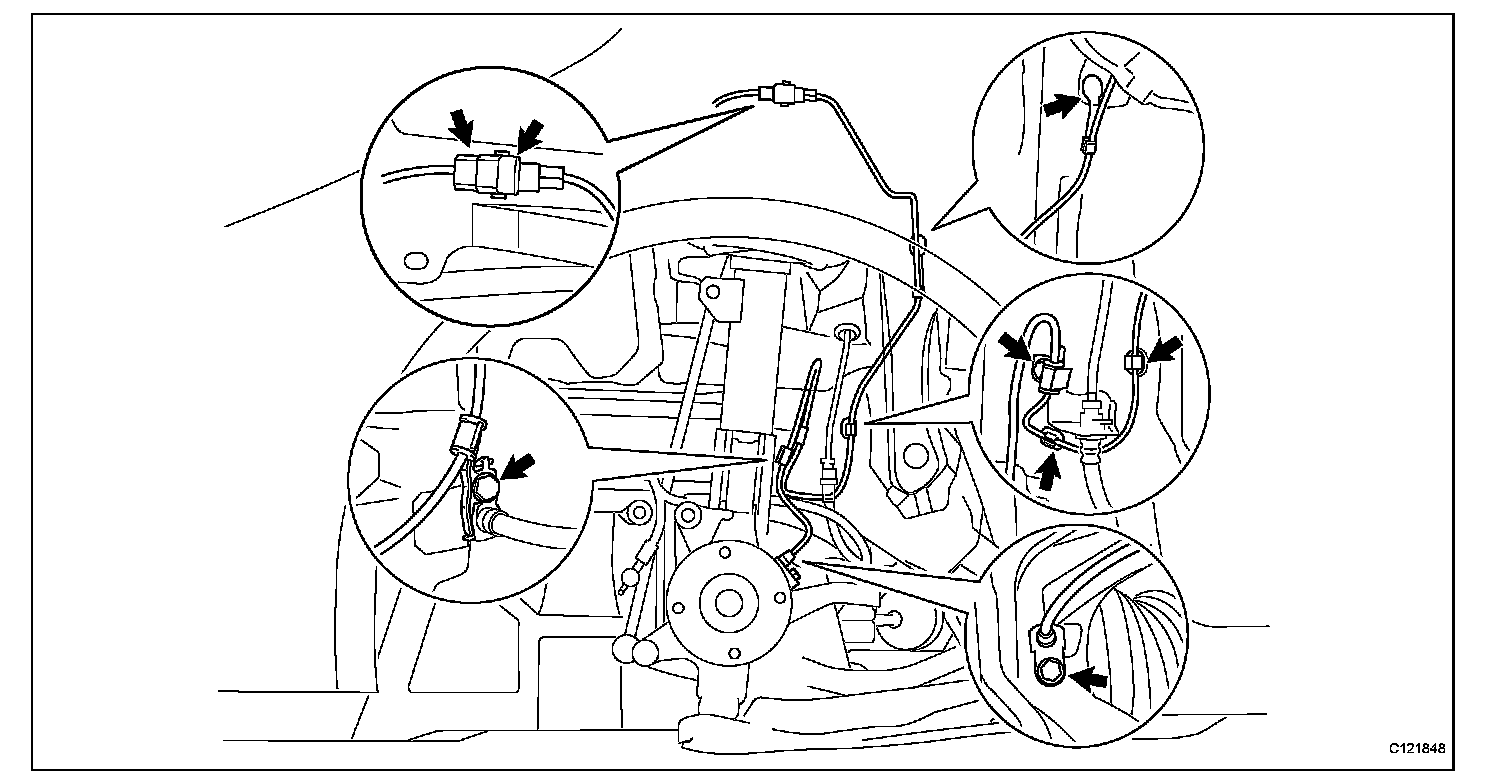

4. REMOVE FRONT SPEED SENSOR
a. Remove the speed sensor clip from the body.
b. Disconnect the speed sensor connector.
c. Remove the 3 clips.
d. Remove the bolt and separate the clamp from the body.
e. Remove the bolt and separate the clamp from the shock absorber.
f. Remove the bolt and remove the speed sensor from the steering knuckle.
NOTE:
- Keep the speed sensor tip and installation portion free of foreign matter.
- Remove the speed sensor without turning it from its original installation angle.
INSTALLATION

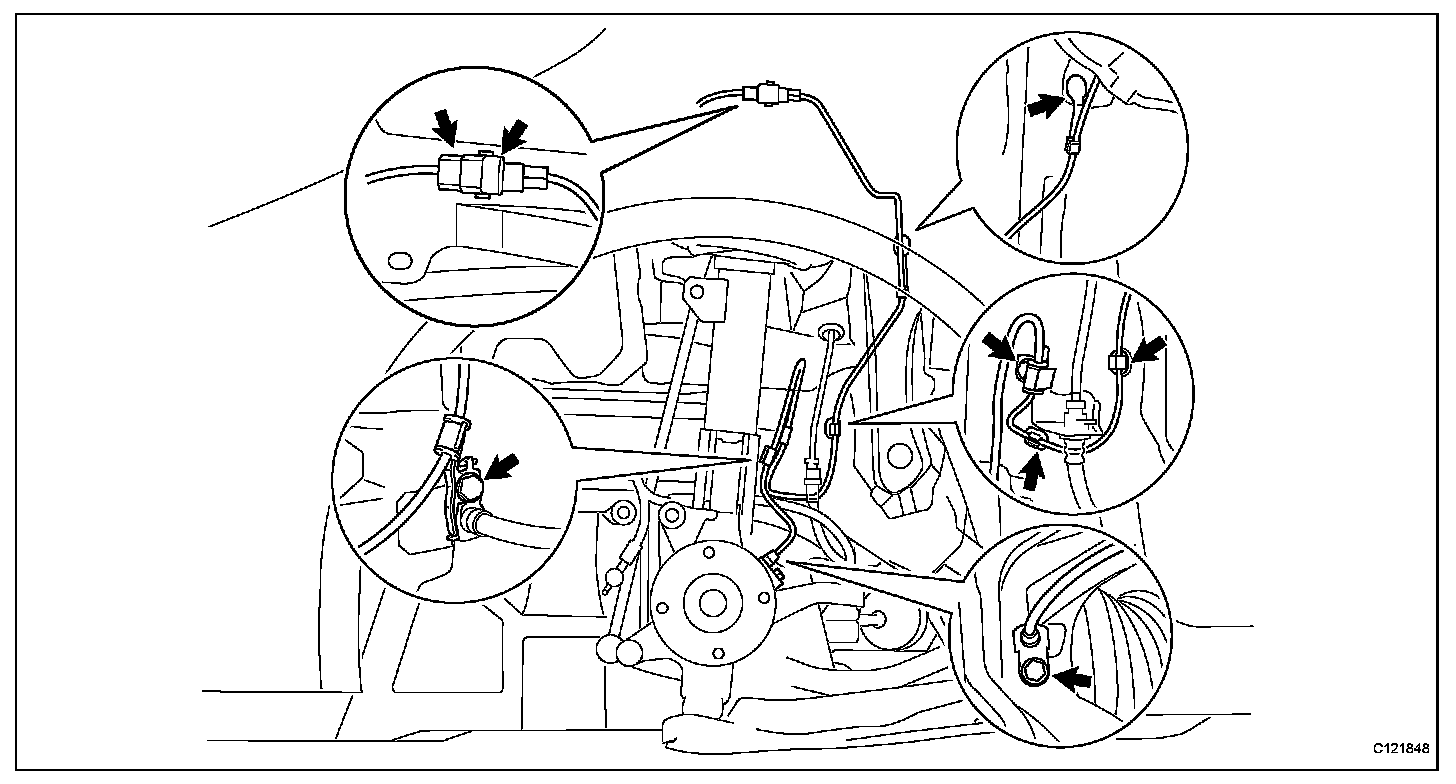

1. INSTALL FRONT SPEED SENSOR
a. Install the speed sensor on to the steering knuckle with the bolt.
Torque: 8.5 Nm (87 kgf.cm, 75 in. lbs.)
NOTE:
- Check that the speed sensor tip and installation portion are free of foreign matter.
- Install the speed sensor without turning it from its original installation angle.
b. Install the clamp onto the shock absorber with the bolt.
Torque: 29 Nm (300 kgf.cm, 22 ft. lbs.)
c. Install the clamp onto the body with the bolt.
Torque: 6.0 Nm (61 kgf.cm, 53 in. lbs.)
d. Install the 3 clips.
e. Connect the speed sensor connector.
f. Install the speed sensor clip onto the body.
2. INSTALL FRONT FENDER LINER
a. Install the front fender liner with the 3 screws, 6 clips and 4 grommets.
NOTE: The speed sensor wire should not protrude beyond the front fender liner.
3. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf.cm, 76 ft. lbs.)
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf.cm, 48 in. lbs.)
5. CHECK ABS SENSOR SIGNAL
