Brake Warning Light Remains ON
Brake Warning Light Remains ONDESCRIPTION
If any of the following conditions are detected, the BRAKE warning light remains on:
1. The ECU connectors are disconnected from the skid control ECU.
2. The brake fluid level is insufficient.
3. The parking brake is applied.
4. The EBD is defective.

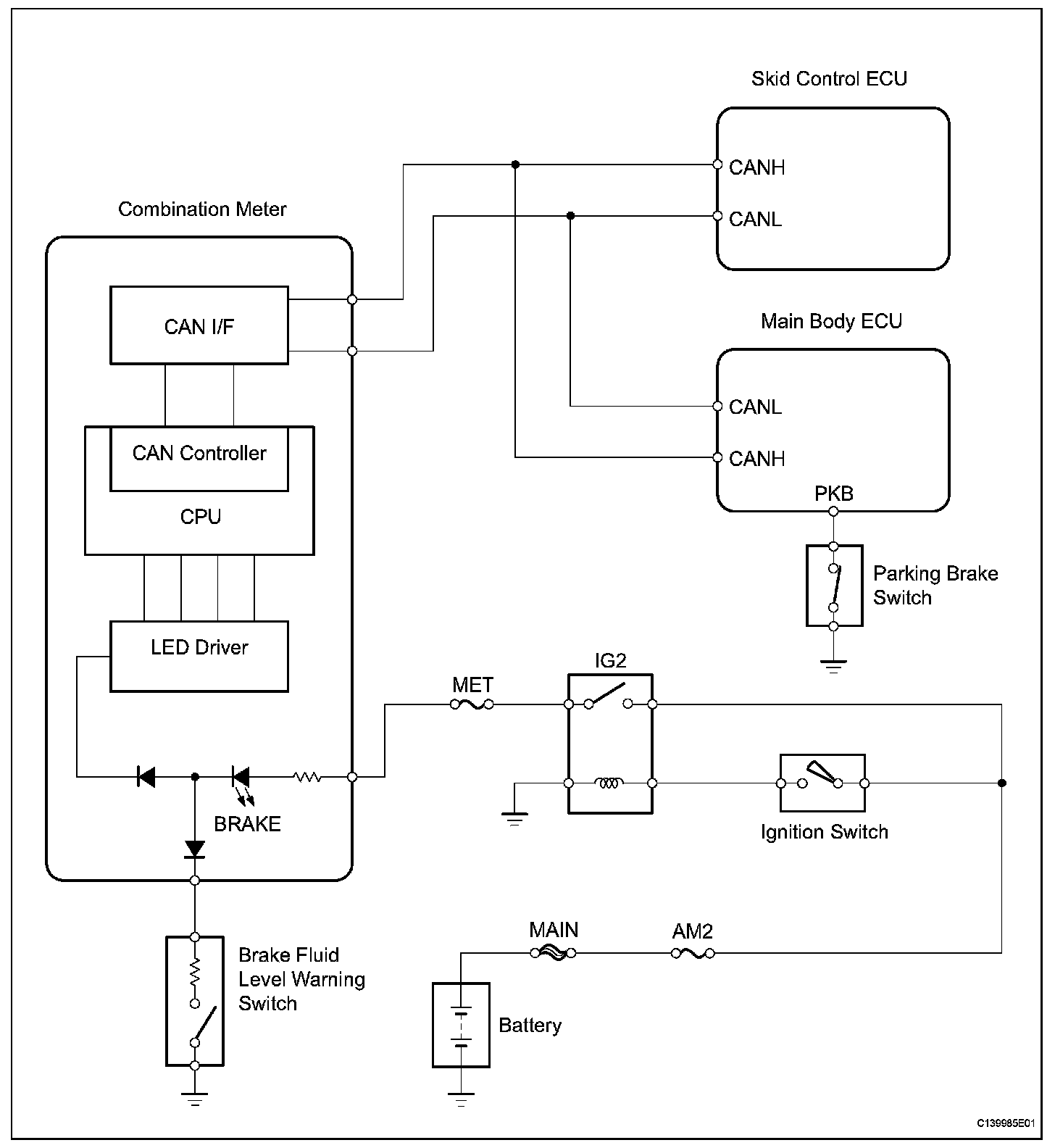

Wiring Diagram:

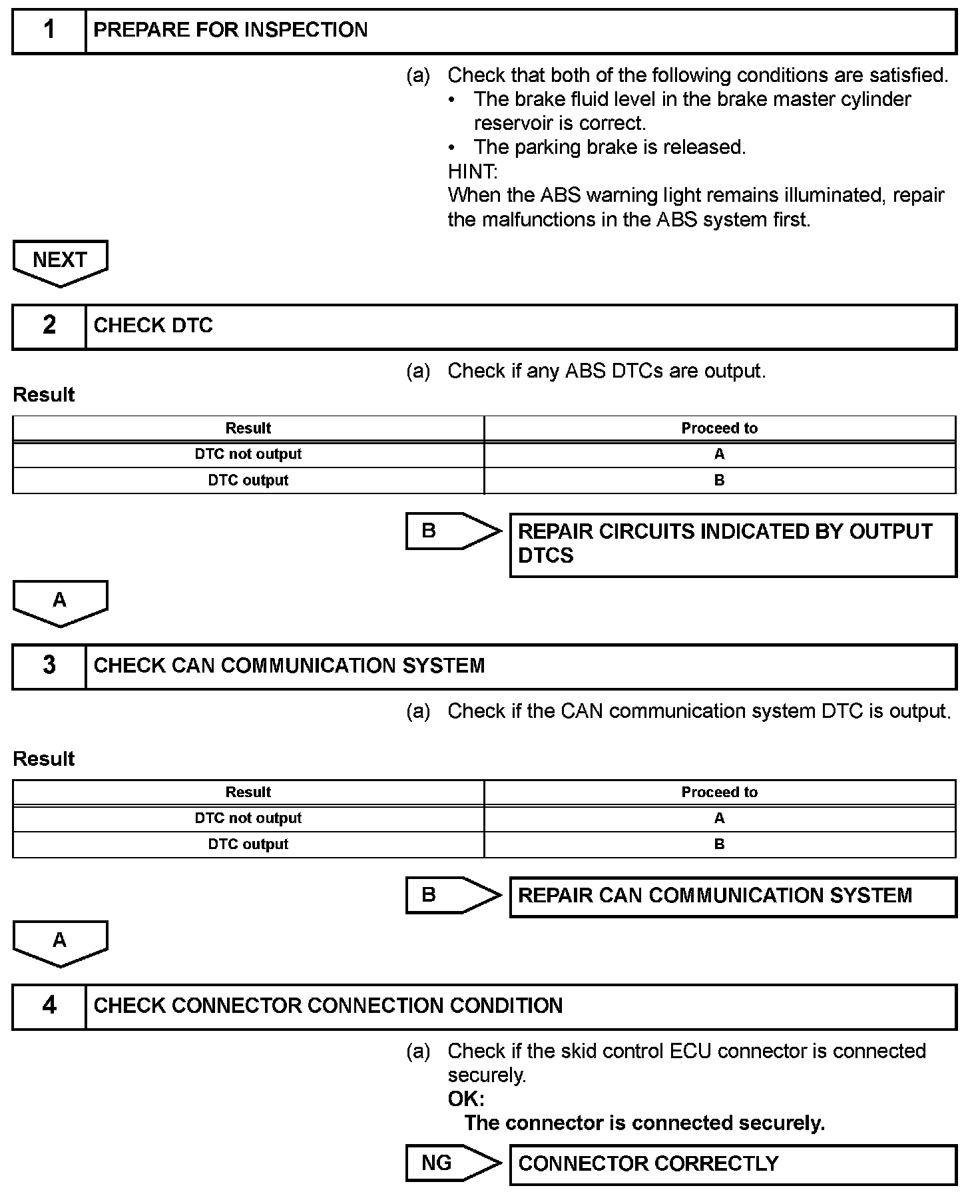

Step 1-4:

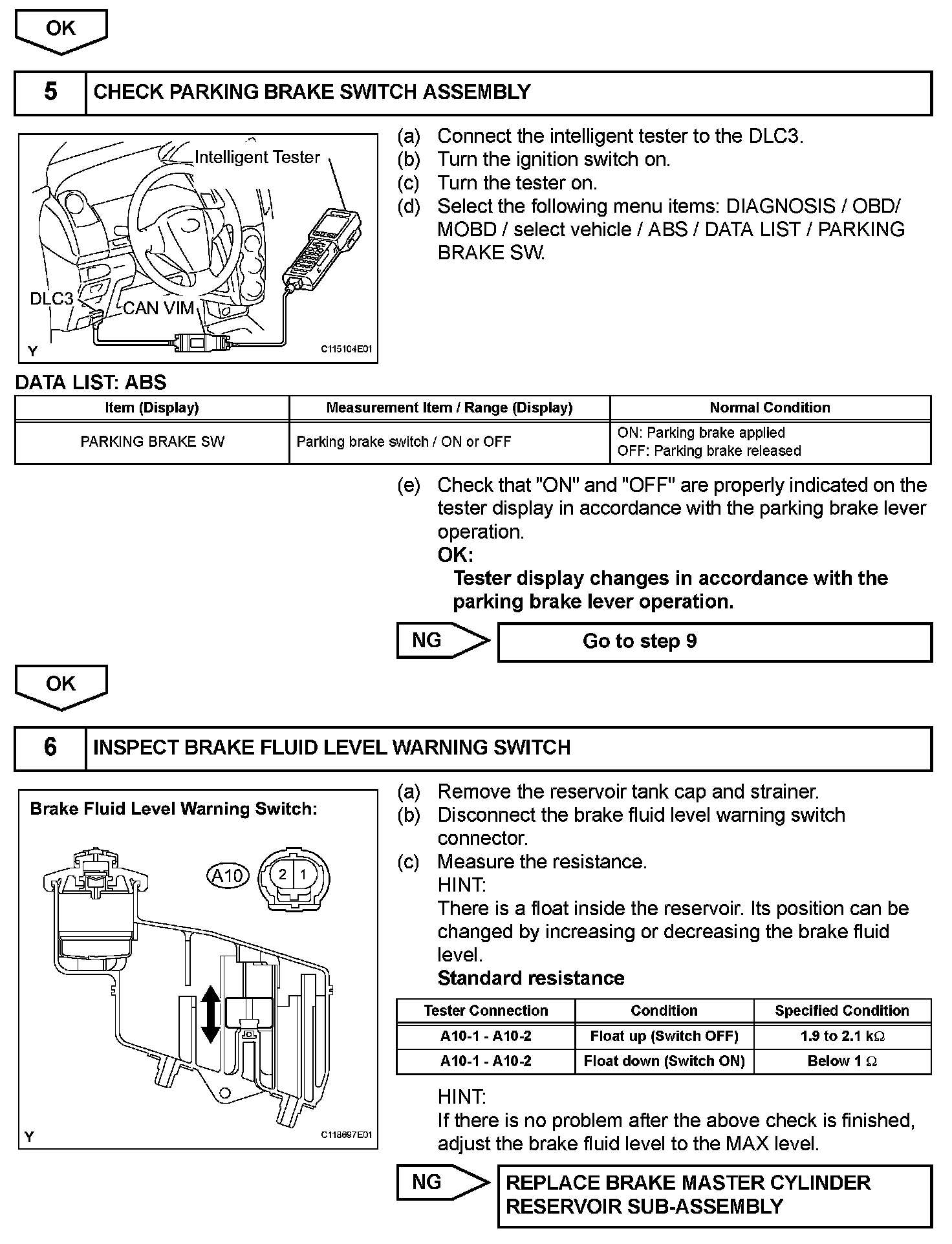

Step 3(Continued)-6:

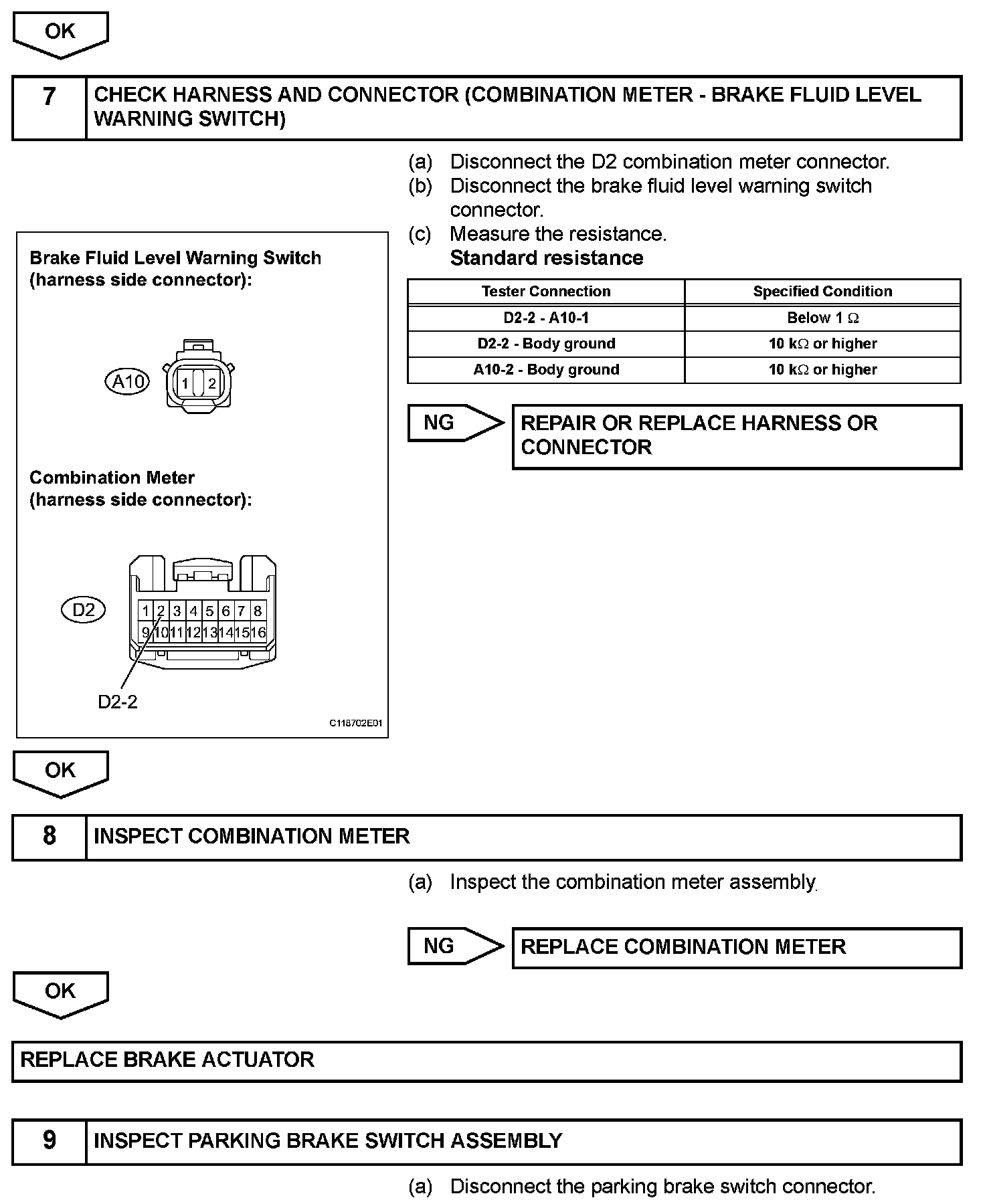

Step 6(Continued)-9:

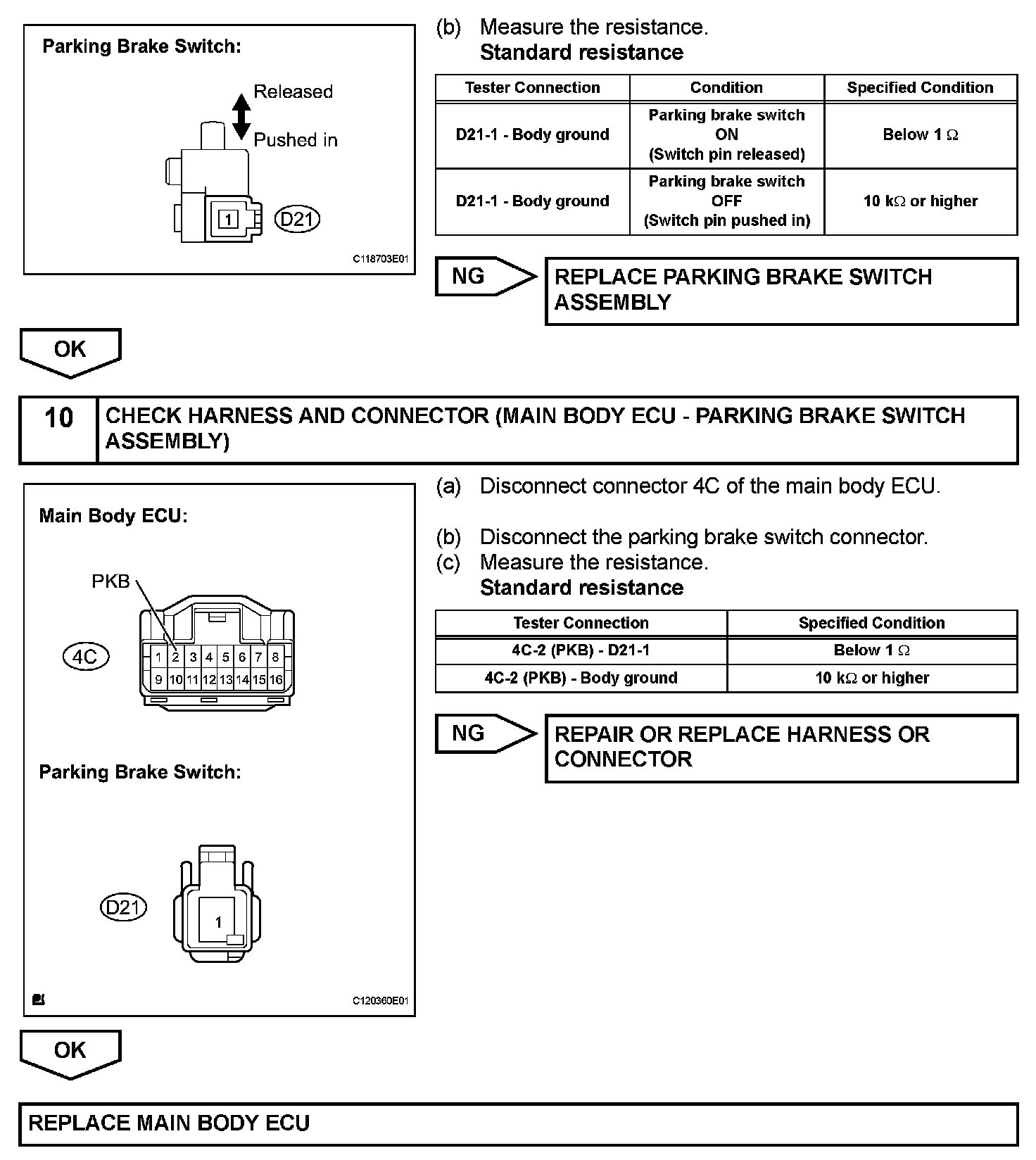

Step 9(Continued)-10:
INSPECTION PROCEDURE
