ABS Warning Light Remains ON

ABS Warning Light Remains ON

DESCRIPTION

If any of the following conditions are detected, the ABS warning light remains on:

1. The ECU connectors are disconnected from the skid control ECU.
2. There is a malfunction in the skid control ECU internal circuit.
3. There is an open or short in the wire harness between the combination meter and the skid control ECU.

HINT: The intelligent tester may not be used when there is a malfunction in the skid control ECU.

Wiring Diagram:

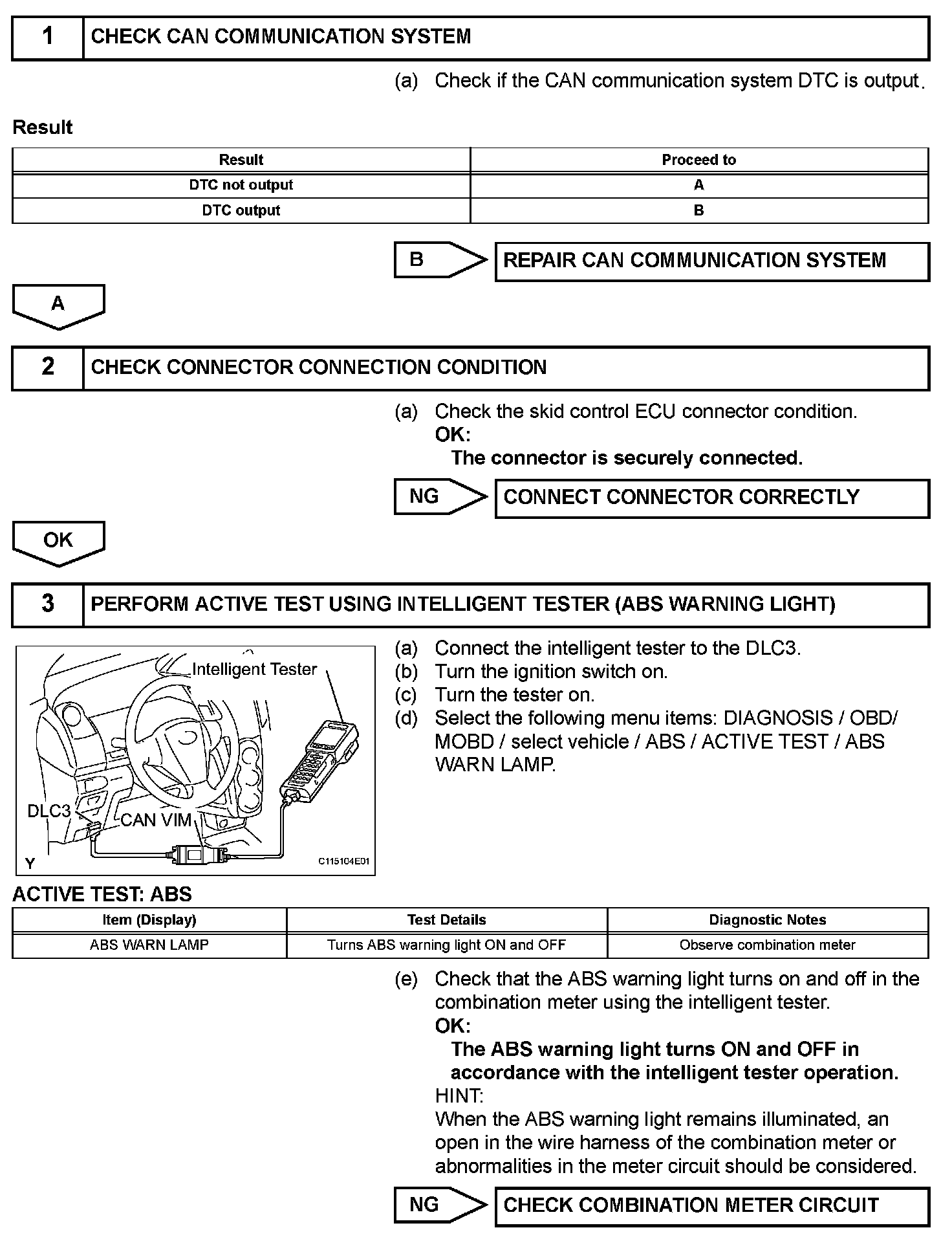

Step 1-3:

Step 3(Continued):

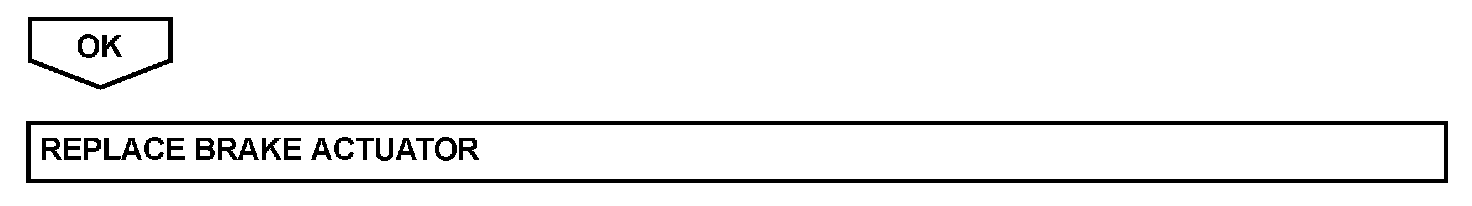

INSPECTION PROCEDURE
