ABS Warning Light Does Not Come ON

ABS Warning Light does not Come ON

Wiring Diagram:

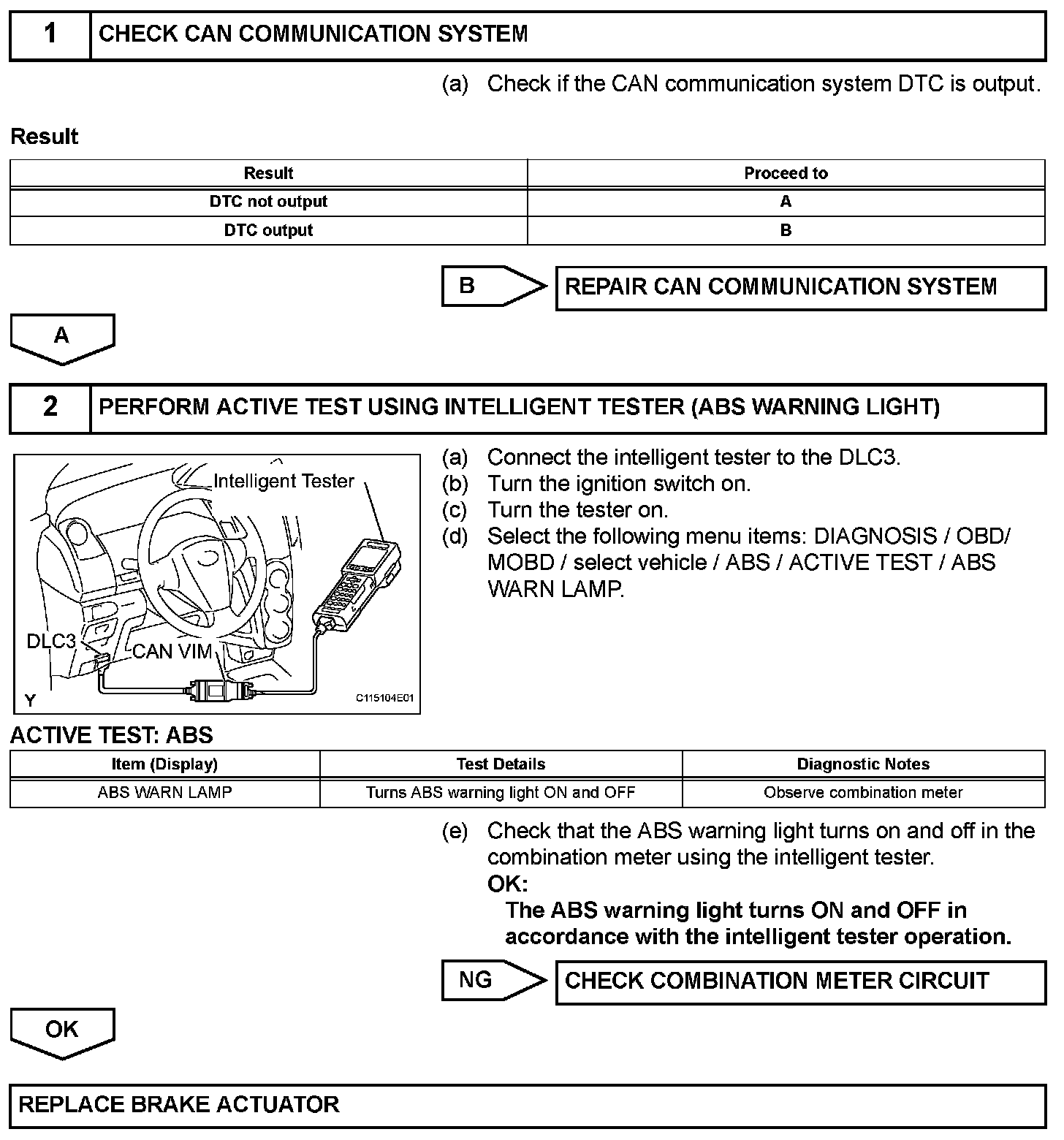

Step 1-2:




INSPECTION PROCEDURE
