Data List

DATA LIST

HINT: By referring to the DATA LIST displayed on the intelligent tester, the values and status of parts such as switches, sensors and actuators can be read without removing any parts. Reading the DATA LIST as the first step of troubleshooting is one method of shortening diagnostic time.

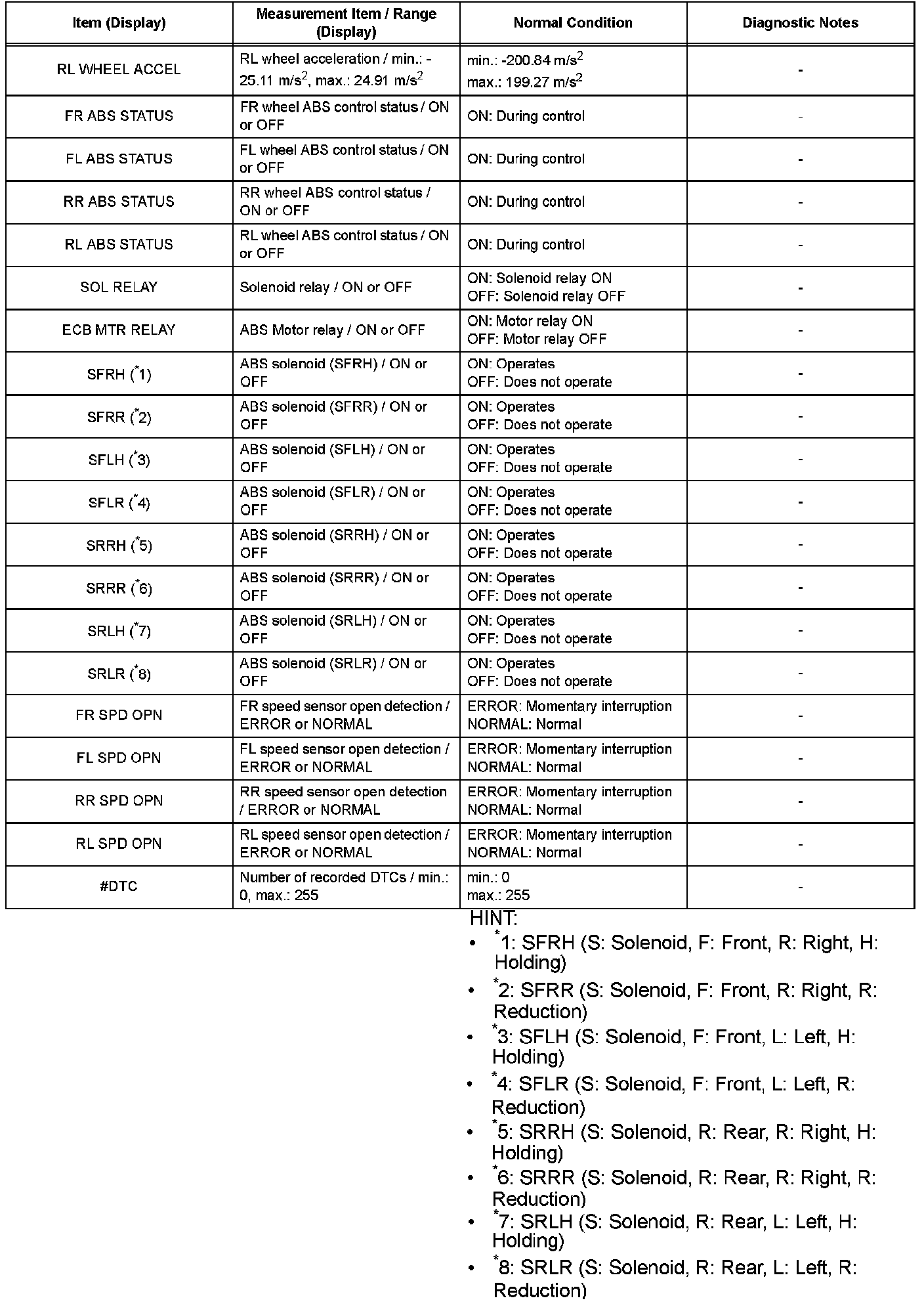

Part 1:

Part 2:

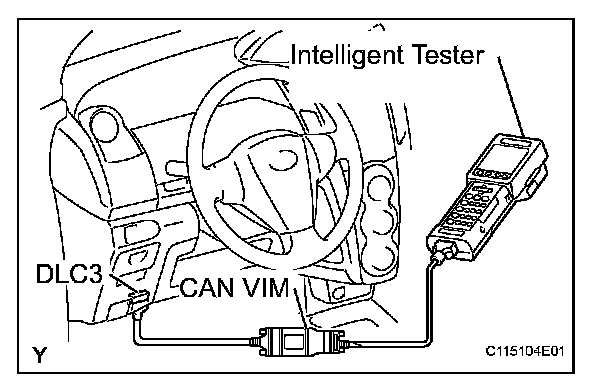

a. Connect the intelligent tester to the DLC3.
b. Turn the ignition switch on.
c. Turn the intelligent tester on.
d. Select the following menu items: DIAGNOSIS / OBD / MOBD / select vehicle / ABS / DATA LIST.
