Without Scan Tool

DTC CLEAR (USING SST CHECK WIRE)

Clear the DTCs.

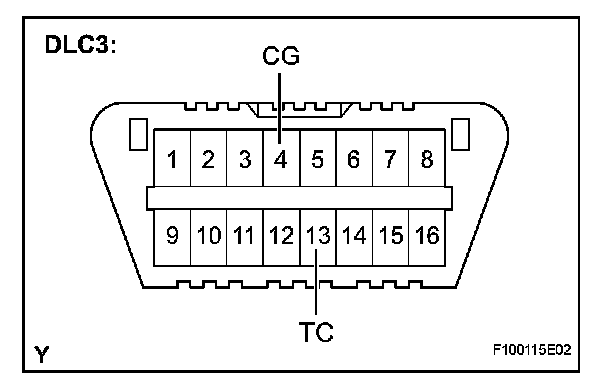

1. Using SST, connect terminals TC and CG of the DLC3. SST 09843-18040
2. Turn the ignition switch on.




3. Clear the DTCs stored in the skid control ECU by depressing the brake pedal 8 times or more within 5 seconds.
4. Check that the warning light blinks in the normal system code pattern.
5. Remove SST from the terminals of the DLC3.
6. Turn the ignition switch off.

HINT: The DTCs cannot be cleared by removing the battery cable or ECU-IG fuse.

END OF DTC CLEAR

a. Turn the ignition switch on.
b. Check that the ABS warning light goes off within approximately 3 seconds.
c. Turn the ignition switch off.
