TS and CG Terminal Circuit

TS and CG Terminal Circuit

DESCRIPTION

In sensor check mode, malfunctions of the speed sensor that cannot be detected when the vehicle is stopped can be detected by driving the vehicle.

Transition to sensor check mode can be performed by connecting terminals TS and CG of the DLC3 and turning the ignition switch from off to on.

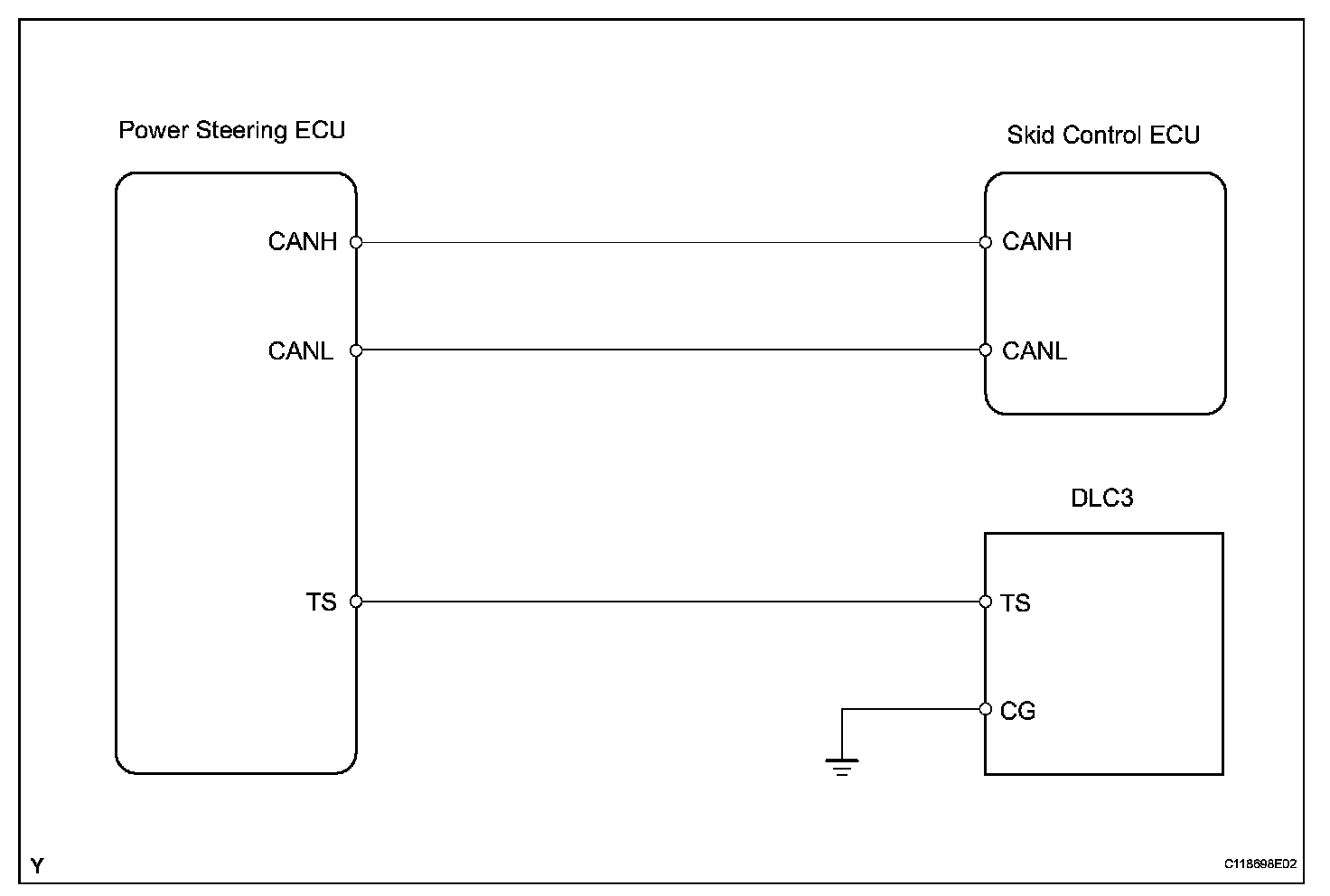

Wiring Diagram:

Step 1:

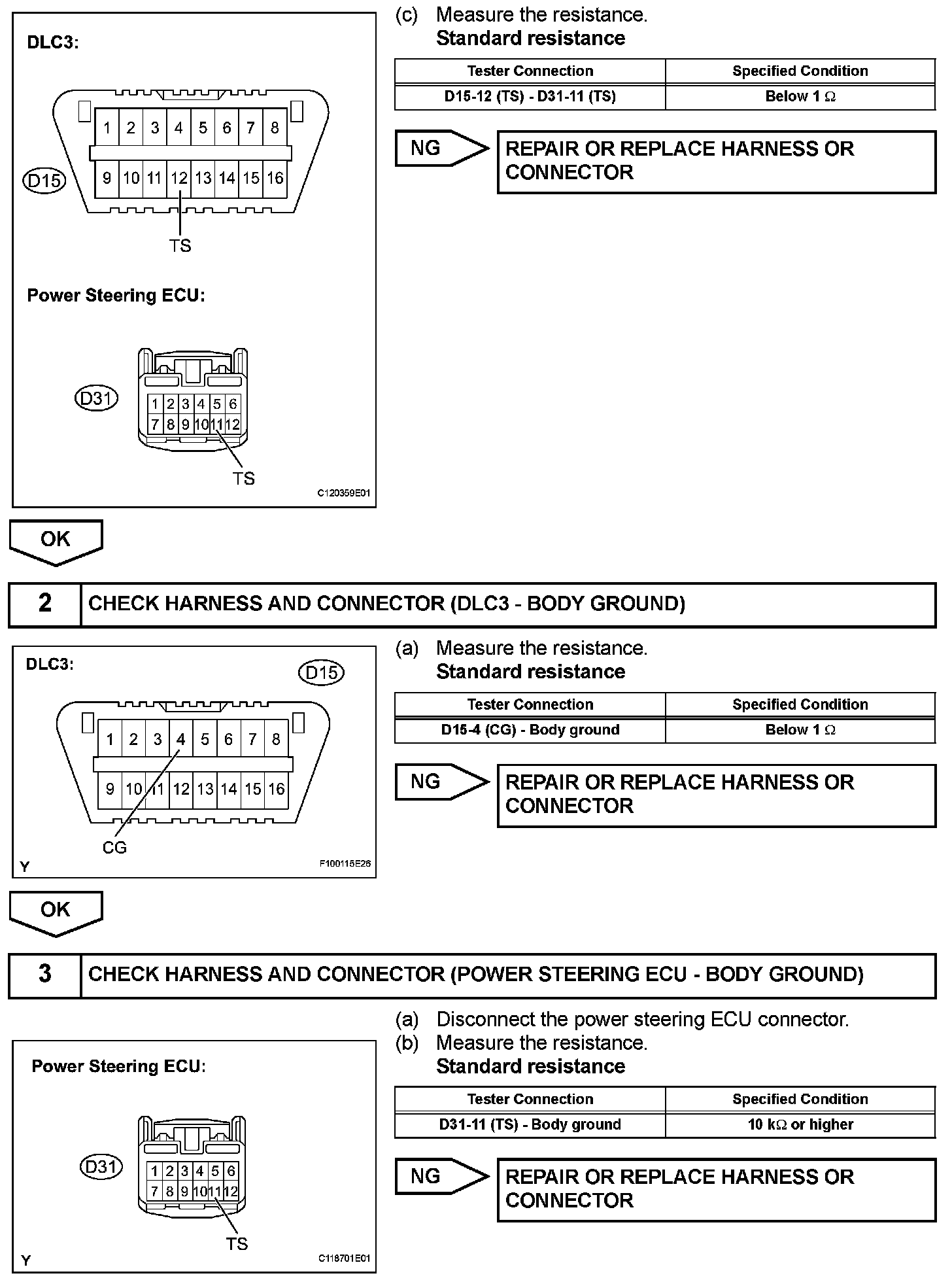

Step 1(Continued)-3:

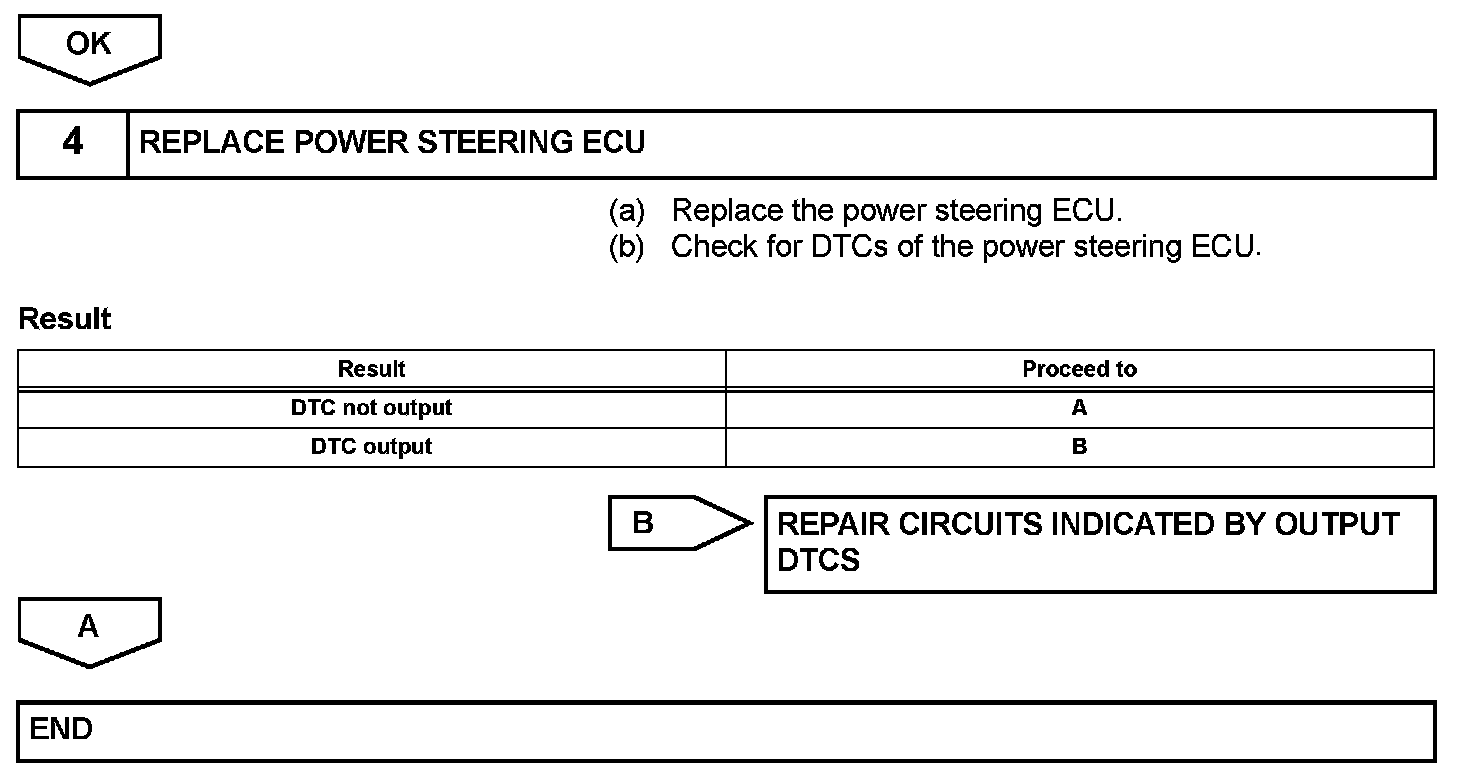

Step 3(Continued)-4:

INSPECTION PROCEDURE
