TC and CG Terminal Circuit

TC and CG Terminal Circuit

DESCRIPTION

Connecting terminals TC and CG of the DLC3 causes the skid control ECU to display 2-digit DTCs by flashing the ABS warning light.

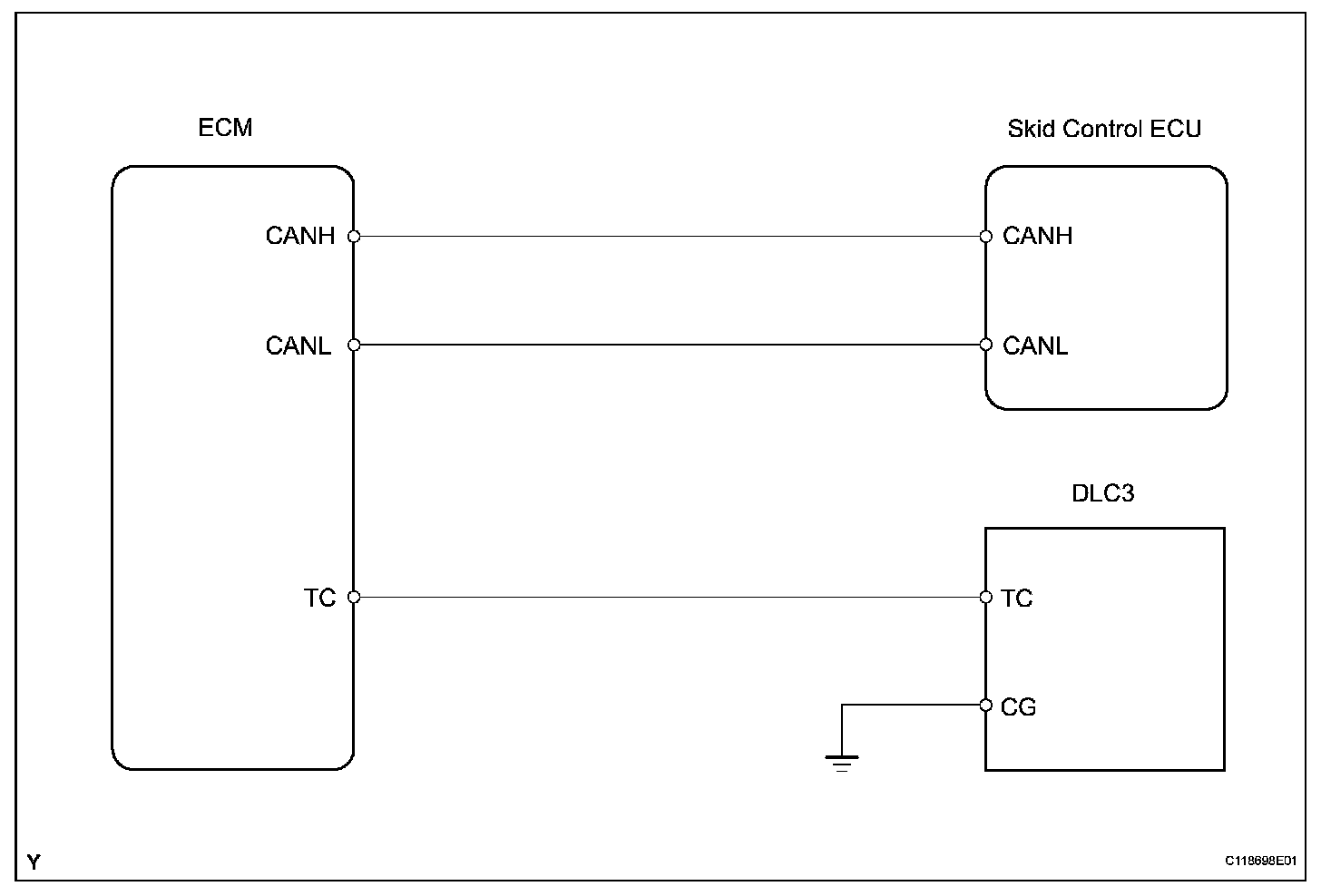

Wiring Diagram:

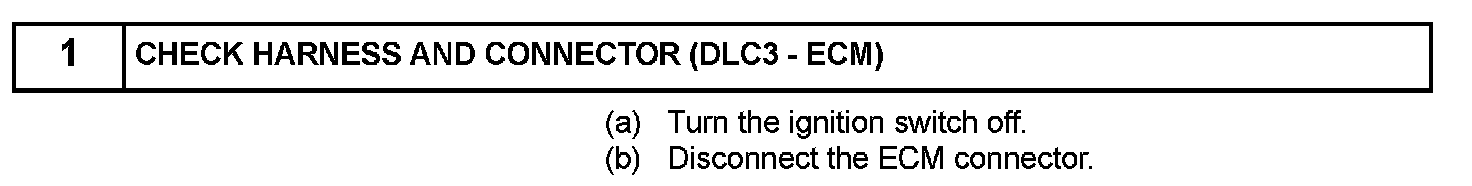

Step 1:

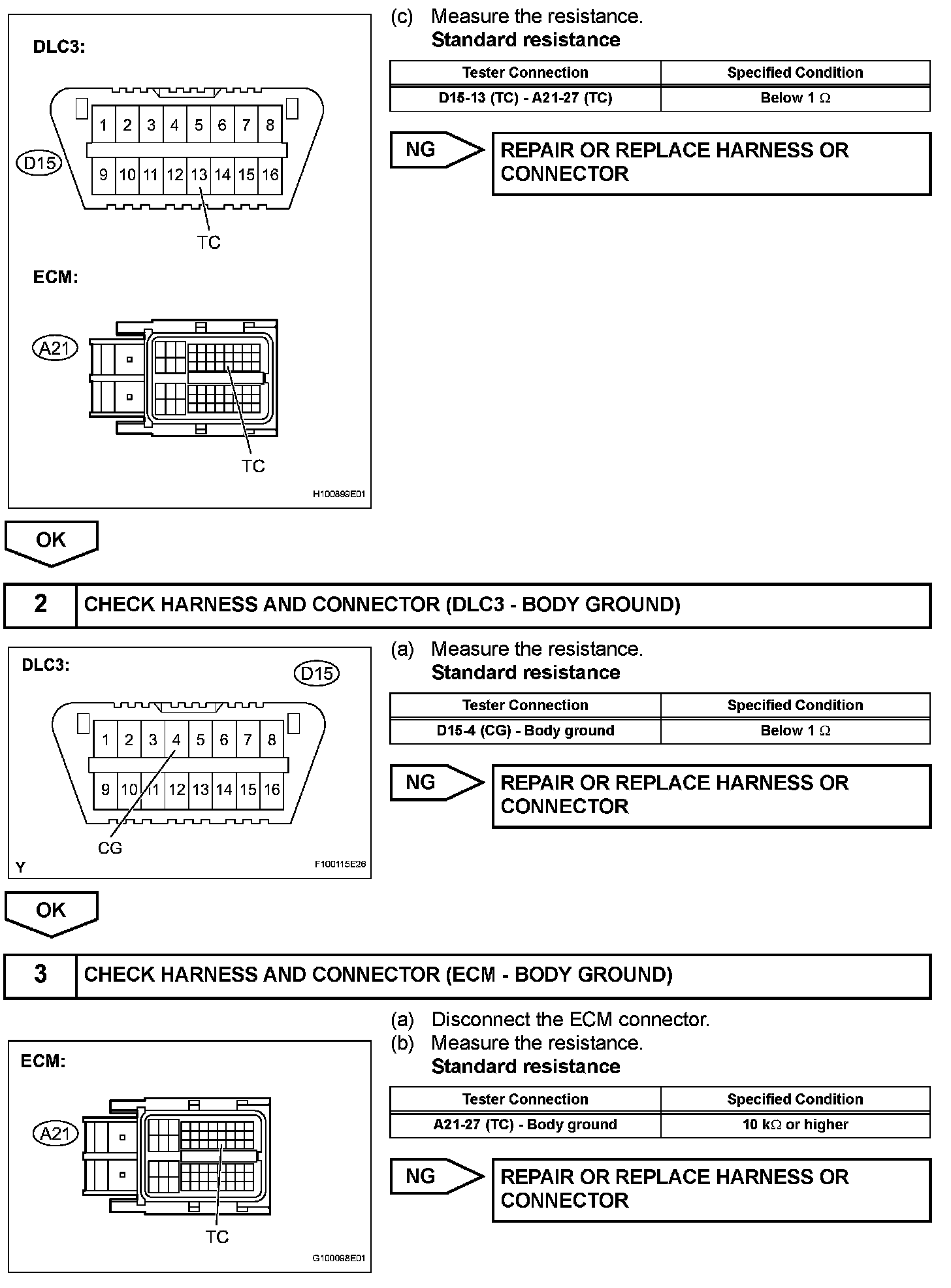

Step 1(Continued)-3:

Step 3(Continued)-4:

INSPECTION PROCEDURE
