Inner Rear View Mirror

INNER REAR VIEW MIRROR

Inner Rear View Mirror:

REMOVAL

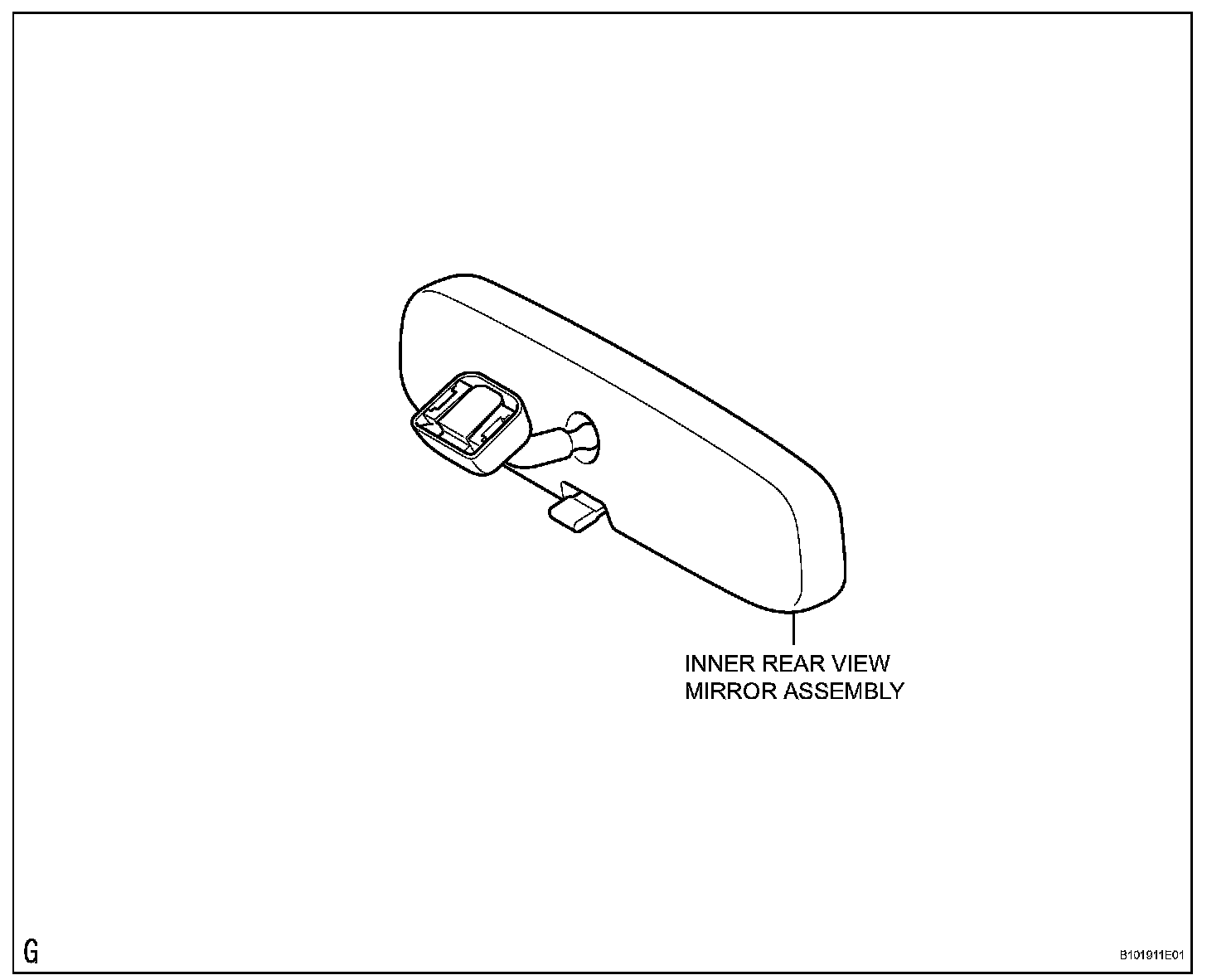

1. REMOVE INNER REAR VIEW MIRROR ASSEMBLY

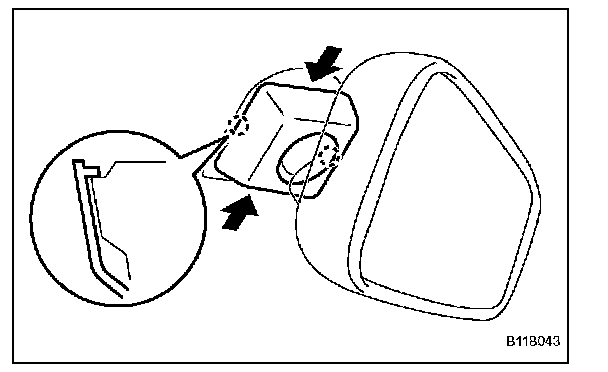

a. Pinch the cover, disengage the 2 claws and remove the cover.





b. Push the lever, and slide and remove the inner rear view mirror.

INSTALLATION

1. INSTALL INNER REAR VIEW MIRROR ASSEMBLY

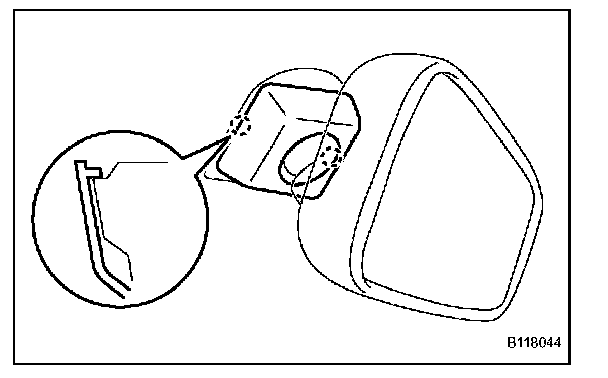

a. Slide and install the inner rear view mirror.





b. Engage the 2 claws and install the cover.
