Home >> Toyota >> 2007 >> Yaris L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Description and Operation

Mirrors: Description and Operation

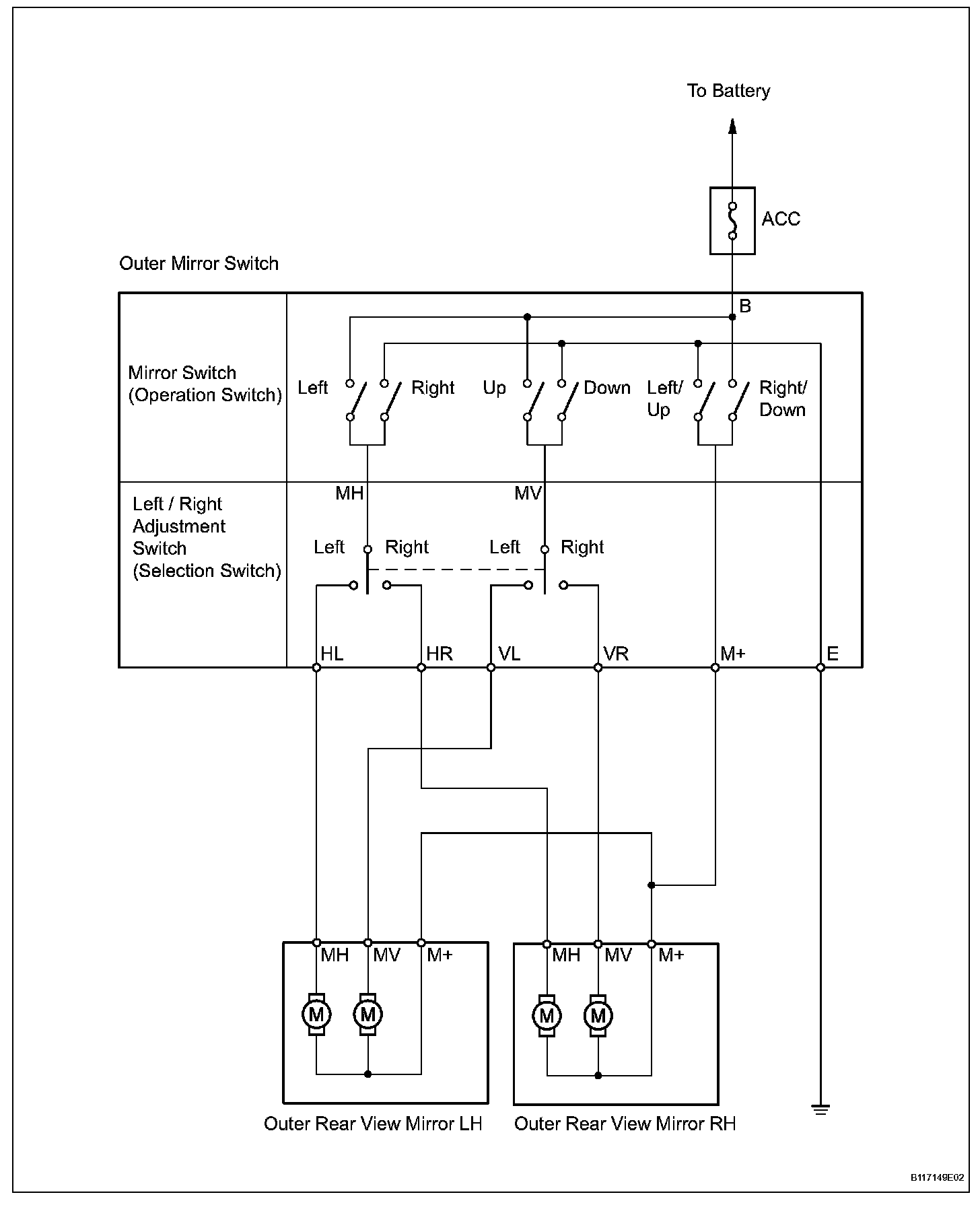

System Diagram:
