Only Back Door Lock / Unlock Functions Do Not Operate

Only Back Door LOCK / UNLOCK Functions do not Operate

DESCRIPTION
This circuit inspection is necessary for hatchback models. The main body ECU receives lock/unlock switch signals and activates the door lock motor accordingly.

Wiring Diagram:

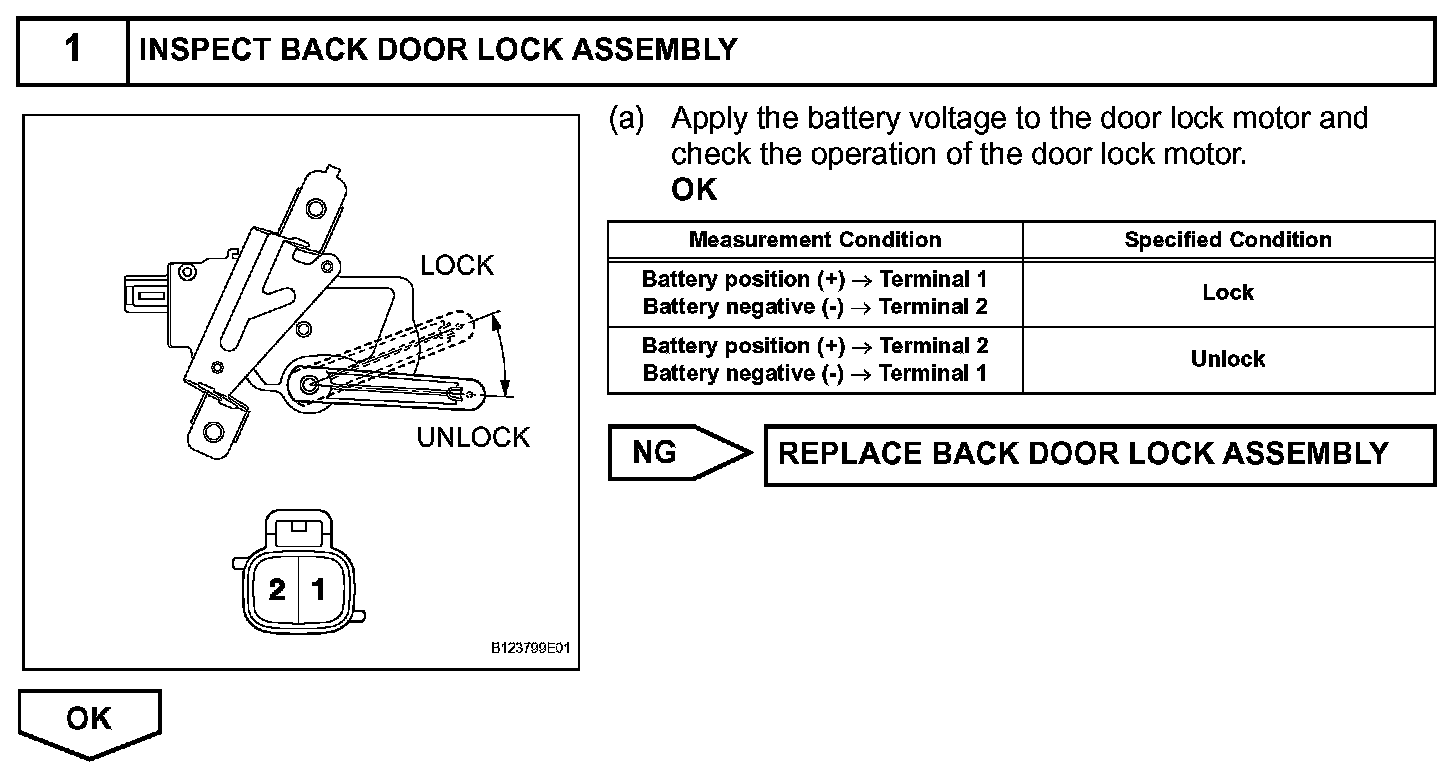

Step 1:

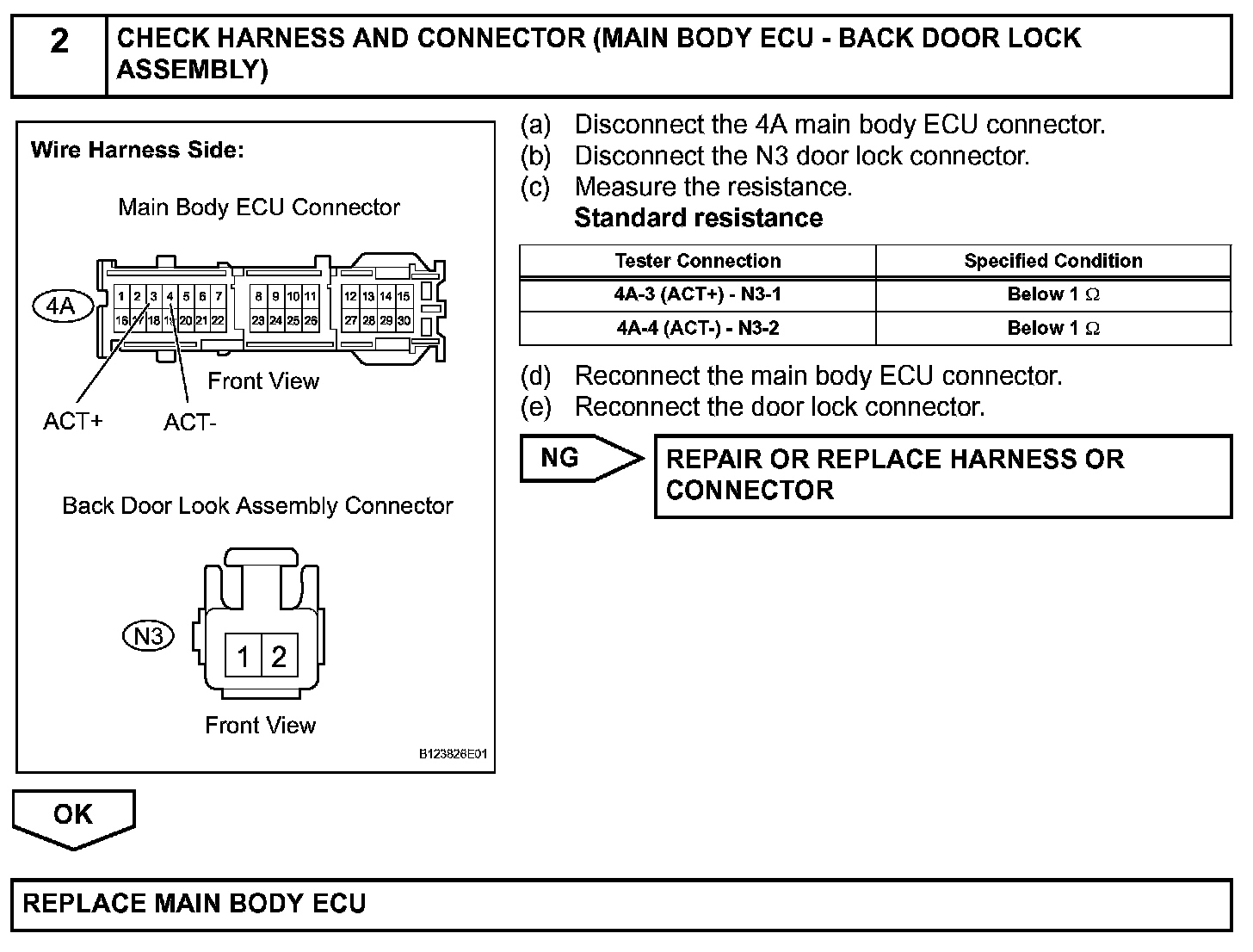

Step 2:

INSPECTION PROCEDURE
