All Doors Cannot Be Locked / Unlocked Simultaneously
All Doors cannot be Locked / Unlocked SimultaneouslyDESCRIPTION
The main body ECU receives switch signals from the door control switch and driver side door key cylinder, and activates the door lock motor on each door accordingly.

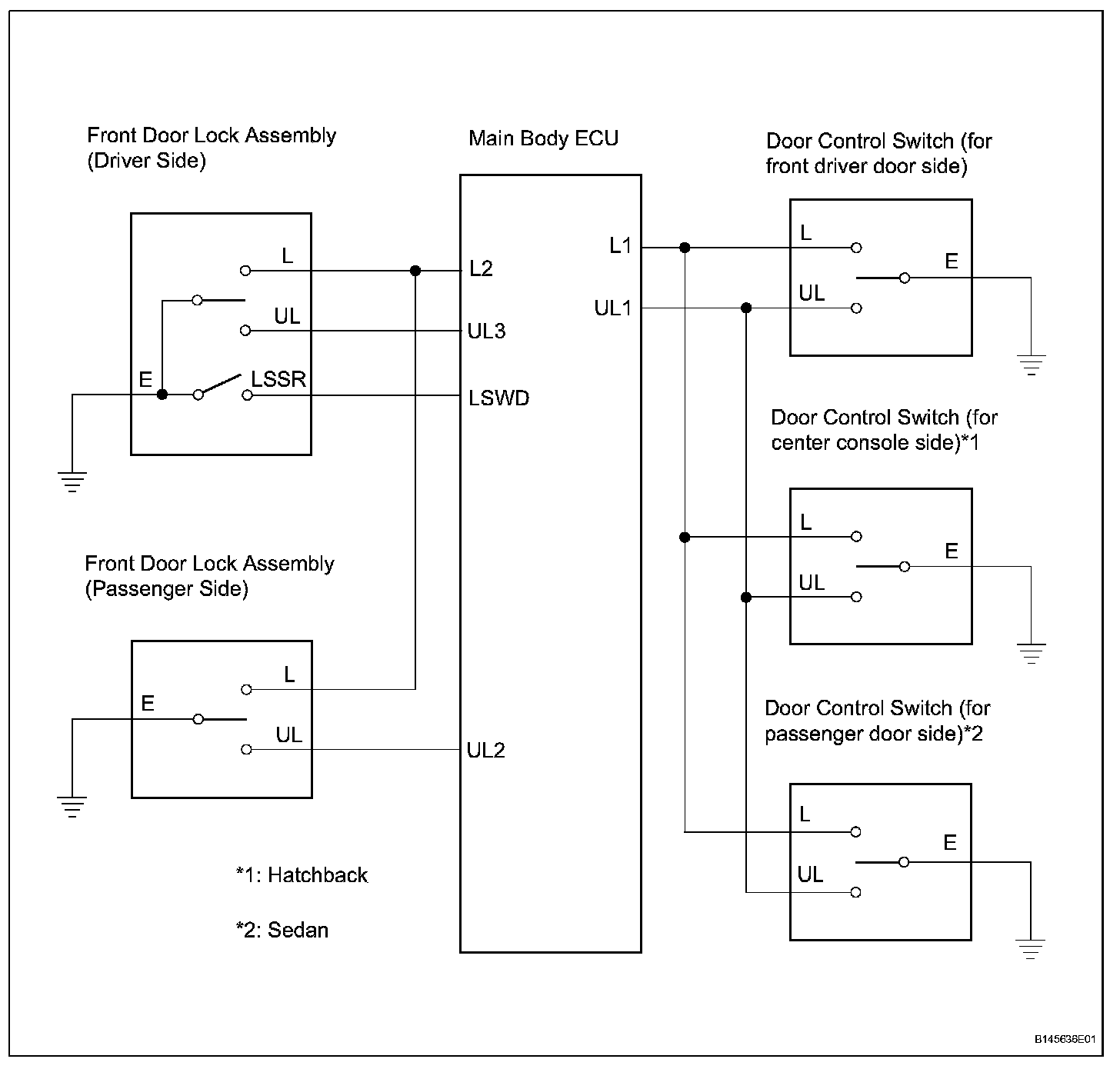

Wiring Diagram:

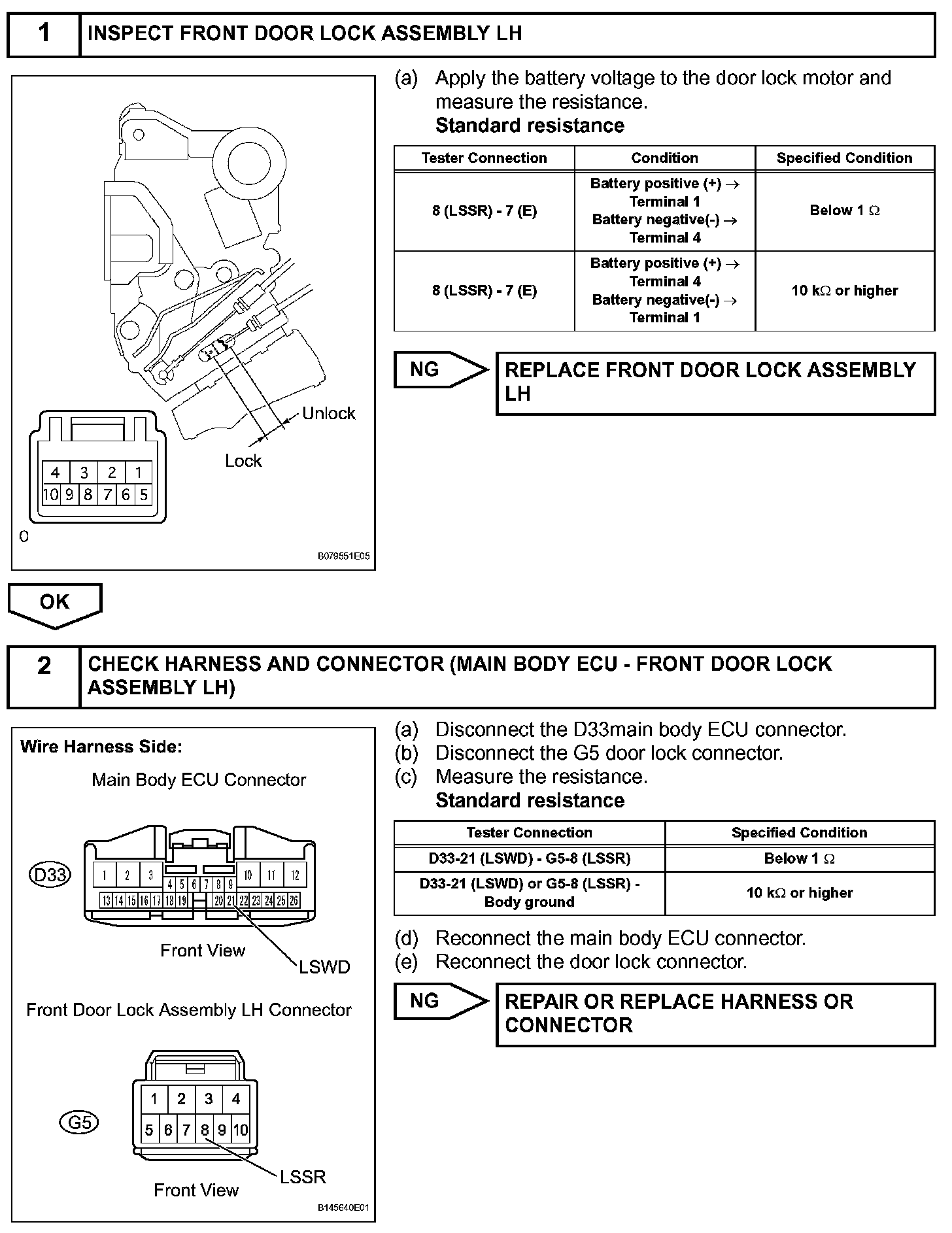

Step 1-2:

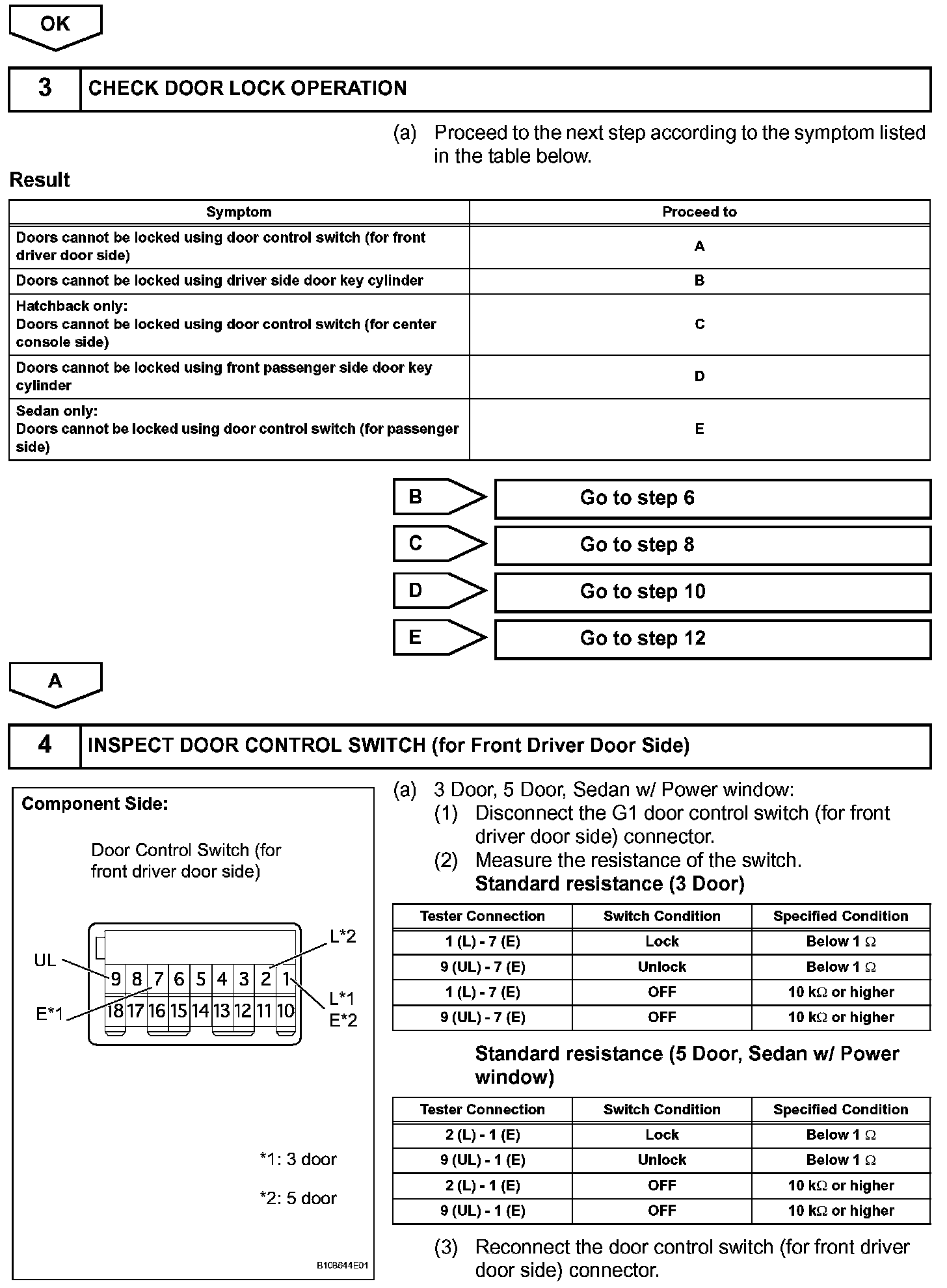

Step 2(Continued)-4:
Step 4(Continued)-5:

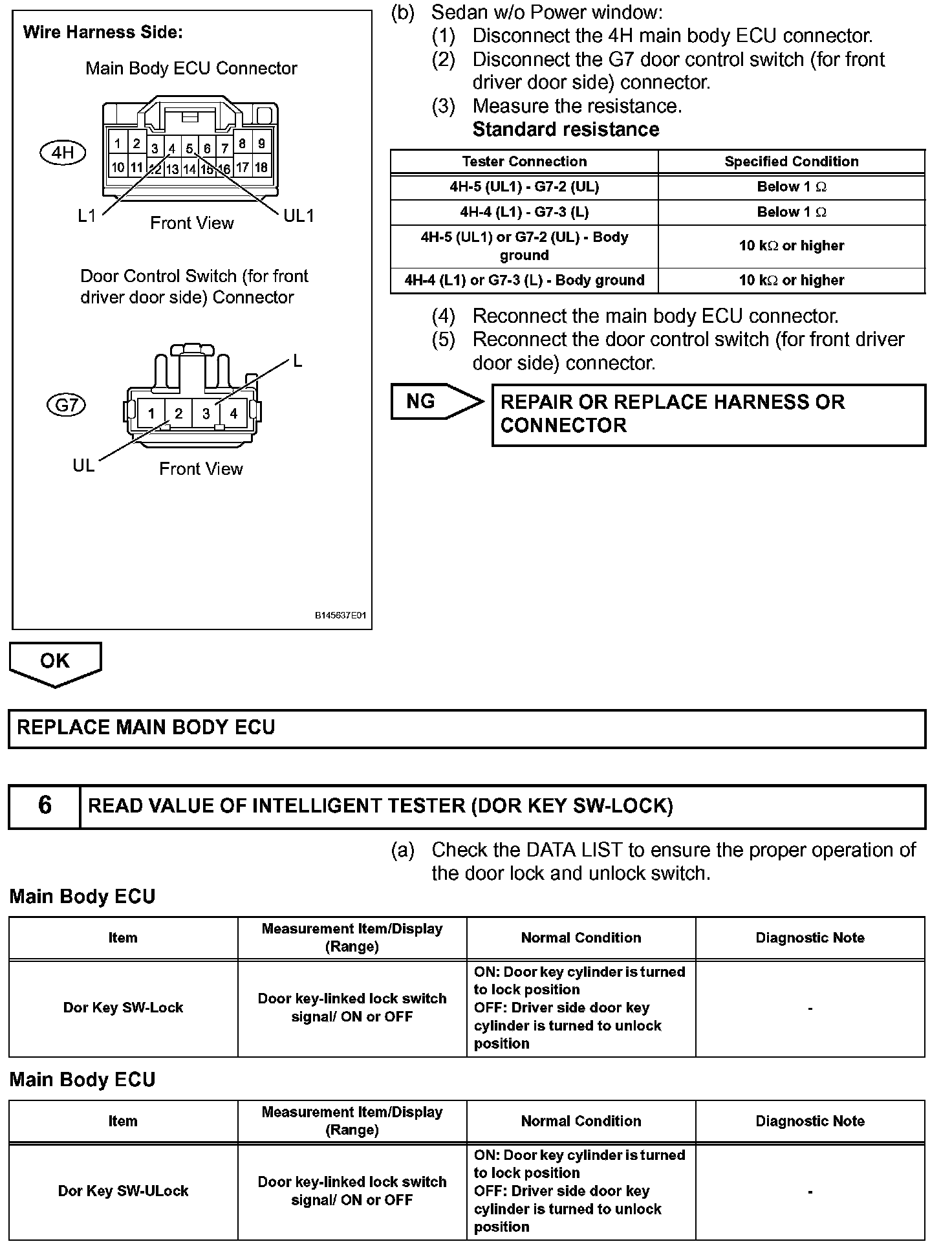

Step 5(Continued)-6:

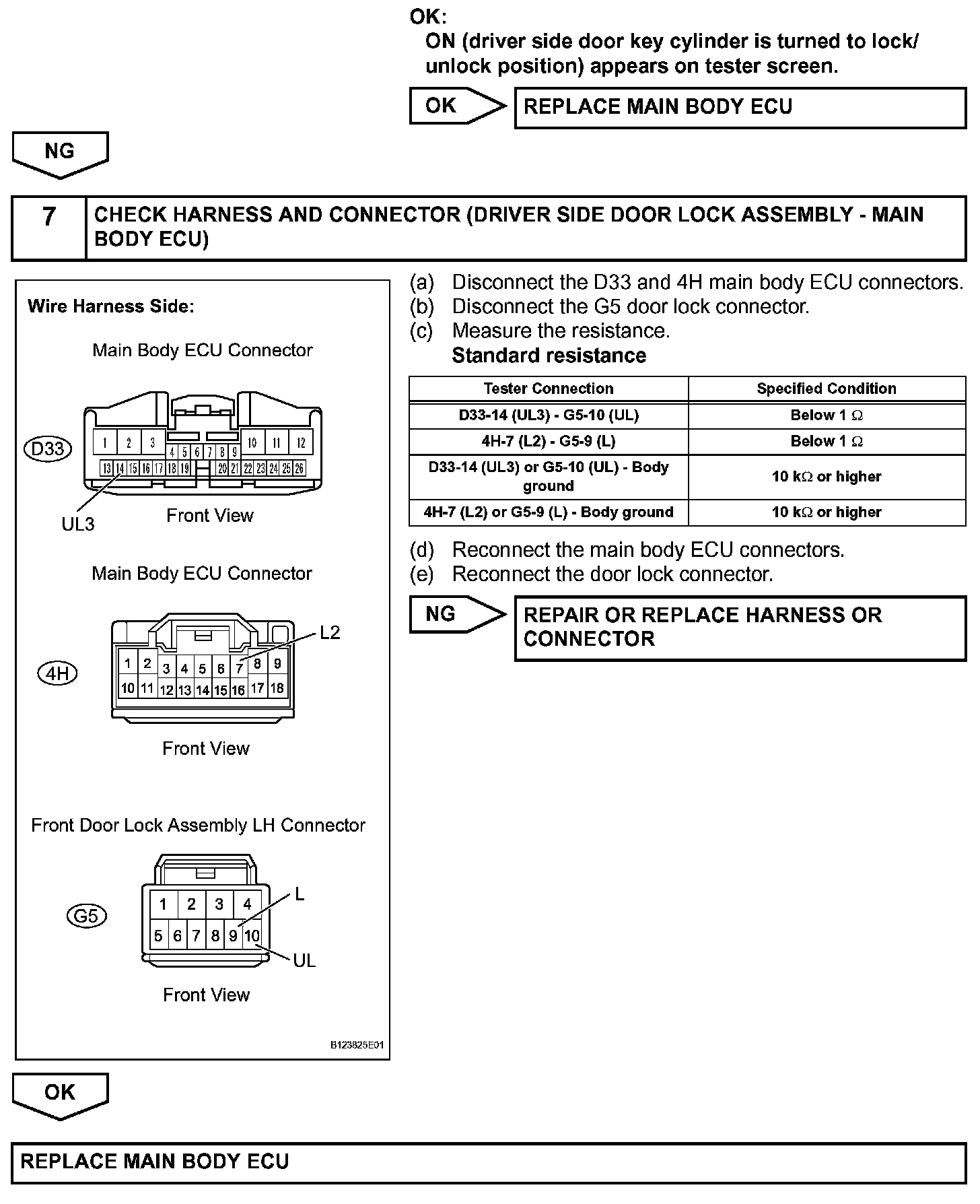

Step 6(Continued)-7:

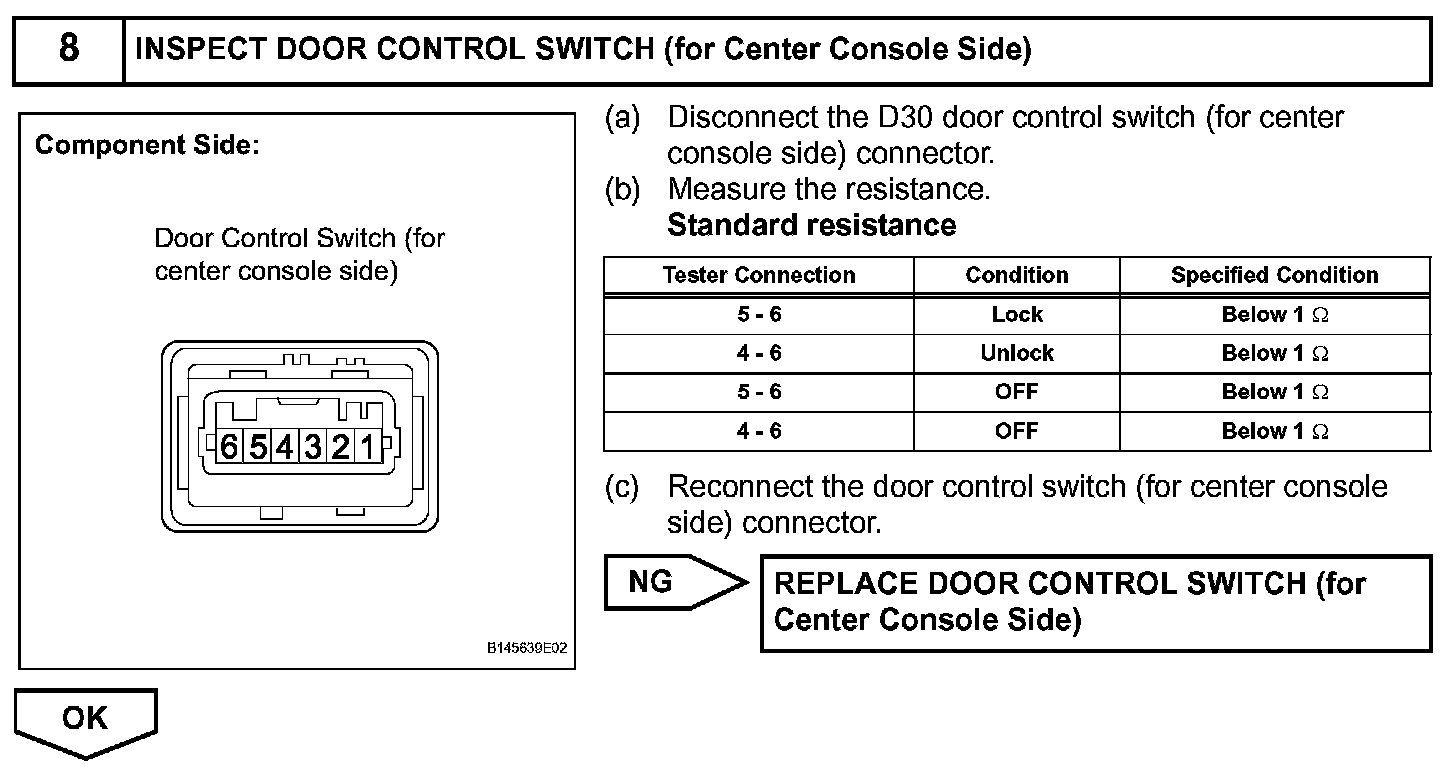

Step 8:

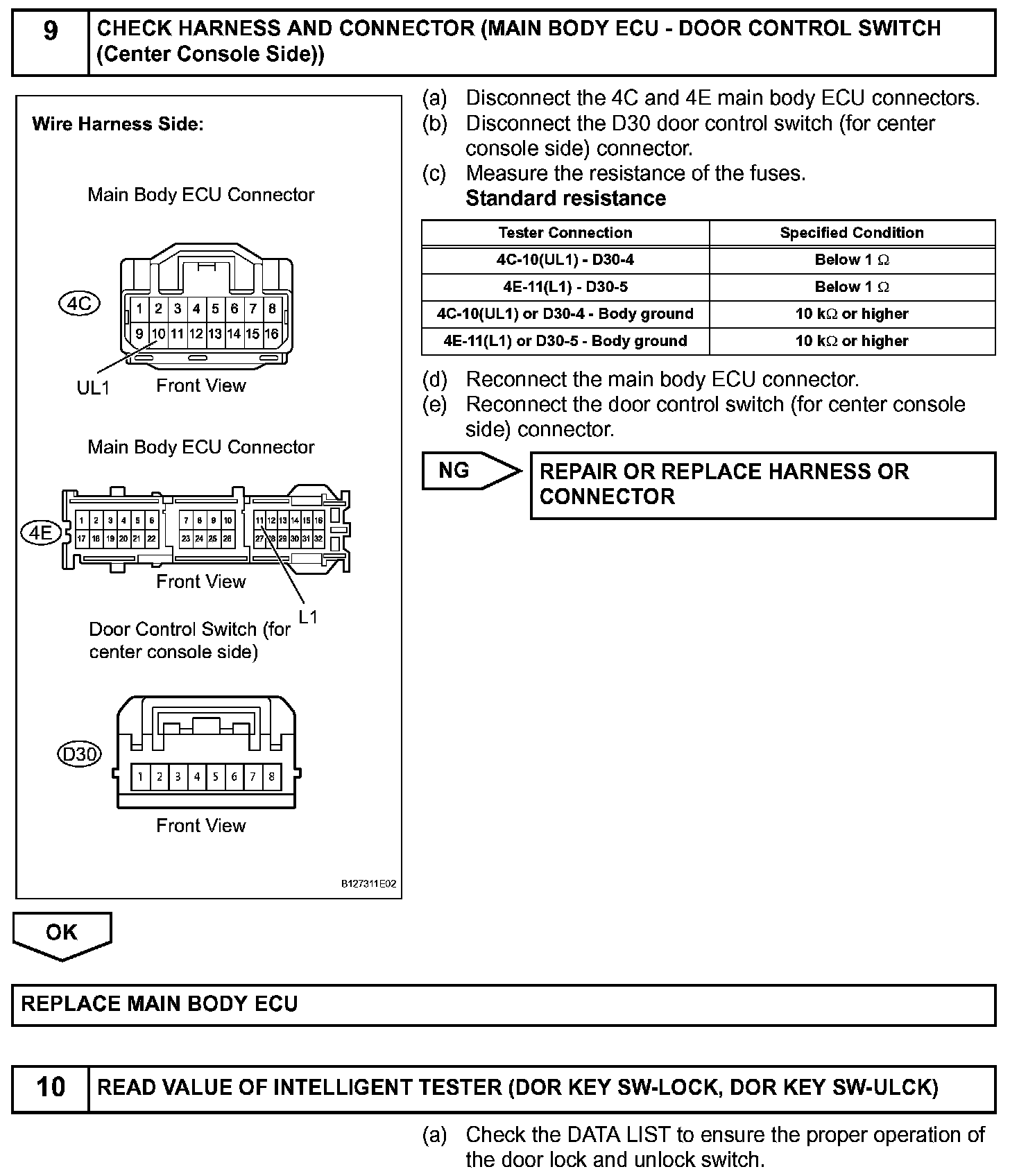

Step 9-10:

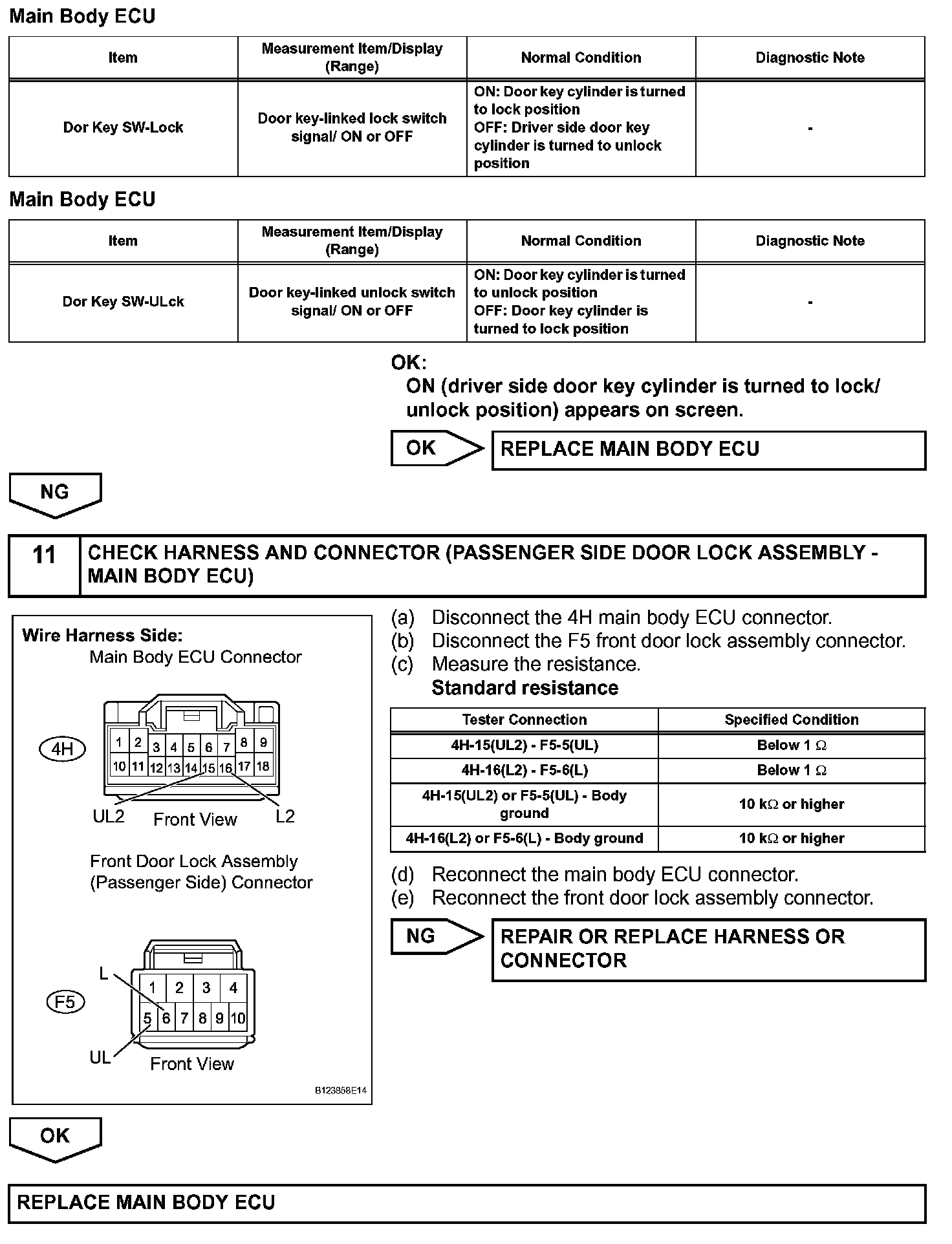

Step 10(Continued)-11:

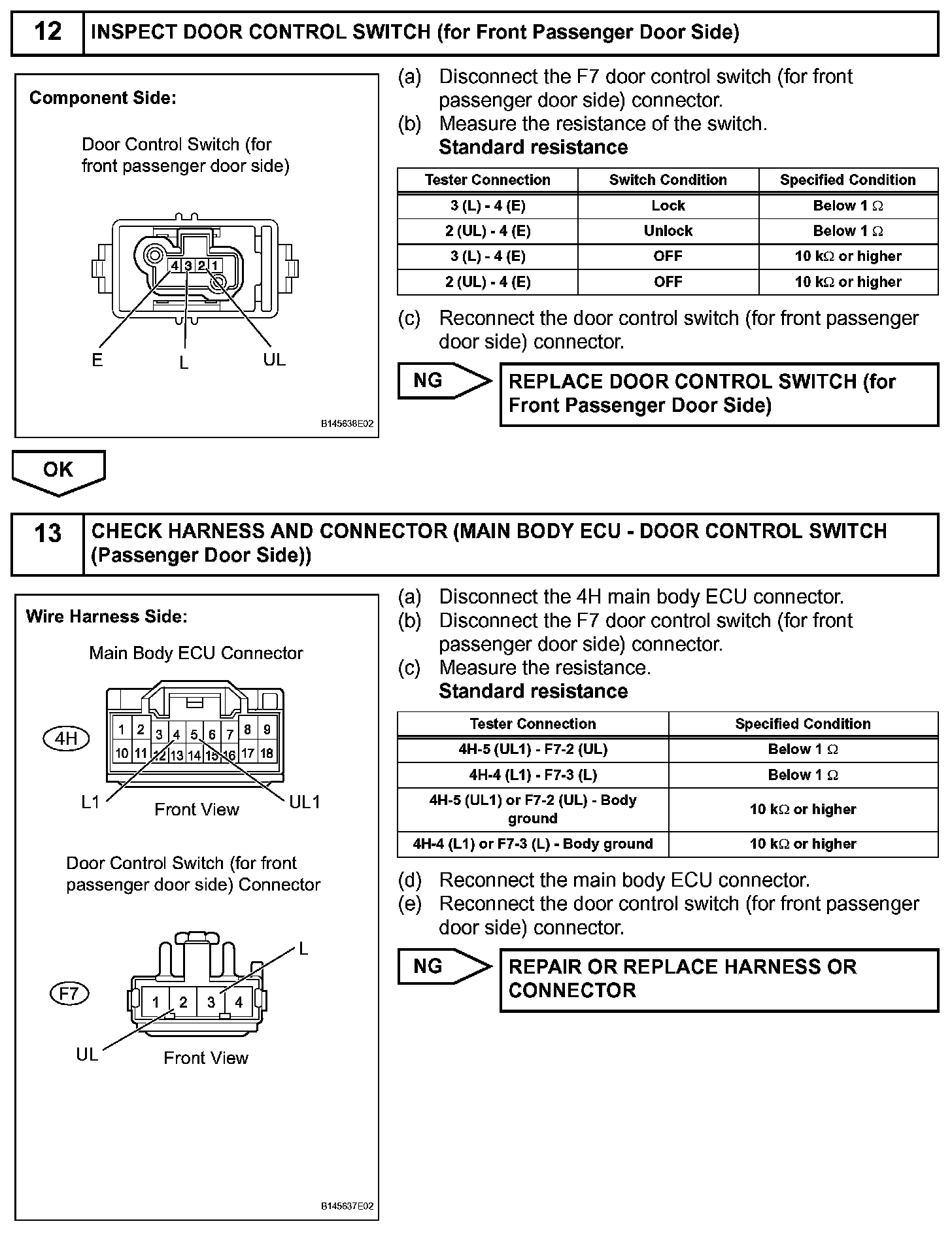

Step 12-13:

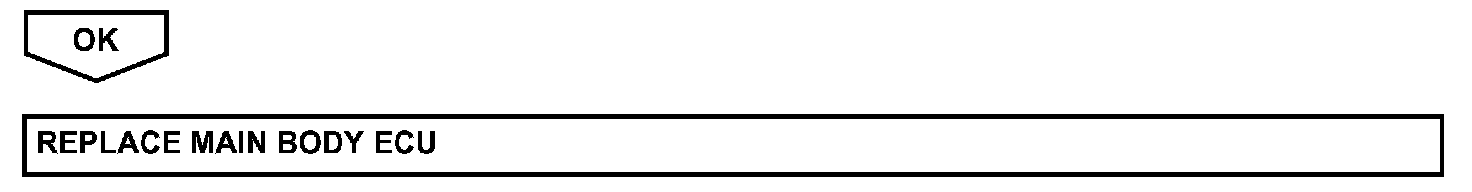

Step 13(Continued):
INSPECTION PROCEDURE
