Keyless Entry: Locations

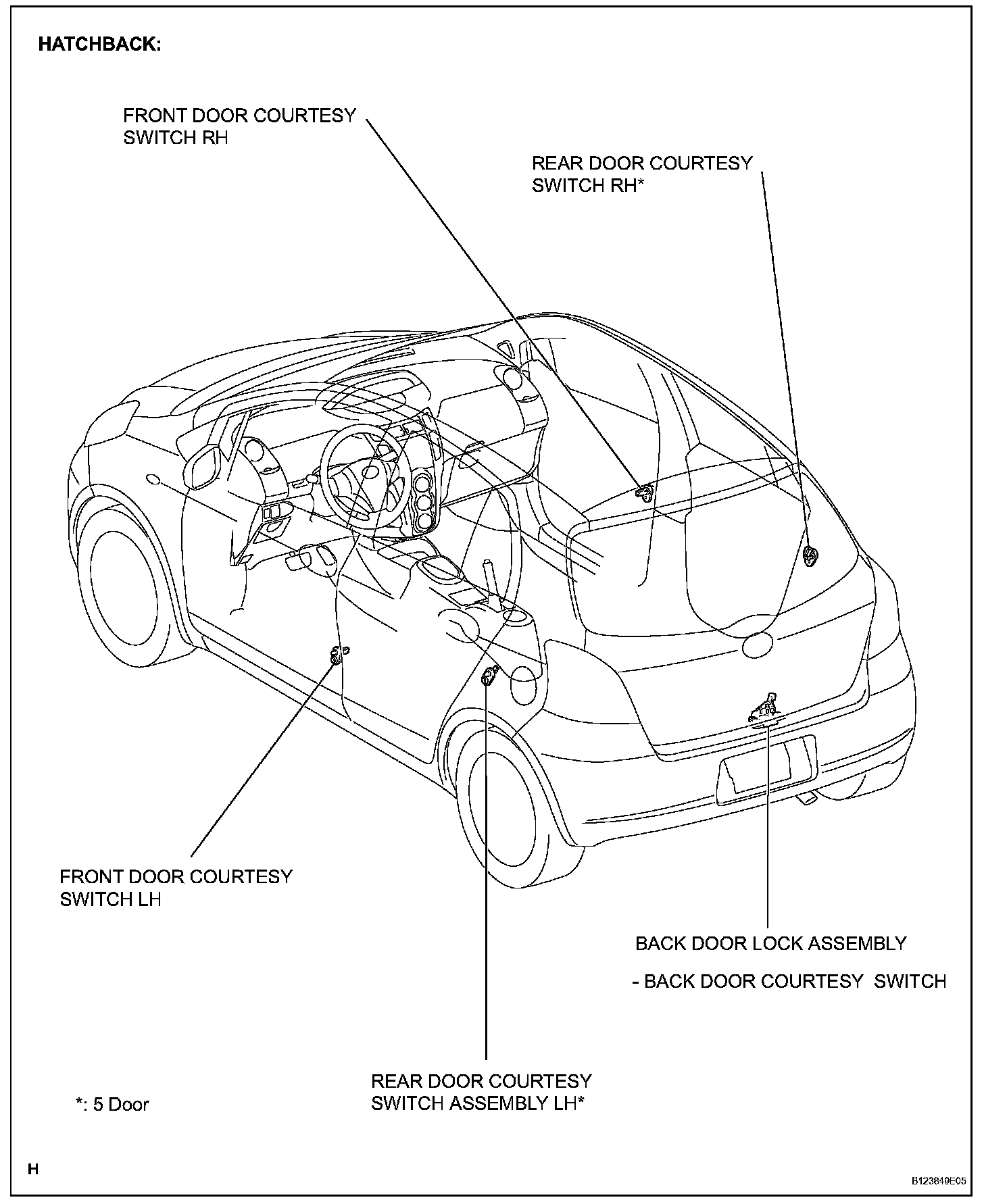

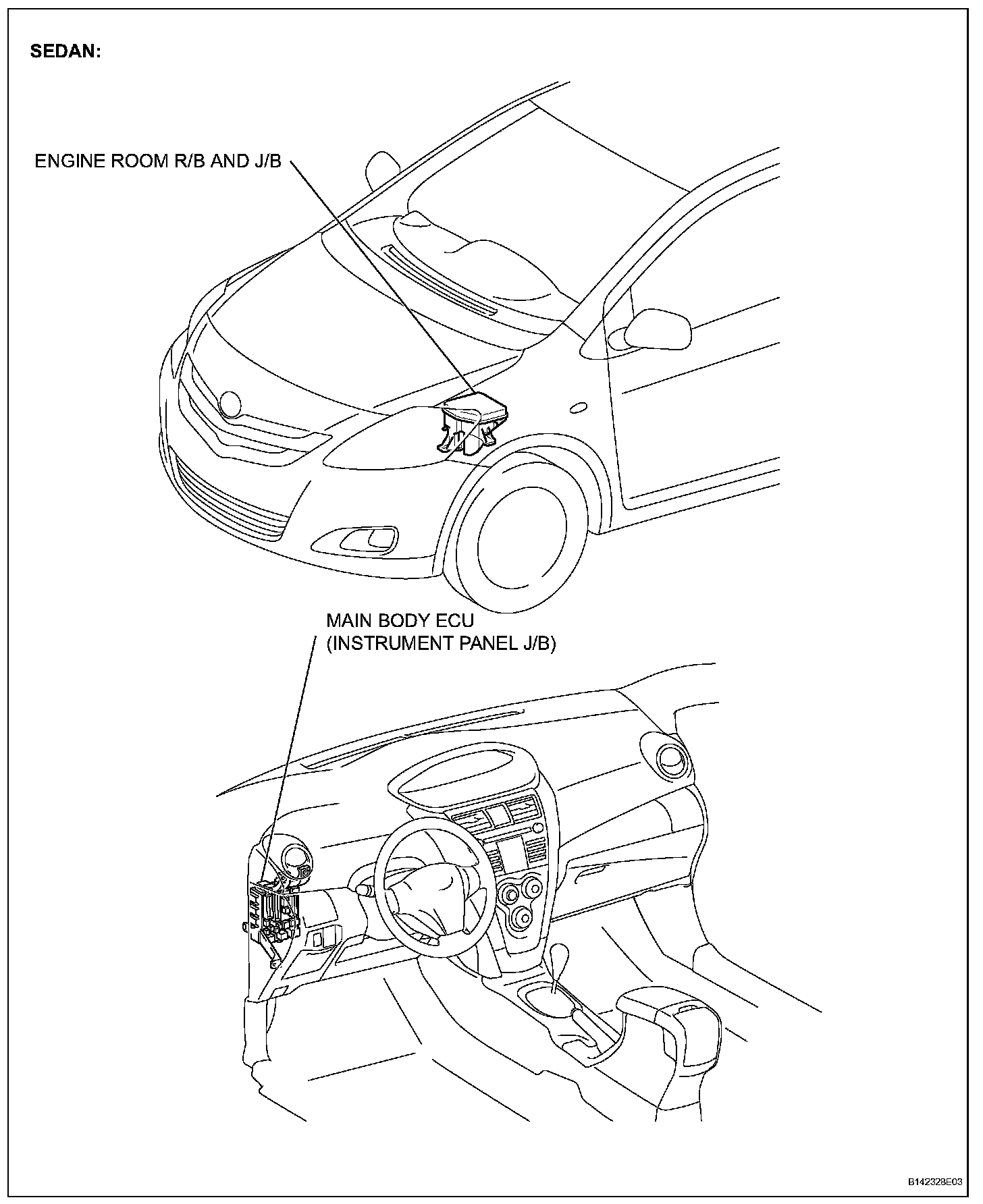

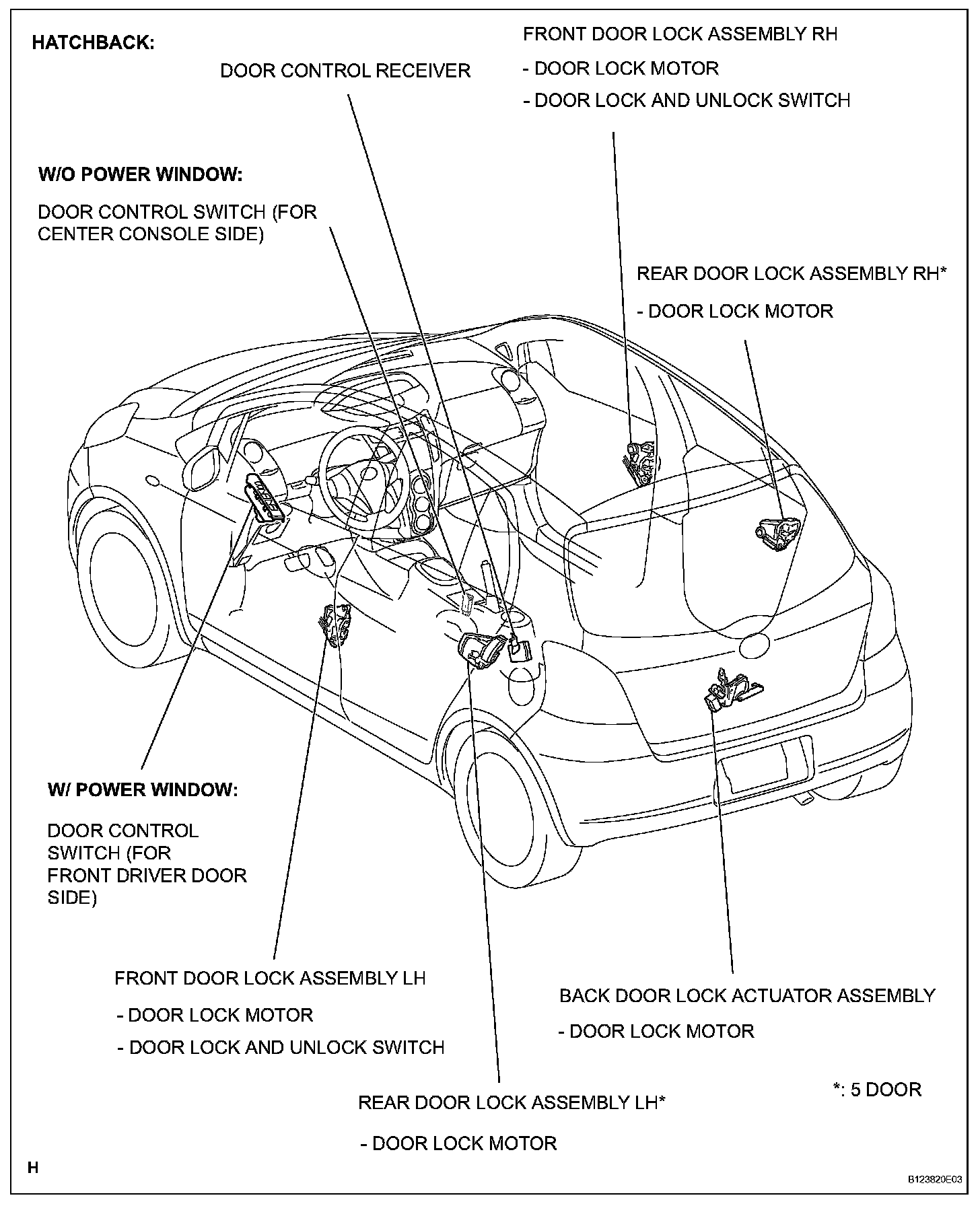

Wireless Door Lock Control System:



Wireless Door Lock Control System:



Wireless Door Lock Control System:



Wireless Door Lock Control System:



Wireless Door Lock Control System:



Wireless Door Lock Control System:

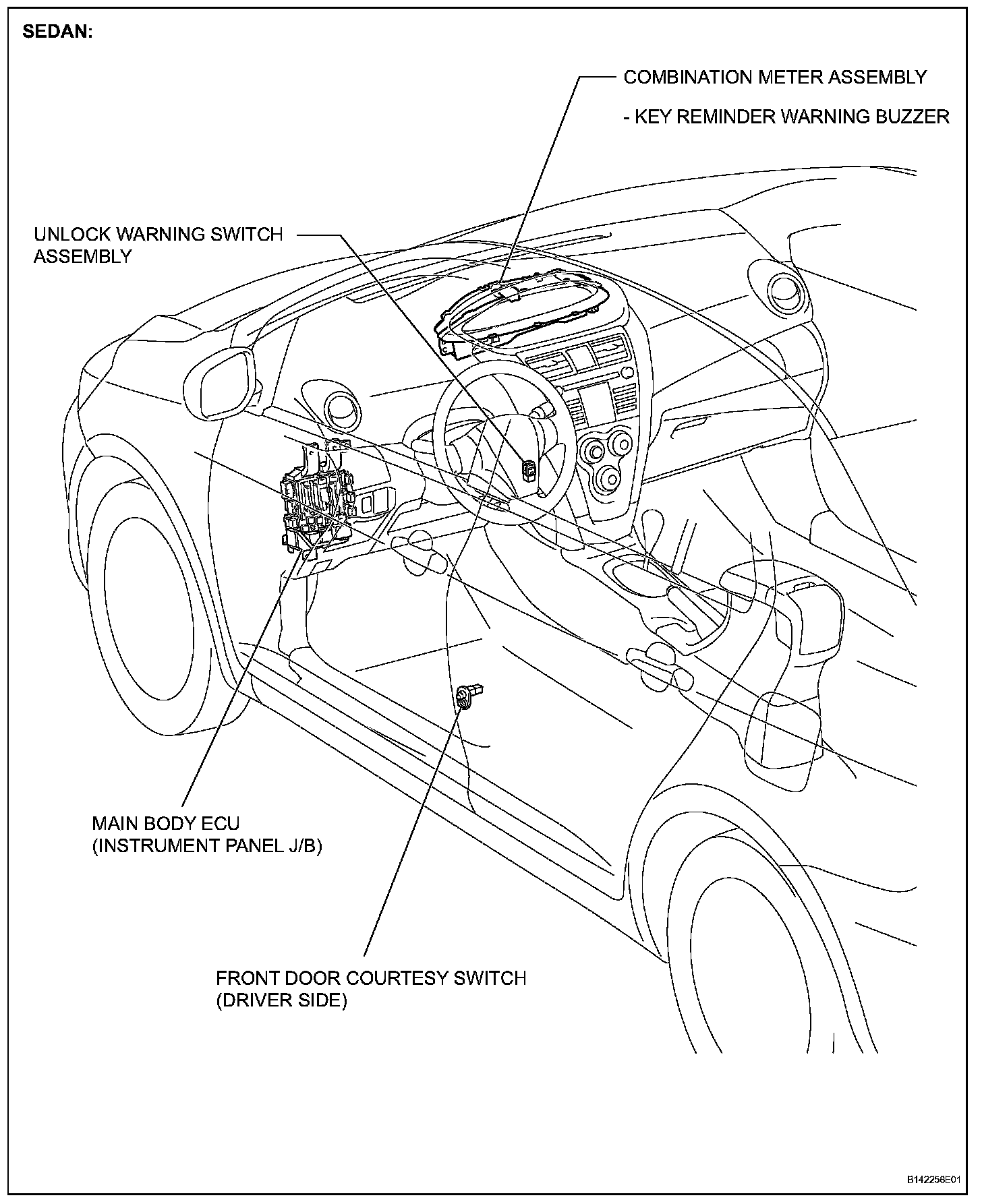

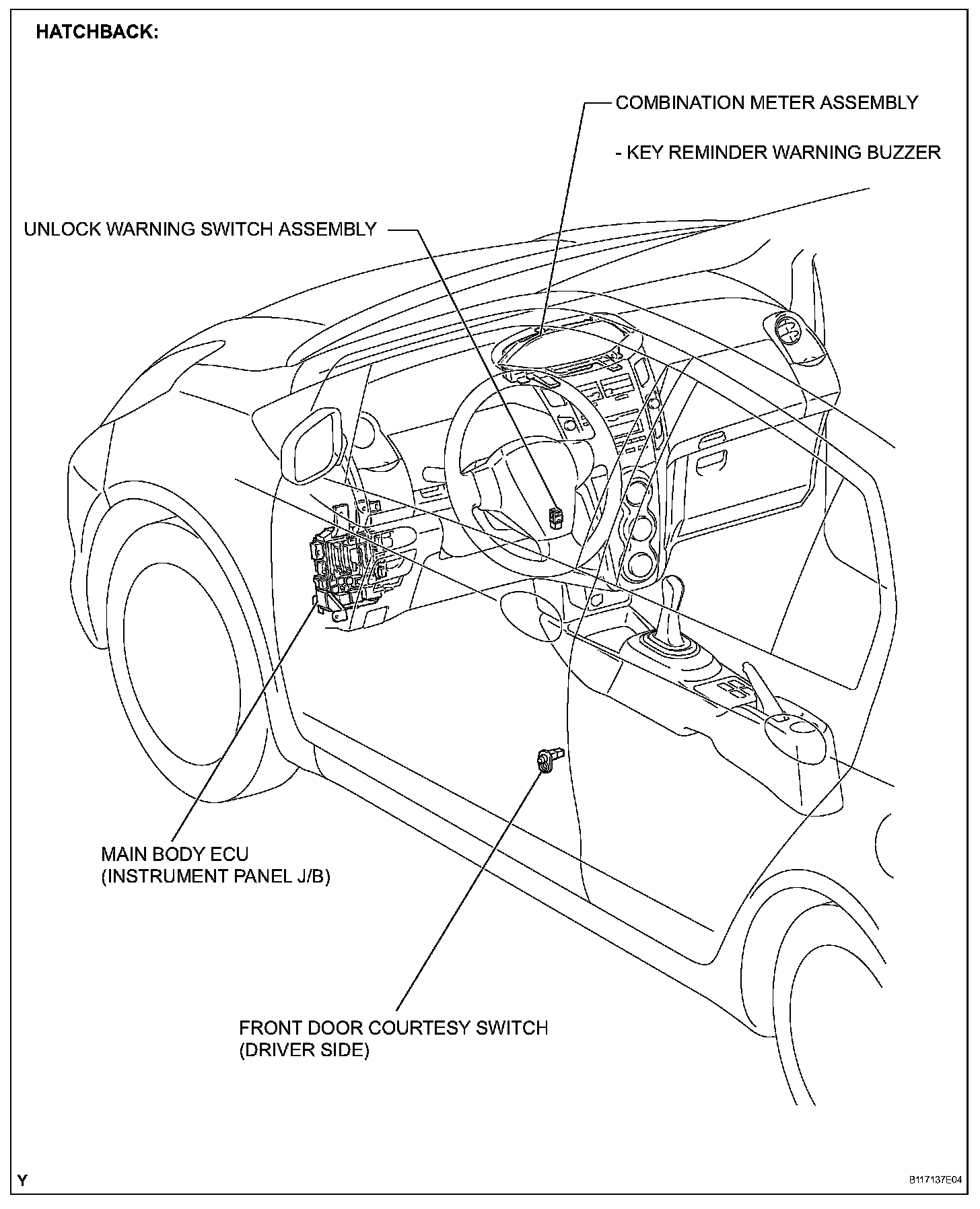

Key Reminder Warning System:



Key Reminder Warning System:
