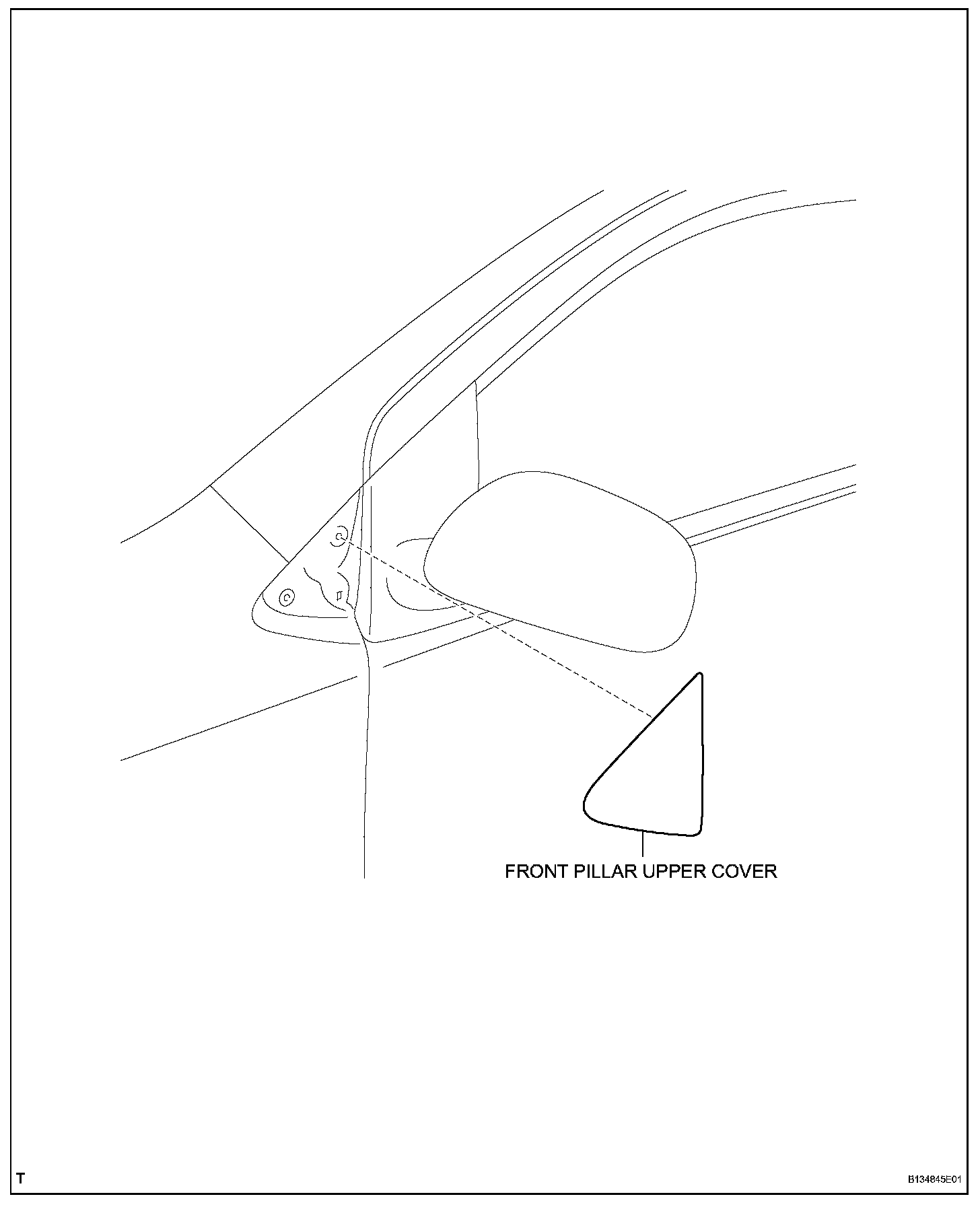

Front Pillar Upper Cover (For Sedan)

FRONT PILLAR UPPER COVER (For Sedan)

Front Pillar Upper Cover (For Sedan):

REMOVAL

HINT: The procedure described below is for the LH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. REMOVE FRONT PILLAR UPPER COVER

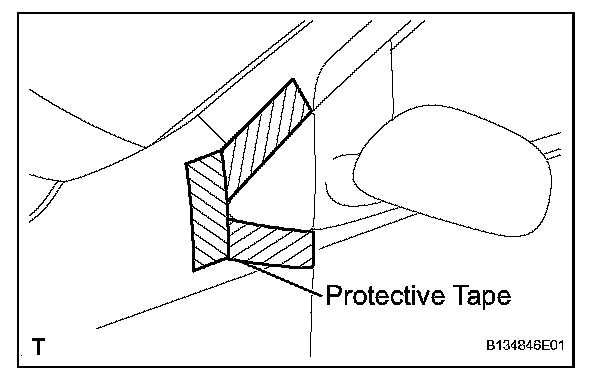

a. Apply protective tape, as shown in the illustration.

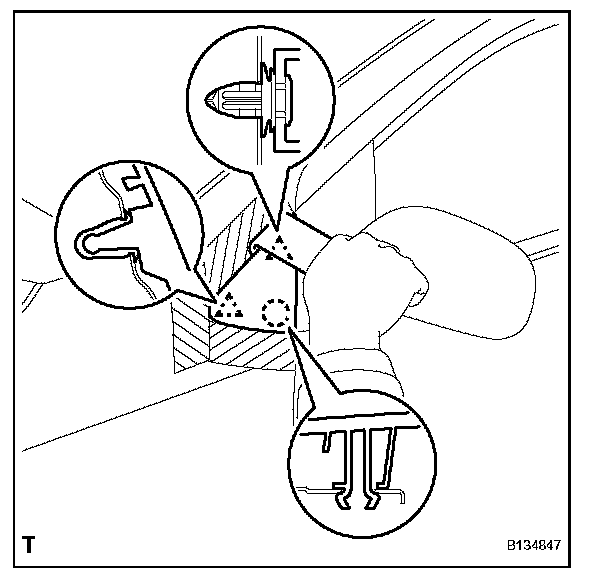

b. Using a moulding remover, disengage the 2 clips and the claw and remove the front pillar upper cover.

INSTALLATION

HINT: The procedure described below is for the LH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. INSTALL FRONT PILLAR UPPER COVER

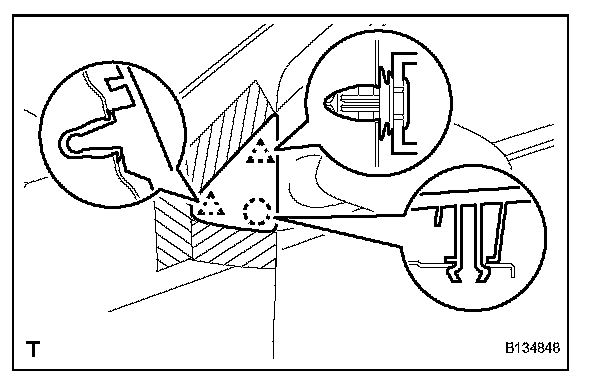

a. Engage the 2 clips and the claw and install the front pillar upper cover.

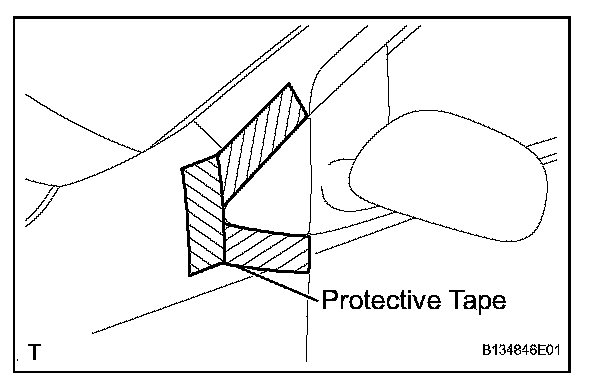

b. Remove the protective tape.
