Front Pillar Upper Cover (For Hatchback)

FRONT PILLAR UPPER COVER (For Hatchback)

Front Pillar Upper Cover (For Hatchback):

REMOVAL

HINT: The procedure described below is for the LH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. REMOVE FRONT PILLAR UPPER COVER

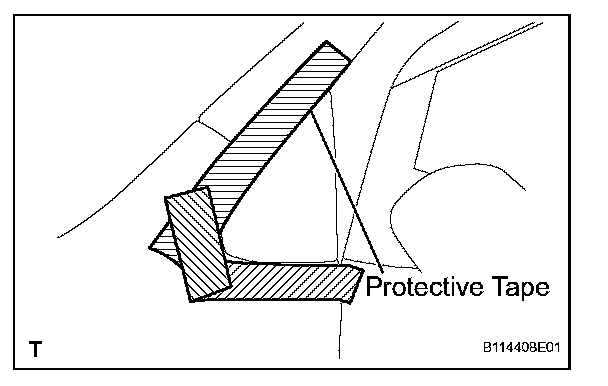

a. Apply protective tape to the body panel in the area around the front pillar upper cover.

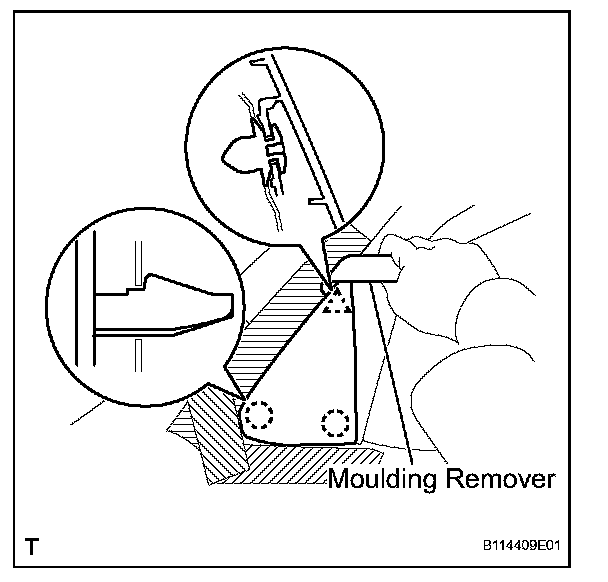

b. Using a moulding remover, disengage the 2 claws and the clip and remove the front pillar upper cover.

INSTALLATION

HINT: The procedure described below is for the LH side. Use the same procedure for both the RH and LH sides, unless otherwise specified.

1. INSTALL FRONT PILLAR UPPER COVER

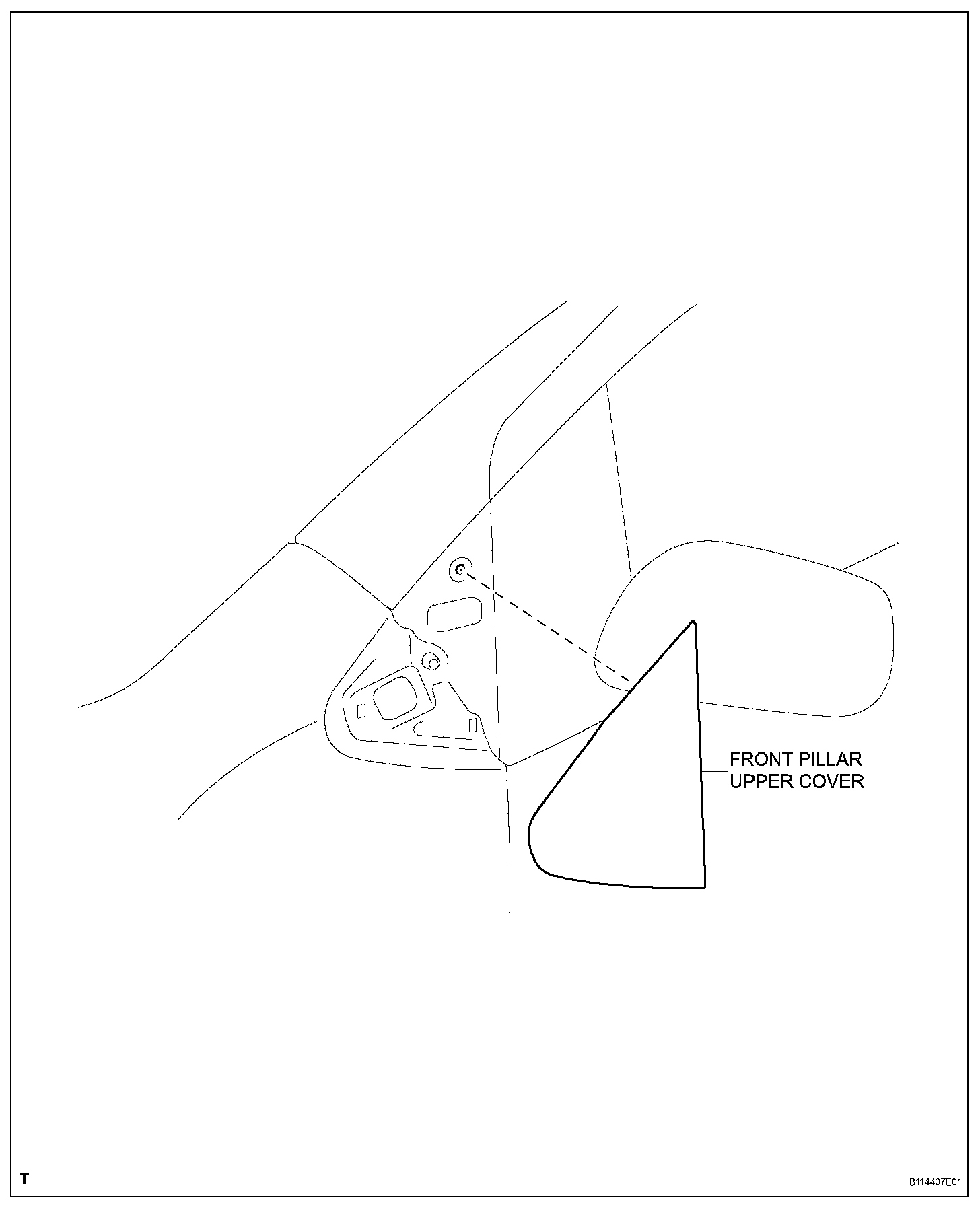

a. Engage the 2 claws and the clip and install the front pillar upper cover.

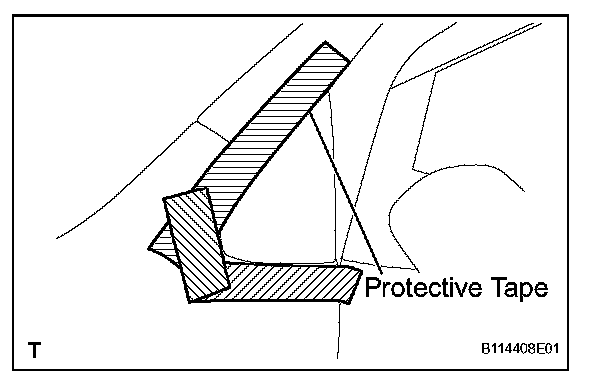

b. Remove the protective tape.
