Back Door Courtesy Switch (For Sedan)

Back Door Courtesy Switch (for Sedan):

BACK DOOR COURTESY SWITCH (for Sedan)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL




2. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

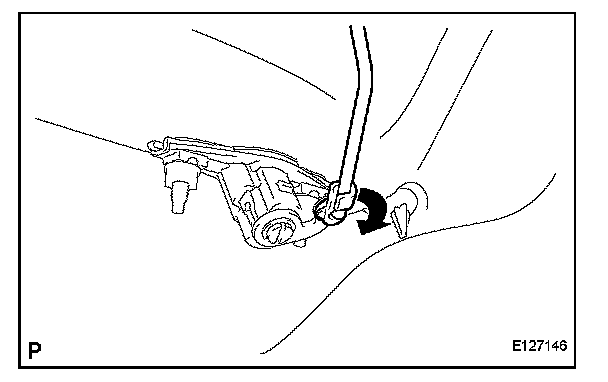

a. Remove the snap ring in the direction indicated by the arrow and remove the luggage compartment door lock link.




b. Disconnect the connector.

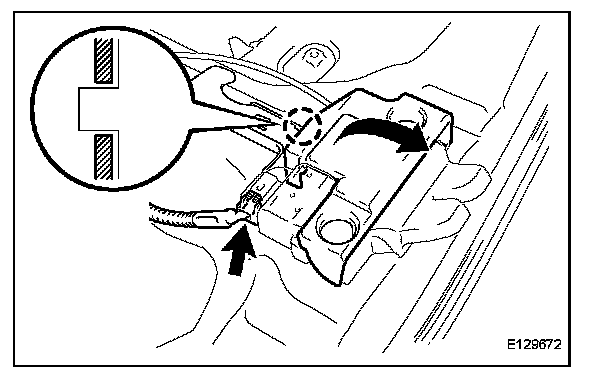

c. Disengage the claw and pull up the protector lid in the direction indicated by the arrow.

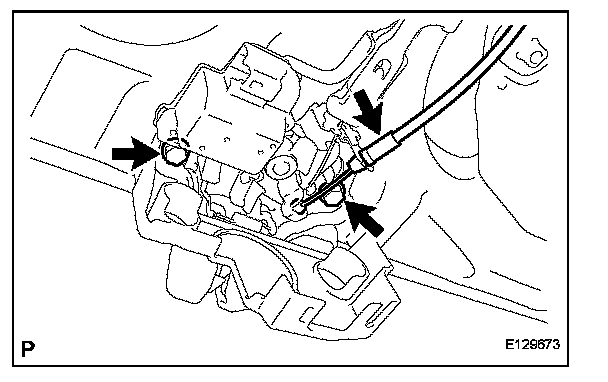

d. Remove the luggage door lock control cable.
e. Remove the 2 bolts and the luggage compartment door lock assembly.

INSTALLATION




1. INSTALL LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

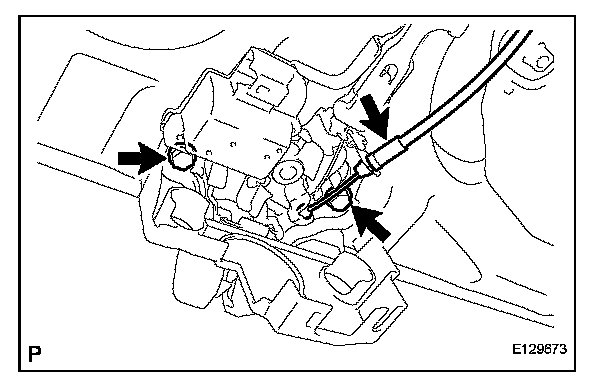

a. Install the luggage door lock control cable.

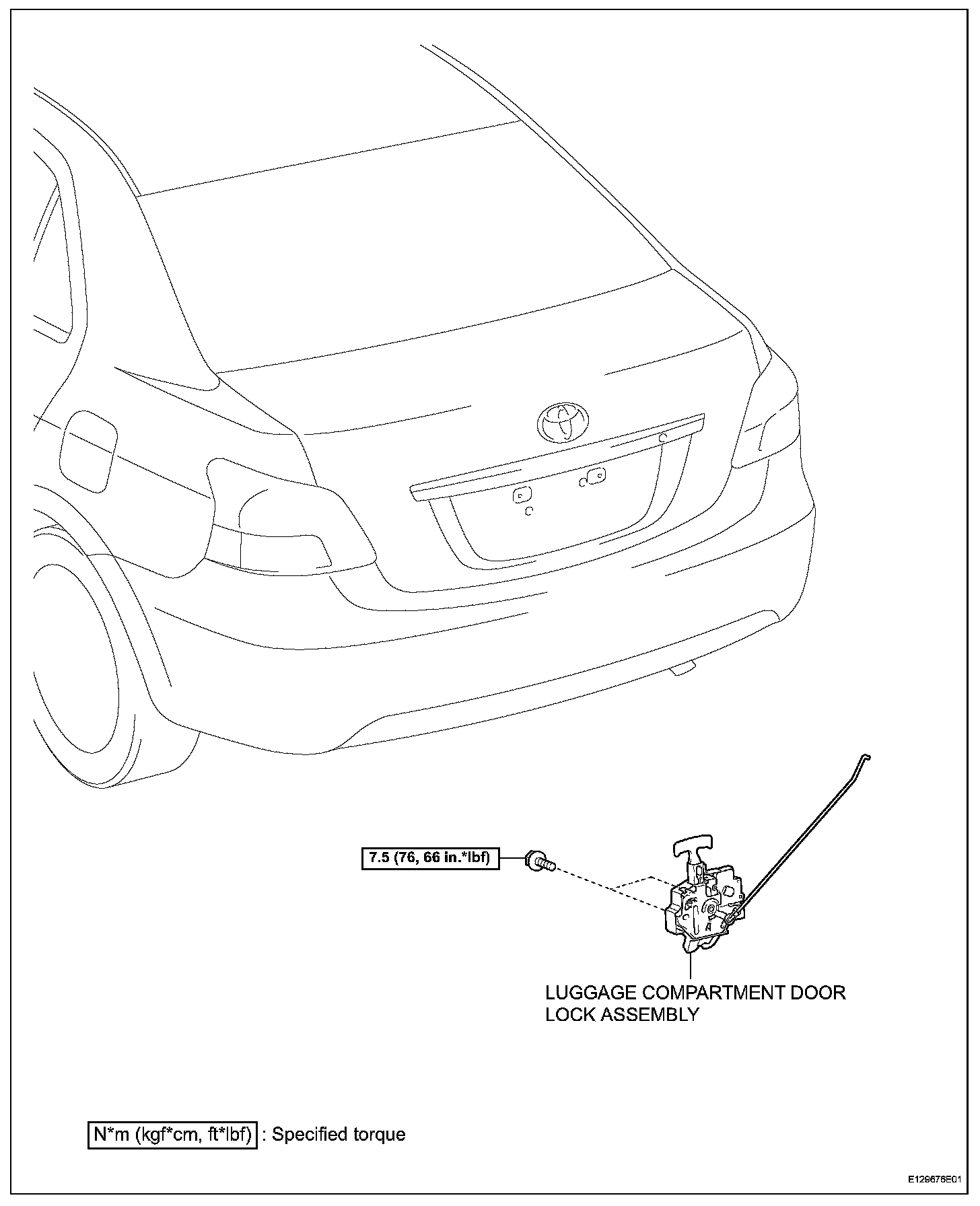

b. Install the luggage compartment door lock assembly with the 2 bolts.

Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)




c. Connect the connector.
d. Install the protector lid.




e. Install the luggage compartment door lock link.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
