BACK DOOR COURTESY SWITCH (for Hatchback)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE BACK DOOR TRIM BOARD ASSEMBLY




3. REMOVE BACK DOOR LOCK ASSEMBLY

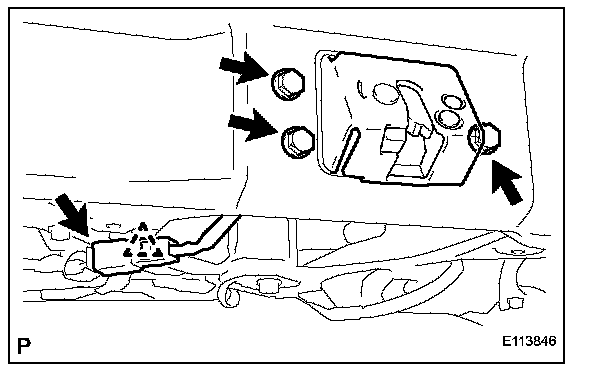

a. Disconnect the connector and clamp.
b. Remove the 3 bolts and the back door lock.

INSTALLATION




1. INSTALL BACK DOOR LOCK ASSEMBLY

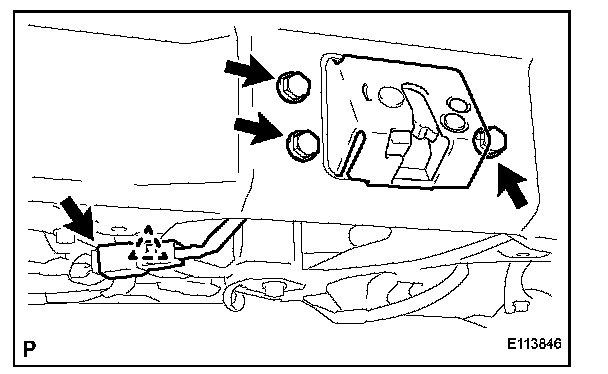

a. Install the back door lock with the 3 bolts.

Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)

b. Connect the connector and clamp.

2. INSTALL BACK DOOR TRIM BOARD ASSEMBLY

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
