REAR BUMPER (For Hatchback)

DISASSEMBLY





1. REMOVE REAR BUMPER ENERGY ABSORBER LH

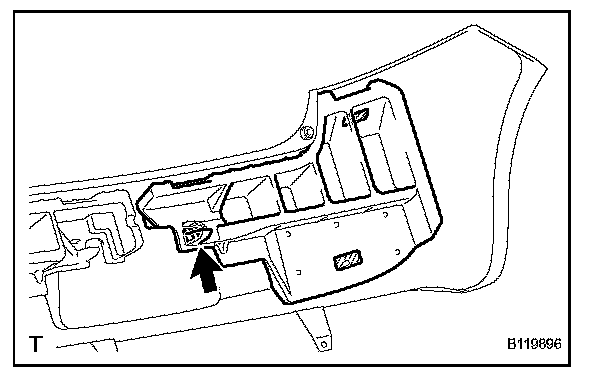

a. Remove the clip.
b. Remove the 2 pieces of tape and the rear bumper energy absorber.

2. REMOVE REAR BUMPER ENERGY ABSORBER RH

HINT: Use the same procedure as for the LH side.





3. REMOVE LICENSE PLATE LIGHT ASSEMBLY

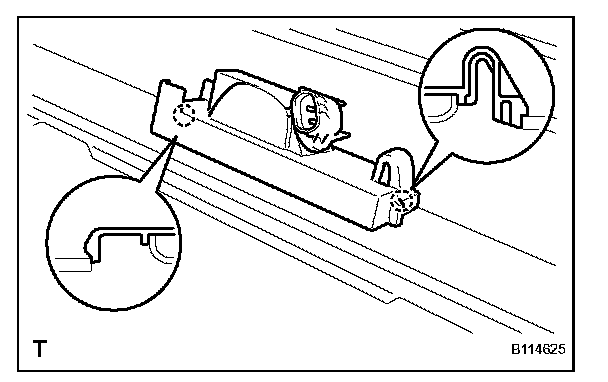

a. Disengage the 2 claws and remove the license plate light.

REASSEMBLY





1. INSTALL LICENSE PLATE LIGHT ASSEMBLY

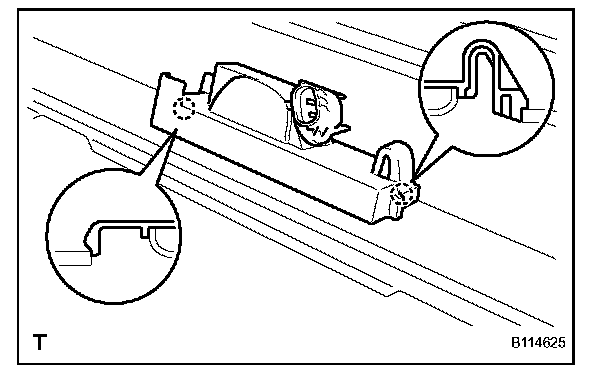

a. Engage the 2 claws and install the license plate light.

2. INSTALL REAR BUMPER ENERGY ABSORBER LH

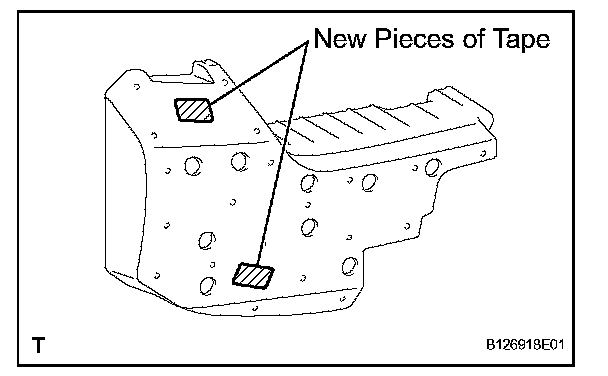

a. Apply 2 new pieces of tape.





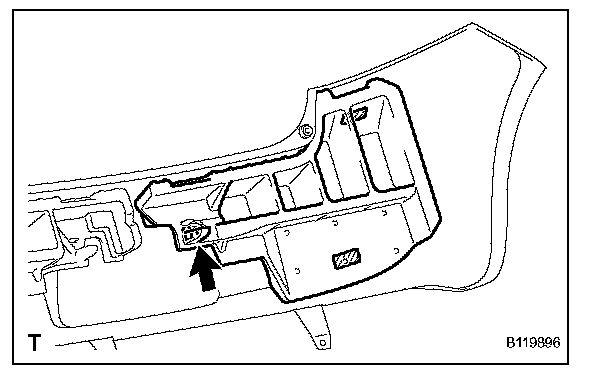

b. Install the rear bumper energy absorber with the clip.

3. INSTALL REAR BUMPER ENERGY ABSORBER RH

HINT: Use the same procedure as for the LH side.
