Front Bumper (For Sedan)
DISASSEMBLY1. REMOVE RADIATOR GRILLE EMBLEM

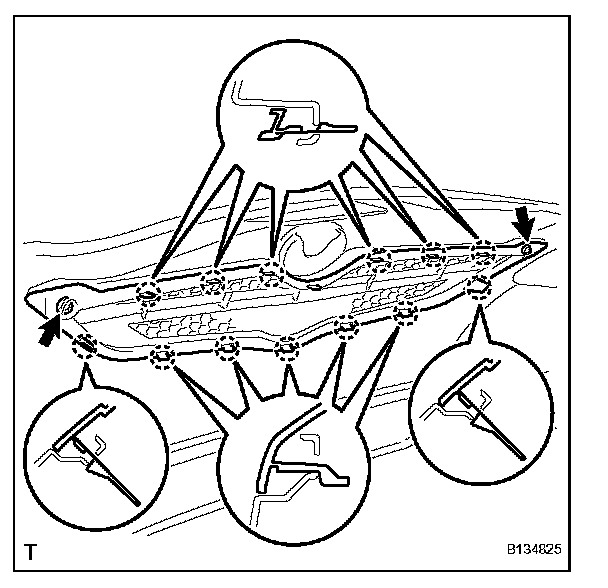

2. REMOVE RADIATOR GRILLE
a. Remove the 2 screws.
b. Using a screwdriver, disengage the 13 claws and remove the radiator grille.

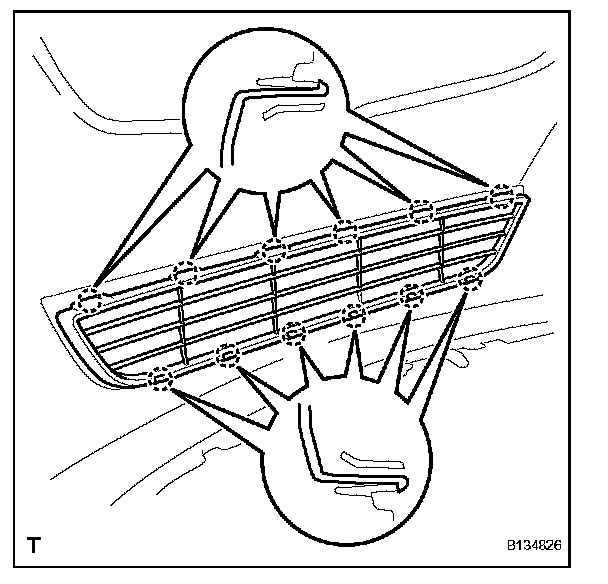

3. REMOVE RADIATOR LOWER GRILLE
a. Disengage the 12 claws and remove the radiator lower grille.

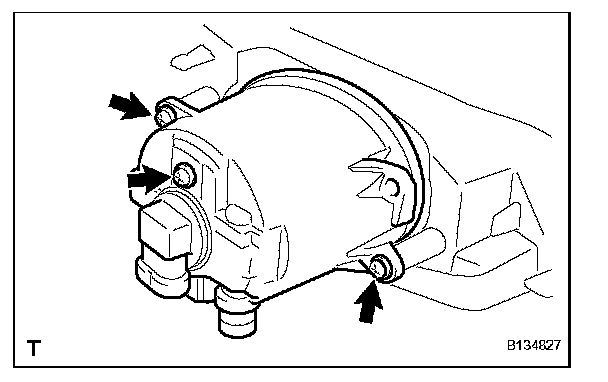

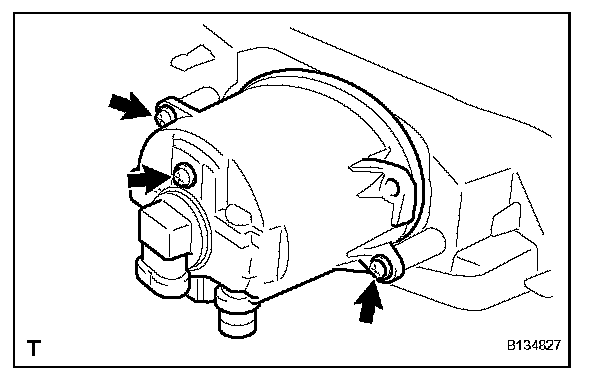

4. REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light)
a. Remove the 3 screws and the fog light.
5. REMOVE FOG LIGHT ASSEMBLY RH (w/ Fog Light)
HINT: Use the same procedure as for the LH side.

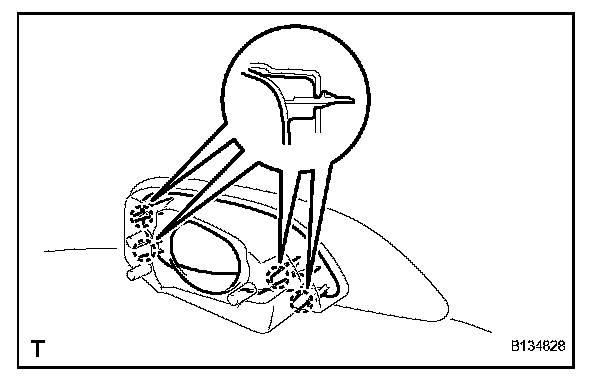

6. REMOVE FOG LIGHT COVER LH
a. w/ Fog Light:
1. Disengage the 4 claws and remove the fog light cover.

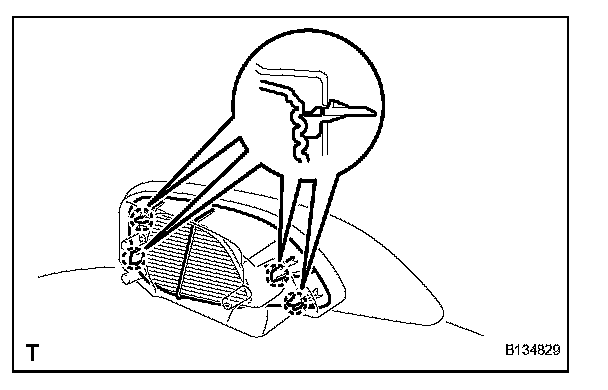

b. w/o Fog Light:
1. Disengage the 4 claws and remove the fog light cover.
7. REMOVE FOG LIGHT COVER RH
HINT: Use the same procedure as for the LH side.

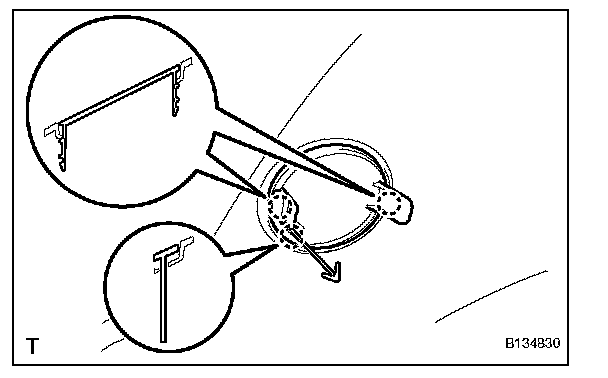

8. REMOVE FRONT BUMPER HOLE COVER
a. Disengage the 3 claws and remove the front bumper hole cover.
REASSEMBLY
1. INSTALL FRONT BUMPER HOLE COVER
a. Engage the 3 claws and install the front bumper hole cover.
2. INSTALL FOG LIGHT COVER LH
a. w/ Fog Light:
1. Engage the 4 claws and install the fog light cover.
b. w/o Fog Light:
1. Engage the 4 claws and install the fog light cover.
3. INSTALL FOG LIGHT COVER RH
HINT: Use the same procedure as for the LH side.
4. INSTALL FOG LIGHT ASSEMBLY LH (w/ Fog Light)
a. Install the fog light with the 3 screws.
5. INSTALL FOG LIGHT ASSEMBLY RH (w/ Fog Light)
HINT: Use the same procedure as for the LH side.

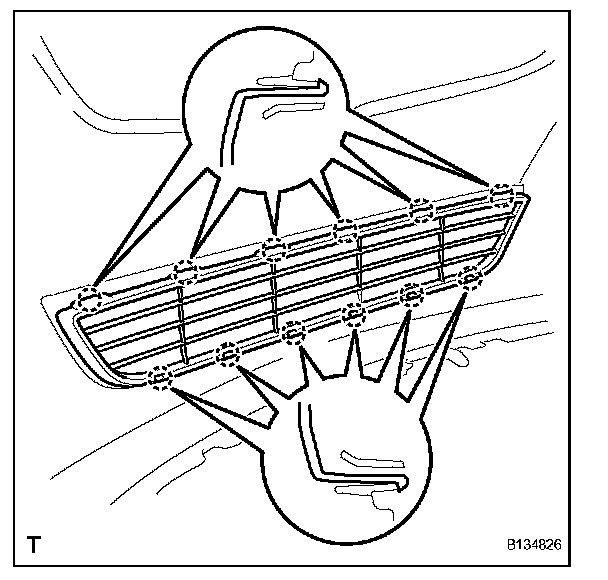

6. INSTALL RADIATOR LOWER GRILLE
a. Engage the 12 claws and install the radiator lower grille.

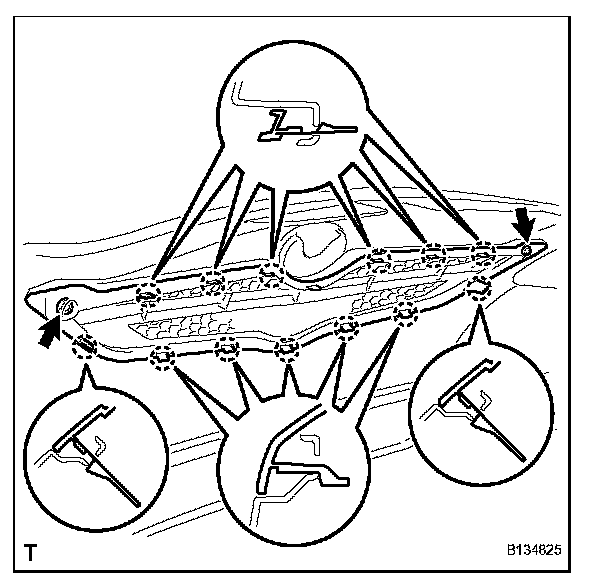

7. INSTALL RADIATOR GRILLE
a. Engage the 13 claws and install the radiator grille.
b. Tighten the 2 screws.
8. INSTALL RADIATOR GRILLE EMBLEM
