Front Bumper (For Hatchback)

DISASSEMBLY





1. REMOVE FRONT BUMPER PAD

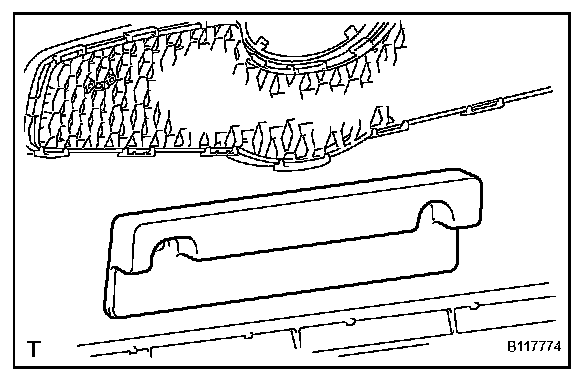

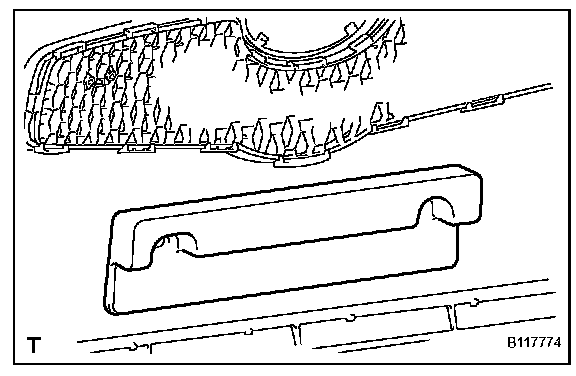

a. Remove the front bumper pad.

2. REMOVE RADIATOR GRILLE EMBLEM





3. REMOVE RADIATOR GRILLE

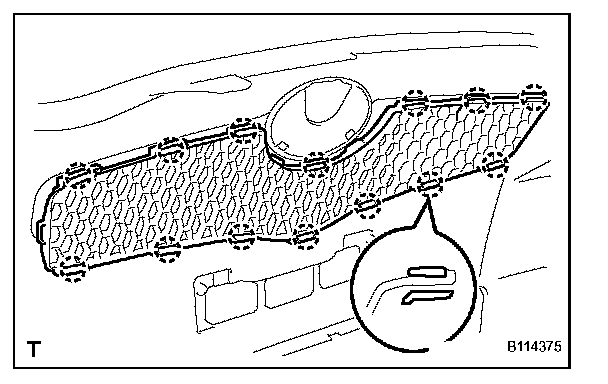

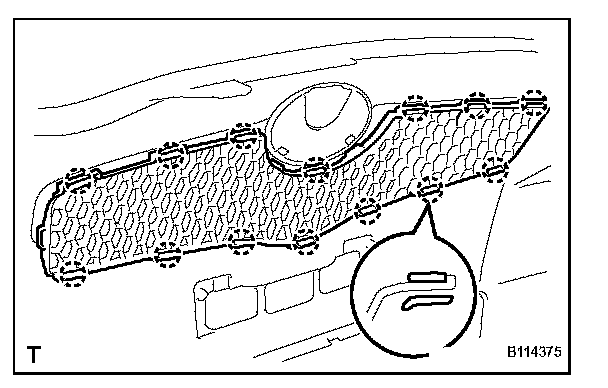

a. Using a screwdriver, disengage the 14 claws and remove the radiator grille.





4. REMOVE RADIATOR LOWER GRILLE

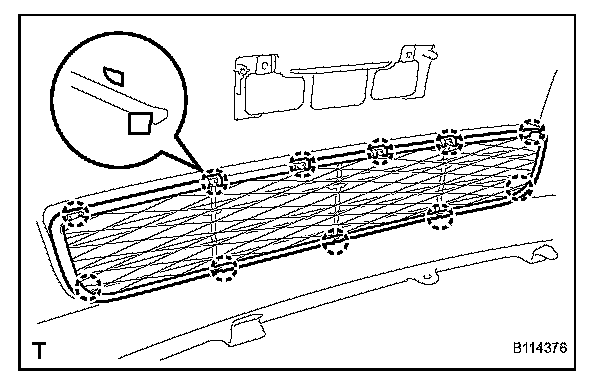

a. Disengage the 11 claws and remove the radiator lower grille.





5. REMOVE FOG LIGHT ASSEMBLY LH

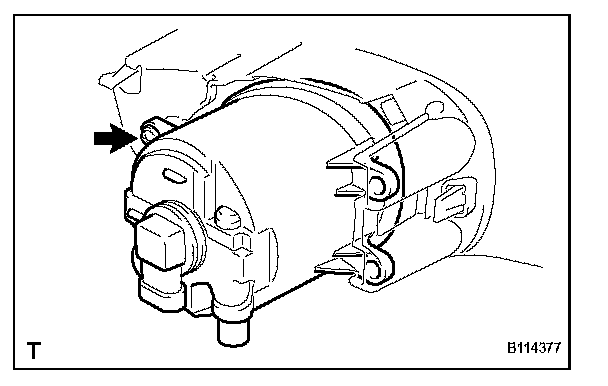

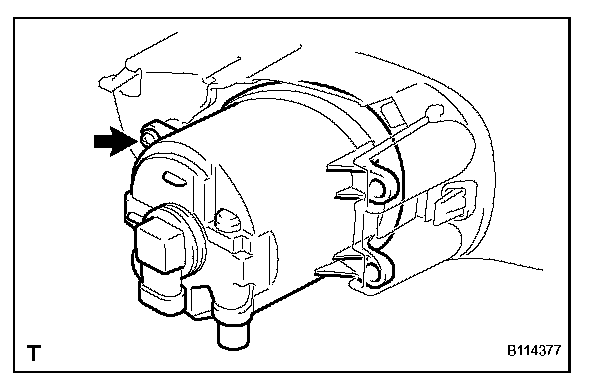

a. Remove the screw and the fog light.

6. REMOVE FOG LIGHT ASSEMBLY RH

HINT: Use the same procedure as for the LH side.

7. REMOVE FOG LIGHT COVER LH





a. w/ Fog Light:

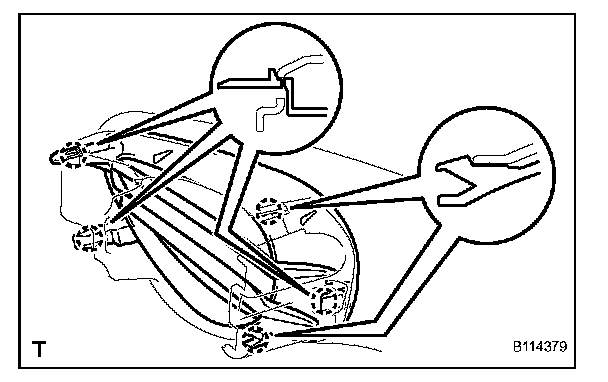

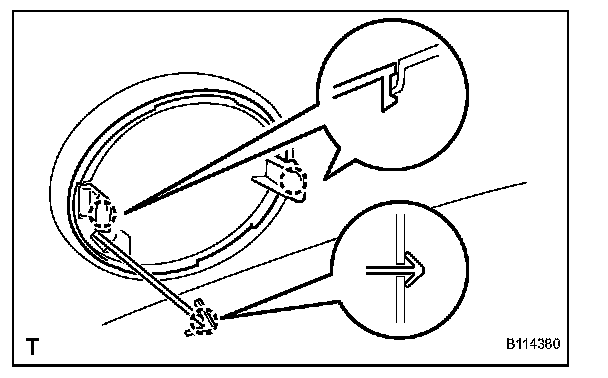

1. Disengage the 5 claws and remove the fog light cover.





b. w/o Fog Light:

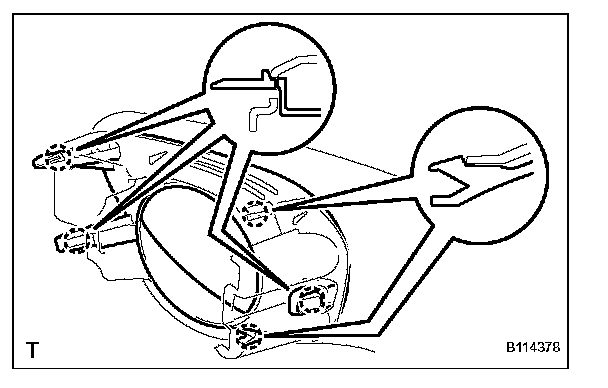

1. Disengage the 5 claws and remove the fog light cover.

8. REMOVE FOG LIGHT COVER RH

HINT: Use the same procedure as for the LH side.





9. REMOVE FRONT BUMPER HOLE COVER
a. Disengage the 3 claws and remove the front bumper hole cover.

REASSEMBLY





1. INSTALL FRONT BUMPER HOLE COVER
a. Engage the 3 claws and install the front bumper hole cover.

2. INSTALL FOG LIGHT COVER LH





a. w/ Fog Light:

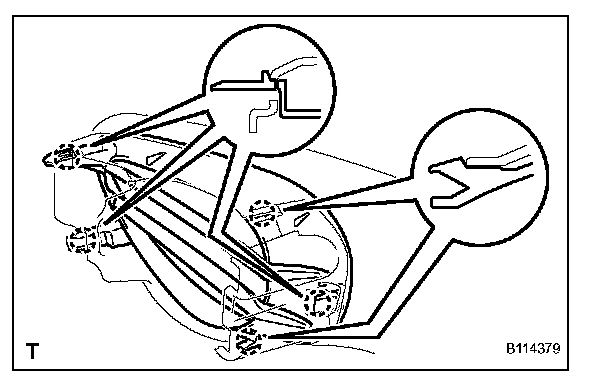

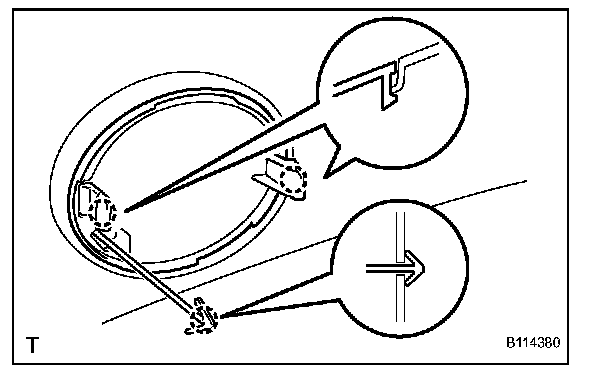

1. Engage the 5 claws and install the fog light cover.





b. w/o Fog Light:

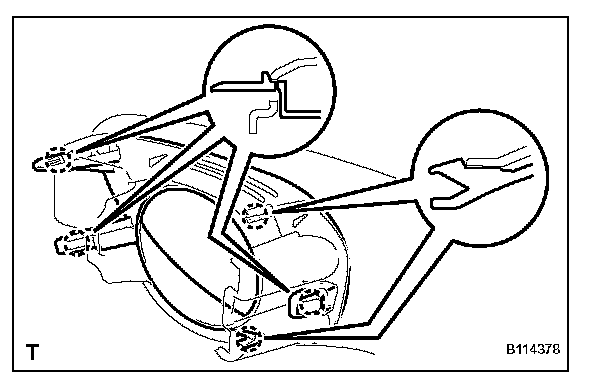

1. Engage the 5 claws and install the fog light cover.

3. INSTALL FOG LIGHT COVER RH

HINT: Use the same procedure as for the LH side.





4. INSTALL FOG LIGHT ASSEMBLY LH
a. Install the fog light with the screw.

5. INSTALL FOG LIGHT ASSEMBLY RH

HINT: Use the same procedure as for the LH side.





6. INSTALL RADIATOR LOWER GRILLE
a. Engage the 11 claws and install the radiator lower grille.





7. INSTALL RADIATOR GRILLE
a. Engage the 14 claws and install the radiator grille.

8. INSTALL RADIATOR GRILLE EMBLEM





9. INSTALL FRONT BUMPER PAD
a. Install the front bumper pad.
