Home >> Toyota >> 2007 >> Yaris L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Lock Cylinder Switch >> Locations

Lock Cylinder Switch: Locations

Power Door Lock Control System:



Power Door Lock Control System:



Theft Deterrent System (Hatchback):

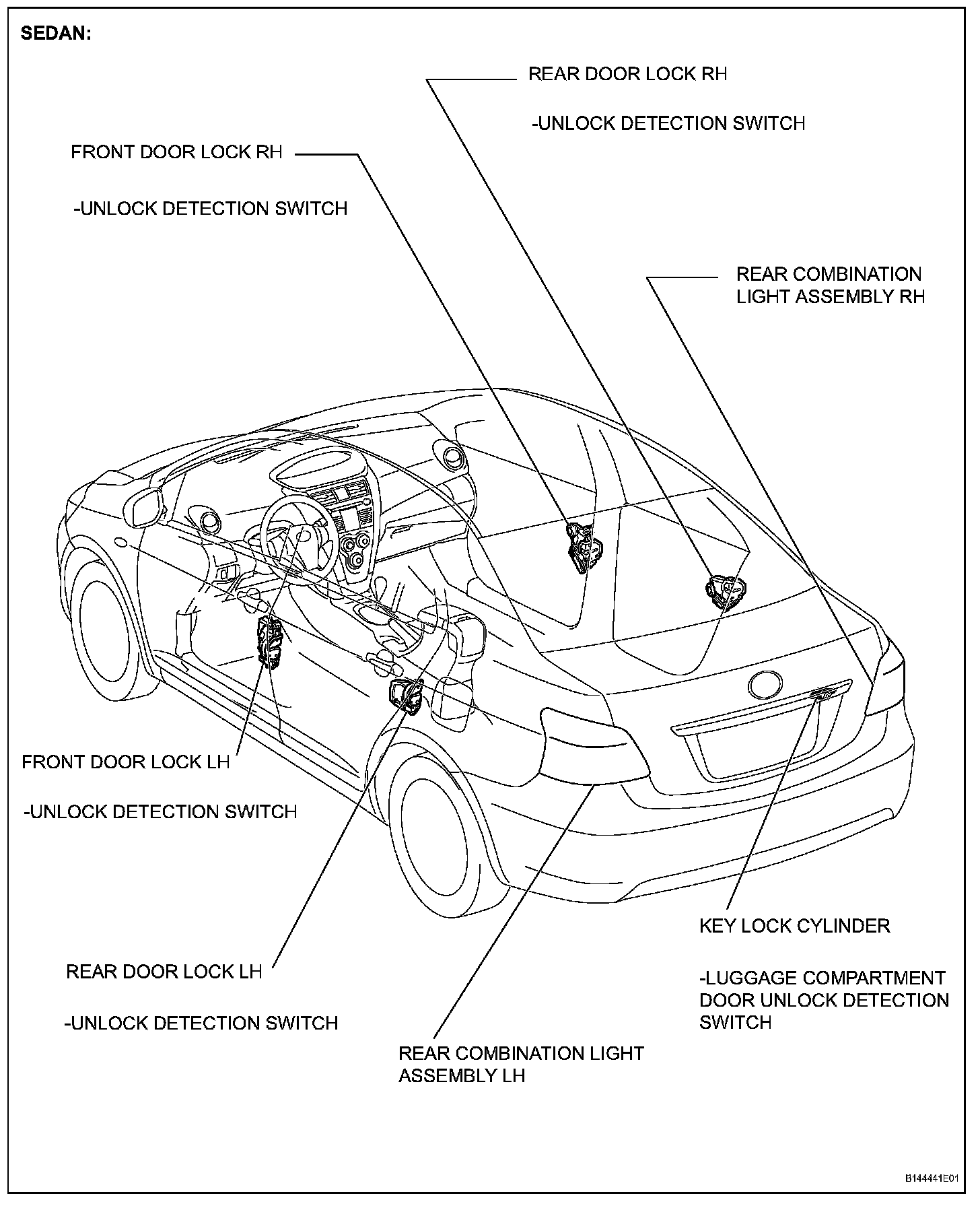

Theft Deterrent System (Sedan):
