REAR DOOR LOCK (for Sedan)

REMOVAL

HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

2. REMOVE REAR DOOR WINDOW REGULATOR HANDLE ASSEMBLY (w/o Power Window)

3. REMOVE REAR DOOR ARMREST BASE UPPER PANEL

4. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

5. REMOVE REAR DOOR TRIM BRACKET

6. REMOVE REAR DOOR SERVICE HOLE COVER

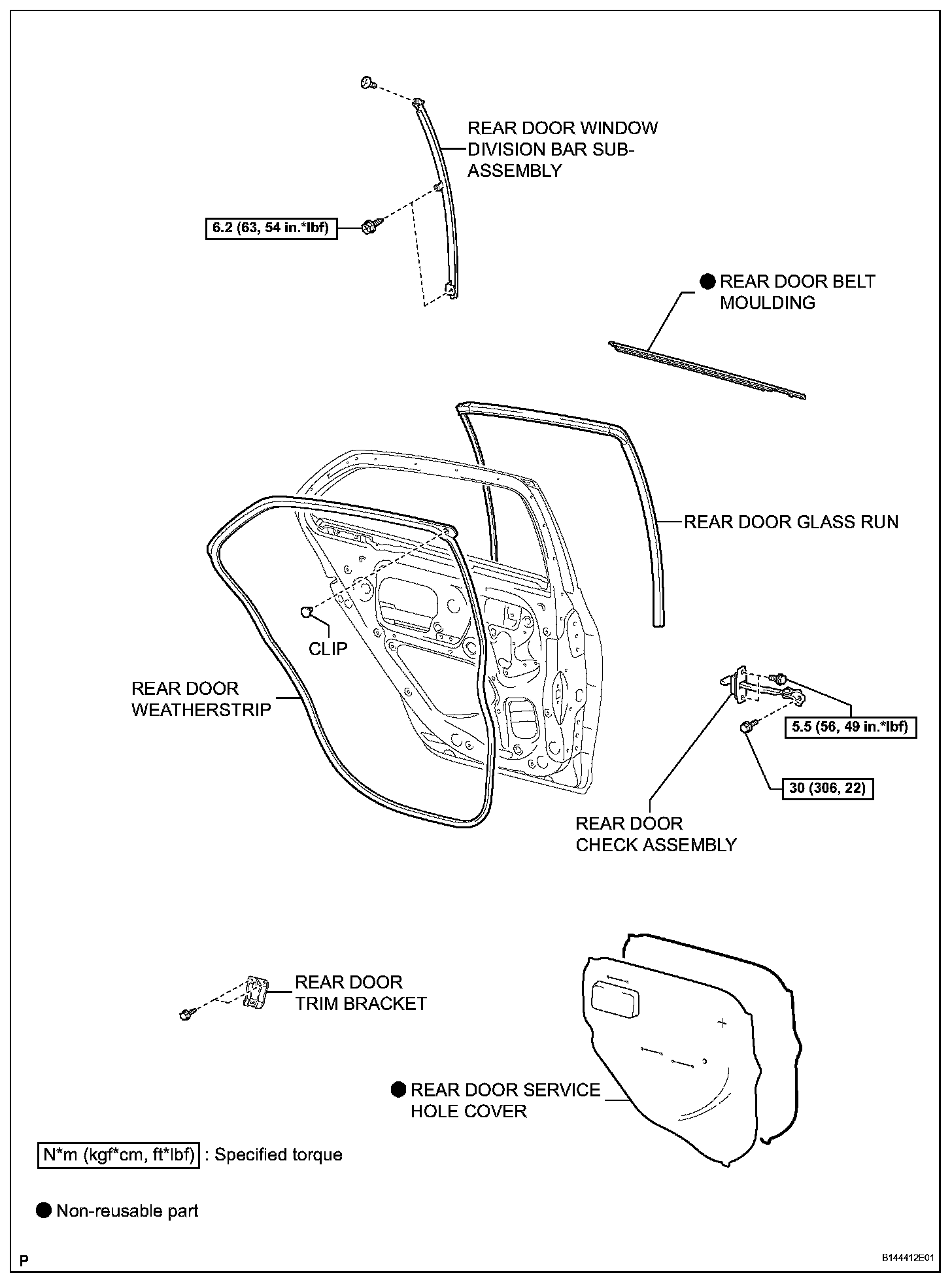

7. REMOVE REAR DOOR CHECK ASSEMBLY

8. REMOVE REAR DOOR WEATHERSTRIP

9. REMOVE REAR DOOR BELT MOULDING

10. REMOVE REAR DOOR GLASS RUN

11. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

12. REMOVE REAR DOOR GLASS SUB-ASSEMBLY




13. REMOVE REAR DOOR LOCK

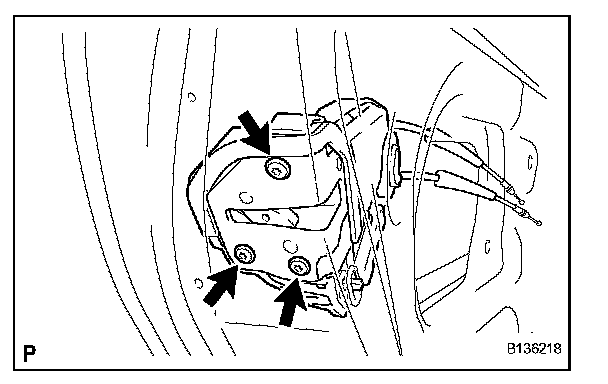

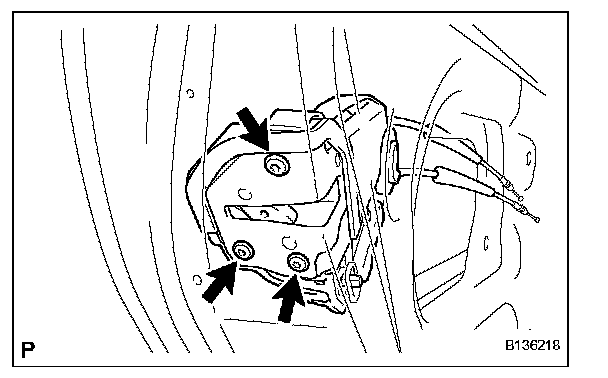

a. Using "Torx" socket wrench T30, remove the 3 screws.

NOTE: Do not drop or damage the rear door lock when removing the screws.

b. Move the rear door lock downward, remove the outside handle frame release plate and remove the rear door lock.

HINT: Remove the rear door lock through the service hole.

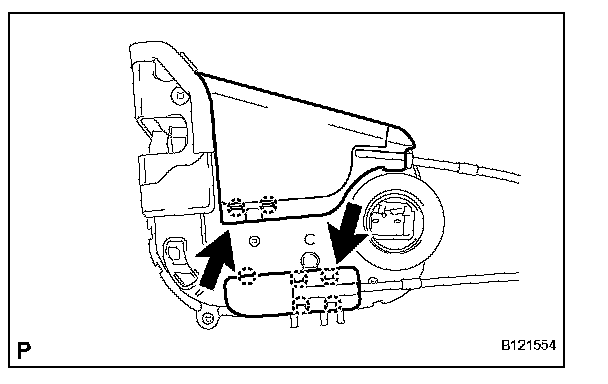

c. Open the 2 covers.




d. Disconnect the rear door lock remote control cable and rear door inside locking cable.
e. Remove the door lock wire harness seal.

INSTALLATION

1. INSTALL REAR DOOR LOCK

NOTE:
- If reusing a door lock that has been removed, replace the packing in the connecting part with new.
- Make sure that no grease or dirt adheres to the packing surface in the connecting part.

a. Apply MP grease to the sliding and rotating areas of the front door lock.




b. Connect the rear door lock remote control cable and rear door inside locking cable.




c. Close the 2 covers.
d. Insert the door lock into the outside handle frame release plate, then set it onto the door panel.
e. Make sure that the outside handle frame link is securely engaged with the door lock.
f. Apply adhesive to the threads of the screws.

Adhesive: Toyota Genuine Adhesive 1324, Three Bond 1324 or the equivalent.

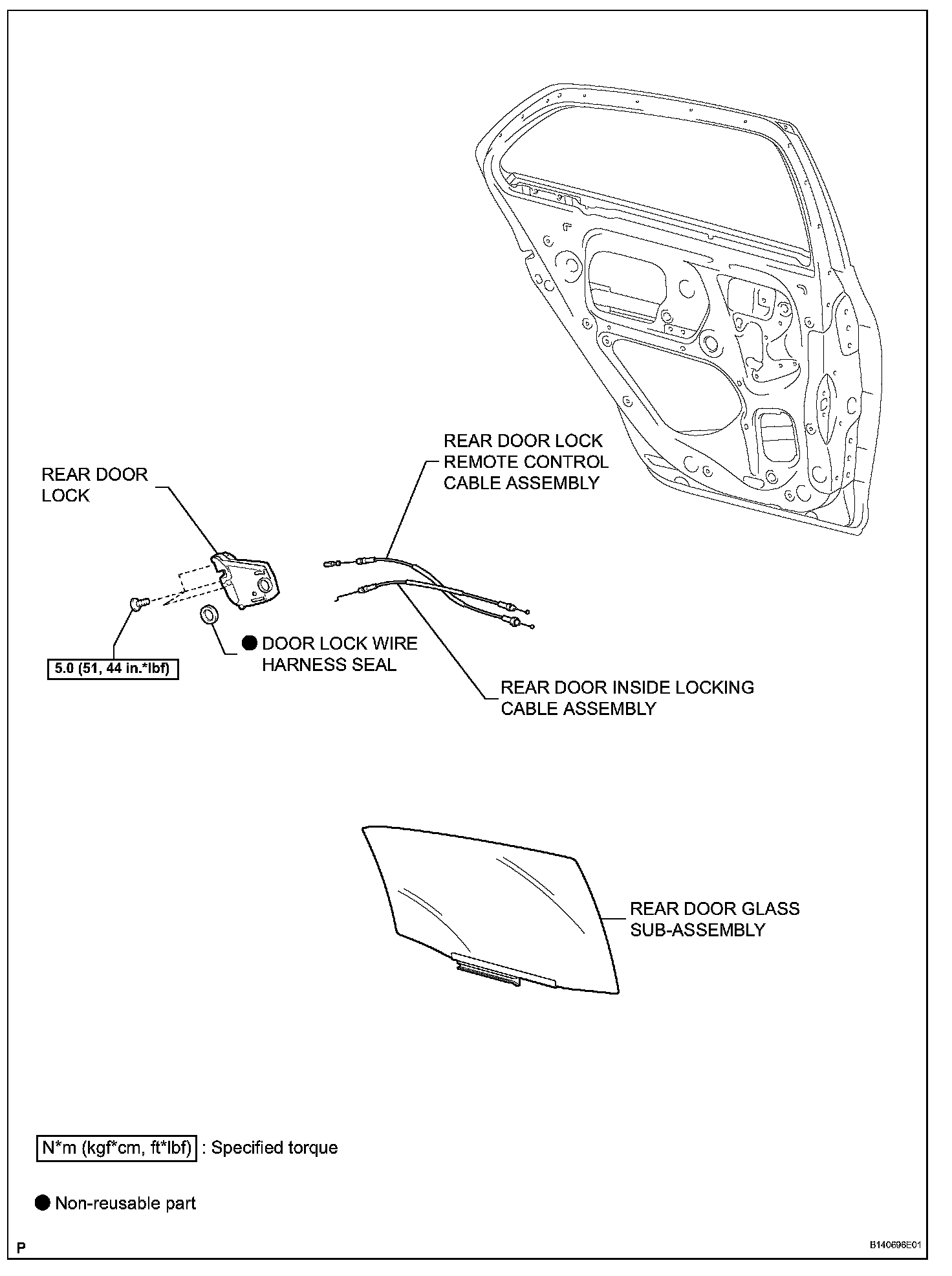

g. Using "Torx" socket wrench T30, install the rear door lock with the 3 screws.

Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

2. INSTALL REAR DOOR GLASS SUB-ASSEMBLY

3. INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

4. INSTALL REAR DOOR GLASS RUN

5. INSTALL REAR DOOR BELT MOULDING

6. INSTALL REAR DOOR WEATHERSTRIP

7. INSTALL REAR DOOR CHECK ASSEMBLY

8. INSTALL REAR DOOR SERVICE HOLE COVER

9. INSTALL REAR DOOR TRIM BRACKET

10. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY

11. INSTALL REAR DOOR ARMREST BASE UPPER PANEL

12. INSTALL REAR DOOR WINDOW REGULATOR HANDLE ASSEMBLY (w/o Power Window)

13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
